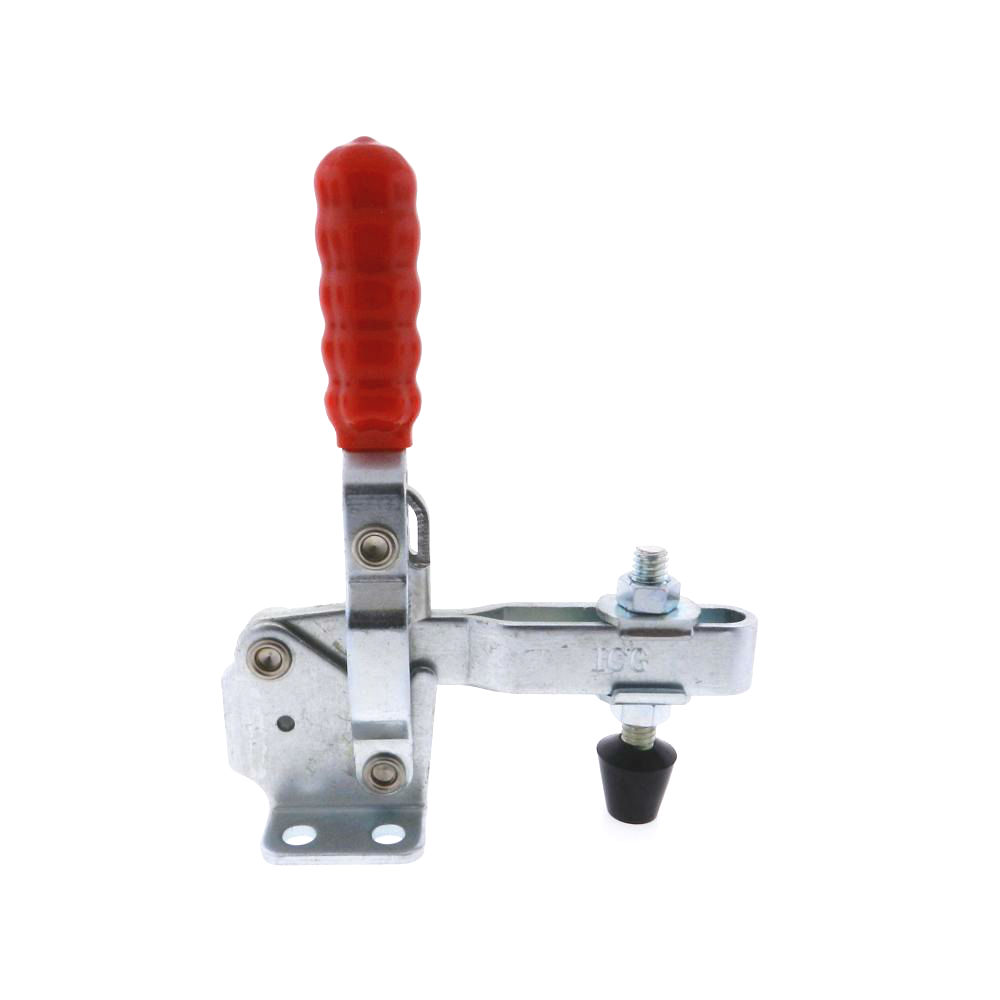

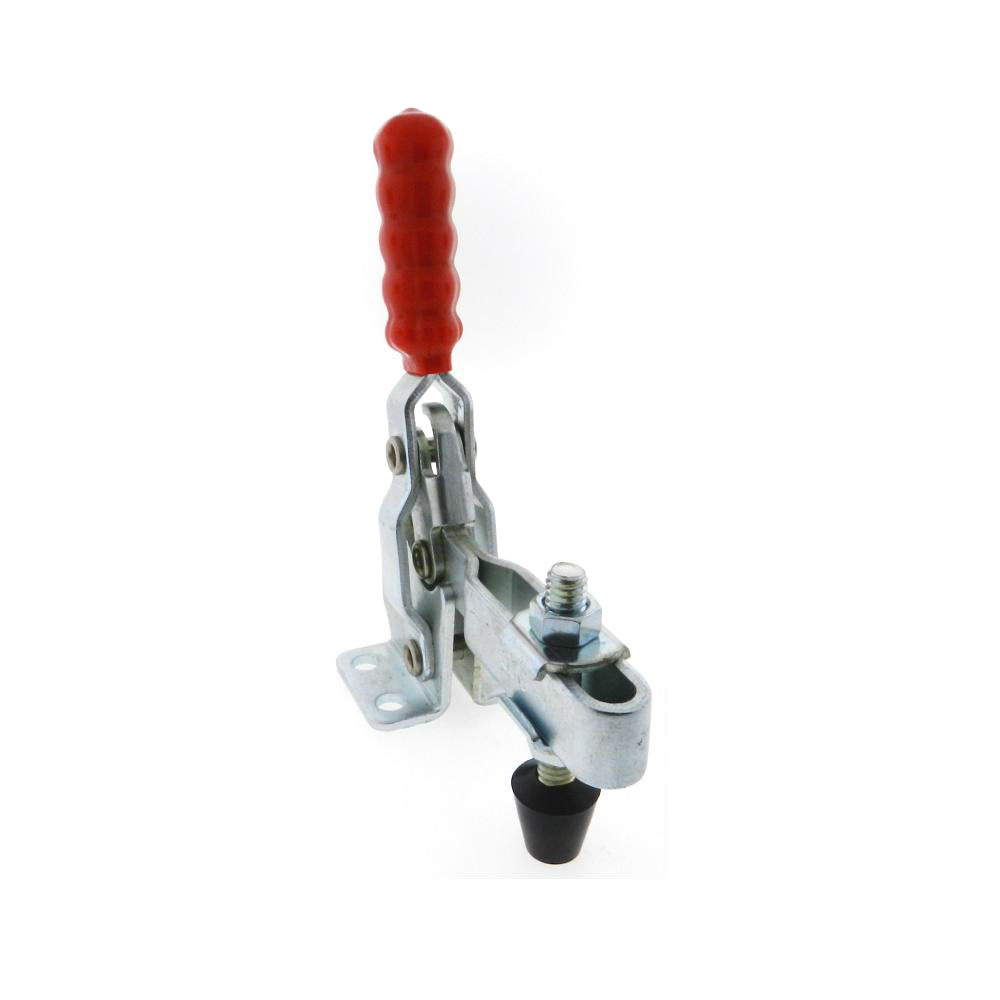

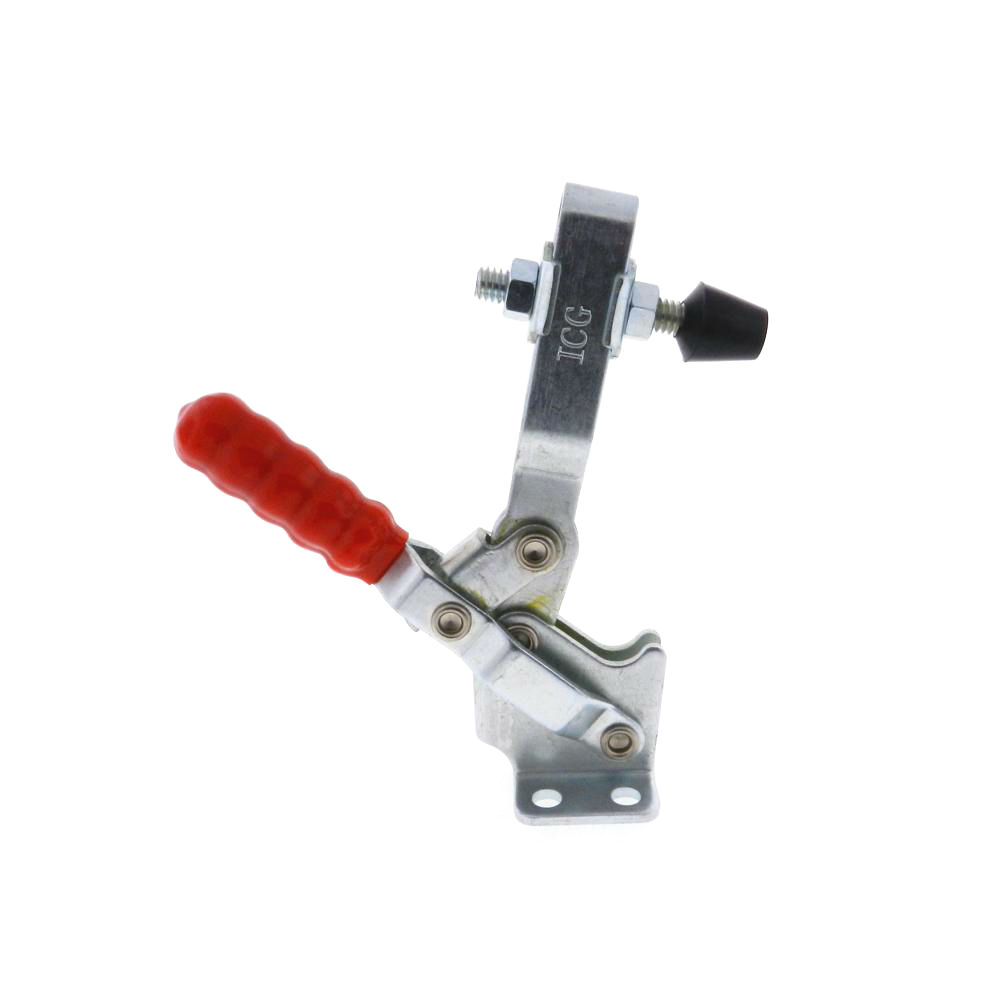

All of our vertical toggle clamps (also known as pneumatic clamps) are constructed from the highest quality steel, and are designed and engineered with operator safety in mind, by the elimination of pinch points which can cause injury. With the ergonomic vinyl coating we apply to every clamp handle, the operator can be assured that even in the slipperiest and oiliest of situations, positive clamp engagement and disengagement will occur without fail. Our vertical toggle clamps are excellent for a panoply of applications including wood working, mold making, barrel clamping, welding and more. To meet any and all project requirements, custom design and private labeling are available upon request. Contact a JBF National sales engineer today, to find out more.
JBF National Part Number | Description | DeStaCo Ref | Kakuta Ref |
---|---|---|---|
TE-101-A | U-BAR, FLANGED BASE, STRAIGHT HANDLE | 201 | HV150 |
TE-101-AI | U-BAR, STRAIGHT BASE & HANDLE | 201-UB | - |
TE-101-D | U-BAR, FLANGED BASE, STRAIGHT HANDLE | - | - |
TE-102-B | U-BAR, FLANGED BASE, STRAIGHT HANDLE | - | - |
TE-12050 | FIXED SPINDLE, FLANGED BASE | 202 | HV250 |
TE-12050-U | U-BAR, FLANGED BASE, STRAIGHT HANDLE | 202-U | - |
TE-12055 | FIXED SPINDLE, STRAIGHT BASE & HANDLE | 202-B | - |
TE-12055-U | U-BAR, STRAIGHT BASE & HANDLE | 202-UB | - |
TE-12070 | FIXED SPINDLE, FLANGED BASE, T-HANDLE | 202-T | - |
TE-12075 | FIXED SPINDLE, STRAIGHT BASE, T-HANDLE | 202-TB | - |
TE-12130 | SHORT U-BAR, FLANGED BASE | 207-U | HV450 |
TE-12132 | LONG U-BAR, FLANGED BASE | 207-UL | - |
TE-12135 | SHORT U-BAR, STRAIGHT BASE & HANDLE | 207-UB | - |
TE-12137 | LONG U-BAR, STRAIGHT BASE & HANDLE | 207-ULB | - |
TE-12140 | SHORT SOLID BAR, FLANGED BASE | 207-S | HV350 |
TE-12142 | LONG SOLID BAR, FLANGED BASE | 207-L | - |
TE-12145 | SHORT SOLID BAR, STRAIGHT BASE & HANDLE | 207-SB | - |
TE-12147 | LONG SOLID BAR, STRAIGHT BASE & HANDLE | 207-LB | - |
TE-12265 | U-BAR, FLANGED BASE, STRAIGHT HANDLE | 210-U | HV650 |
TE-12270 | U-BAR, STRAIGHT BASE & HANDLE | 210-UB | - |
TE-12275 | SOLID BAR, FLANGED BASE | 210-S | HV550 |
TE-12280 | SOLID BAR, STRAIGHT BASE & HANDLE | 210-SB | - |
TE-10247 | U-BAR, FLANGED BASE | 247-U | - |
TE-10248 | U-BAR, STRAIGHT BASE | 247-UB | - |
TE-10249 | SOLID BAR, FLANGED BASE | 247-S | - |
TE-10250 | SOLID BAR, STRAIGHT BASE | 247-SB | - |
TE-13005 | SHORT U-BAR, FLANGED BASE | 305-U | - |
TE-13007 | SHORT U-BAR, FLANGED BASE | 307-U | - |
TE-13008 | SHORT U-BAR, FLANGED BASE | 309-U | - |
