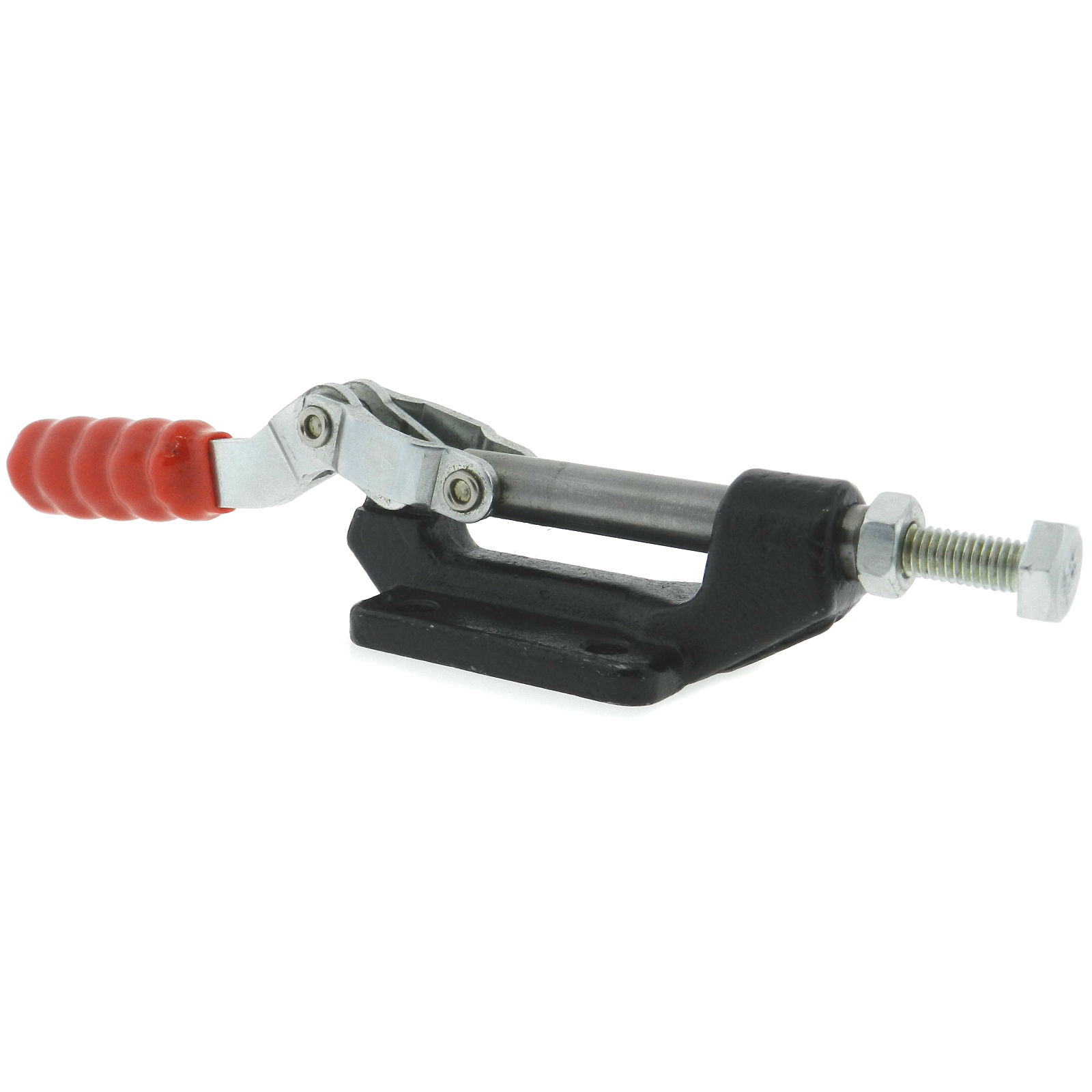

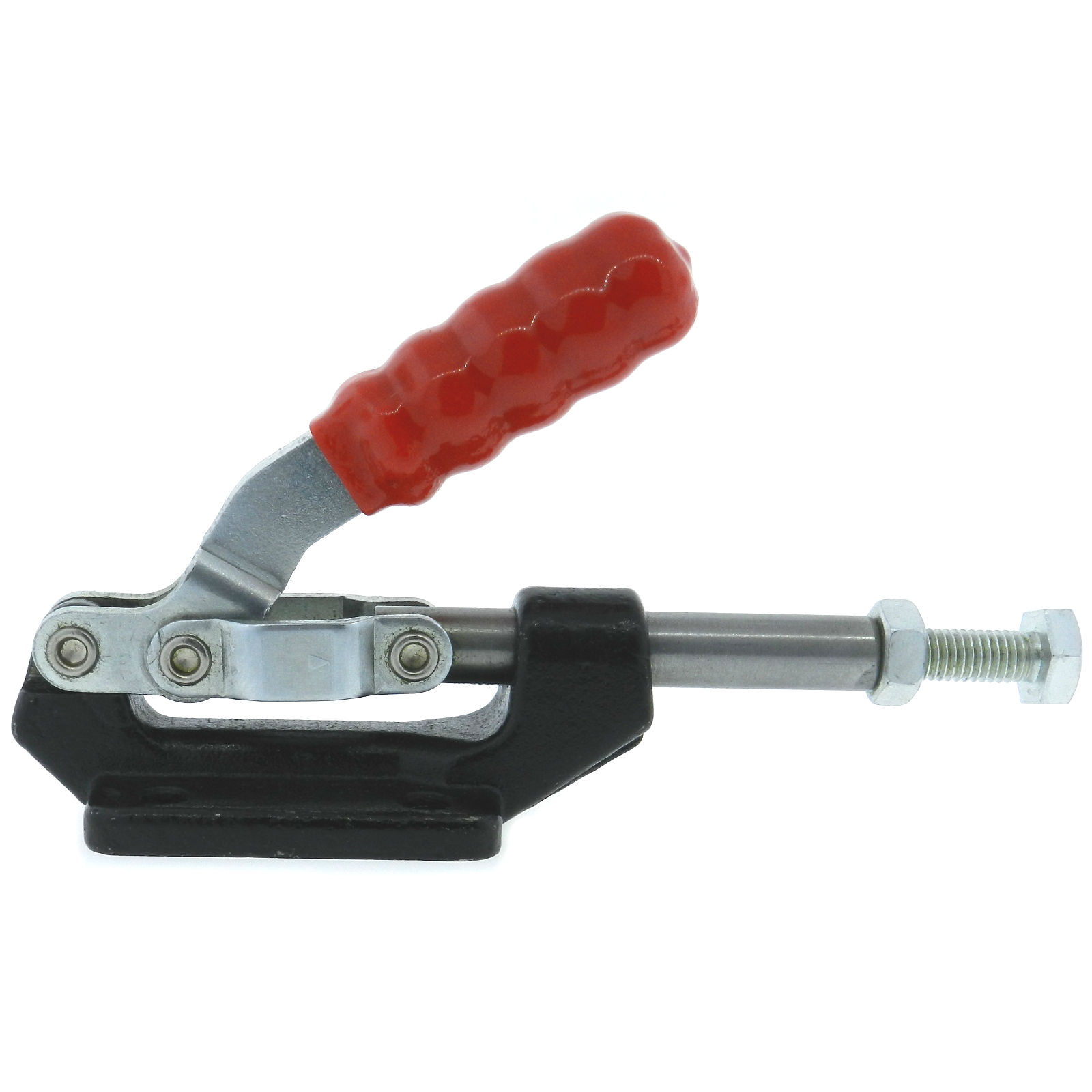

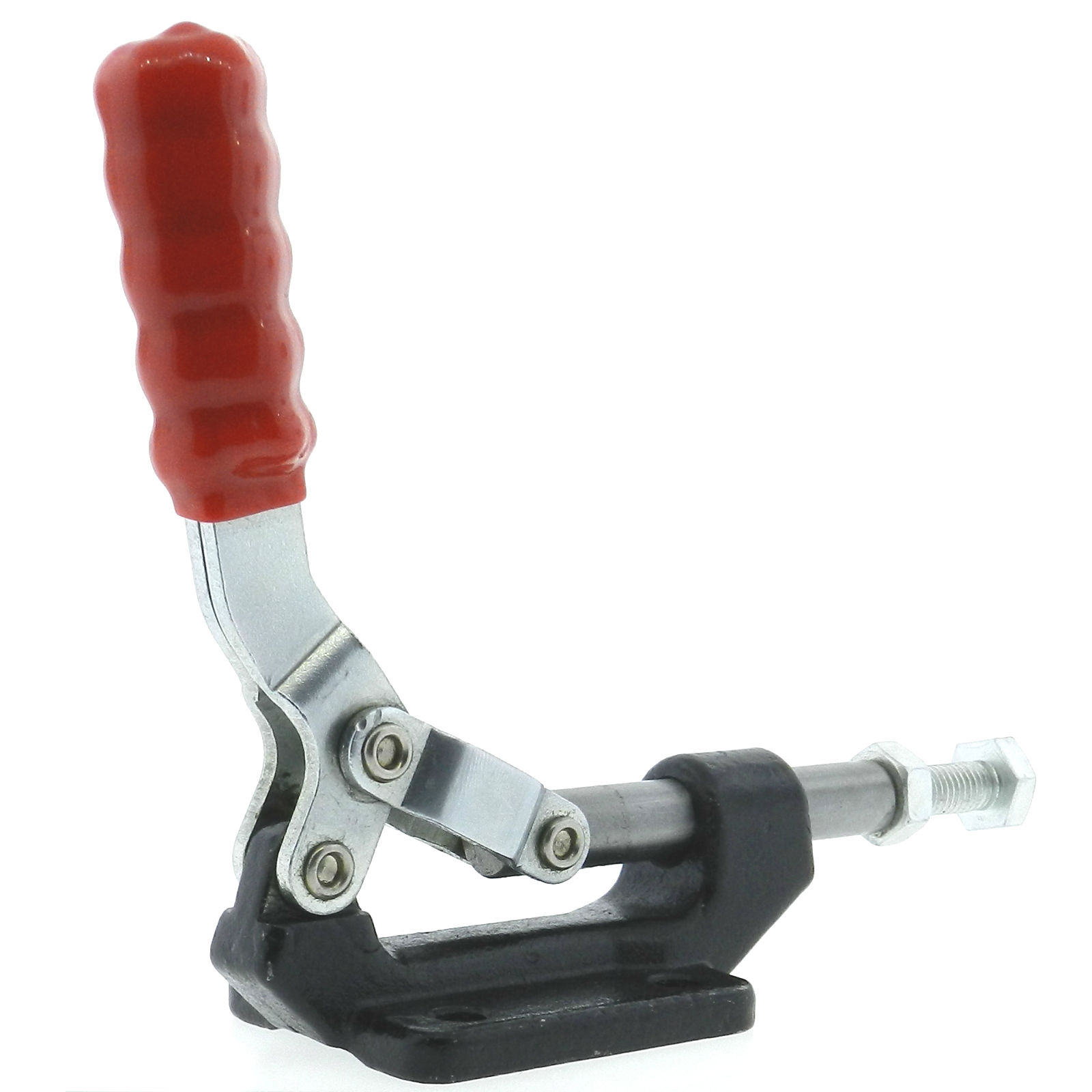

All of JBF National’s push-pull toggle clamps (also known as pneumatic clamps) are constructed from the highest quality steel, and are designed and engineered with operator safety in mind, by the elimination of injurious pinch points. With the ergonomic vinyl coating we apply to every clamp handle, the operator can be assured that even in the slipperiest and oiliest of situations, positive clamp engagement and disengagement will occur without fail. Our push-pull toggle clamps are excellent for a panoply of applications including wood working, mold making, barrel clamping, welding and more. To meet any and all project requirements, custom design and private labeling are available upon request. Contact a JBF National sales engineer today, to find out more.
JBF National Part Number | Plunger Stroke | DeStaCo Ref | Kakuta Ref |
---|---|---|---|
TE-301-AM | 15.9mm | 601 | SL10 |
TE-302-FM | 32.0mm | 605 | SL150 |
TE-304-CM | 30.2mm | - | SL100 |
TE-304-EM | 30.2mm | 608 | SL200 |
TE-36003M | 31.8mm | 603 | - |
TE-30607M | 10.0mm | 607 | - |
TE-36092M | 31.8mm | 609 | - |
TE-36202M | 19.0mm | 602 | - |
TE-36204M | 19.0mm | 604 | FM150 |
TE-36205M | 38.0mm | 604106 | - |
TE-36224M | 66.8mm | 624 | FM250 |
TE-36225M | 624108 | - | |
TE-36330M | 630 | SL350 |
