Stud Style Poly Pads - Metric Steel (33 sizes)

Click to enlarge
Poly-Pad leveling mounts are made of 30% glass fiber reinforced nylon, providing a strong, durable and economical leveling device. "Pop out" caps expose bolt holes for optional floor mounting if needed. One piece CNC machined stud and ball assembly made from zinc plated grade 1215CDS steel with wrench flats and 15 degree stop collar. Add "NS" suffix to part number for the non skid base version.

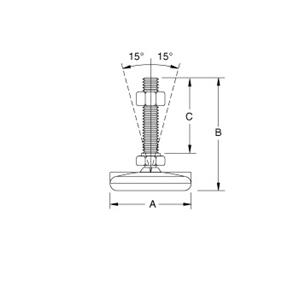

Part # A B C lag hole wrench flat max load rating (kgs)
Part # A B C lag hole wrench flat max load rating (kgs)
PPSM-212 50 120 M10 x 75 6.5 13 1800
PPSM-213 50 145 M10 x 100 6.5 13 1800
PPSM-214 50 170 M10 x 125 6.5 13 1800
PPSM-221 50 120 M12 x 75 6.5 13 1800
PPSM-222 50 145 M12 x 100 6.5 13 1800
PPSM-223 50 195 M12 x 150 6.5 13 1800
PPSM-231 50 120 M16 x 75 6.5 13 1800
PPSM-232 50 145 M16 x 100 6.5 13 1800
PPSM-233 50 170 M16 x 125 6.5 13 1800
PPSM-234 50 195 M16 x 150 6.5 13 1800
PPSM-235 50 245 M16 x 200 6.5 13 1800
PPSM-312 80 120 M10 x 75 9 13 2270
PPSM-313 80 145 M10 x 100 9 13 2270
PPSM-314 80 170 M10 x 125 9 13 2270
PPSM-321 80 120 M12 x 75 9 13 2270
PPSM-322 80 145 M12 x 100 9 13 2270
PPSM-323 80 195 M12 x 150 9 13 2270
PPSM-331 80 120 M16 x 75 9 13 2270
PPSM-332 80 145 M16 x 100 9 13 2270
PPSM-333 80 170 M16 x 125 9 13 2270
PPSM-334 80 195 M16 x 150 9 13 2270
PPSM-335 80 245 M16 x 200 9 13 2270
PPSM-412 110 125 M10 x 75 10.5 13 3180
PPSM-413 110 150 M10 x 100 10.5 13 3180
PPSM-414 110 175 M10 x 125 10.5 13 3180
PPSM-421 110 125 M12 x 75 10.5 13 3180
PPSM-422 110 150 M12 x 100 10.5 13 3180
PPSM-423 110 200 M12 x 150 10.5 13 3180
PPSM-431 100 125 M16 x 75 10.5 13 3180
PPSM-432 110 150 M16 x100 10.5 13 3180
PPSM-433 110 175 M16 x 125 10.5 13 3180
PPSM-434 110 200 M16 x 150 10.5 13 3180
PPSM-435 110 250 M16 x 200 10.5 13 3180
