Phenolic Sleeve Handle

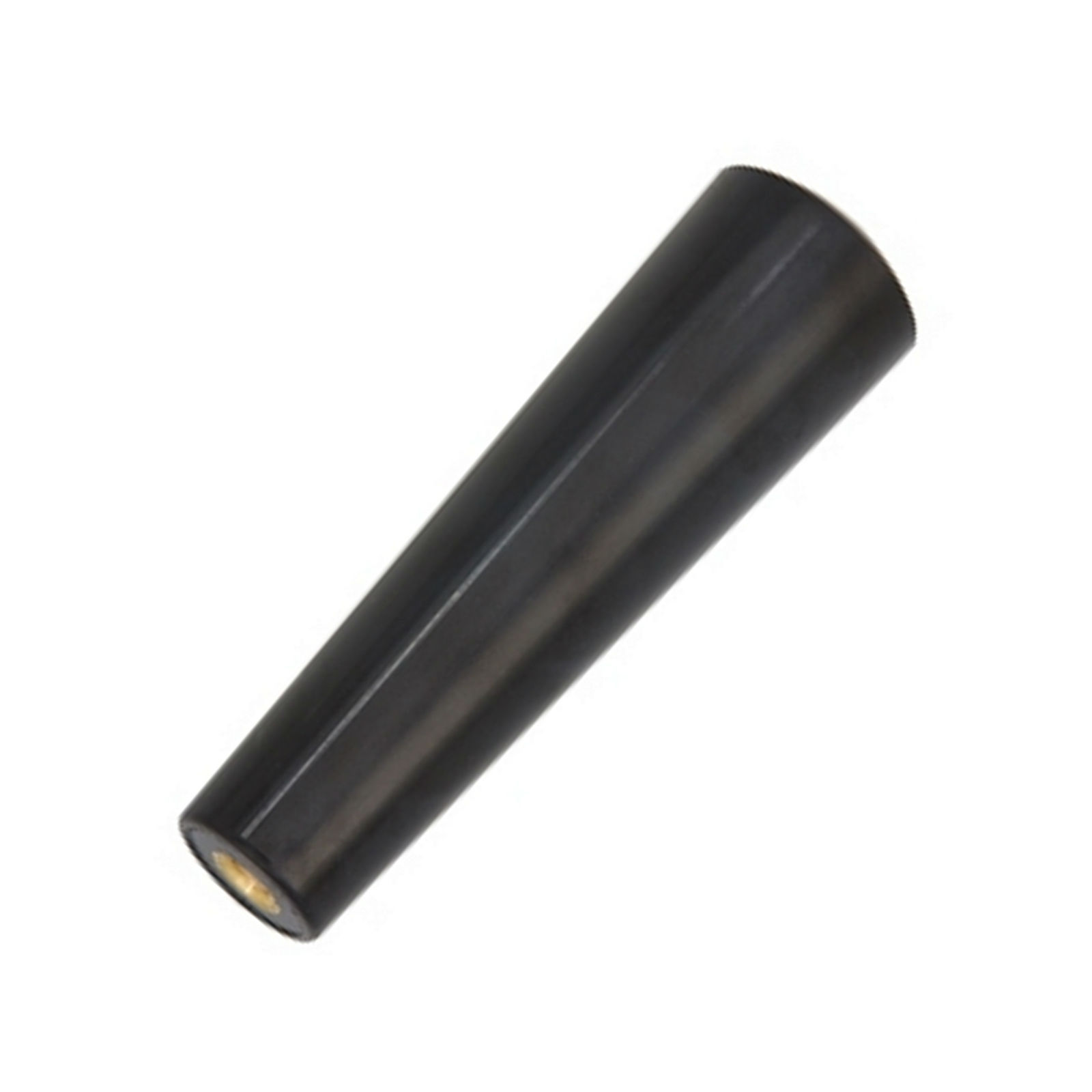

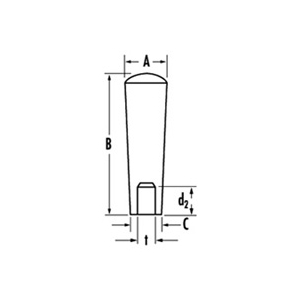

JBF National’s phenolic sleeve handles ensure the utmost positive grip regardless of work area and situation. The phenolic handle guarantees operator hand comfort over the long haul, and features a high gloss finish for an aesthetically pleasing look. Molded brass insert comes standard. Please see component diagram below.
| JBF National Part Number | A | B | C | d2 | t |
|---|---|---|---|---|---|
| 1RPSH-1046 | 1 | 4.17 | 0.67 | 0.5 | 1/4-20 |
| 1RPSH-1047 | 1 | 4.17 | 0.67 | 0.5 | 5/16-18 |
| 1RPSH-1048 | 1 | 4.17 | 0.67 | 0.5 | 3/8-16 |
| 2RPSH-1049 | 0.71 | 2.54 | 0.52 | 0.37 | 1/4-20 |
| 3RPSH-1050 | 0.87 | 2.84 | 0.59 | 0.37 | 1/4-20 |
| 3RPSH-1051 | 0.87 | 2.84 | 0.59 | 0.75 | 5/16-18 |
| 4RPSH-1052 | 0.97 | 3.56 | 0.67 | 0.5 | 1/4-20 |
| 4RPSH-1053 | 0.97 | 3.56 | 0.67 | 0.5 | 5/16-18 |
| 4RPSH-1054 | 0.97 | 3.56 | 0.67 | 0.63 | 3/8-16 |
| 4RPSH-1055 | 0.97 | 3.56 | 0.67 | 2 | 3/8-16 |
