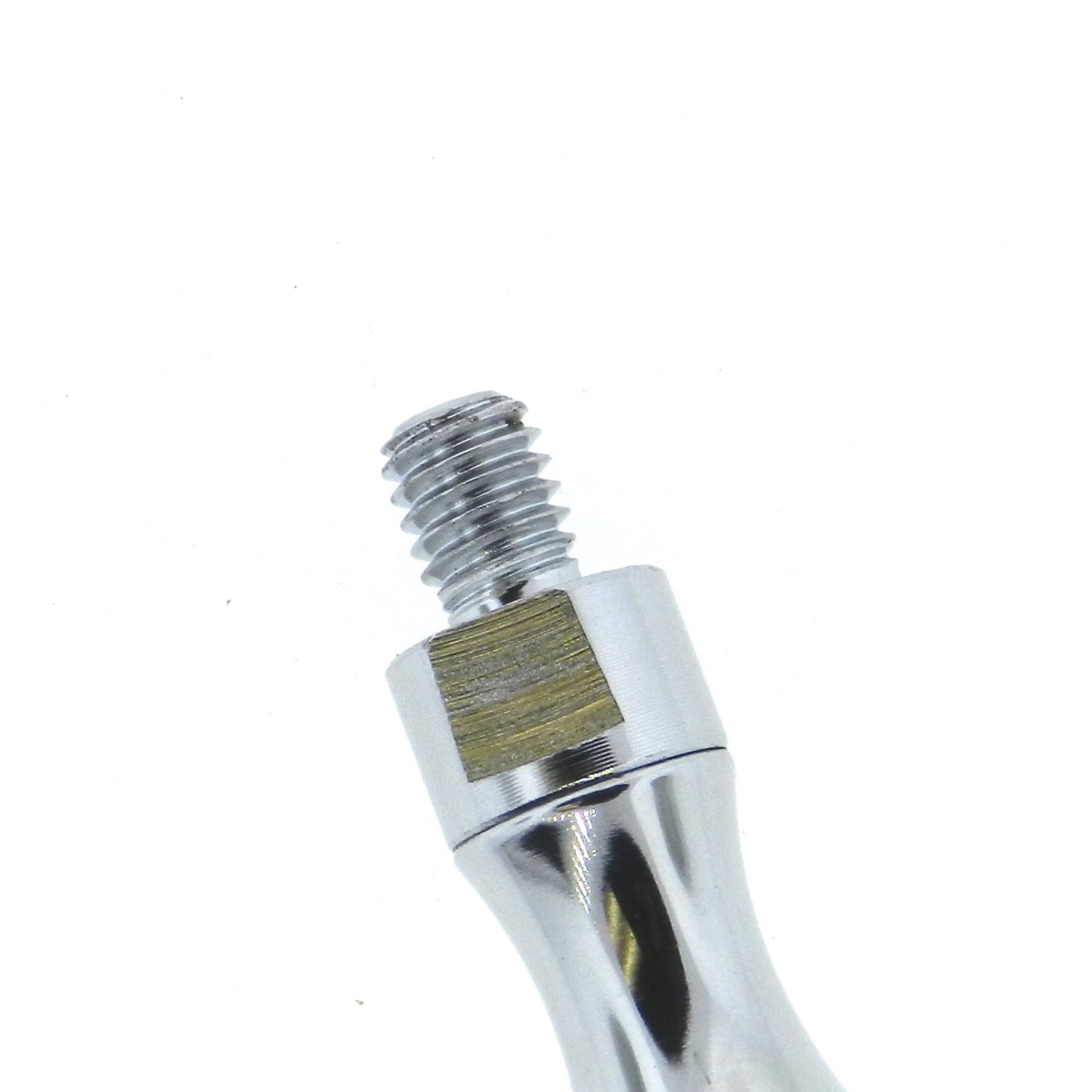

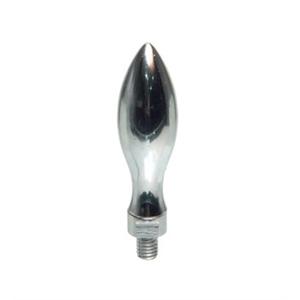

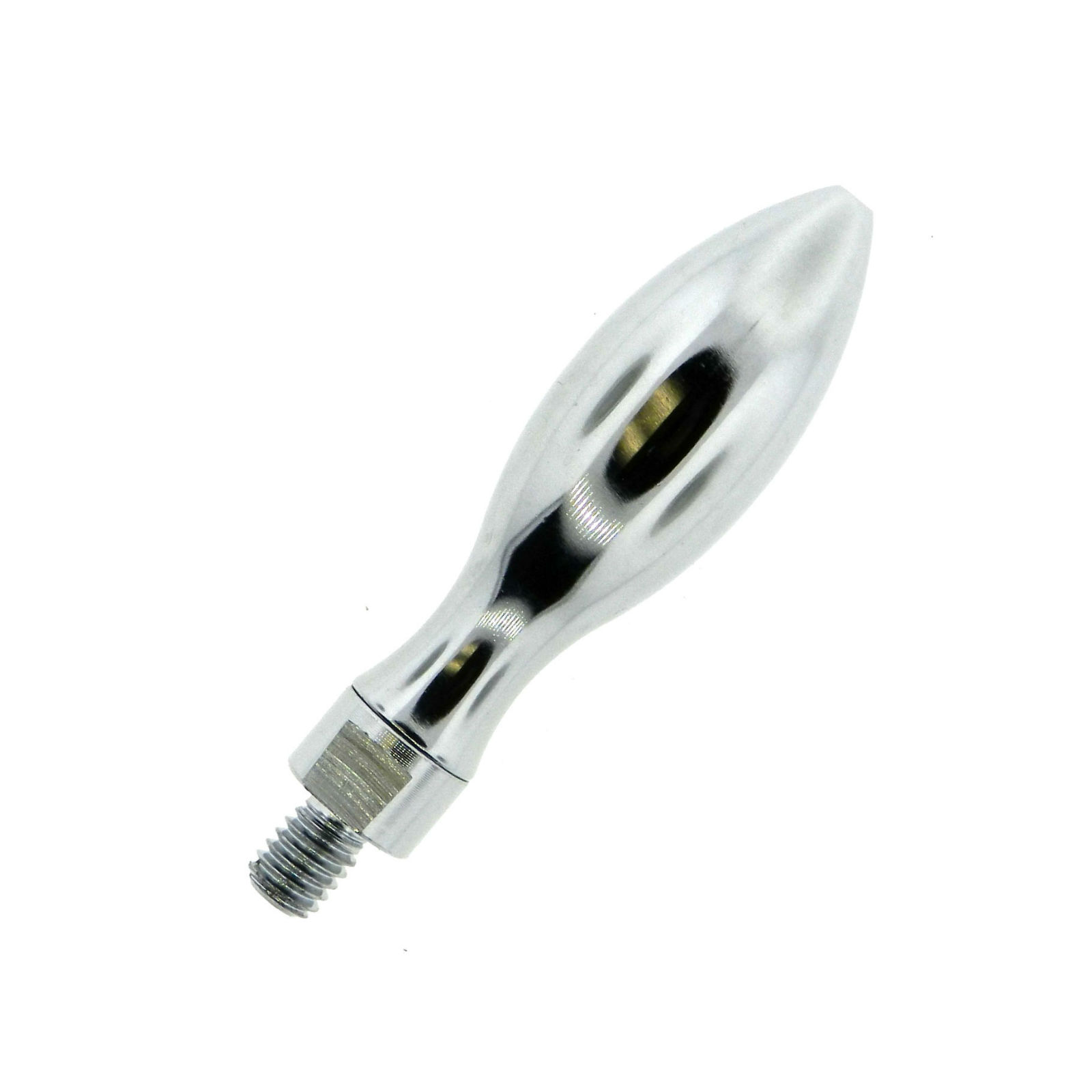

Chrome Revolving Steel Handle
JBF National’s permanently lubricated, chrome plated steel revolving handle is perfect for the heaviest of heavy duty applications. For maximum longevity, this model comes manufactured from the highest quality steel. This revolving handle’s ergonomic design and chrome plating finish means that quick adjustments will be made with ease and comfort. Please see component diagram below.
| JBF National Part Number | A | B | C | D |
|---|---|---|---|---|
| 1CRSH-1000 | 0.63 | M6 | 2.14 | 0.43 |
| 1CRSH-1001 | 0.79 | M8 | 2.7 | 0.51 |
| 1CRSH-1002 | 0.98 | M10 | 3.26 | 0.55 |
| 1CRSH-1003 | 1.26 | M12 | 4.17 | 0.83 |
| 1CRSH-1004 | 1.42 | M16 | 4.68 | 1.02 |
| 1CRSH-1005 | 0.63 | 1/4-20 | 2.14 | 0.43 |
| 1CRSH-1006 | 0.79 | 5/16-18 | 2.7 | 0.51 |
| 1CRSH-1007 | 0.98 | 3/8-16 | 3.26 | 0.55 |
| 1CRSH-1008 | 1.26 | 1/2-13 | 4.17 | 0.83 |
| 1CRSH-1009 | 1.42 | 5/8-11 | 4.68 | 1.02 |
