Standard Knob - Retractable Plunger without Nylon Patch

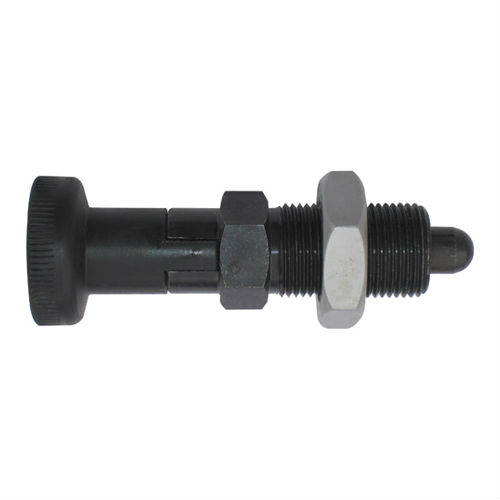

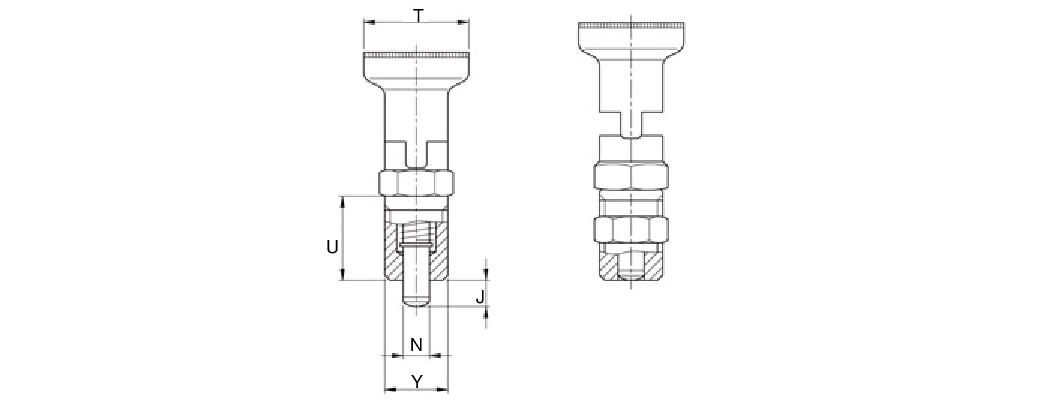

The body and threaded stud of this retractable plunger (also known as an indexing plunger) are manufactured from the highest quality steel with a knob comprised of an ultra-tough plastic. A simple 90 degree twist engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist. This plunger has been designed and tested to withstand side loading. Please see component diagram below.
| JBF P/N | N | Y | T | U | J |
|---|---|---|---|---|---|
| 1RP-100 | 5 | M10 x 1 | 21 | 17 | 5 |
| 1RP-101 | 6 | M12 x 1.5 | 25 | 20 | 6 |
| 1RP-102 | 8 | M16 x 1.5 | 31 | 26 | 8 |
| 1RP-103 | 10 | M20 x 1.5 | 31 | 33 | 10 |
