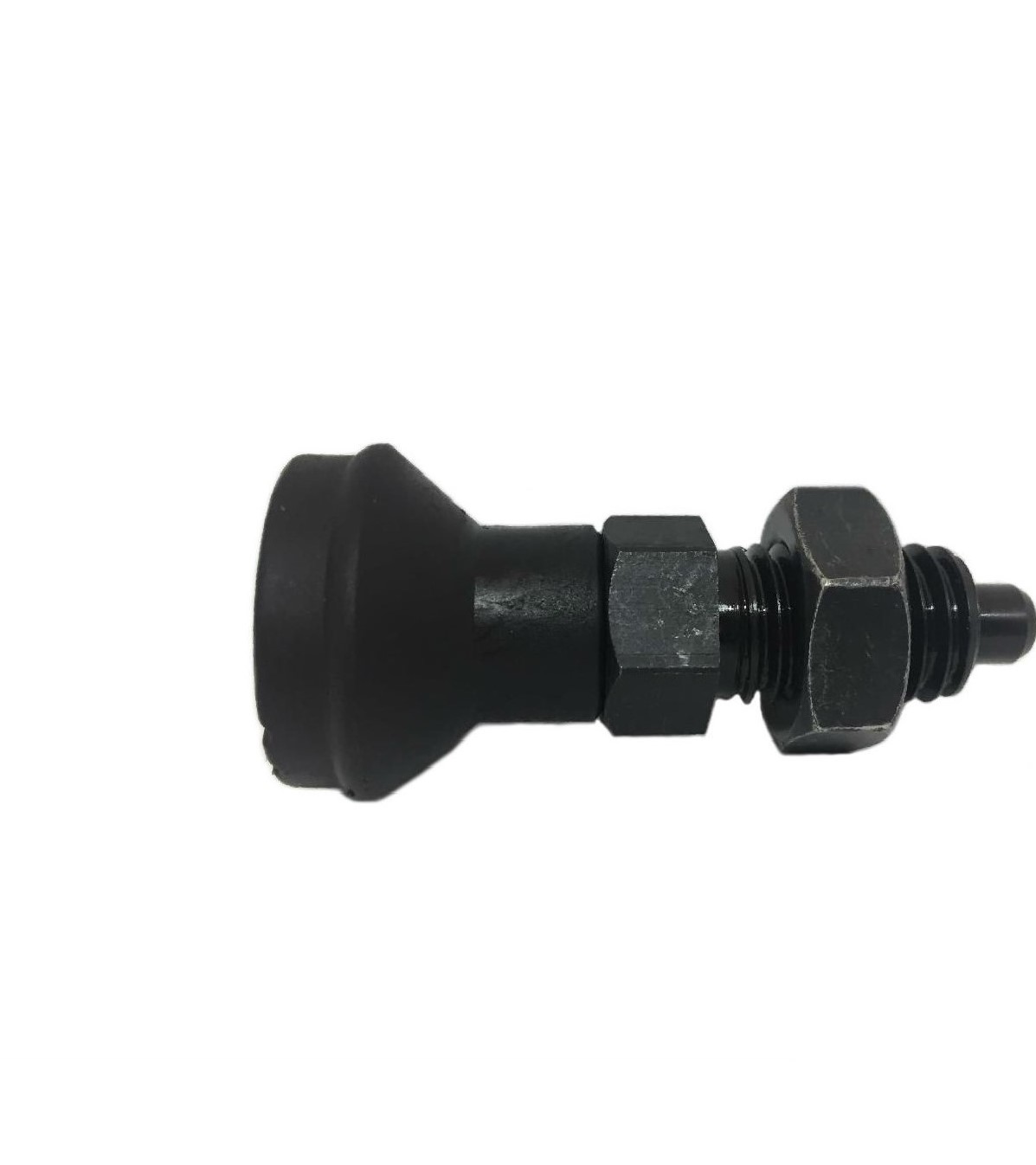

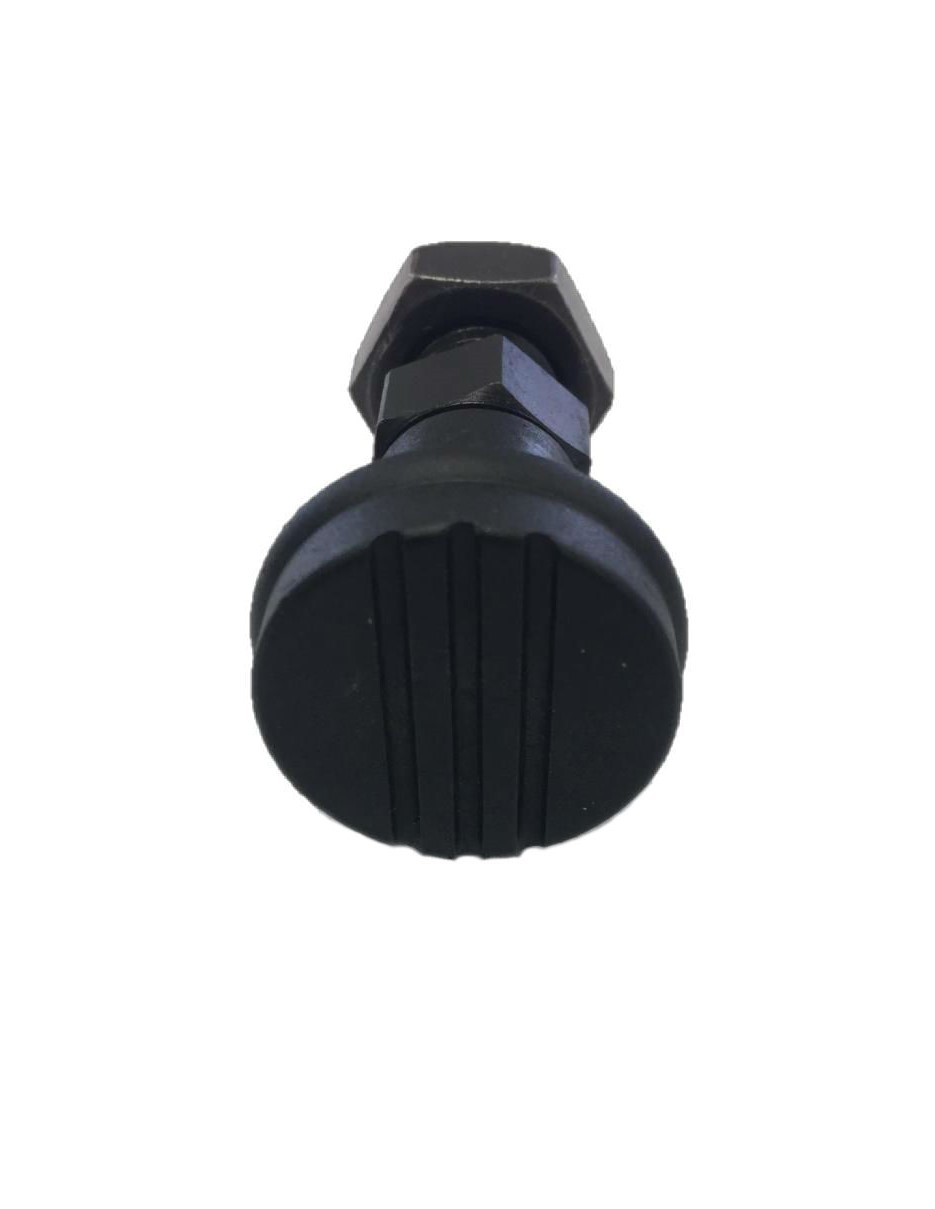

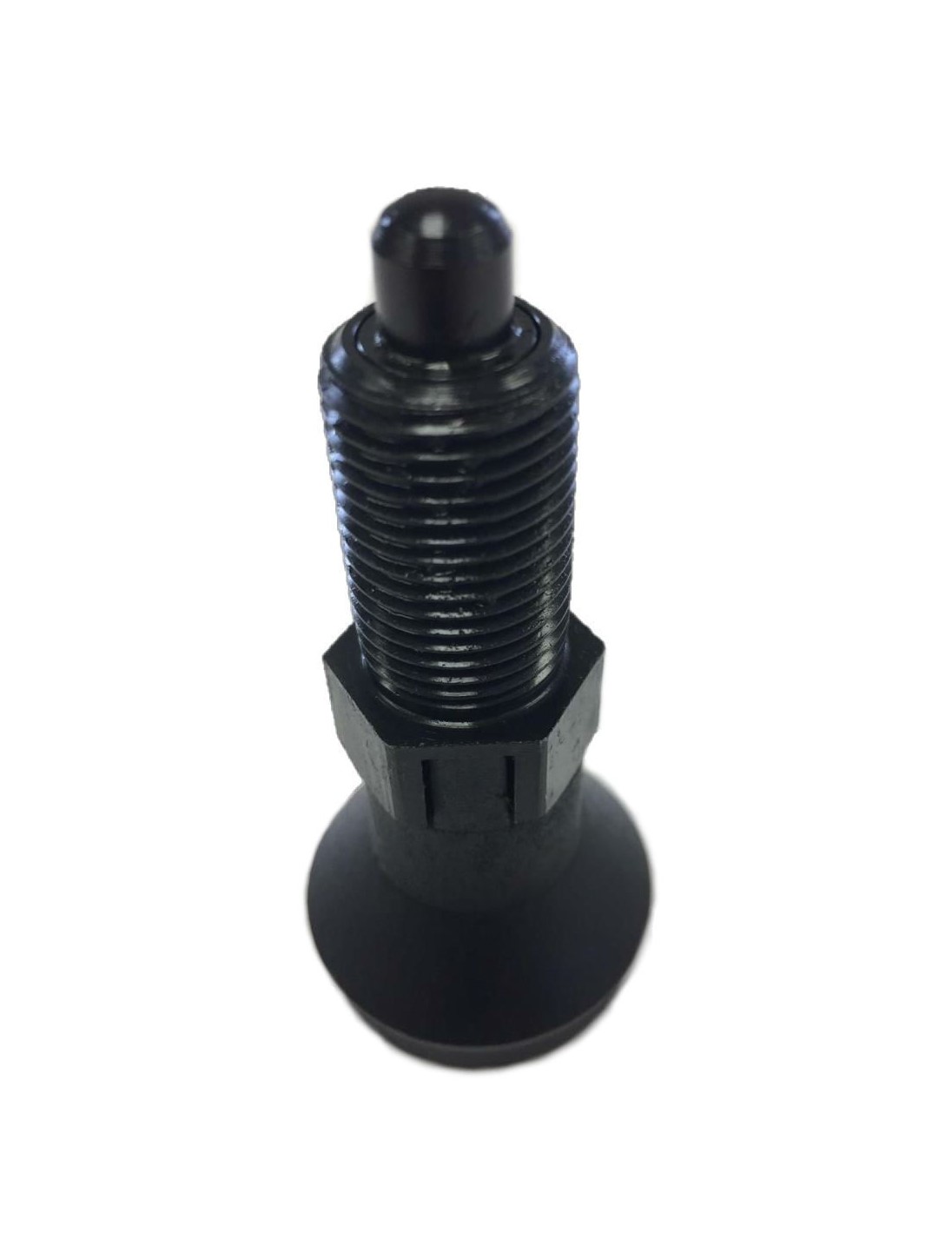

Pull Knob - Locking Nose Retractable Plunger w/o Nylon Patch
The body and threaded stud of this retractable plunger (also known as an indexing plunger) are manufactured from the highest quality steel with a pull knob comprised of an ultra-tough plastic. A simple 90 degree twist engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist. This plunger has been designed and tested to withstand side loading and is available in inch and metric sizes. Please see component diagram below.
| Inch P/N | Thread (A) | Thread Lgth (C) | Body Lgth (B) | OAL | Pin Dia. (E) | Pin Length (D) | Knob Dia. | Nut Thickness | Across Flats | Locknut | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IPG-106 | 5/8-11 | 0.9055 | 2.60 | 2.9134 | 0.3150 | 0.3150 | 1.2992 | 0.3937 | 0.7480 | NO | |
| IPG-107 | 5/8-11 | 0.9055 | 2.60 | 2.9134 | 0.3150 | 0.3150 | 1.2992 | 0.3937 | 0.7480 | YES | |
| IPG-108 | 3/8-24 | 0.5906 | 1.65 | 1.8504 | 0.1969 | 0.1969 | 0.8268 | 0.2756 | 0.5118 | NO | |
| IPG-109 | 3/8-24 | 0.5906 | 1.65 | 1.8504 | 0.1969 | 0.1969 | 0.8268 | 0.2756 | 0.5118 | YES | |
| IPG-110 | 1/2-13 | 0.6693 | 1.95 | 2.2047 | 0.2362 | 0.2362 | 0.9843 | 0.3150 | 0.5512 | NO | |
| IPG-111 | 1/2-13 | 0.6693 | 1.95 | 2.2047 | 0.2362 | 0.2362 | 0.9843 | 0.3150 | 0.5512 | YES |
| Metric P/N | Thread (A) | Thread Lgth(C) | Body Lgth (B) | OAL | Pin Dia. (E) | Pin Length (D) | Knob Dia. | Nut Thickness | Across Flats | Locknut | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IPG-100 | M10x1 | 15 | 42 | 47 | 5 | 5 | 21 | 7 | 13 | NO | |
| IPG-101 | M10x2 | 15 | 42 | 47 | 5 | 5 | 21 | 7 | 13 | YES | |
| IPG-102 | M12x1.5 | 17 | 50 | 56 | 6 | 6 | 25 | 8 | 14 | NO | |
| IPG-103 | M12x1.6 | 17 | 50 | 56 | 6 | 6 | 25 | 8 | 14 | YES | |
| IPG-104 | M16x1.5 | 23 | 66 | 74 | 8 | 8 | 33 | 10 | 19 | NO | |
| IPG-105 | M16x1.5 | 23 | 66 | 74 | 8 | 8 | 33 | 10 | 19 | YES |
