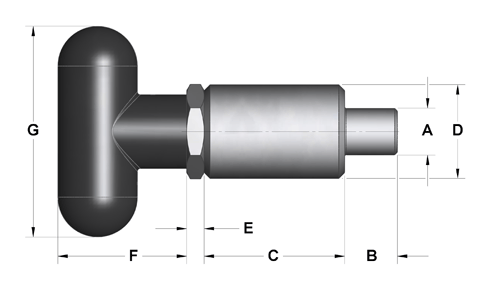

These T-handle retractable plungers have been designed and tested for maximum durability and are manufactured from the highest quality materials. These retractable plungers feature zinc plated steel pins and non-plated steel barrels, and are perfect for telescoping applications. The T-handle is manufactured from an ultra-tough black polypropylene for added reliability. Ball knob version also available. Please see component diagram below. *Features a tapered pin
P/N | A | B | C | D | E | F | G |
---|---|---|---|---|---|---|---|
TPOP-4700 | .375 | .60 | 1.5 | 1.00 | .27 | 1.4 | 2.2 |
TPOP-4701 | .500 | .875 | 1.5 | 1.00 | .27 | 1.4 | 2.2 |
TPOP-4702* | .500 | .61 | 1.5 | 1.00 | .27 | 1.4 | 2.2 |
