T-Handle - Locking Nose Retractable Plunger without Nylon Patch

T-Handle Indexing Plunger - Locking without Patch
T-Handle Indexing Plunger - Locking without Patch
T-Handle Indexing Plunger - Locking without Patch

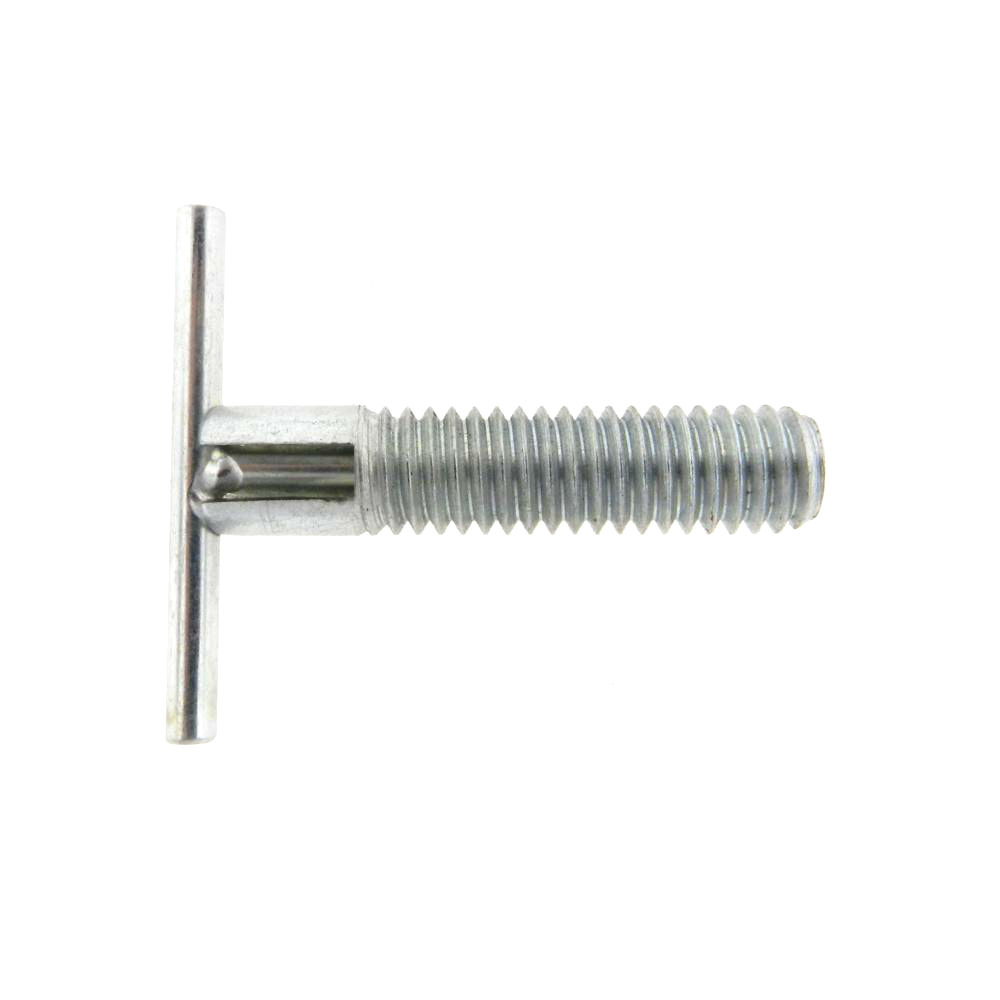

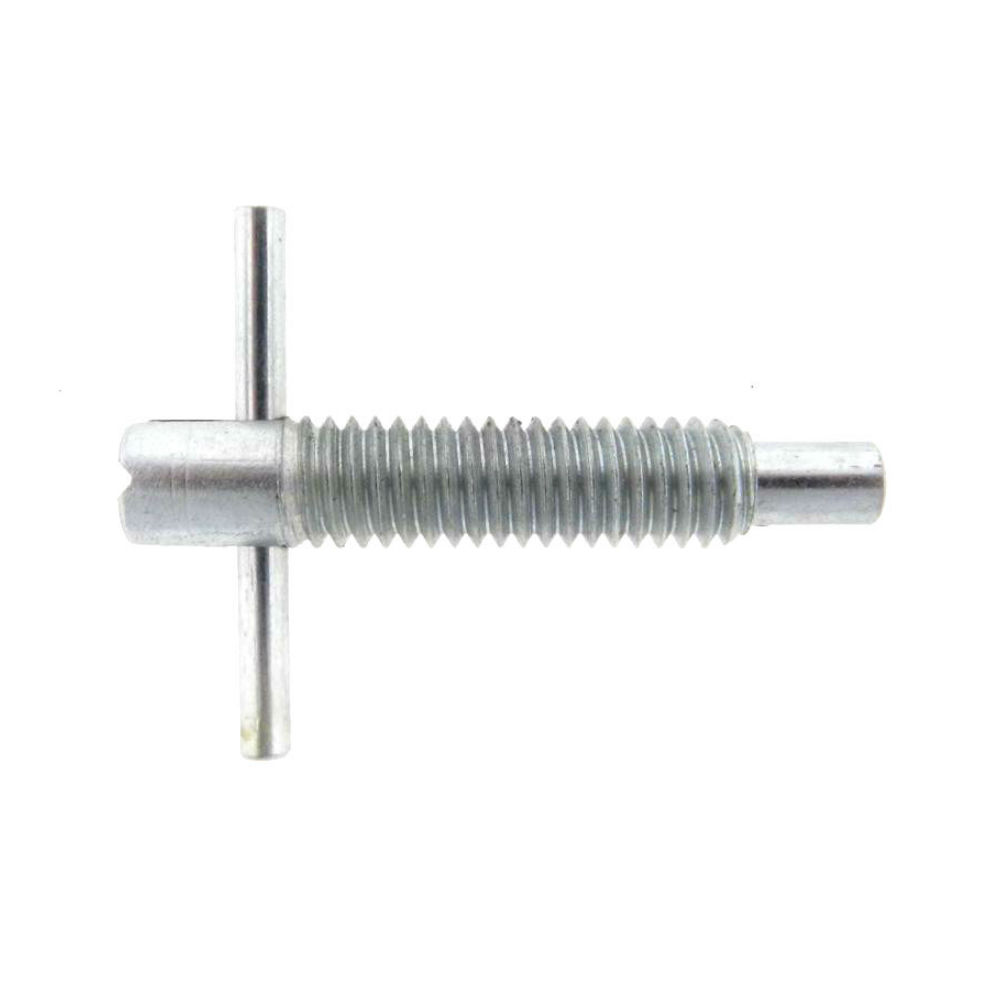

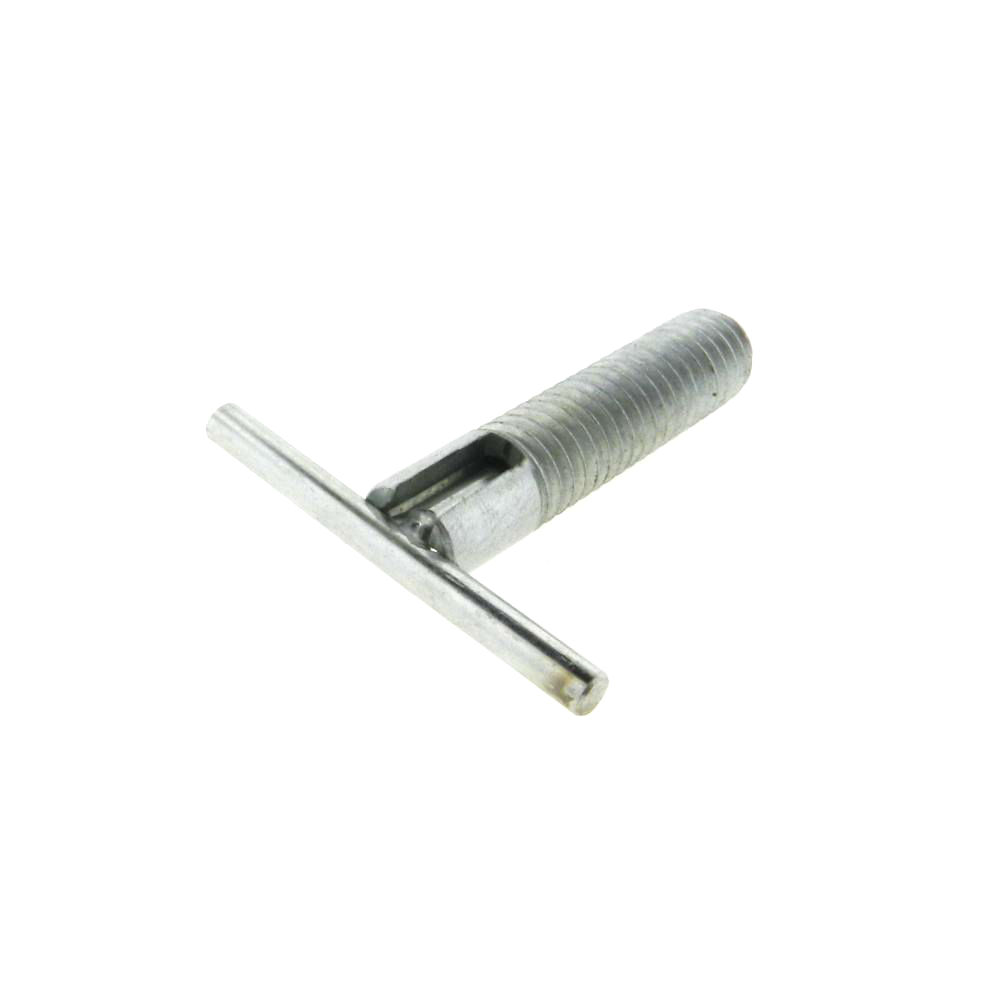

JBF National’s t-handle locking nose retractable plunger comes available in steel, and 303 stainless steel. The t-handle design of this plunger ensures a quick and positive finger grip each time. A simple pull and twist of the t-handle engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist. This retractable plunger (also known as an indexing plunger) also features a radiused Delrin nose for maximum hole engagement and has been designed and tested to withstand side loading. Please see component diagram below.

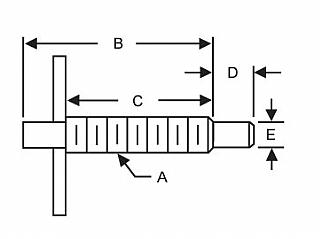

JBF P/N-SteelJBF P/N-StainlessThread (A)Body Length (B)Thread Length (C)Nose Length (D)Nose Dia (E)Start End Force (lbs)Final End Force (lbs)
1TLP-11191TLP-1119SS1/4-201.140.800.250.1551.02.5
1TLP-11201TLP-1120SS3/8-161.681.200.380.2332.04.0
1TLP-11211TLP-1121SS1/2-132.001.400.500.3122.55.0
1TLP-11221TLP-1122SS5/8-112.381.700.630.3752.55.0
