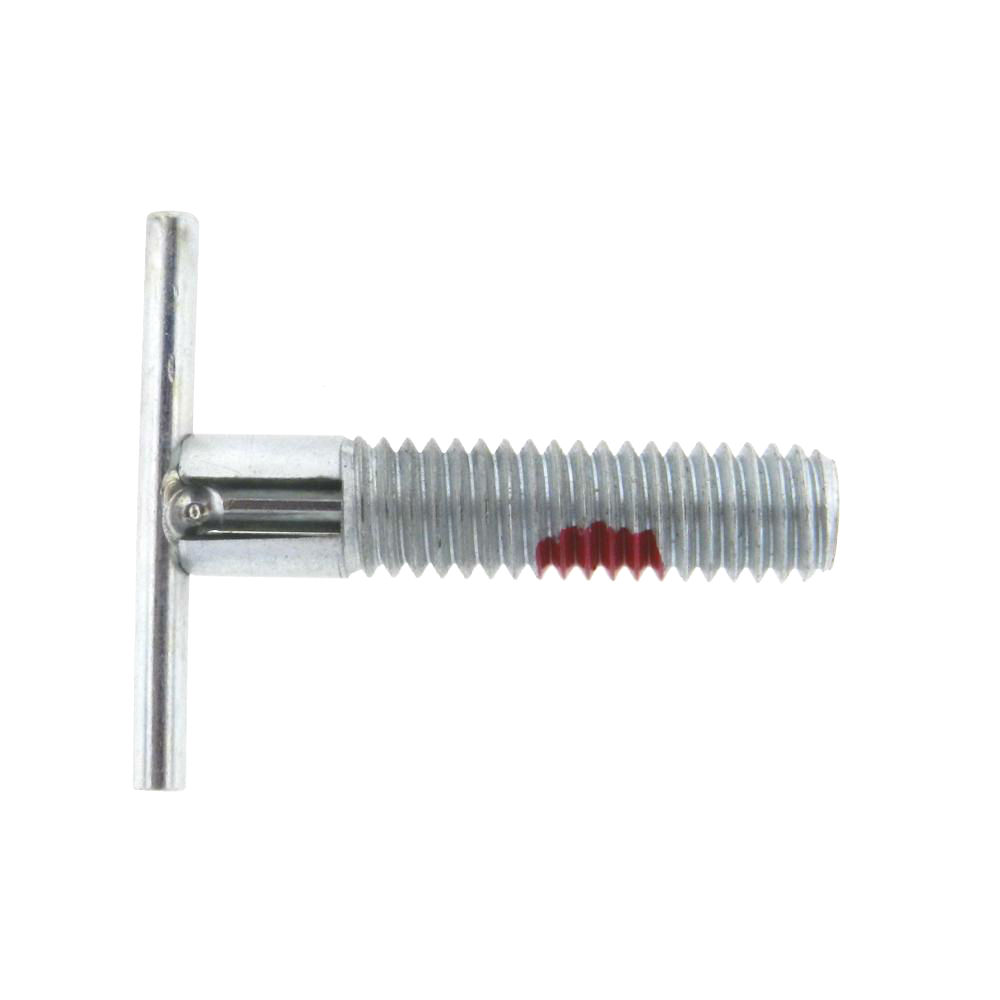

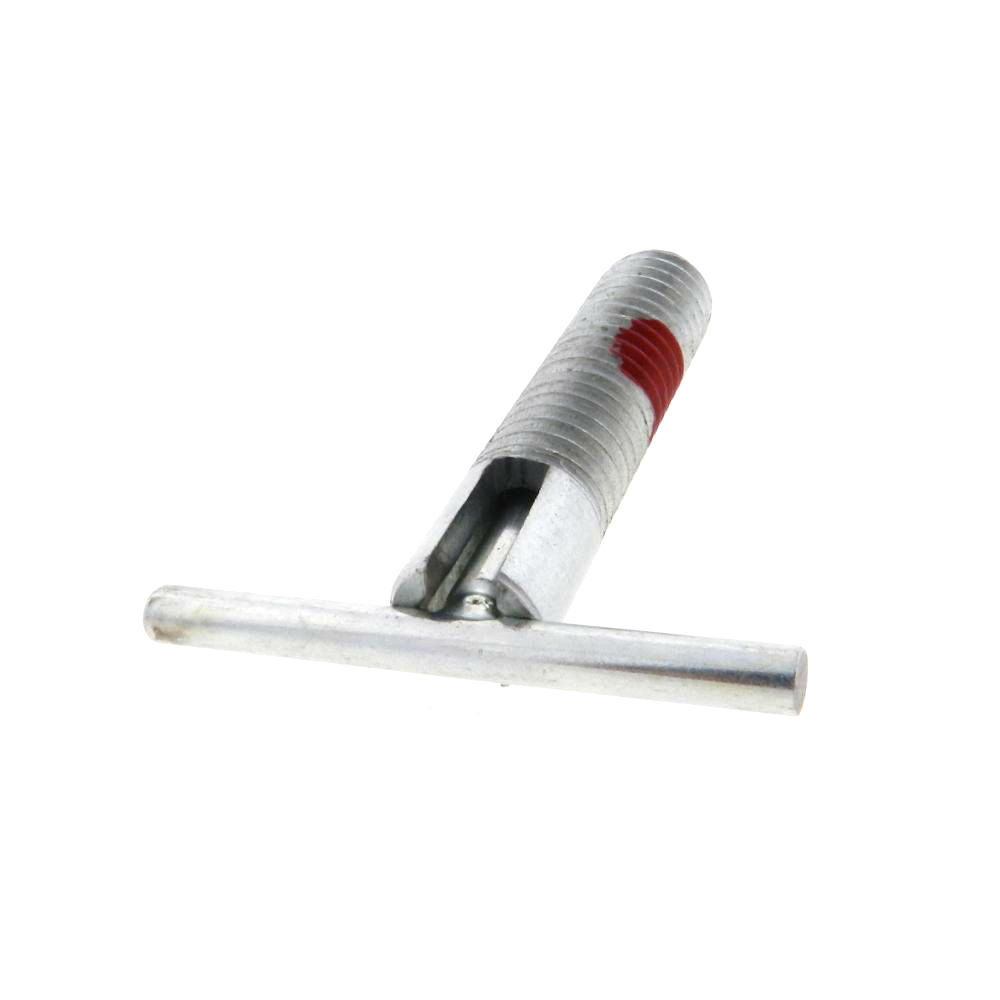

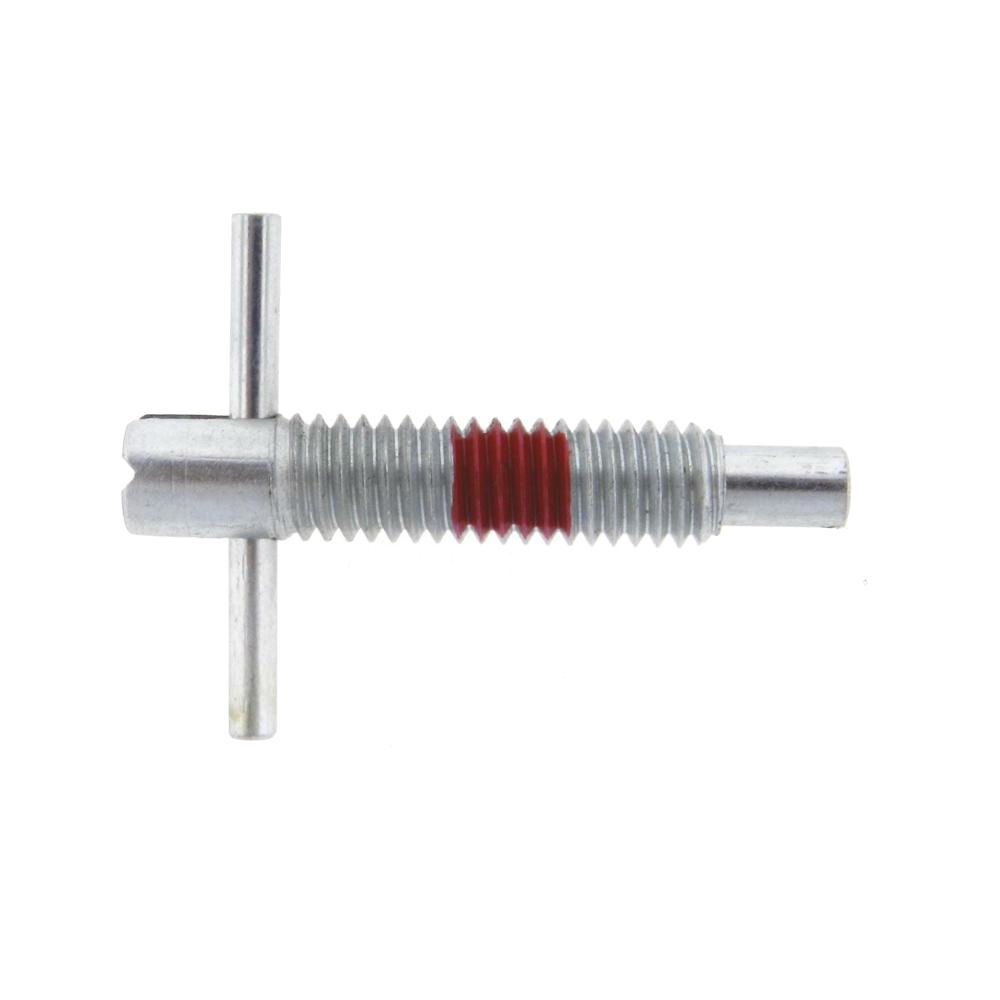

T-Handle - Locking Nose Retractable Plunger with Nylon Patch

JBF National’s t-handle locking nose retractable plunger comes available in steel, and 303 stainless steel. The t-handle design of this plunger ensures a quick and positive finger grip each time. A simple pull and twist of the t-handle engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist. This retractable plunger (also known as an indexing plunger) also features a nylon thread coating to ensure ultimate thread locking in heavy vibration situations, and a radiused Delrin nose for maximum hole engagement, and is designed and tested to withstand side loading. Please see component diagram below.

JBF P/N-SteelJBF P/N-StainlessThread (A)Body Length (B)Thread Length (C)Nose Length (D)Nose Dia (E)Start End Force (lbs)Final End Force (lbs)
1TLP-11151TLP-1115SS1/4-201.140.800.250.1551.02.5
1TLP-11161TLP-1116SS3/8-161.681.200.380.2332.04.0
1TLP-11171TLP-1117SS1/2-132.001.400.500.3122.55.0
1TLP-11181TLP-1118SS5/8-112.381.700.630.3752.55.0
