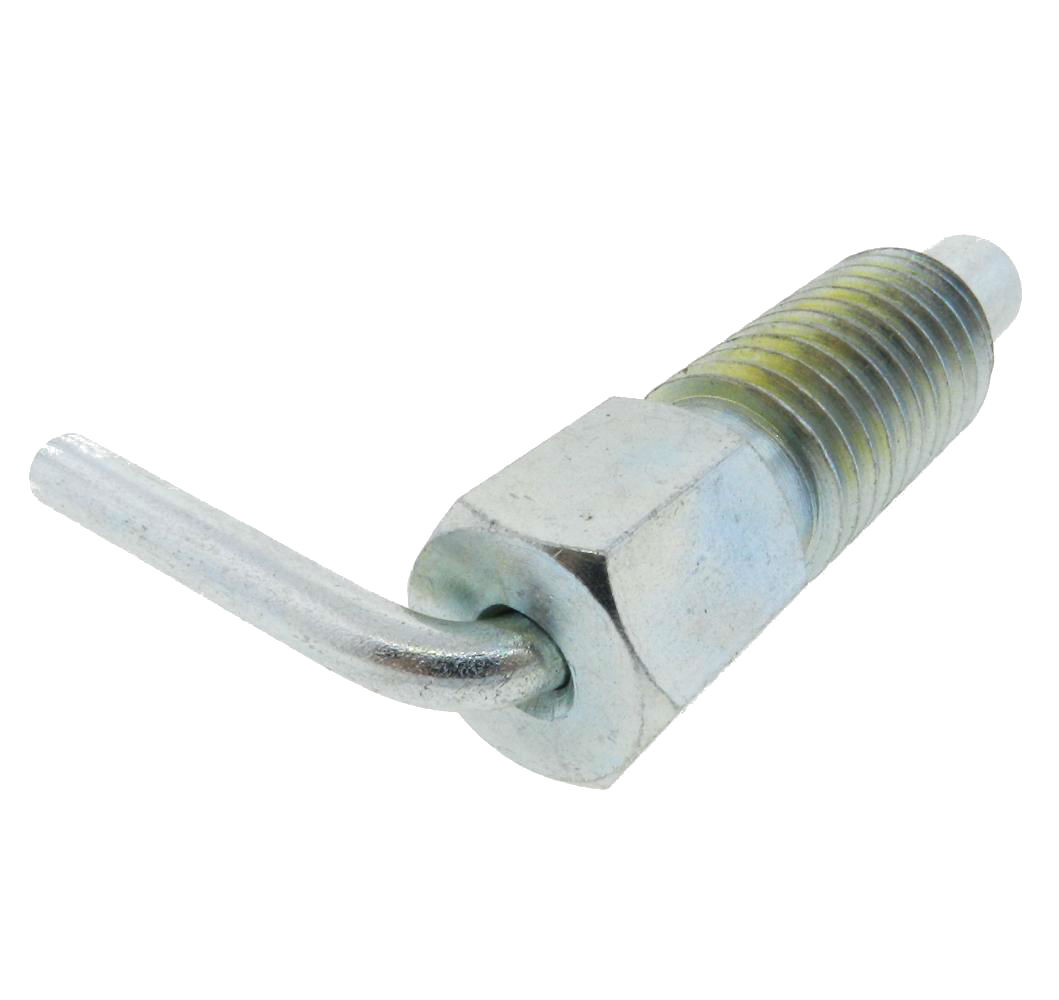

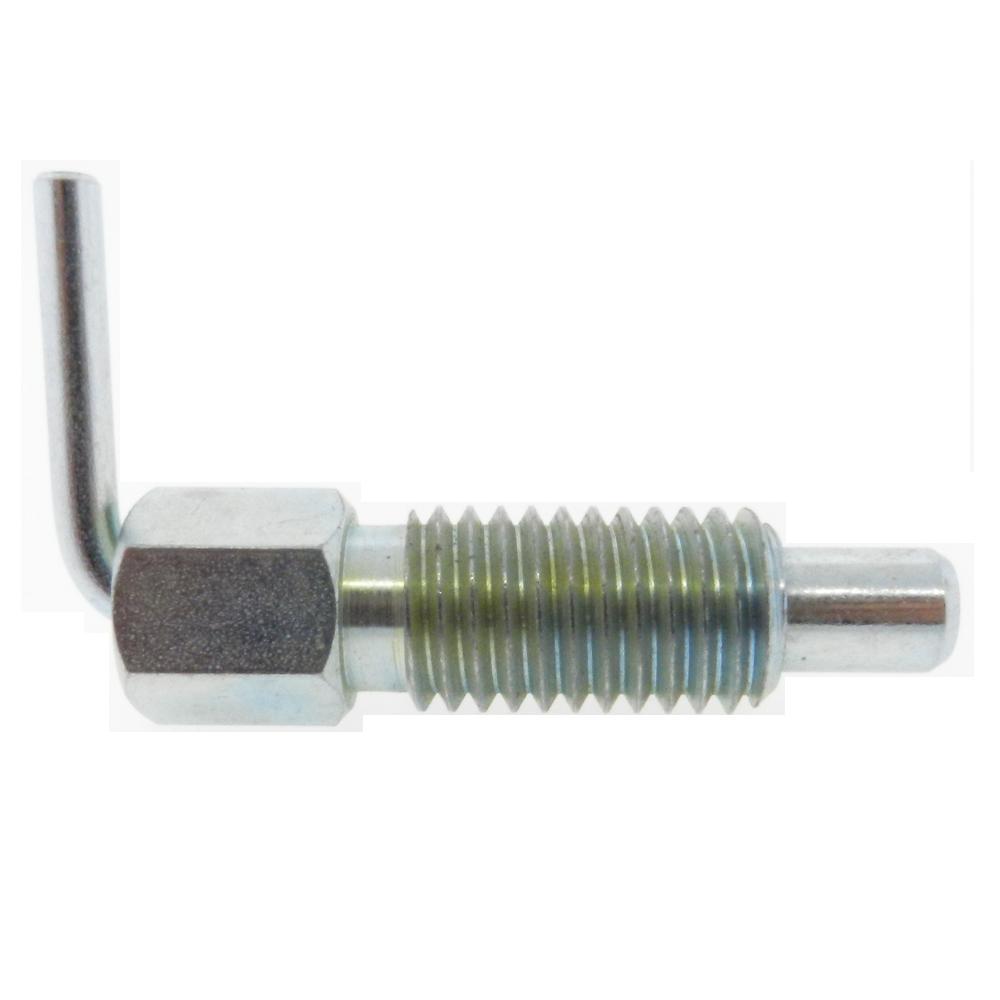

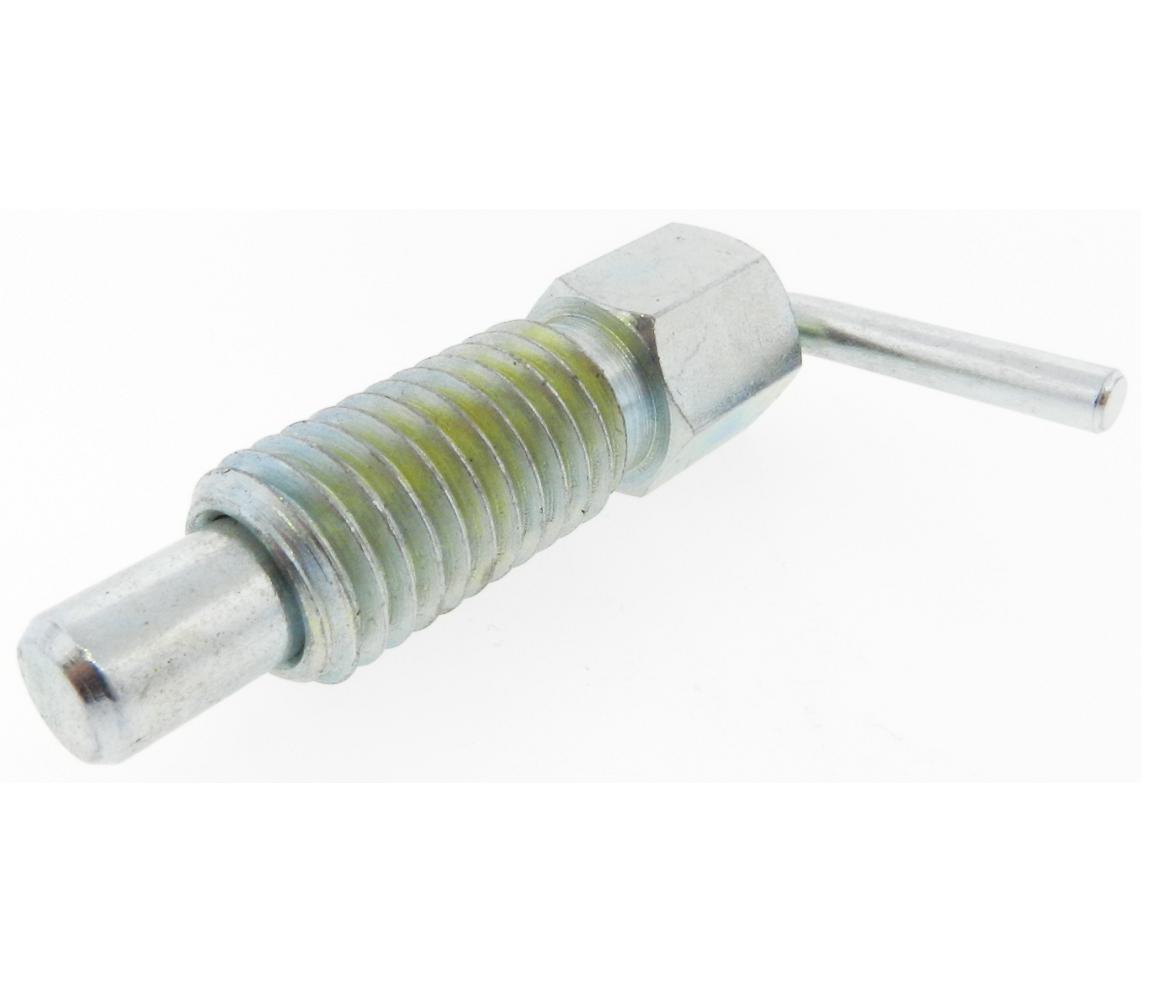

L-Handle - Non Locking Nose Retractable Plunger without Nylon Patch
JBF National’s l-handle non locking nose retractable plunger comes available in steel, 303 stainless steel, and 316 stainless steel. The l-handle features 360 degree rotation which allows for maximum l – handle positioning flexibility. This model also comes available with a nylon nose, contact a JBF National sales engineer today to find out more. Please see component diagram below.
| JBF P/N-Steel | JBF P/N-303 SS | JBF P/N-316 SS | Thread (A) | Thread Length (H) | Body Length (B) | Nose Length ( C) | Nose Dia (D) | Hex Size (E) | Handle Length (F) | Start End Force (lbs) | Final End Force (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1LHLN-1059 | 1LHLN-1059SS | 1LHLN-1059-316 | 1/4-20 | 0.50 | 0.75 | 0.20 | 0.16 | 1/4 | 0.40 | 0.12 | 0.5 |
| 1LHLN-1060 | 1LHLN-1060SS | 1LHLN-1060-316 | 1/4-20 | 0.80 | 1.25 | 0.38 | 0.16 | 1/4 | 0.50 | 0.5 | 2.5 |
| 2LHLN-1061 | 2LHLN-1061SS | 2LHLN-1061-316 | 3/8-16 | 0.75 | 1.13 | 0.30 | 0.25 | 3/8 | 0.56 | 0.25 | 1.25 |
| 2LHLN-1062 | 2LHLN-1062SS | 2LHLN-1062-316 | 3/8-16 | 1.31 | 2.00 | 0.56 | 0.25 | 3/8 | 0.75 | 0.75 | 3.75 |
| 3LHLN-1063 | 3LHLN-1063SS | 3LHLN-1063-316 | 1/2-13 | 1.00 | 1.50 | 0.40 | 0.31 | 1/2 | 0.75 | 0.5 | 2 |
| 3LHLN-1064 | 3LHLN-1064SS | 3LHLN-1064-316 | 1/2-13 | 1.25 | 2.11 | 0.75 | 0.31 | 1/2 | 1.00 | 1 | 5 |
| 4LHLN-1065 | 4LHLN-1065SS | 4LHLN-1065-316 | 5/8-11 | 1.25 | 1.88 | 0.50 | 0.38 | 5/8 | 0.88 | 0.75 | 2.5 |
| 4LHLN-1066 | 4LHLN-1066SS | 4LHLN-1066-316 | 5/8-11 | 2.00 | 3.05 | 1.00 | 0.38 | 5/8 | 1.00 | 1 | 5 |
