Knurled Knob - Non Locking Nose Retractable Plunger w/o Nylon Patch

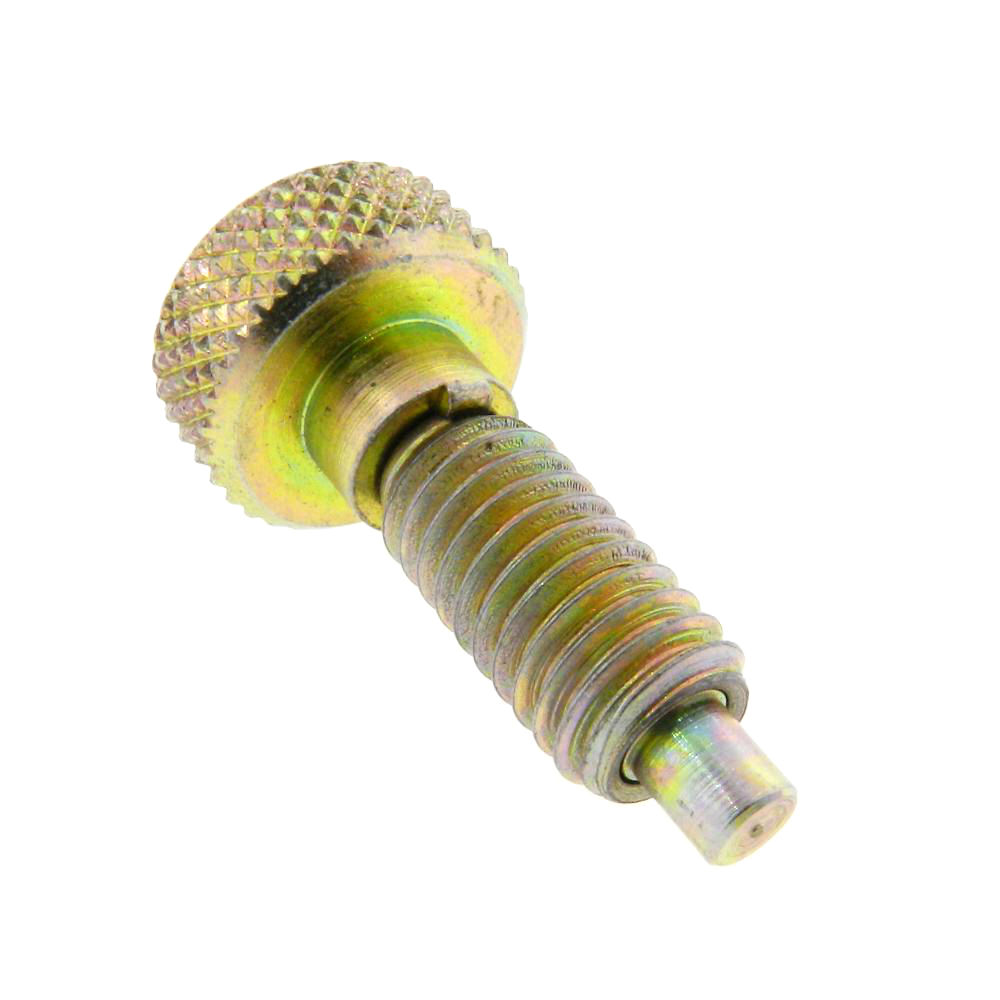

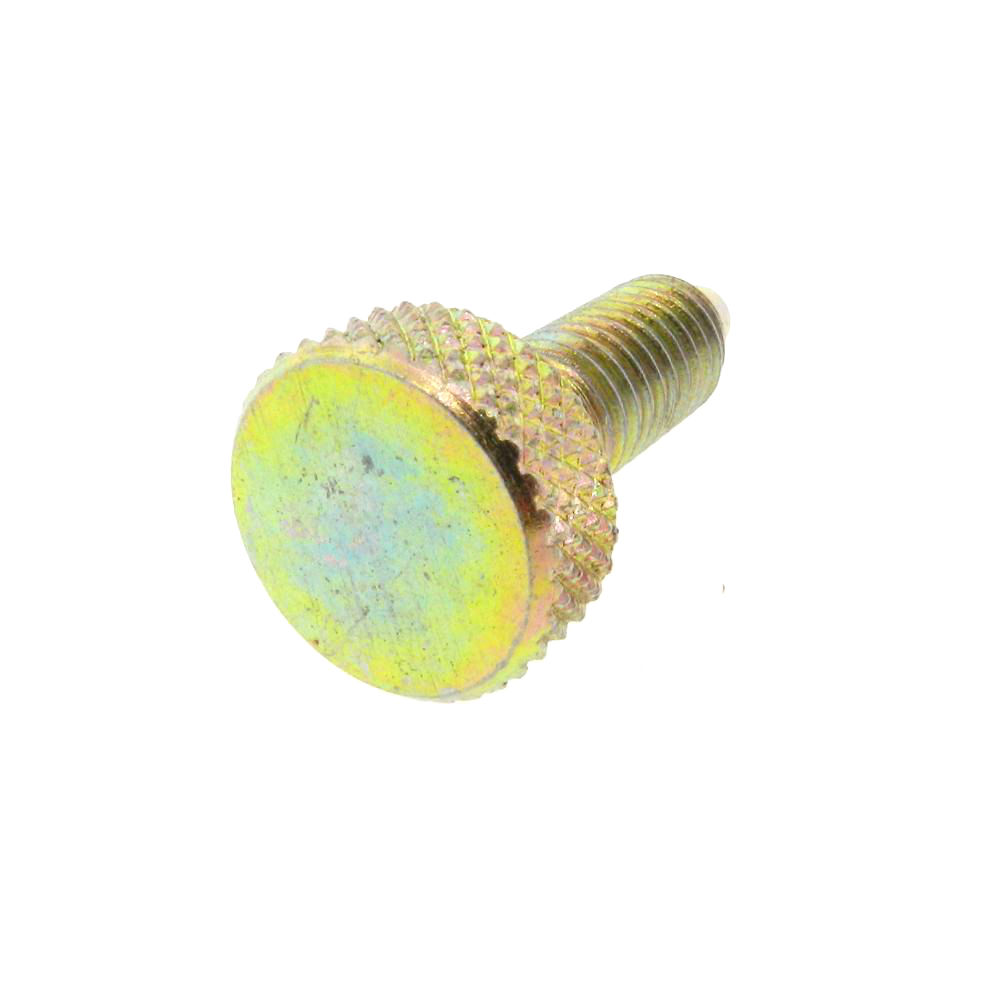

JBF National’s knurled knob non-locking nose retractable plunger comes available in steel, 303 stainless steel, 316 stainless steel, and brass. The knurled rim on this retractable plunger (also known as an indexing plunger) allows for maximum grip, regardless of grip situation. Please see component diagram below.
| JBF P/N-Steel | JBF P/N-303 SS | JBF P/N-316 SS | JBF P/N-Brass | Thread Size (A) | Thread Length (B) | Nose Lenth (C) | Nose Dia (D) | Knob Dia (E) | Knob Hub Lenth (F) | Knurled Width (G) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1KLN-1029 | 1KLN-1029SS | 1KLN-1029-316 | 1BKLN-1029 | 10-32 | 0.40 | 0.09 | 0.104 | 3/8 | 1/4 | 3/16 |
| 1KLN-1030 | 1KLN-1030SS | 1KLN-1030-316 | 1BKLN-1030 | 1/4-20 | 0.50 | 0.13 | 0.123 | 1/2 | 5/16 | 3/16 |
| 1KLN-1031 | 1KLN-1031SS | 1KLN-1031-316 | 1BKLN-1031 | 5/16-18 | 0.63 | 0.19 | 0.154 | 5/8 | 3/8 | 1/4 |
| 1KLN-1032 | 1KLN-1032SS | 1KLN-1032-316 | 1BKLN-1032 | 3/8-16 | 0.75 | 0.22 | 0.185 | 3/4 | 1/2 | 5/16 |
| 1KLN-1033 | 1KLN-1033SS | 1KLN-1033-316 | 1BKLN-1033 | 1/2-13 | 0.88 | 0.25 | 0.248 | 1 | 5/8 | 3/8 |
| 1KLN-1034 | 1KLN-1034SS | 1KLN-1034-316 | 1BKLN-1034 | 5/8-11 | 1.00 | 0.32 | 0.312 | 1-1/4 | 3/4 | 7/16 |
