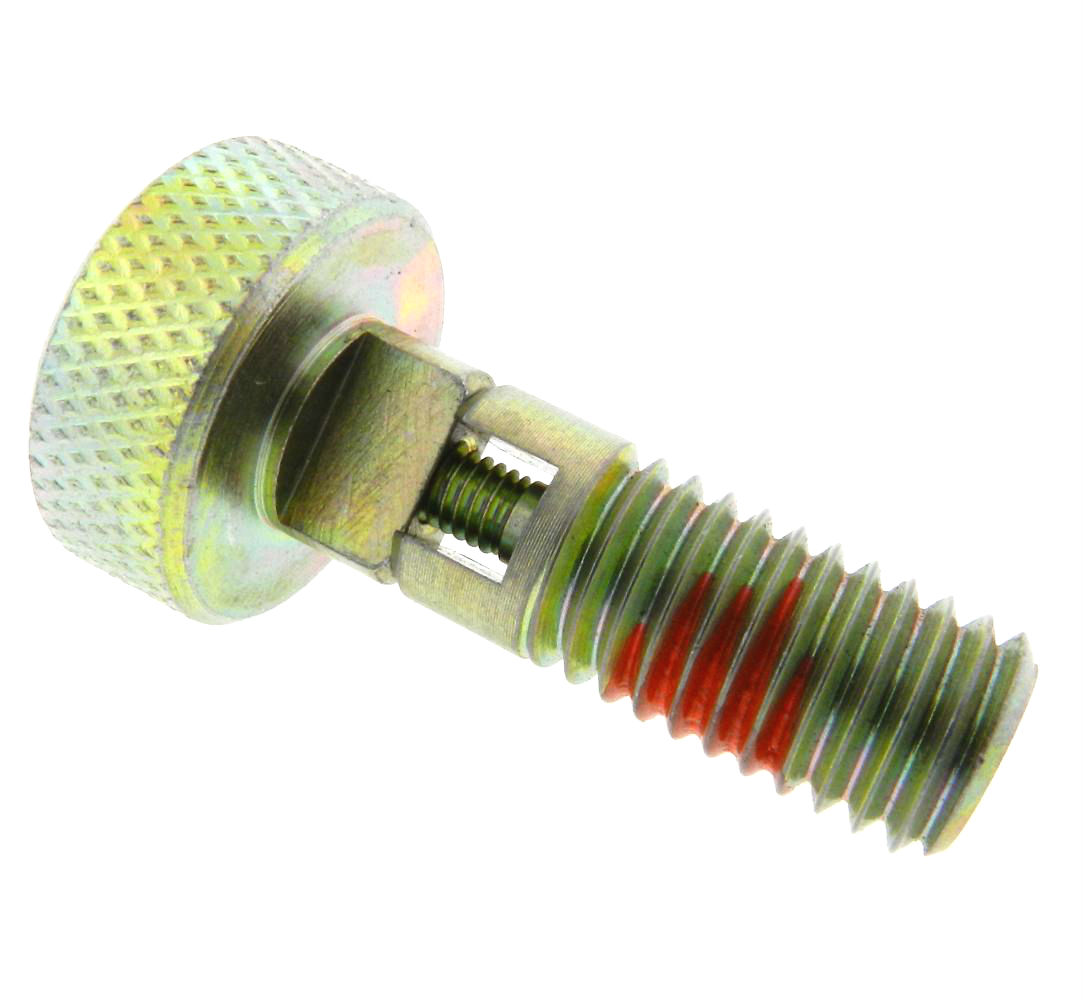

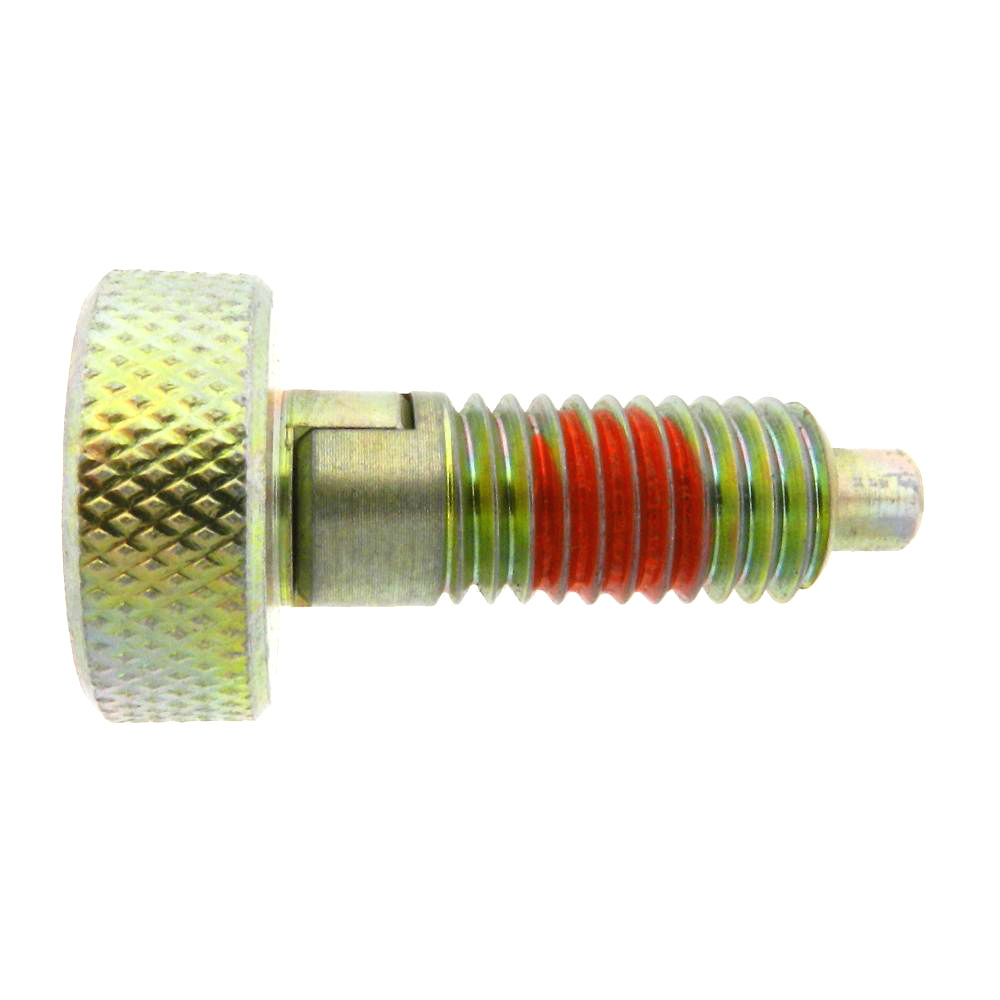

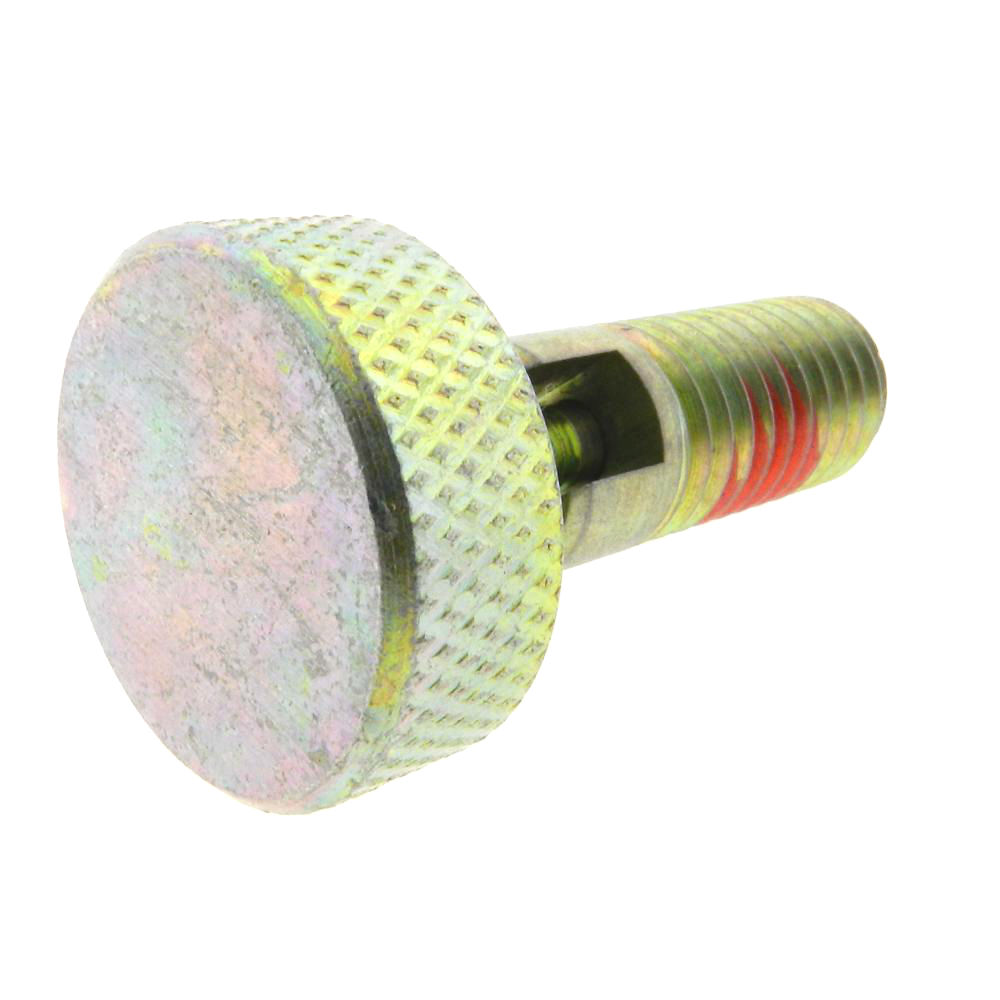

Knurled Knob - Locking Nose Retractable Plunger with Nylon Patch

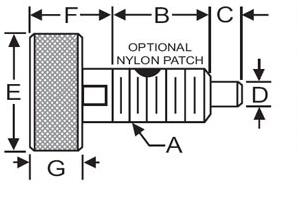

JBF National’s knurled knob locking nose retractable plunger comes available in steel, 303 stainless steel, 316 stainless steel, and brass. A simple 90 degree twist engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist, and the knurled rim allows for maximum grip regardless of grip situation. This retractable plunger (also known as an indexing plunger) also features a nylon thread coating to ensure ultimate thread locking in heavy vibration situations. Please see component diagram below.
| JBF P/N-Steel | JBF P/N-303 SS | JBF P/N-316 SS | JBF P/N-Brass | Thread Size (A) | Thread Length (B) | Nose Lenth (C) | Nose Dia (D) | Knob Dia (E) | Knob Hub Length (F) | Knurled Width (G) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1KLN-1012 | 1KLN-1012SS | 1KLN-1012-316 | 1BLKN-1012 | 10-32 | 0.40 | 0.09 | 0.104 | 3/8 | 1/4 | 3/16 |
| 1KLN-1013 | 1KLN-1013SS | 1KLN-1013-316 | 1BLKN-1013 | 1/4-20 | 0.50 | 0.13 | 0.123 | 1/2 | 5/16 | 3/16 |
| 1KLN-1014 | 1KLN-1014SS | 1KLN-1014-316 | 1BLKN-1014 | 5/16-18 | 0.63 | 0.19 | 0.154 | 5/8 | 3/8 | 1/4 |
| 1KLN-1015 | 1KLN-1015SS | 1KLN-1015-316 | 1BLKN-1015 | 3/8-16 | 0.75 | 0.22 | 0.185 | 3/4 | 1/2 | 5/16 |
| 1KLN-1016 | 1KLN-1016SS | 1KLN-1016-316 | 1BLKN-1016 | 1/2-13 | 0.88 | 0.25 | 0.248 | 1 | 5/8 | 3/8 |
| 1KLN-1017 | 1KLN-1017SS | 1KLN-1017-316 | 1BLKN-1017 | 5/8-11 | 1.00 | 0.32 | 0.312 | 1-1/4 | 3/4 | 7/16 |
