Delrin® - Locking Nose Retractable Plunger without Nylon Patch

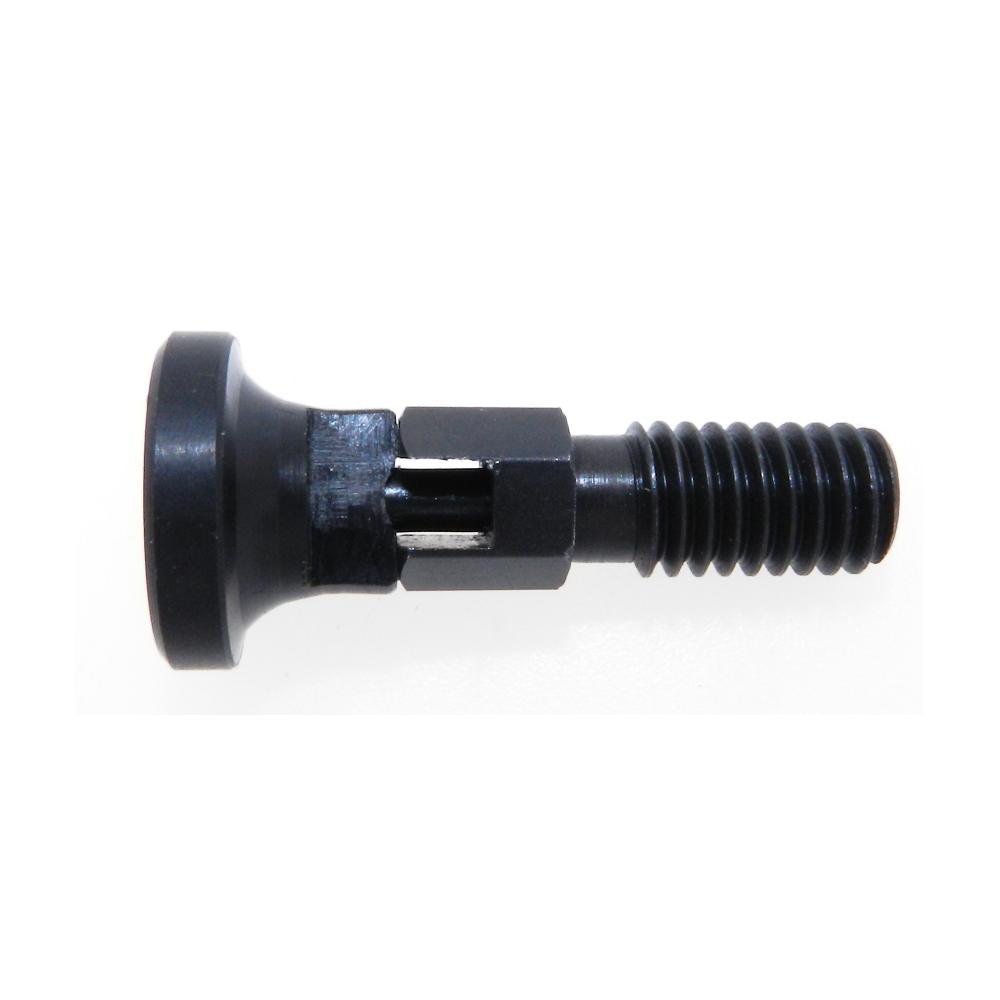

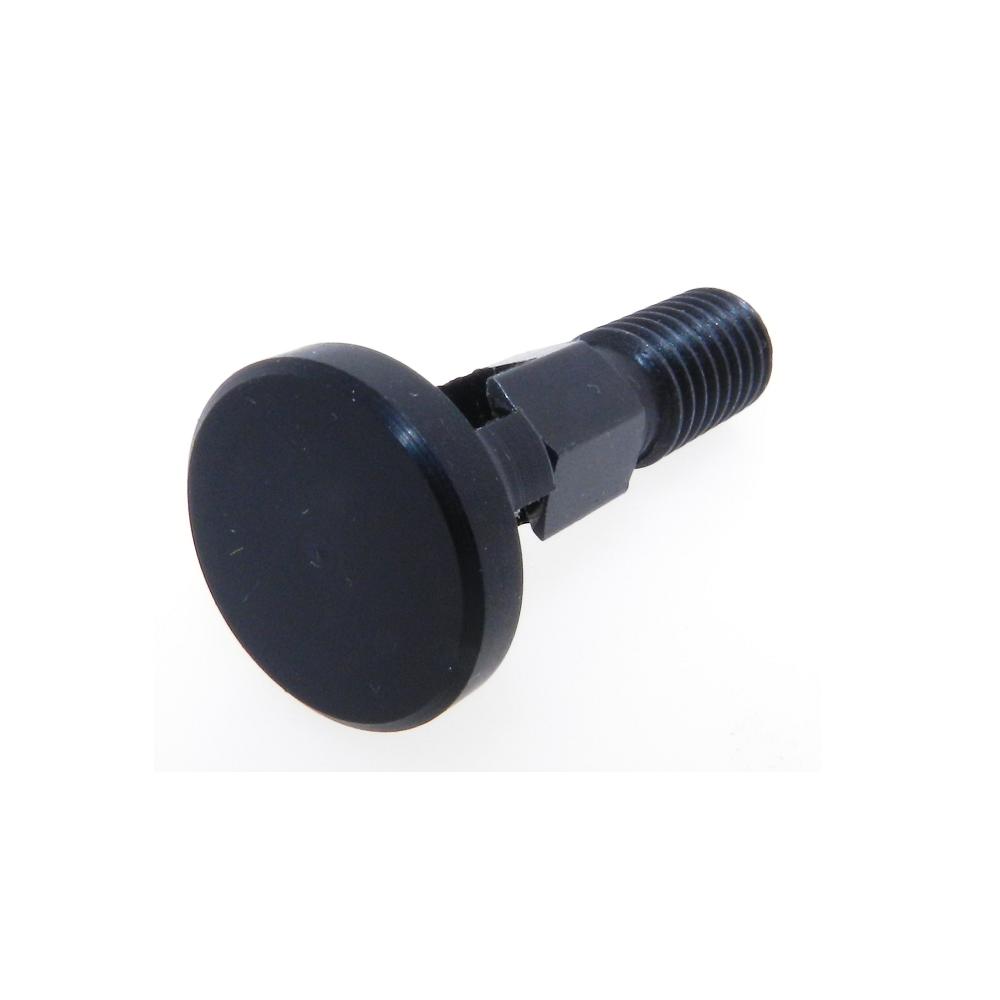

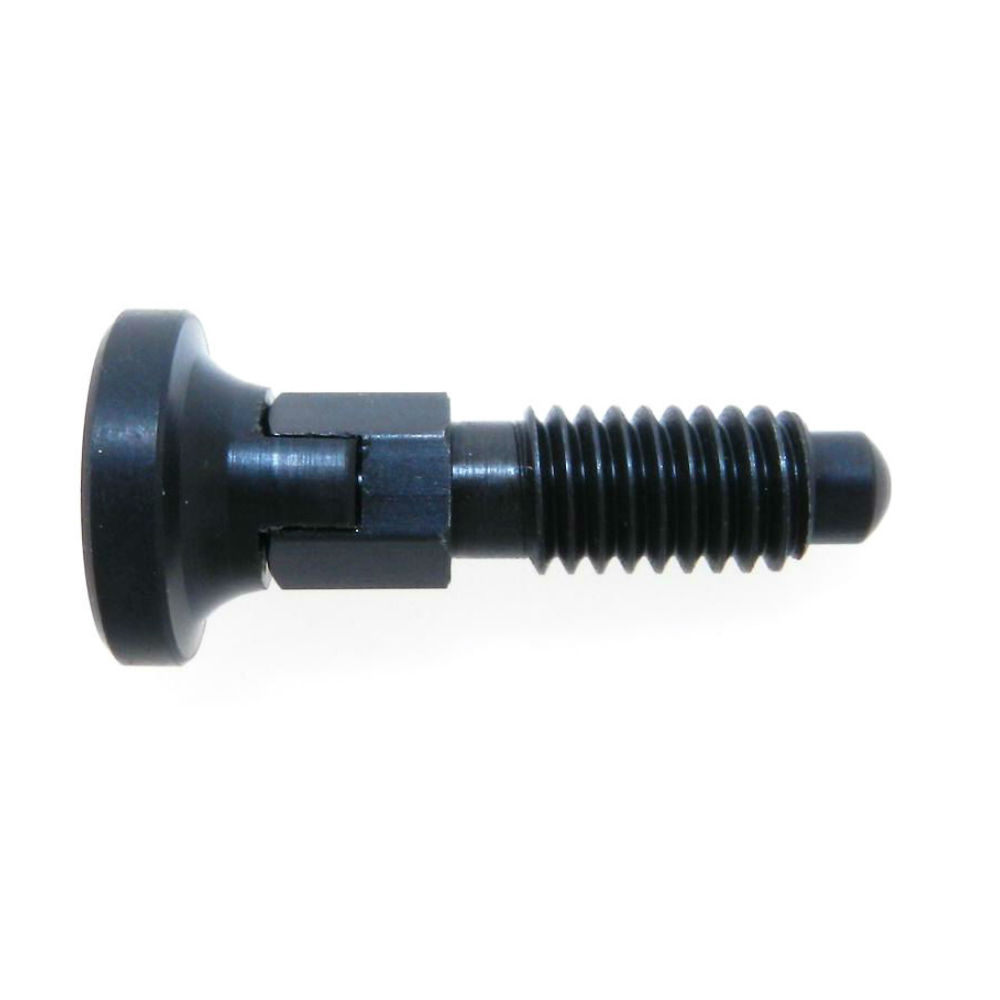

This retractable locking nose plunger from JBF National features a radiused Delrin nose for maximum hole engagement, and the highest quality zinc plated 12L15 steel or 303 stainless steel. A simple 90 degree twist engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist. This retractable plunger (also known as an indexing plunger) has been designed and tested to withstand side loading. Please see component diagram below.
| JBF P/N-Steel | JBF P/N-Stainless | Thread (A) | Thread Length (C) | Body Length (B) | Nose Length (D) | Nose Dia (E) | Start End Force (lbs) | Final End Force (lbs) |
|---|---|---|---|---|---|---|---|---|
| 1LDN-1003 | 1LDN-1003SS | 1/4-20 | 0.63 | 0.97 | 0.13 | 0.16 | 0.12 | 0.36 |
| 1LDN-1004 | 1LDN-1004SS | 3/8-16 | 0.75 | 1.40 | 0.18 | 0.25 | 0.25 | 2.00 |
| 1LDN-1005 | 1LDN-1005SS | 1/2-13 | 1.00 | 1.90 | 0.25 | 0.31 | 0.50 | 1.75 |
