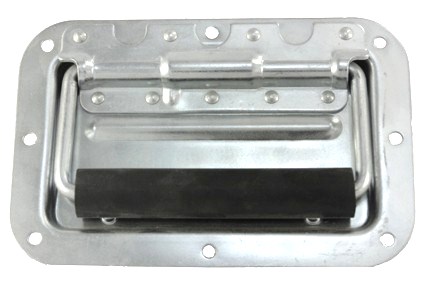

RD-5249 - Recessed Folding Pull Handle with Neoprene Grip

Recessed Dish Handle with Neoprene Grip

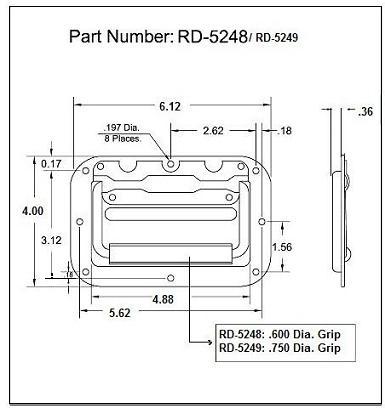

JBF National recessed handles and latches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. This model is manufactured from steel, with a zinc finish and includes .199 diameter mounting holes. RD-5249 is rated for an overall temperature range between -52 up to 150 degrees Fahrenheit. This handle also features 90 degree stop, and a return spring to keep the handle retracted when not in use. Please see component diagram below.

JBF National Part NumberProduct Description
RD-5249-ST-CZ-199Steel / Zinc /.199 Dia. HoleĀ
