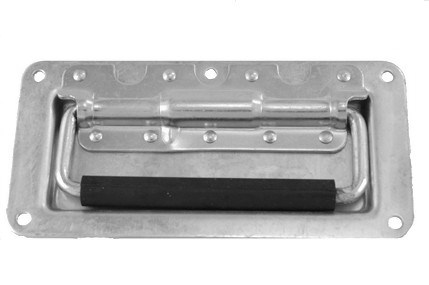

RD-5020 - Recessed Folding Pull Handle with Neoprene Grip

Recessed Dish Handle with Neoprene Grip

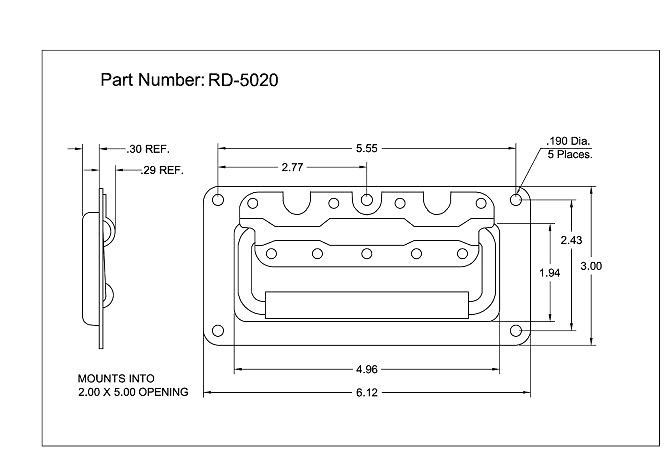

JBF National recessed handles and latches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. This model is manufactured from steel with either an E. coat or clear zinc finish. RD-5020 features a 90 degree handle stop, and a return spring to keep the handle retracted when not in use. The neoprene handle grip is designed to withstand temperatures between -52 up to 150 degrees Fahrenheit. Handle has a load rating up to 150 Lbs. Please see component diagram below.

JBF National Part NumberMaterial / Finish
RD-5020-ST-BP-200Steel / E.CoatĀ
RD-5020-ST-CZ-200Steel / Clear ZincĀ
