T-Handle Quick Release Pins - 304 Stainless Steel

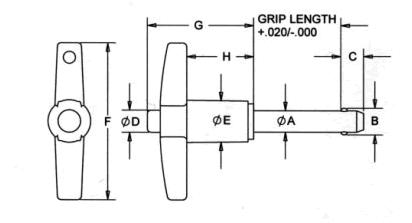

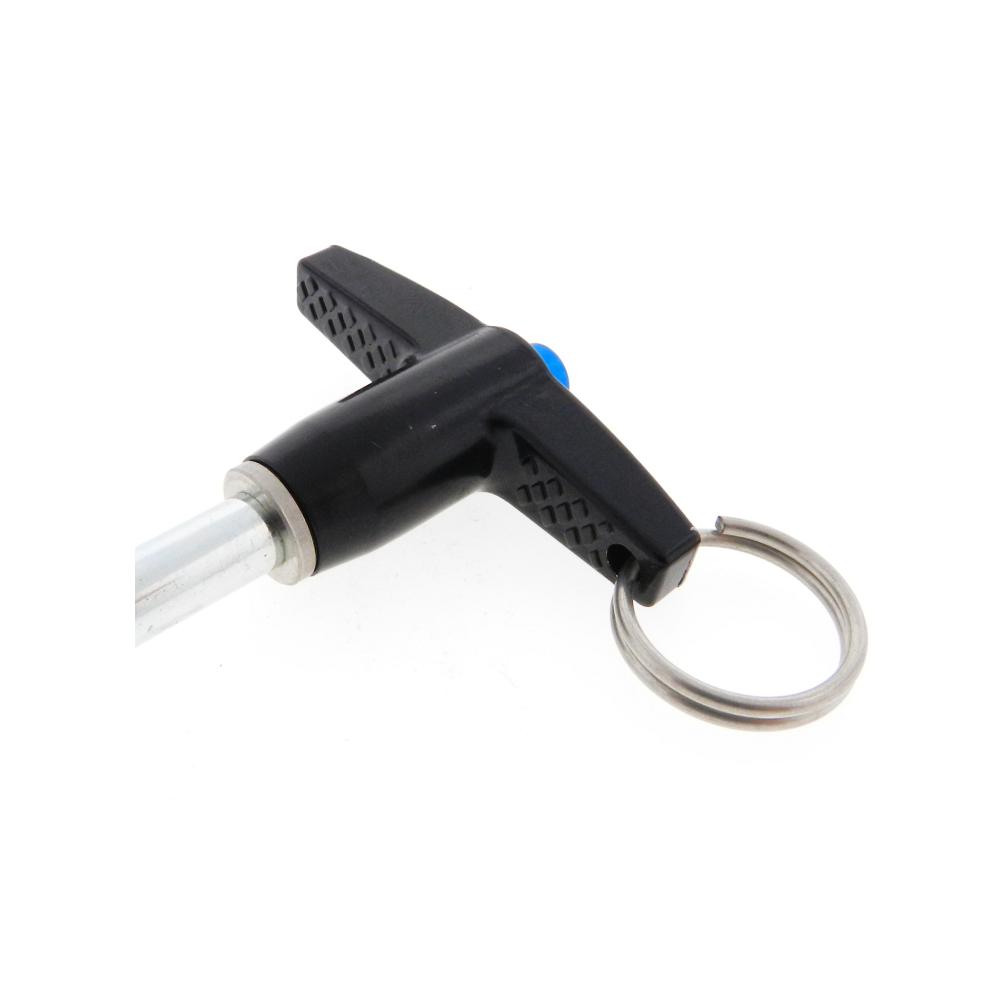

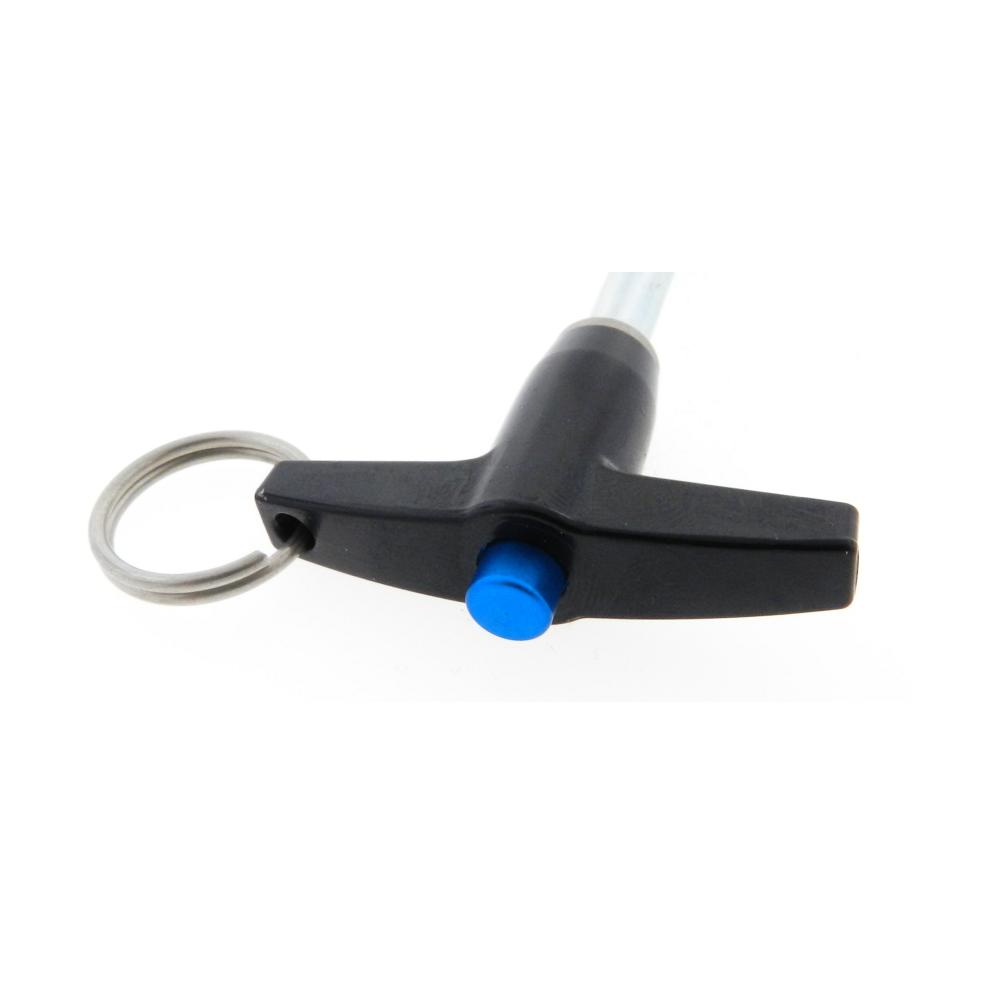

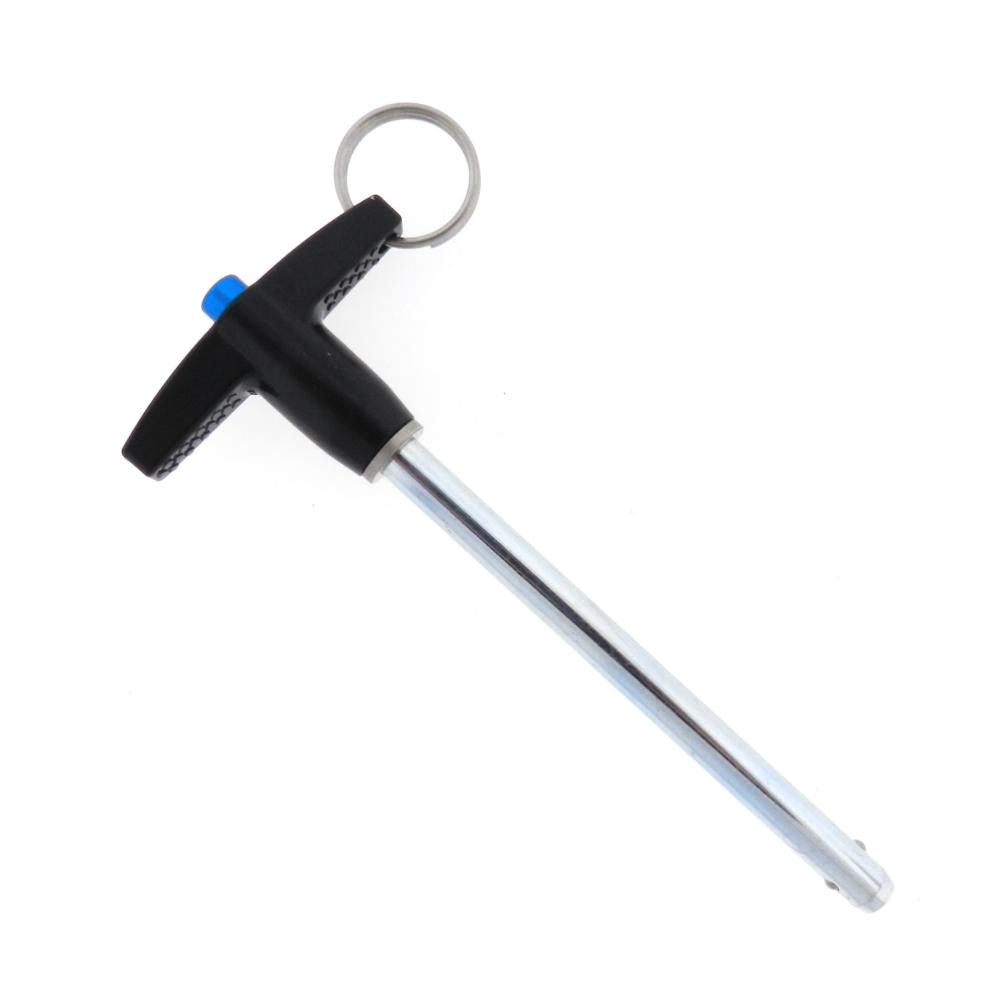

JBF National’s T-handle quick release pins (also known as ball locking pins) are designed to quickly lock into place and disengage via a quick button pressing action. For added safety and ease of use, these pins include a ring for optional lanyard loop attachment. Lanyard loops sold separately. Please see component diagram below.
| P/N | Grip Length | Pin Dia (A) | Ball Grip Dia (B) | Lead Length (C) | Button Dia (D) | HNDL Dia (E) | HNDL Width (F) | HNDL Length (G) | HNDL Body Length (H) |
|---|---|---|---|---|---|---|---|---|---|
| 1QLTP-1339SS | 0.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLTP-1340SS | 0.75 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLTP-1341SS | 1 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLTP-1342SS | 1.25 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLTP-1343SS | 1.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLTP-1344SS | 2 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLTP-1345SS | 2.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLTP-1346SS | 3 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLTP-1347SS | 3.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLTP-1348SS | 4 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLTP-1349SS | 0.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLTP-1350SS | 0.75 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLTP-1351SS | 1 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLTP-1352SS | 1.25 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLTP-1353SS | 1.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLTP-1354SS | 2 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLTP-1355SS | 2.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLTP-1356SS | 3 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLTP-1357SS | 3.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLTP-1358SS | 4 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 3QLTP-1359SS | 0.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 3QLTP-1360SS | 0.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 3QLTP-1361SS | 1 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 3QLTP-1362SS | 1.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 3QLTP-1363SS | 1.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 3QLTP-1364SS | 1.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 3QLTP-1365SS | 2 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 3QLTP-1366SS | 2.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 3QLTP-1367SS | 3 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 3QLTP-1368SS | 3.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 3QLTP-1369SS | 4 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLTP-1370SS | 1 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 4QLTP-1371SS | 1.25 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 4QLTP-1372SS | 1.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 4QLTP-1373SS | 1.75 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 4QLTP-1374SS | 2 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 4QLTP-1375SS | 2.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 4QLTP-1376SS | 3 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 4QLTP-1377SS | 3.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 4QLTP-1378SS | 4 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 4QLTP-1379SS | 4.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 4QLTP-1380SS | 5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 4QLTP-1381SS | 6 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
