T-Handle Quick Release Pins - 17-4 Stainless Steel

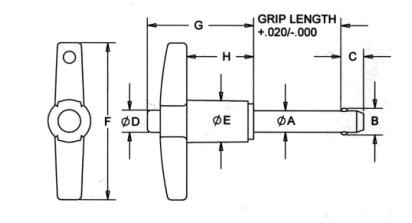

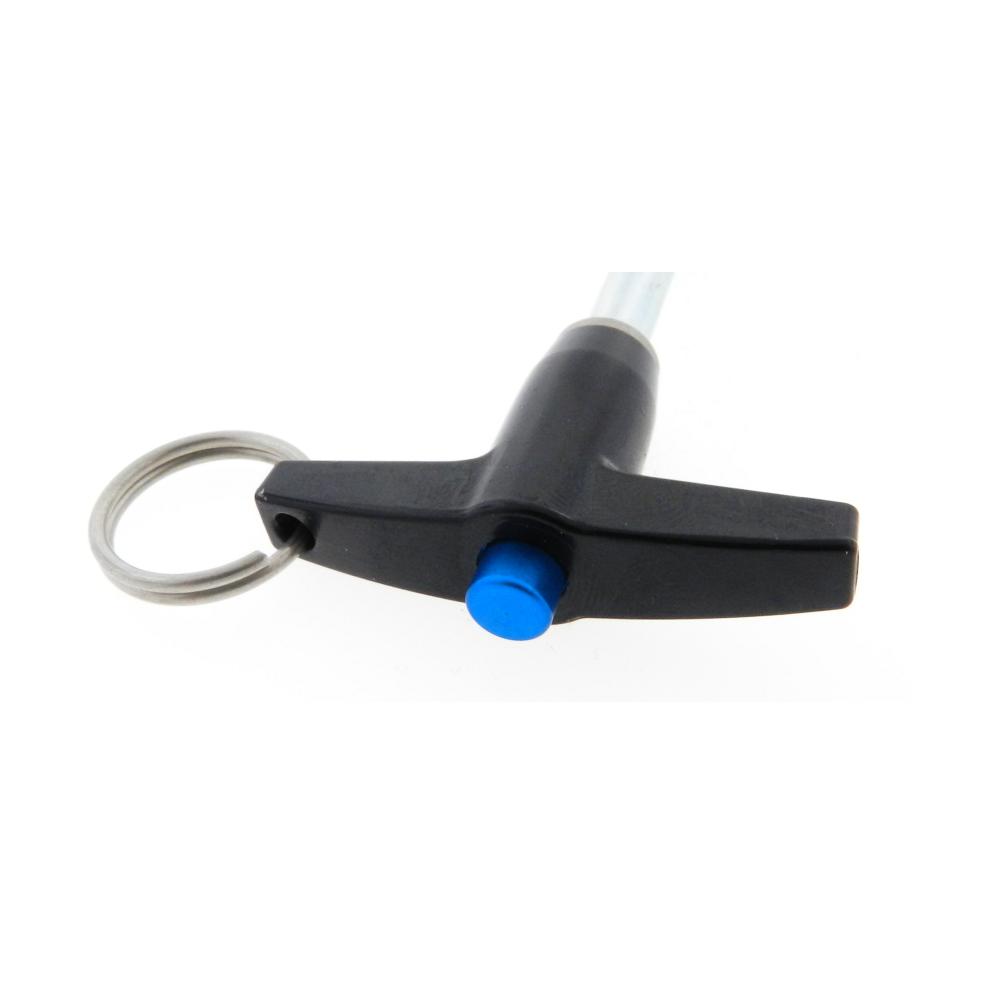

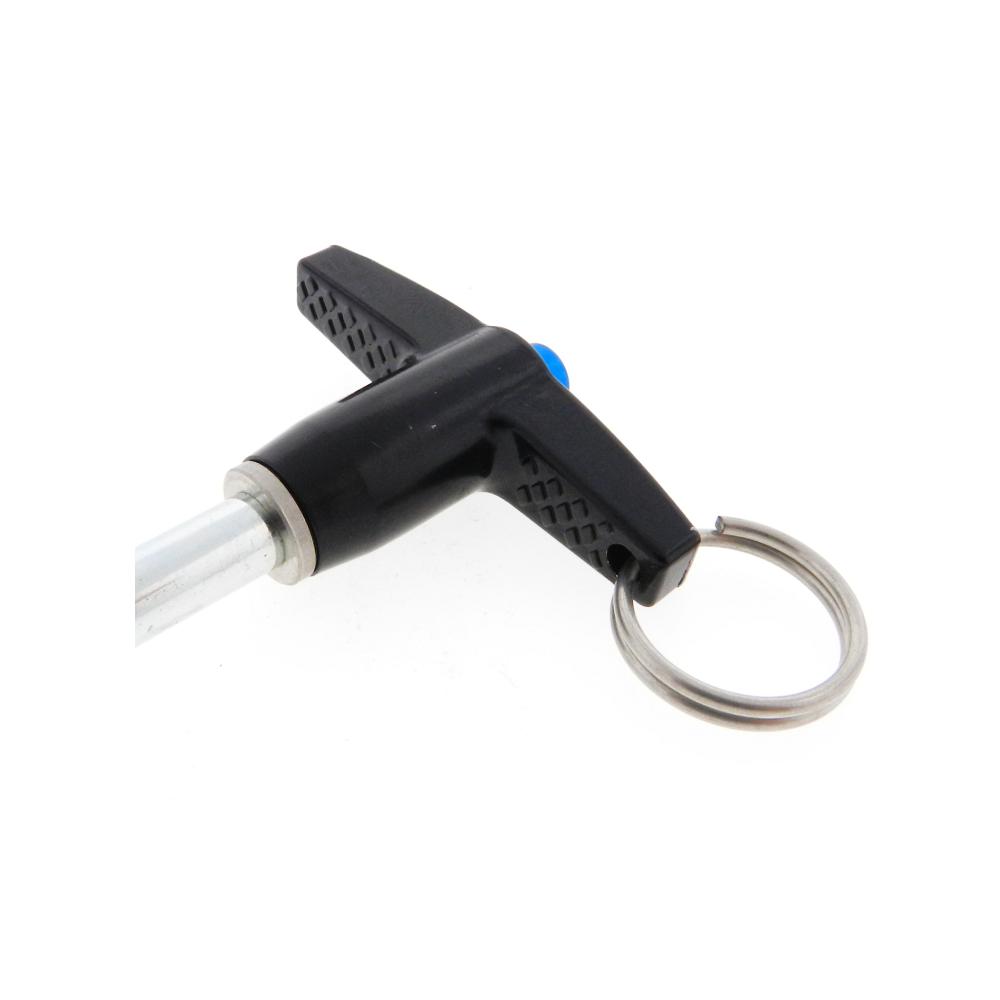

JBF National’s T-handle quick release pins (also known as ball locking pins) are designed to quickly lock into place and disengage via a quick button pressing action. For added safety and ease of use, these pins include a ring for optional lanyard loop attachment. Lanyard loops sold separately. Please see component diagram below.
| P/N | Grip Length | Pin Dia (A) | Ball Grip Dia (B) | Lead Length (C) | Button Dia (D) | HNDL Dia (E) | HNDL Width (F) | HNDL Length (G) | HNDL Body Length (H) |
|---|---|---|---|---|---|---|---|---|---|
| 1QLLP-1213-17-4 | 0.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLLP-1214-17-4 | 0.75 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLLP-1215-17-4 | 1 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLLP-1216-17-4 | 1.25 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLLP-1217-17-4 | 1.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLLP-1218-17-4 | 2 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLLP-1219-17-4 | 2.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 1QLLP-1220-17-4 | 3 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLLP-1221-17-4 | 0.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLLP-1222-17-4 | 0.75 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLLP-1223-17-4 | 1 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLLP-1224-17-4 | 1.25 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLLP-1225-17-4 | 1.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLLP-1226-17-4 | 2 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLLP-1227-17-4 | 2.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 2QLLP-1228-17-4 | 3 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 3QLLP-1229-17-4 | 0.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 3QLLP-1230-17-4 | 0.75 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 3QLLP-1231-17-4 | 1 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 3QLLP-1232-17-4 | 1.25 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 3QLLP-1233-17-4 | 1.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 3QLLP-1234-17-4 | 2 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 3QLLP-1235-17-4 | 2.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 3QLLP-1236-17-4 | 3 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 3QLLP-1237-17-4 | 4 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.8 | 1.22 | 0.77 |
| 4QLLP-1238-17-4 | 0.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1239-17-4 | 0.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1240-17-4 | 1 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1241-17-4 | 1.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1242-17-4 | 1.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1243-17-4 | 1.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1244-17-4 | 2 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1245-17-4 | 2.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1246-17-4 | 2.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1247-17-4 | 3 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1248-17-4 | 3.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1249-17-4 | 4 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1250-17-4 | 4.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1251-17-4 | 5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1252-17-4 | 5.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 4QLLP-1253-17-4 | 6 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.8 | 1.25 | 0.79 |
| 5QLLP-1254-17-4 | 1 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.8 | 1.25 | 0.85 |
| 5QLLP-1255-17-4 | 1.5 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.8 | 1.25 | 0.85 |
| 5QLLP-1256-17-4 | 2 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.8 | 1.25 | 0.85 |
| 5QLLP-1257-17-4 | 2.5 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.8 | 1.25 | 0.85 |
| 5QLLP-1258-17-4 | 3 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.8 | 1.25 | 0.85 |
| 5QLLP-1259-17-4 | 3.5 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.8 | 1.25 | 0.85 |
| 5QLLP-1260-17-4 | 4 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.8 | 1.25 | 0.85 |
| 6QLLP-1261-17-4 | 1 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 6QLLP-1262-17-4 | 1.25 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 6QLLP-1263-17-4 | 1.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 6QLLP-1264-17-4 | 1.75 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 6QLLP-1265-17-4 | 2 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 6QLLP-1266-17-4 | 2.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 6QLLP-1267-17-4 | 3 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 6QLLP-1268-17-4 | 3.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 6QLLP-1269-17-4 | 4 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 6QLLP-1270-17-4 | 4.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 6QLLP-1271-17-4 | 5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 6QLLP-1272-17-4 | 5.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 6QLLP-1273-17-4 | 6 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.2 | 1.69 | 1 |
| 7QLLP-1274-17-4 | 1 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 3.1 | 1.95 | 0.98 |
| 7QLLP-1275-17-4 | 1.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 3.1 | 1.95 | 0.98 |
| 7QLLP-1276-17-4 | 2 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 3.1 | 1.95 | 0.98 |
| 7QLLP-1277-17-4 | 2.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 3.1 | 1.95 | 0.98 |
| 7QLLP-1278-17-4 | 3 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 3.1 | 1.95 | 0.98 |
| 7QLLP-1279-17-4 | 3.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 3.1 | 1.95 | 0.98 |
| 7QLLP-1280-17-4 | 4 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 3.1 | 1.95 | 0.98 |
| 7QLLP-1281-17-4 | 4.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 3.1 | 1.95 | 0.98 |
| 7QLLP-1282-17-4 | 5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 3.1 | 1.95 | 0.98 |
| 7QLLP-1283-17-4 | 5.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 3.1 | 1.95 | 0.98 |
| 7QLLP-1284-17-4 | 6 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 3.1 | 1.95 | 0.98 |
