Ring Handle Quick Release Pins - 304 Stainless Steel

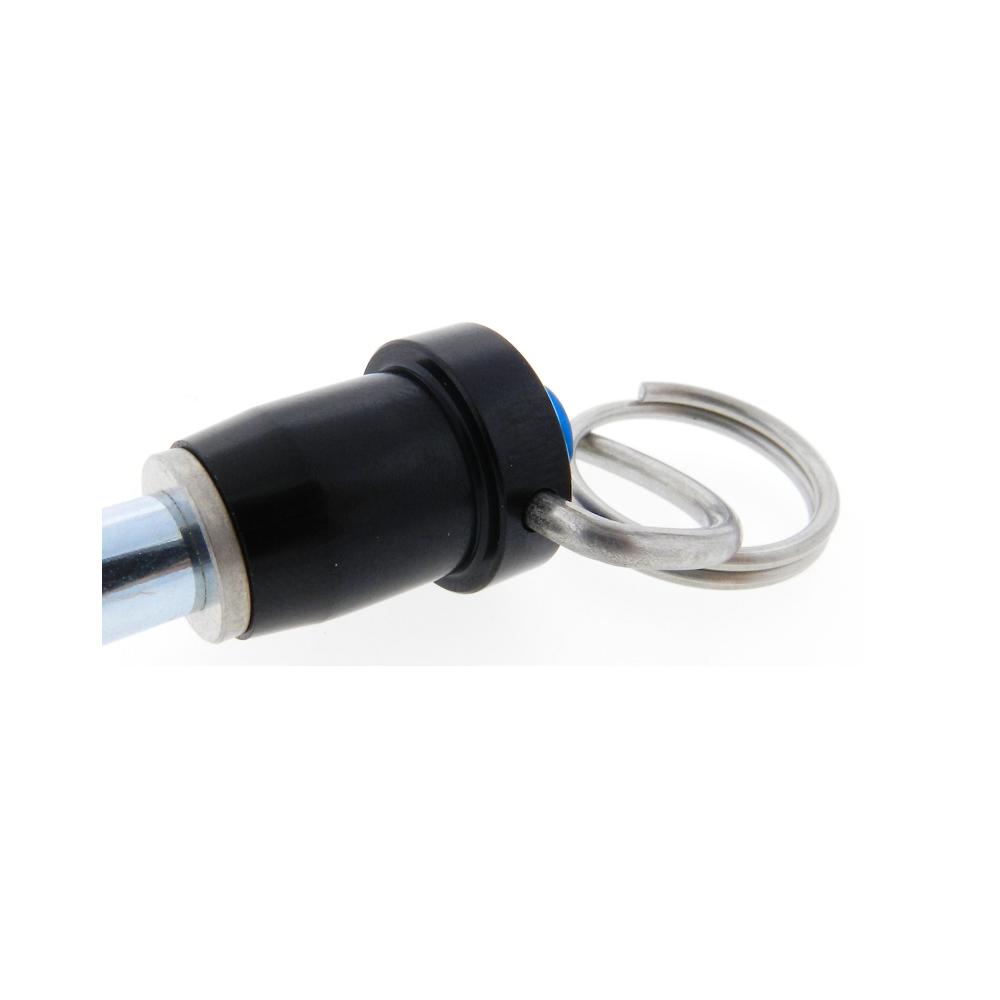

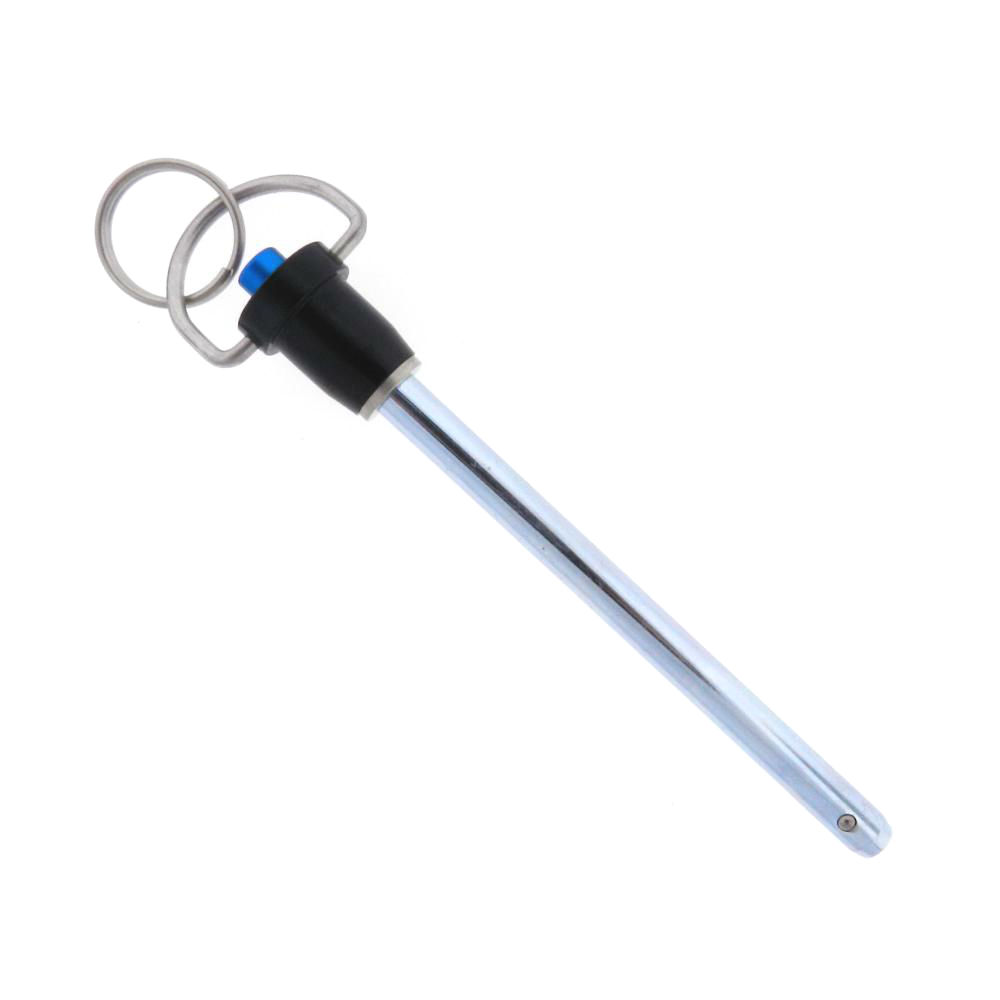

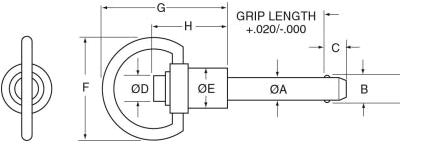

JBF National’s ring handle quick release pins (also known as ball locking pins) are designed to quickly lock into place and disengage via a quick button pressing action. For added safety and ease of use, these pins include a ring for optional lanyard loop attachment. Lanyard loops sold separately. Please see component diagram below.
| P/N | Grip Length | Pin Dia (A) | Ball Grip Dia (B) | Lead Length (C) | Button Dia (D) | HNDL Dia (E) | HNDL Width (F) | HNDL Length (G) | HNDL Body Length (H) |
|---|---|---|---|---|---|---|---|---|---|
| 1QLRP-1244SS | 0.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLRP-1245SS | 0.75 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLRP-1246SS | 1 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLRP-1247SS | 1.25 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLRP-1248SS | 1.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLRP-1249SS | 2 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLRP-1250SS | 2.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLRP-1251SS | 3 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLRP-1252SS | 3.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLRP-1253SS | 4 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLRP-1254SS | 0.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLRP-1255SS | 0.75 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLRP-1256SS | 1 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLRP-1257SS | 1.25 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLRP-1258SS | 1.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLRP-1259SS | 2 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLRP-1260SS | 2.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLRP-1261SS | 3 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLRP-1262SS | 3.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLRP-1263SS | 4 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 3QLRP-1264SS | 0.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 3QLRP-1265SS | 0.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 3QLRP-1266SS | 1 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 3QLRP-1267SS | 1.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 3QLRP-1268SS | 1.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 3QLRP-1269SS | 1.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 3QLRP-1270SS | 2 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 3QLRP-1271SS | 2.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 3QLRP-1272SS | 3 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 3QLRP-1273SS | 3.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 3QLRP-1274SS | 4 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLRP-1275SS | 1 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 4QLRP-1276SS | 1.25 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 4QLRP-1277SS | 1.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 4QLRP-1278SS | 1.75 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 4QLRP-1279SS | 2 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 4QLRP-1280SS | 2.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 4QLRP-1281SS | 3 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 4QLRP-1282SS | 3.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 4QLRP-1283SS | 4 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 4QLRP-1284SS | 4.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 4QLRP-1285SS | 5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 4QLRP-1286SS | 6 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
