Ring Handle Quick Release Pins - 17-4 Stainless Steel

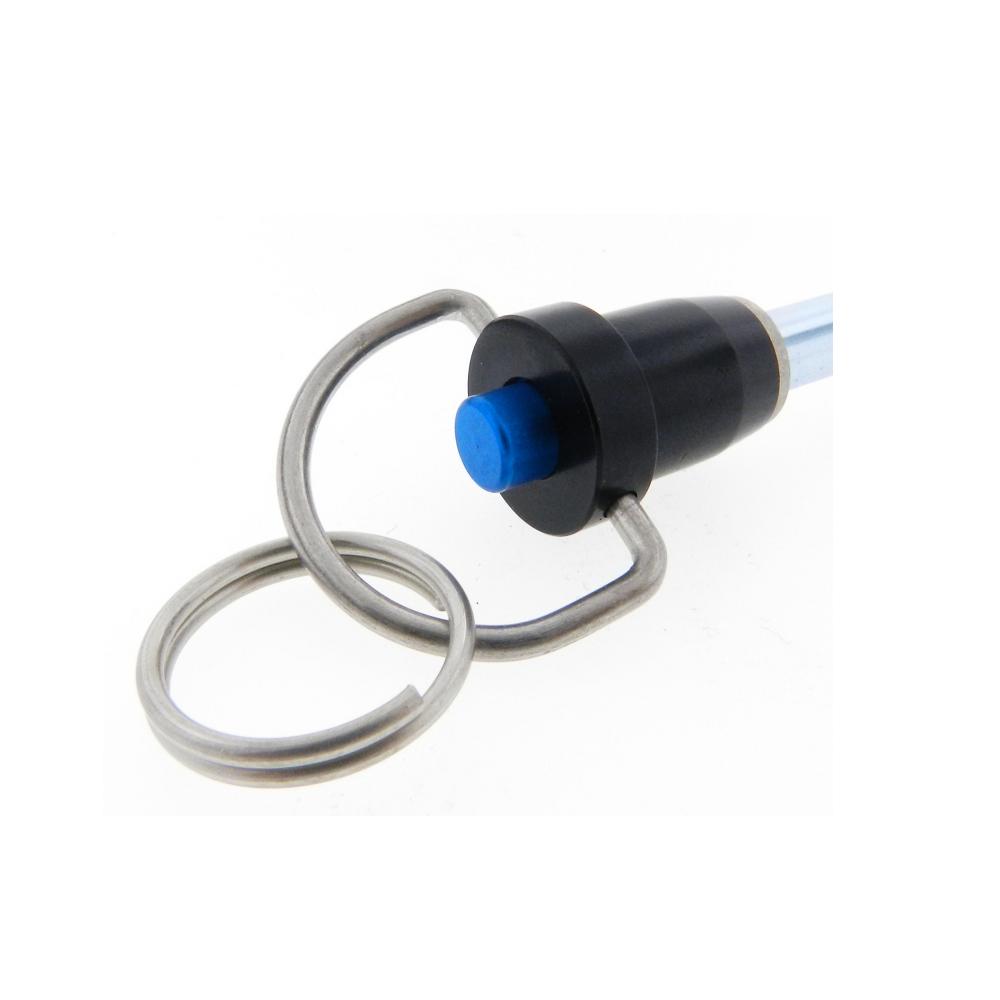

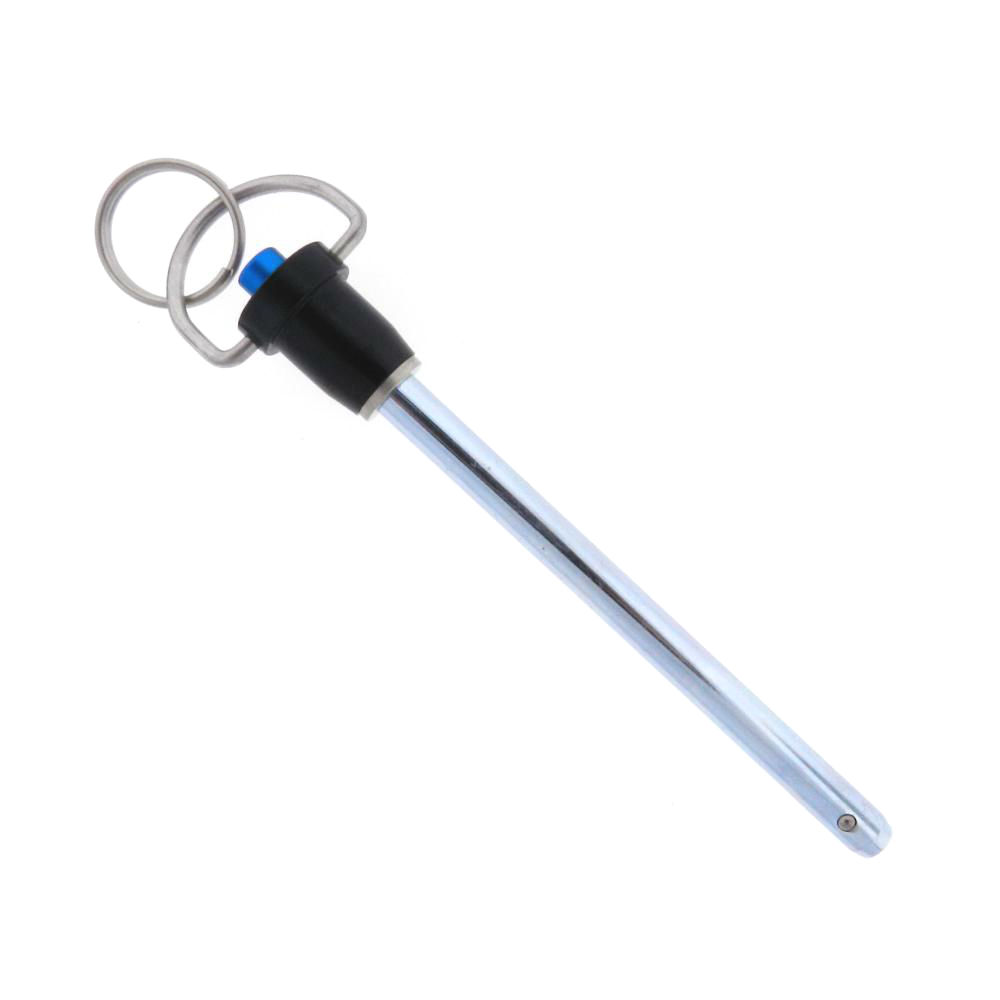

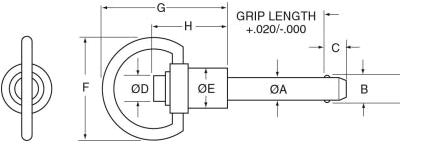

JBF National’s ring handle quick release pins (also known as ball locking pins) are designed to quickly lock into place and disengage via a quick button pressing action. For added safety and ease of use, these pins include a ring for optional lanyard loop attachment. Lanyard loops sold separately. Please see component diagram below.
| P/N | Grip Length | Pin Dia (A) | Ball Grip Dia (B) | Lead Length (C) | Button Dia (D) | HNDL Dia (E) | HNDL Width (F) | HNDL Length (G) | HNDL Body Length (H) |
|---|---|---|---|---|---|---|---|---|---|
| 1QLLP-1141-17-4 | 0.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLLP-1142-17-4 | 0.75 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLLP-1143-17-4 | 1 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLLP-1144-17-4 | 1.25 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLLP-1145-17-4 | 1.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLLP-1146-17-4 | 2 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLLP-1147-17-4 | 2.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 1QLLP-1148-17-4 | 3 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLLP-1149-17-4 | 0.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLLP-1150-17-4 | 0.75 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLLP-1151-17-4 | 1 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLLP-1152-17-4 | 1.25 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLLP-1153-17-4 | 1.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLLP-1154-17-4 | 2 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLLP-1155-17-4 | 2.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 2QLLP-1156-17-4 | 3 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 3QLLP-1157-17-4 | 0.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 3QLLP-1158-17-4 | 0.75 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 3QLLP-1159-17-4 | 1 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 3QLLP-1160-17-4 | 1.25 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 3QLLP-1161-17-4 | 1.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 3QLLP-1162-17-4 | 2 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 3QLLP-1163-17-4 | 2.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 3QLLP-1164-17-4 | 3 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 3QLLP-1165-17-4 | 4 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.59 | 0.92 | 0.56 |
| 4QLLP-1166-17-4 | 0.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1167-17-4 | 0.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1168-17-4 | 1 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1169-17-4 | 1.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1170-17-4 | 1.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1171-17-4 | 1.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1172-17-4 | 2 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1173-17-4 | 2.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1174-17-4 | 2.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1175-17-4 | 3 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1176-17-4 | 3.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1177-17-4 | 4 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1178-17-4 | 4.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1179-17-4 | 5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1180-17-4 | 5.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 4QLLP-1181-17-4 | 6 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 0.59 | 1.03 | 0.65 |
| 5QLLP-1182-17-4 | 1 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 0.59 | 1.05 | 0.85 |
| 5QLLP-1183-17-4 | 1.5 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 0.59 | 1.05 | 0.85 |
| 5QLLP-1184-17-4 | 2 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 0.59 | 1.05 | 0.85 |
| 5QLLP-1185-17-4 | 2.5 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 0.59 | 1.05 | 0.85 |
| 5QLLP-1186-17-4 | 3 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 0.59 | 1.05 | 0.85 |
| 5QLLP-1187-17-4 | 3.5 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 0.59 | 1.05 | 0.85 |
| 5QLLP-1188-17-4 | 4 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 0.59 | 1.05 | 0.85 |
| 6QLLP-1189-17-4 | 1 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 6QLLP-1190-17-4 | 1.25 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 6QLLP-1191-17-4 | 1.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 6QLLP-1192-17-4 | 1.75 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 6QLLP-1193-17-4 | 2 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 6QLLP-1194-17-4 | 2.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 6QLLP-1195-17-4 | 3 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 6QLLP-1196-17-4 | 3.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 6QLLP-1197-17-4 | 4 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 6QLLP-1198-17-4 | 4.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 6QLLP-1199-17-4 | 5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 6QLLP-1200-17-4 | 5.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 6QLLP-1201-17-4 | 6 | 0.5 | 0.592 | 0.46 | 0.39 | 0.7 | 0.8 | 1.25 | 0.8 |
| 7QLLP-1202-17-4 | 1 | 0.625 | 0.72 | 0.52 | 0.55 | 0.93 | 1.1 | 1.69 | 0.905 |
| 7QLLP-1203-17-4 | 1.5 | 0.625 | 0.72 | 0.52 | 0.55 | 0.93 | 1.1 | 1.69 | 0.905 |
| 7QLLP-1204-17-4 | 2 | 0.625 | 0.72 | 0.52 | 0.55 | 0.93 | 1.1 | 1.69 | 0.905 |
| 7QLLP-1205-17-4 | 2.5 | 0.625 | 0.72 | 0.52 | 0.55 | 0.93 | 1.1 | 1.69 | 0.905 |
| 7QLLP-1206-17-4 | 3 | 0.625 | 0.72 | 0.52 | 0.55 | 0.93 | 1.1 | 1.69 | 0.905 |
| 7QLLP-1207-17-4 | 3.5 | 0.625 | 0.72 | 0.52 | 0.55 | 0.93 | 1.1 | 1.69 | 0.905 |
| 7QLLP-1208-17-4 | 4 | 0.625 | 0.72 | 0.52 | 0.55 | 0.93 | 1.1 | 1.69 | 0.905 |
| 7QLLP-1209-17-4 | 4.5 | 0.625 | 0.72 | 0.52 | 0.55 | 0.93 | 1.1 | 1.69 | 0.905 |
| 7QLLP-1210-17-4 | 5 | 0.625 | 0.72 | 0.52 | 0.55 | 0.93 | 1.1 | 1.69 | 0.905 |
| 7QLLP-1211-17-4 | 5.5 | 0.625 | 0.72 | 0.52 | 0.55 | 0.93 | 1.1 | 1.69 | 0.905 |
| 7QLLP-1212-17-4 | 6 | 0.625 | 0.72 | 0.52 | 0.55 | 0.93 | 1.1 | 1.69 | 0.905 |
