L-Handle Quick Release Pins - Steel

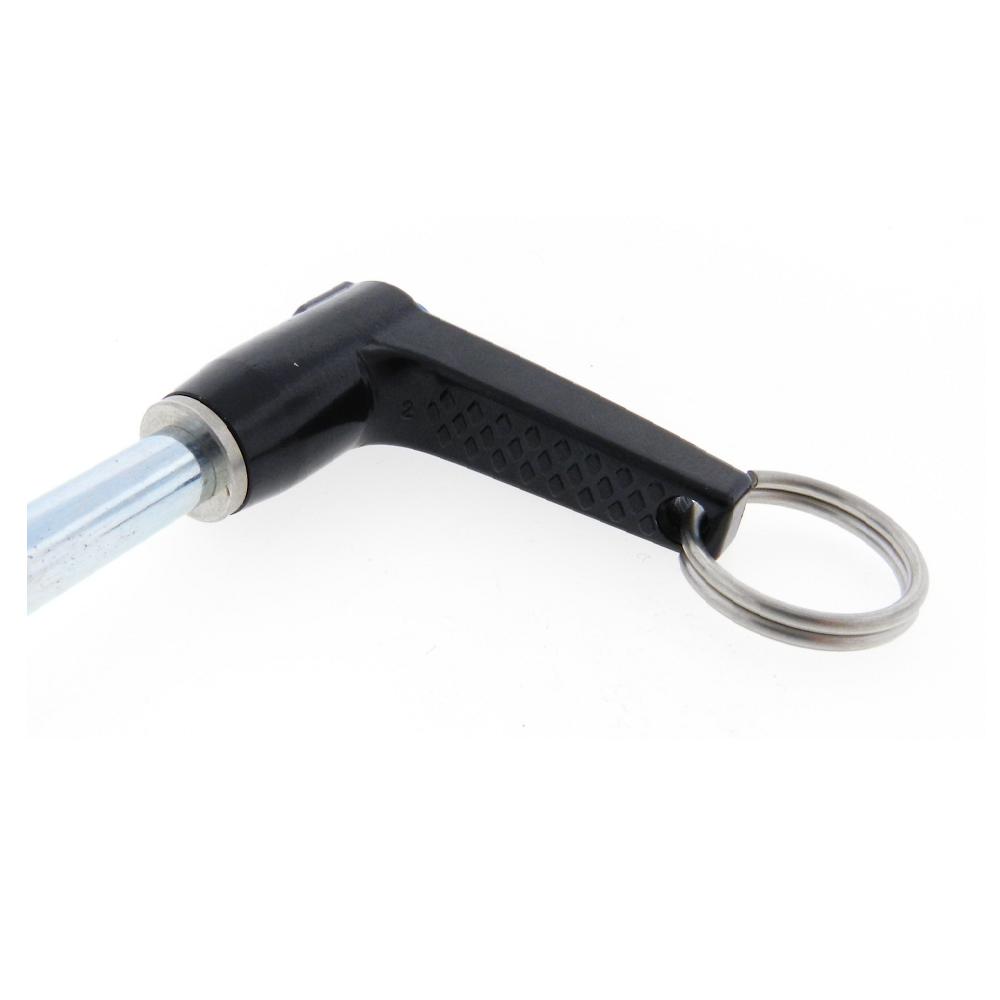

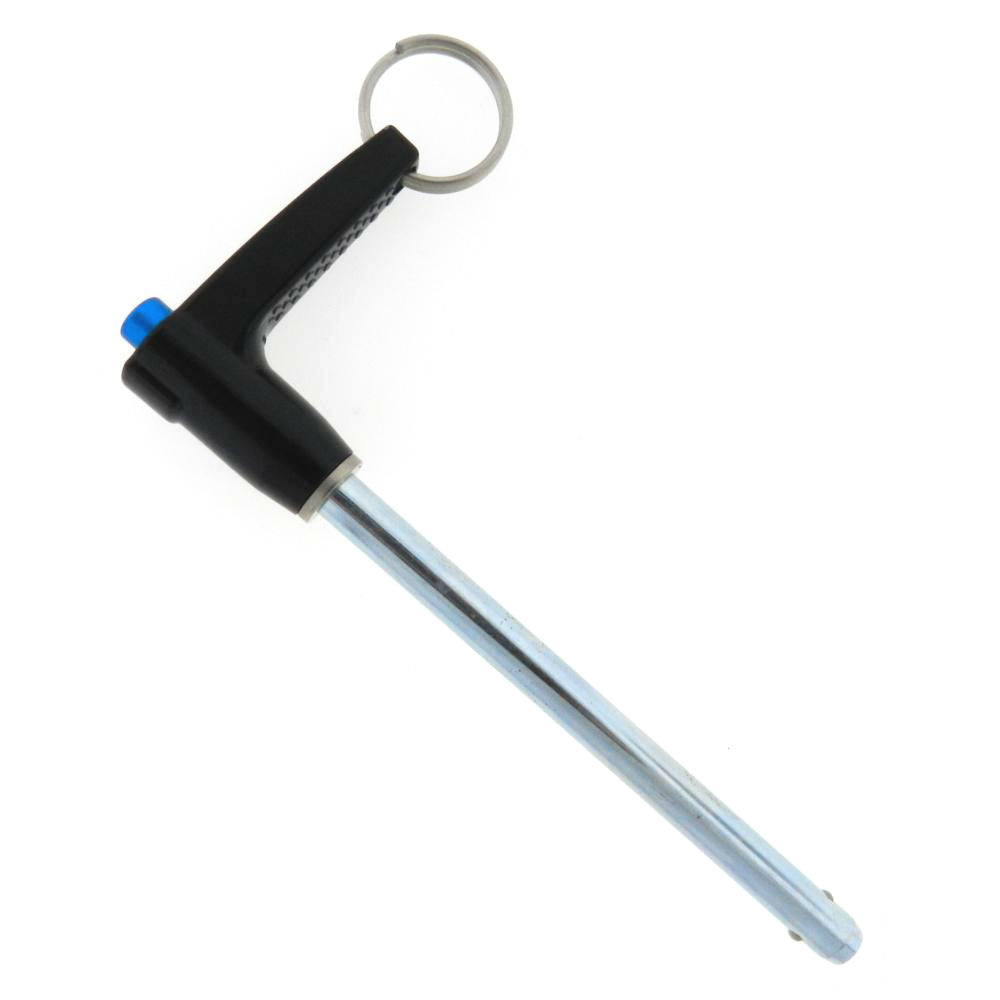

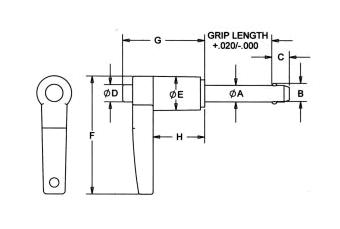

JBF National’s L-handle quick release pins (also known as ball locking pins) are designed to quickly lock into place and disengage via a quick button pressing action. For added safety and ease of use, these pins include a ring for optional lanyard loop attachment. Lanyard loops sold separately. Please see component diagram below.
| P/N | Grip Length | Pin Dia (A) | Ball Grip Dia (B) | Lead Length (C) | Button Dia (D) | HNDL Dia (E) | HNDL Width (F) | HNDL Length (G) | HNDL Body Length (H) |
|---|---|---|---|---|---|---|---|---|---|
| 1QLLP-1096 | 0.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1097 | 0.75 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1098 | 1 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1099 | 1.25 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1100 | 1.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1101 | 2 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1102 | 2.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1103 | 3 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1104 | 3.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1105 | 4 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1106 | 0.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1107 | 0.75 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1108 | 1 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1109 | 1.25 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1110 | 1.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1111 | 2 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1112 | 2.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1113 | 3 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1114 | 3.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1115 | 4 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1116 | 0.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1117 | 0.75 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1118 | 1 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1119 | 1.25 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1120 | 1.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1121 | 2 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1122 | 2.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1123 | 3 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1124 | 3.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1125 | 4 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 4QLLP-1126 | 0.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1127 | 0.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1128 | 1 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1129 | 1.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1130 | 1.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1131 | 1.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1132 | 2 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1133 | 2.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1134 | 3 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1135 | 3.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1136 | 4 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 5QLLP-1137 | 1 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 5QLLP-1138 | 1.25 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 5QLLP-1139 | 1.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 5QLLP-1140 | 1.75 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 5QLLP-1141 | 2 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 5QLLP-1142 | 3 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 5QLLP-1143 | 3.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 5QLLP-1144 | 4 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 5QLLP-1145 | 4.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 5QLLP-1146 | 5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 5QLLP-1147 | 6 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
