L-Handle Quick Release Pins - 304 Stainless Steel

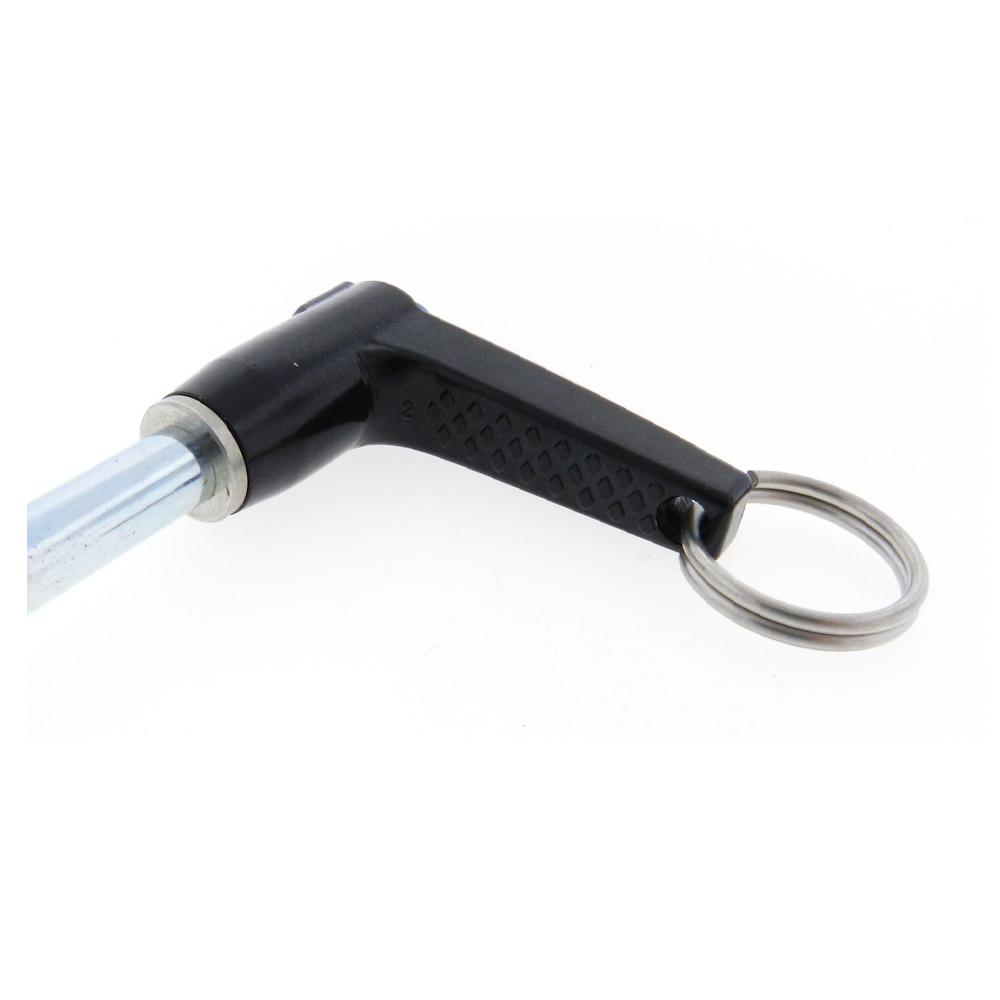

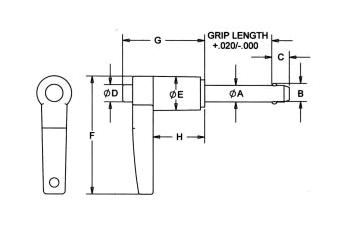

JBF National’s L-handle quick release pins (also known as ball locking pins) are designed to quickly lock into place and disengage via a quick button pressing action. For added safety and ease of use, these pins include a ring for optional lanyard loop attachment. Lanyard loops sold separately. Please see component diagram below.
| P/N | Grip Length | Pin Dia (A) | Ball Grip Dia (B) | Lead Length (C) | Button Dia (D) | HNDL Dia (E) | HNDL Width (F) | HNDL Length (G) | HNDL Body Length (H) |
|---|---|---|---|---|---|---|---|---|---|
| 1QLLP-1148SS | 0.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1149SS | 0.75 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1150SS | 1 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1151SS | 1.25 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1152SS | 1.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1153SS | 2 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1154SS | 2.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1155SS | 3 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1156SS | 3.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1157SS | 4 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1158SS | 0.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1159SS | 0.75 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1160SS | 1 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1161SS | 1.25 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1162SS | 1.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1163SS | 2 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1164SS | 2.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1165SS | 3 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1166SS | 3.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1167SS | 4 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1168SS | 0.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 3QLLP-1169SS | 0.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 3QLLP-1170SS | 1 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 3QLLP-1171SS | 1.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 3QLLP-1172SS | 1.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 3QLLP-1173SS | 1.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 3QLLP-1174SS | 2 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 3QLLP-1175SS | 2.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 3QLLP-1176SS | 3 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 3QLLP-1177SS | 3.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 3QLLP-1178SS | 4 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1179SS | 1 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 4QLLP-1180SS | 1.25 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 4QLLP-1181SS | 1.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 4QLLP-1182SS | 1.75 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 4QLLP-1183SS | 2 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 4QLLP-1184SS | 2.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 4QLLP-1185SS | 3 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 4QLLP-1186SS | 3.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 4QLLP-1187SS | 4 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 4QLLP-1188SS | 4.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 4QLLP-1189SS | 5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 4QLLP-1190SS | 6 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
