L-Handle Quick Release Pins - 17-4 Stainless Steel

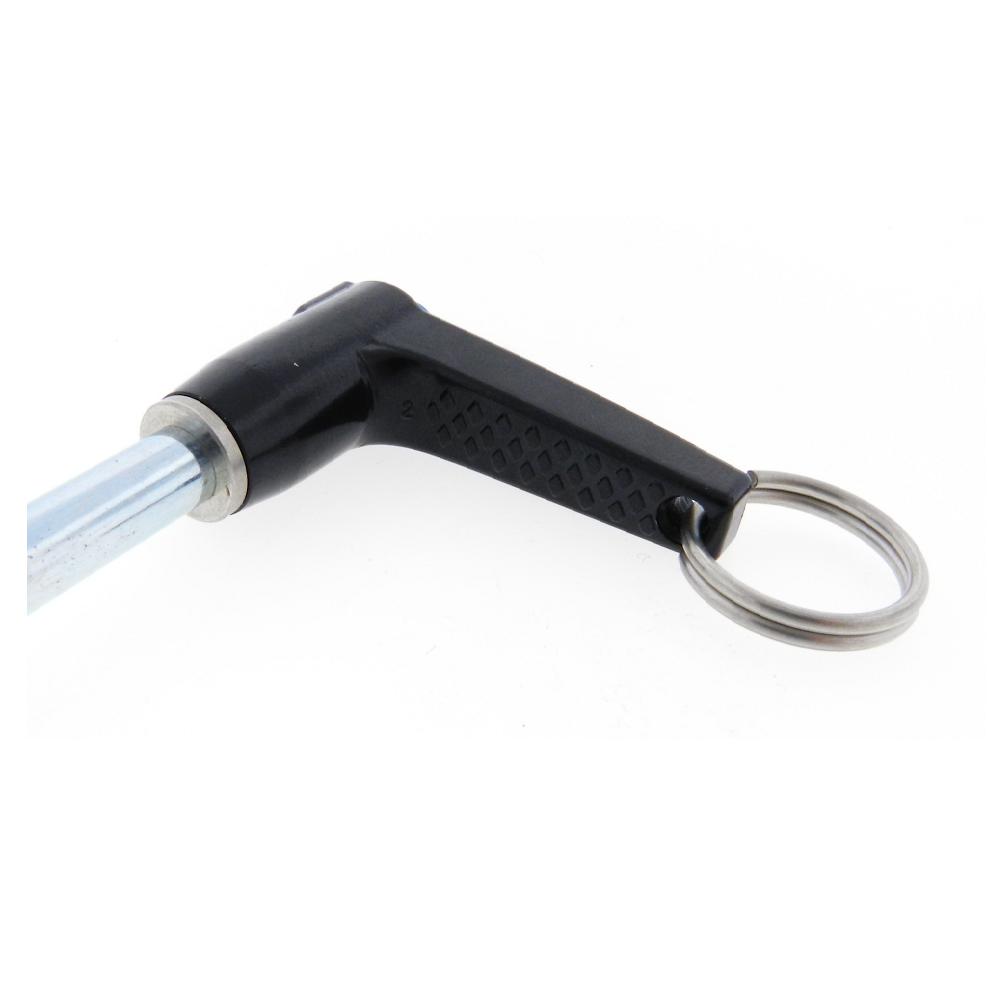

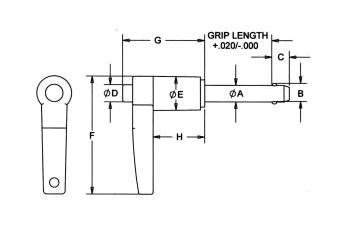

JBF National’s L-handle quick release pins (also known as ball locking pins) are designed to quickly lock into place and disengage via a quick button pressing action. For added safety and ease of use, these pins include a ring for optional lanyard loop attachment. Lanyard loops sold separately. Please see component diagram below.
| P/N | Grip Length | Pin Dia (A) | Ball Grip Dia (B) | Lead Length (C) | Button Dia (D) | HNDL Dia (E) | HNDL Width (F) | HNDL Length (G) | HNDL Body Length (H) |
|---|---|---|---|---|---|---|---|---|---|
| 1QLLP-1071-17-4 | 0.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1072-17-4 | 0.75 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1073-17-4 | 1 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1074-17-4 | 1.25 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1075-17-4 | 1.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1076-17-4 | 2 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1077-17-4 | 2.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 1QLLP-1078-17-4 | 3 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1079-17-4 | 0.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1080-17-4 | 0.75 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1081-17-4 | 1 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1082-17-4 | 1.25 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1083-17-4 | 1.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1084-17-4 | 2 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1085-17-4 | 2.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 2QLLP-1086-17-4 | 3 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1087-17-4 | 0.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1088-17-4 | 0.75 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1089-17-4 | 1 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1090-17-4 | 1.25 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1091-17-4 | 1.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1092-17-4 | 2 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1093-17-4 | 2.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1094-17-4 | 3 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 3QLLP-1095-17-4 | 4 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 1.75 | 1.22 | 0.75 |
| 4QLLP-1096-17-4 | 0.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1097-17-4 | 0.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1098-17-4 | 1 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1099-17-4 | 1.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1100-17-4 | 1.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1101-17-4 | 1.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1102-17-4 | 2 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1103-17-4 | 2.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1104-17-4 | 3 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1105-17-4 | 3.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1106-17-4 | 4 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1107-17-4 | 4.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1108-17-4 | 5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1109-17-4 | 5.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 4QLLP-1110-17-4 | 6 | 0.375 | 0.44 | 0.36 | 0.3 | 0.5 | 1.75 | 1.25 | 0.79 |
| 5QLLP-1111-17-4 | 1 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.75 | 1.25 | 0.85 |
| 5QLLP-1112-17-4 | 1.5 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.75 | 1.25 | 0.85 |
| 5QLLP-1113-17-4 | 2 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.75 | 1.25 | 0.85 |
| 5QLLP-1114-17-4 | 2.5 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.75 | 1.25 | 0.85 |
| 5QLLP-1115-17-4 | 3 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.75 | 1.25 | 0.85 |
| 5QLLP-1116-17-4 | 3.5 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.75 | 1.25 | 0.85 |
| 5QLLP-1117-17-4 | 4 | 0.437 | 0.51 | 0.38 | 0.3 | 0.5 | 1.75 | 1.25 | 0.85 |
| 6QLLP-1118-17-4 | 1 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 6QLLP-1119-17-4 | 1.25 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 6QLLP-1120-17-4 | 1.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 6QLLP-1121-17-4 | 1.75 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 6QLLP-1122-17-4 | 2 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 6QLLP-1123-17-4 | 2.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 6QLLP-1124-17-4 | 3 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 6QLLP-1125-17-4 | 3.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 6QLLP-1126-17-4 | 4 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 6QLLP-1127-17-4 | 4.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 6QLLP-1128-17-4 | 5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 6QLLP-1129-17-4 | 6 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 2.25 | 1.69 | 1 |
| 7QLLP-1130-17-4 | 1 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 2.5 | 1.95 | 0.905 |
| 7QLLP-1131-17-4 | 1.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 2.5 | 1.95 | 0.905 |
| 7QLLP-1132-17-4 | 2 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 2.5 | 1.95 | 0.905 |
| 7QLLP-1133-17-4 | 2.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 2.5 | 1.95 | 0.905 |
| 7QLLP-1134-17-4 | 3 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 2.5 | 1.95 | 0.905 |
| 7QLLP-1135-17-4 | 3.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 2.5 | 1.95 | 0.905 |
| 7QLLP-1136-17-4 | 4 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 2.5 | 1.95 | 0.905 |
| 7QLLP-1137-17-4 | 4.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 2.5 | 1.95 | 0.905 |
| 7QLLP-1138-17-4 | 5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 2.5 | 1.95 | 0.905 |
| 7QLLP-1139-17-4 | 5.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 2.5 | 1.95 | 0.905 |
| 7QLLP-1140-17-4 | 6 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 2.5 | 1.95 | 0.905 |
