Button Handle Quick Release Pins - Steel

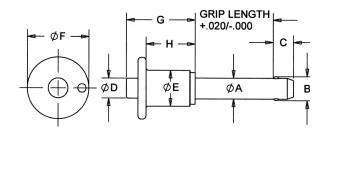

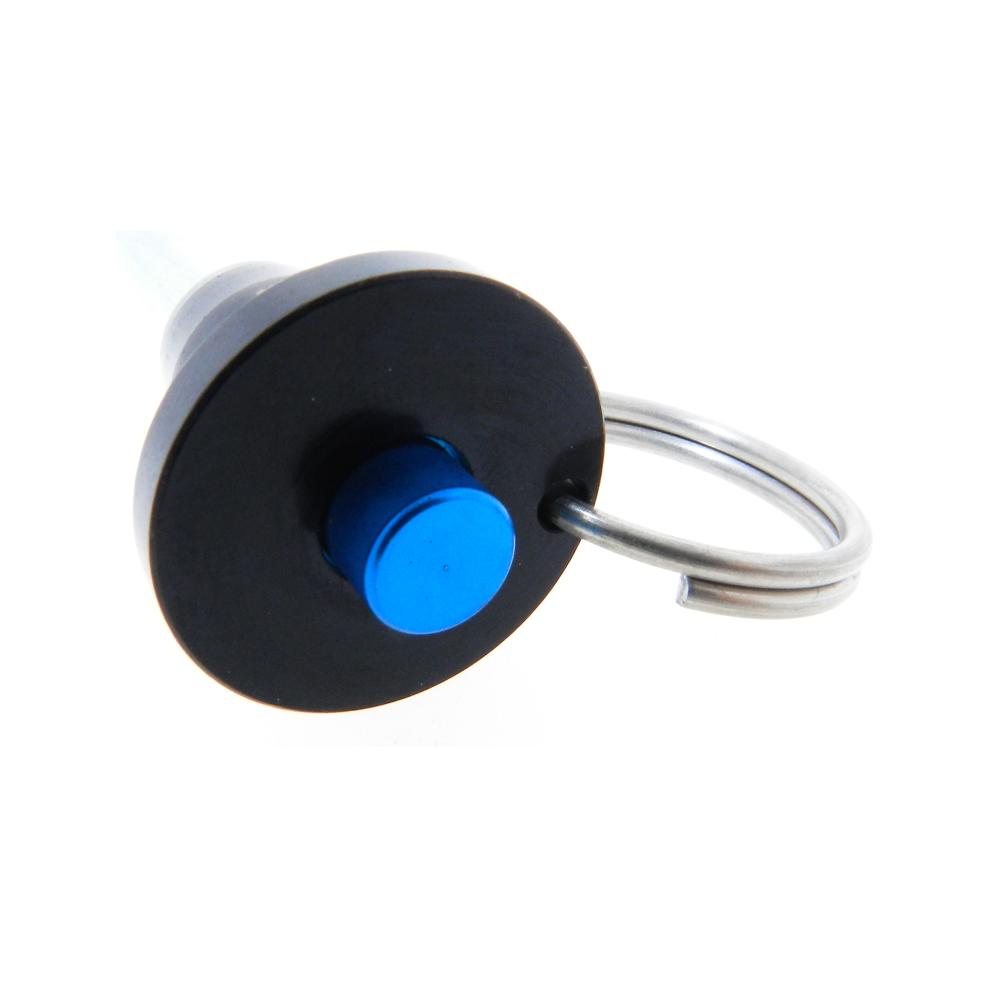

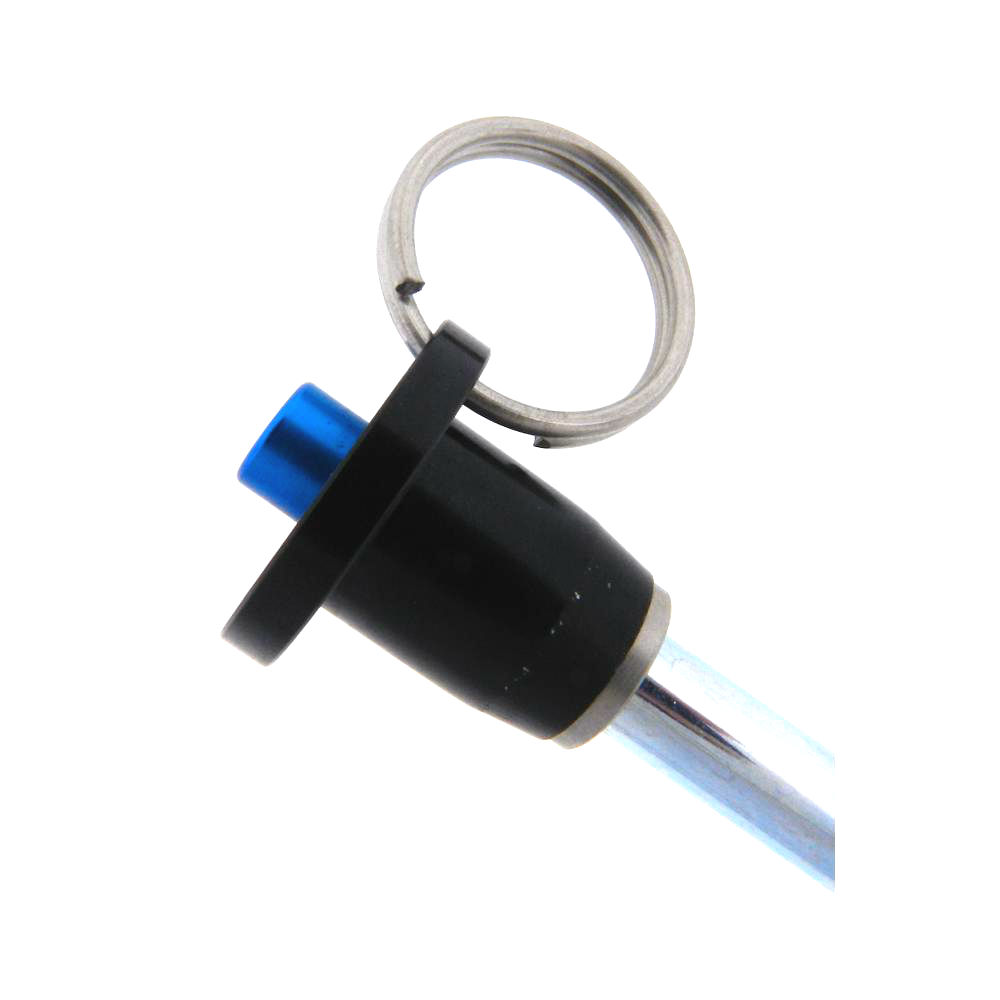

JBF National’s button handle quick release pins (also known as ball locking pins) are designed to quickly lock into place and disengage via a quick button pressing action. For added safety and ease of use, these pins include a ring for optional lanyard loop attachment. Lanyard loops sold separately. Please see component diagram below.
| P/N | Grip Length | Pin Dia (A) | Ball Grip Dia (B) | Lead Length (C) | Button Dia (D) | HNDL Dia (E) | HNDL Width (F) | HNDL Length (G) | HNDL Body Length (H) |
|---|---|---|---|---|---|---|---|---|---|
| 1QLBP-1000 | 0.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1001 | 0.75 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1002 | 1 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1003 | 1.25 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1004 | 1.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1005 | 2 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1006 | 2.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1007 | 3 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1008 | 3.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1009 | 4 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1010 | 0.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1011 | 0.75 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1012 | 1 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1013 | 1.25 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1014 | 1.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1015 | 2 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1016 | 2.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1017 | 3 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1018 | 3.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1019 | 4 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLBP-1020 | 0.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLBP-1021 | 0.75 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLBP-1022 | 1 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLBP-1023 | 1.25 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLBP-1024 | 1.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLBP-1025 | 2 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLBP-1026 | 2.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLBP-1027 | 3 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLBP-1028 | 3.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLBP-1029 | 4 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 4QLBP-1030 | 0.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLBP-1031 | 0.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLBP-1032 | 1 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLBP-1033 | 1.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLBP-1034 | 1.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLBP-1035 | 1.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLBP-1036 | 2 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLBP-1037 | 2.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLBP-1038 | 3 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLBP-1039 | 3.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLBP-1040 | 4 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 5QLBP-1041 | 1 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 5QLBP-1042 | 1.25 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 5QLBP-1043 | 1.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 5QLBP-1044 | 1.75 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 5QLBP-1045 | 2 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 5QLBP-1046 | 2.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 5QLBP-1047 | 3 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 5QLBP-1048 | 3.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 5QLBP-1049 | 4 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 5QLBP-1050 | 4.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 5QLBP-1051 | 5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 5QLBP-1052 | 6 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
