Button Handle Quick Release Pins - 304 Stainless Steel

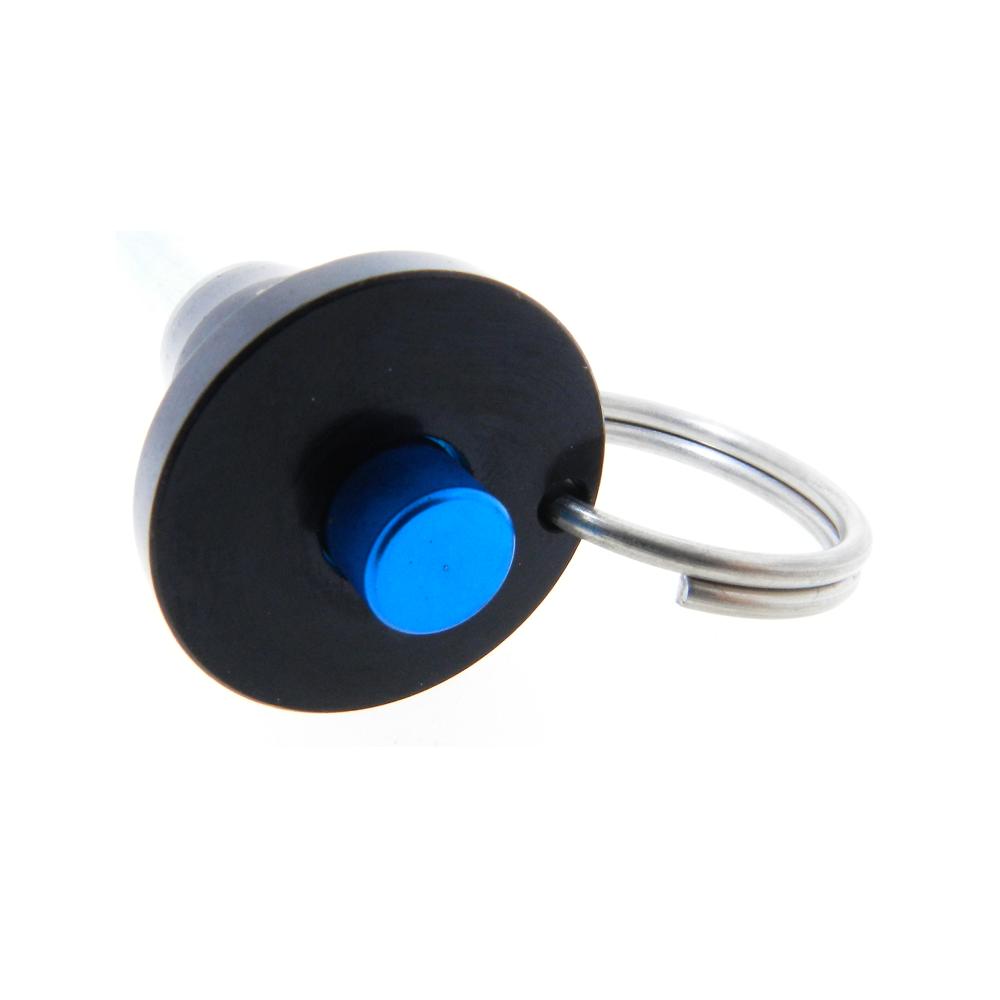

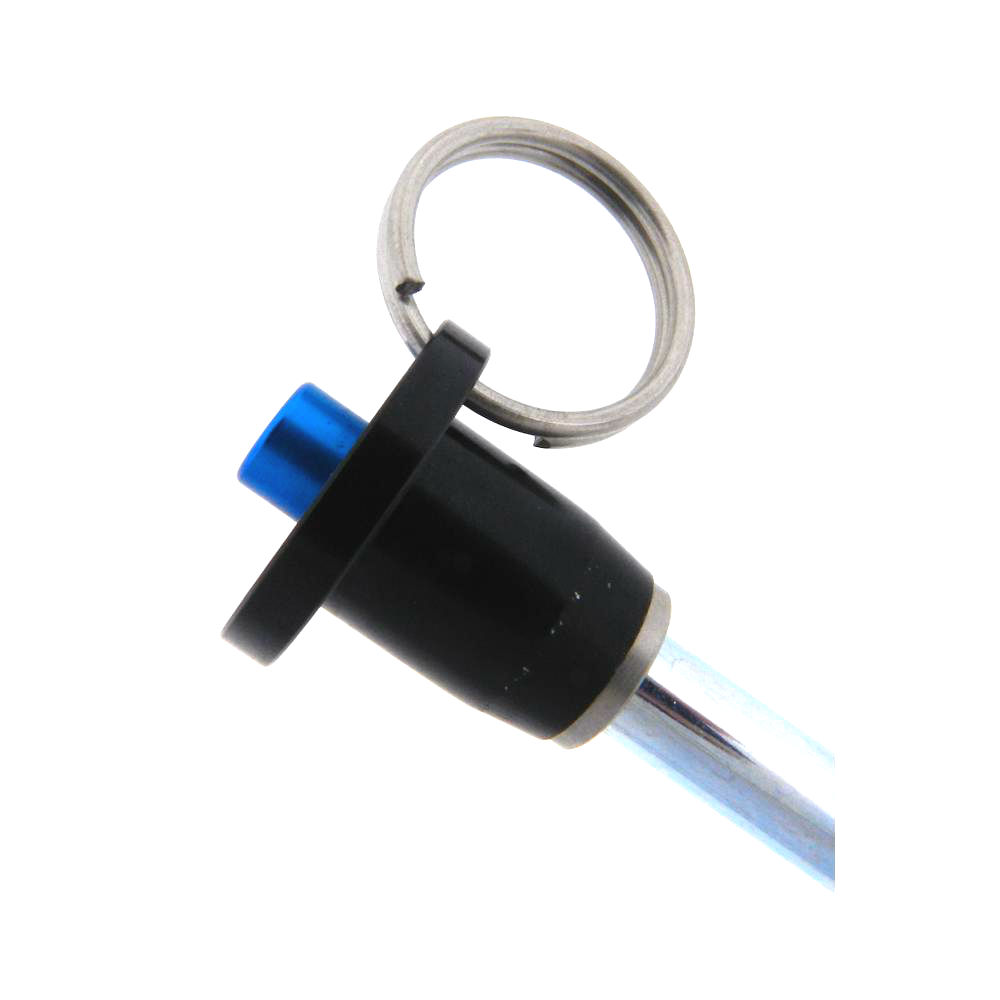

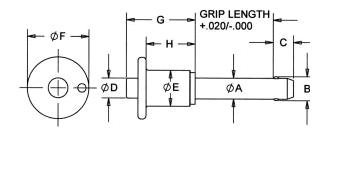

JBF National’s button handle quick release pins (also known as ball locking pins) are designed to quickly lock into place and disengage via a quick button pressing action. For added safety and ease of use, these pins include a ring for optional lanyard loop attachment. Lanyard loops sold separately. Please see component diagram below.
| P/N | Grip Length | Pin Dia (A) | Ball Grip Dia (B) | Lead Length (C) | Button Dia (D) | HNDL Dia (E) | HNDL Width (F) | HNDL Length (G) | HNDL Body Length (H) |
|---|---|---|---|---|---|---|---|---|---|
| 1QLBP-1053SS | 0.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1054SS | 0.75 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1055SS | 1 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1056SS | 1.25 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1057SS | 1.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1058SS | 2 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1059SS | 2.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1060SS | 3 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1061SS | 3.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLBP-1062SS | 4 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1063SS | 0.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1064SS | 0.75 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1065SS | 1 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1066SS | 1.25 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1067SS | 1.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1068SS | 2 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1069SS | 2.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1070SS | 3 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1071SS | 3.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLBP-1072SS | 4 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLBP-1073SS | 0.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 3QLBP-1074SS | 0.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 3QLBP-1075SS | 1 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 3QLBP-1076SS | 1.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 3QLBP-1077SS | 1.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 3QLBP-1078SS | 1.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 3QLBP-1079SS | 2 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 3QLBP-1080SS | 2.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 3QLBP-1081SS | 3 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 3QLBP-1082SS | 3.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 3QLBP-1083SS | 4 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLBP-1084SS | 1 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 4QLBP-1085SS | 1.25 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 4QLBP-1086SS | 1.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 4QLBP-1087SS | 1.75 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 4QLBP-1088SS | 2 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 4QLBP-1089SS | 2.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 4QLBP-1090SS | 3 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 4QLBP-1091SS | 3.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 4QLBP-1092SS | 4 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 4QLBP-1093SS | 4.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 4QLBP-1094SS | 5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 4QLBP-1095SS | 6 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
