Button Handle Quick Release Pins - 17-4 Stainless Steel

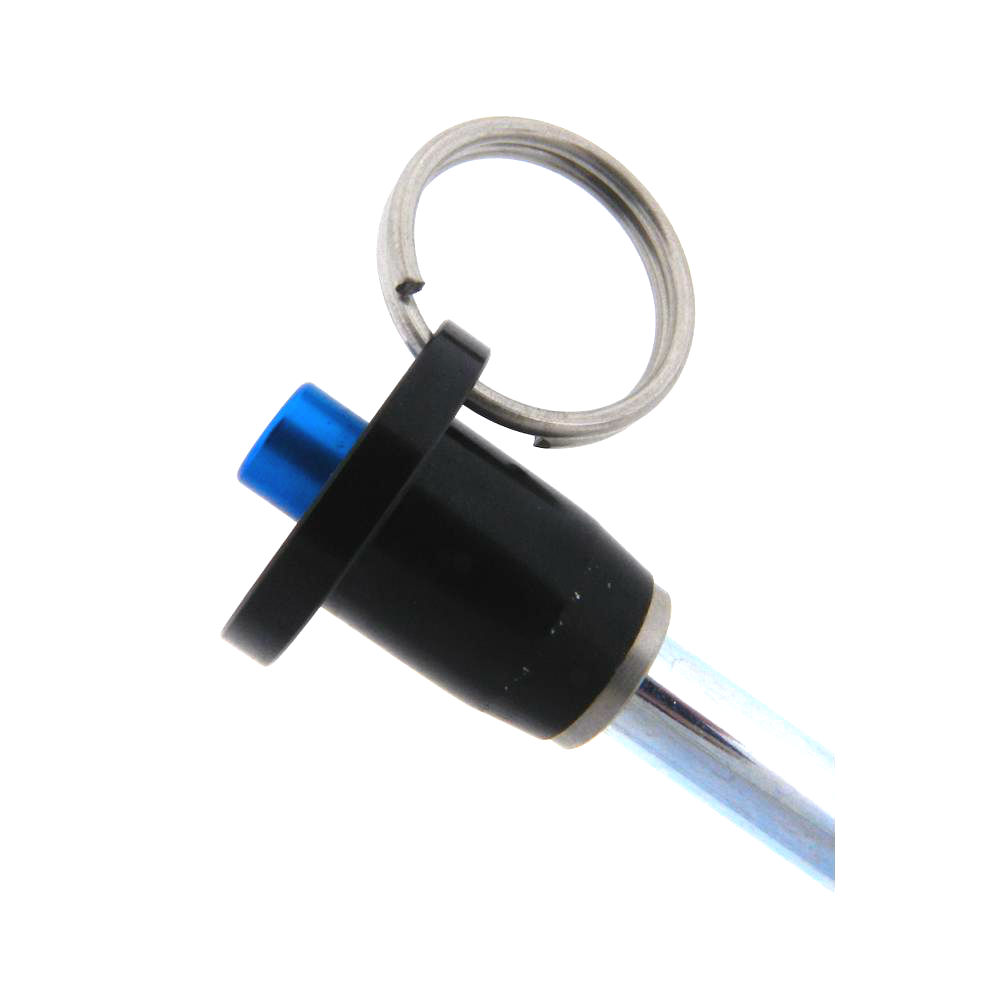

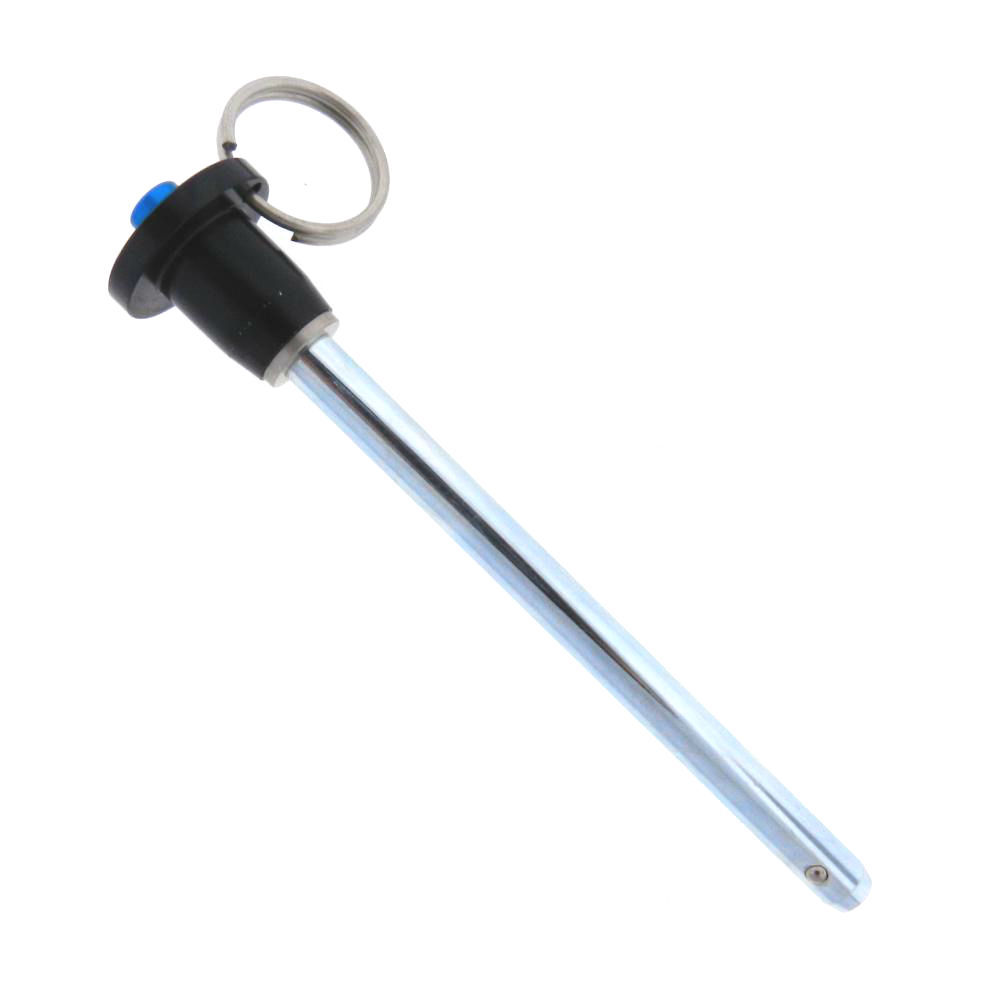

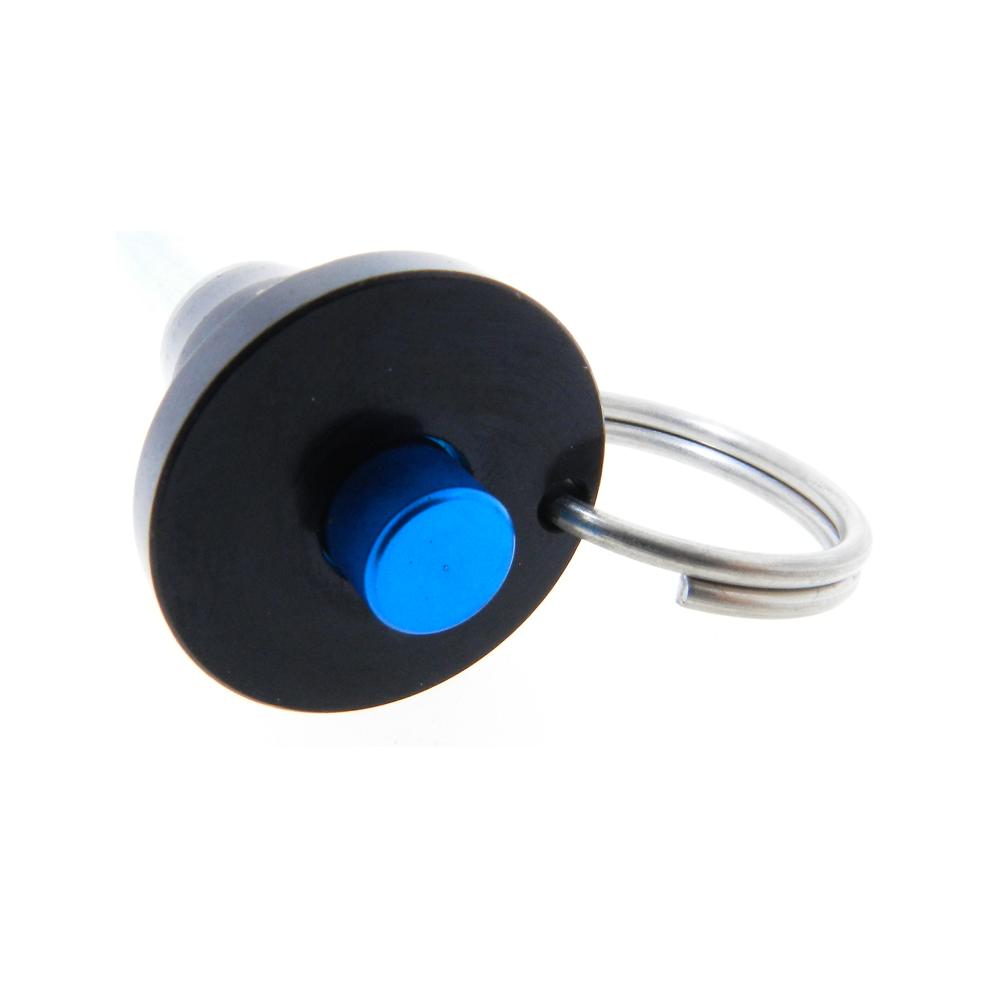

JBF National’s button handle quick release pins (also known as ball locking pins) are designed to quickly lock into place and disengage via a quick button pressing action. For added safety and ease of use, these pins include a ring for optional lanyard loop attachment. Lanyard loops sold separately. Please see component diagram below.
| P/N | Grip Length | Pin Dia (A) | Ball Grip Dia (B) | Lead Length (C) | Button Dia (D) | HNDL Dia (E) | HNDL Width (F) | HNDL Length (G) | HNDL Body Length (H) |
|---|---|---|---|---|---|---|---|---|---|
| 1QLPB-1000-17-4 | 0.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLPB-1001-17-4 | 0.75 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLPB-1002-17-4 | 1 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLPB-1003-17-4 | 1.25 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLPB-1004-17-4 | 1.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLPB-1005-17-4 | 2 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLPB-1006-17-4 | 2.5 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 1QLPB-1007-17-4 | 3 | 0.1875 | 0.22 | 0.26 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLPB-1008-17-4 | 0.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLPB-1009-17-4 | 0.75 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLPB-1010-17-4 | 1 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLPB-1011-17-4 | 1.25 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLPB-1012-17-4 | 1.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLPB-1013-17-4 | 2 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLPB-1014-17-4 | 2.5 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 2QLPB-1015-17-4 | 3 | 0.25 | 0.289 | 0.29 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLPB-1016-17-4 | 0.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLPB-1017-17-4 | 0.75 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLPB-1018-17-4 | 1 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLPB-1019-17-4 | 1.25 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLPB-1020-17-4 | 1.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLPB-1021-17-4 | 2 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLPB-1022-17-4 | 2.5 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLPB-1023-17-4 | 3 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 3QLPB-1024-17-4 | 4 | 0.3125 | 0.375 | 0.33 | 0.25 | 0.5 | 0.79 | 0.87 | 0.6 |
| 4QLPB-1025-17-4 | 0.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1026-17-4 | 0.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1027-17-4 | 1 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1028-17-4 | 1.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1029-17-4 | 1.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1030-17-4 | 1.75 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1031-17-4 | 2 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1032-17-4 | 2.25 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1033-17-4 | 2.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1034-17-4 | 3 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1035-17-4 | 3.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1036-17-4 | 4 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1037-17-4 | 4.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1038-17-4 | 5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1039-17-4 | 5.5 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 4QLPB-1040-17-4 | 6 | 0.375 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 5QLPB-1041-17-4 | 1 | 0.437 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 5QLPB-1042-17-4 | 1.5 | 0.437 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 5QLPB-1043-17-4 | 2 | 0.437 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 5QLPB-1044-17-4 | 2.5 | 0.437 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 5QLPB-1045-17-4 | 3 | 0.437 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 5QLPB-1046-17-4 | 3.5 | 0.437 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 5QLPB-1047-17-4 | 4 | 0.437 | 0.44 | 0.36 | 0.3 | 0.55 | 1.1 | 1.19 | 0.82 |
| 6QLPB-1048-17-4 | 1 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 6QLPB-1049-17-4 | 1.25 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 6QLPB-1050-17-4 | 1.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 6QLPB-1051-17-4 | 1.75 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 6QLPB-1052-17-4 | 2 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 6QLPB-1053-17-4 | 2.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 6QLPB-1054-17-4 | 3 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 6QLPB-1055-17-4 | 3.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 6QLPB-1056-17-4 | 4 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 6QLPB-1057-17-4 | 4.5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 6QLPB-1058-17-4 | 5 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 6QLPB-1059-17-4 | 6 | 0.5 | 0.592 | 0.46 | 0.39 | 0.78 | 1.3 | 1.44 | 1 |
| 7QLPB-1060-17-4 | 1 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 1.75 | 1.62 | 0.95 |
| 7QLPB-1061-17-4 | 1.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 1.75 | 1.62 | 0.95 |
| 7QLPB-1062-17-4 | 2 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 1.75 | 1.62 | 0.95 |
| 7QLPB-1063-17-4 | 2.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 1.75 | 1.62 | 0.95 |
| 7QLPB-1064-17-4 | 3 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 1.75 | 1.62 | 0.95 |
| 7QLPB-1065-17-4 | 3.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 1.75 | 1.62 | 0.95 |
| 7QLPB-1066-17-4 | 4 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 1.75 | 1.62 | 0.95 |
| 7QLPB-1067-17-4 | 4.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 1.75 | 1.62 | 0.95 |
| 7QLPB-1068-17-4 | 5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 1.75 | 1.62 | 0.95 |
| 7QLPB-1069-17-4 | 5.5 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 1.75 | 1.62 | 0.95 |
| 7QLPB-1070-17-4 | 6 | 0.625 | 0.75 | 0.52 | 0.55 | 0.93 | 1.75 | 1.62 | 0.95 |
