Pull Handle-Plastic Ribbed Pull Handle-Top Mount

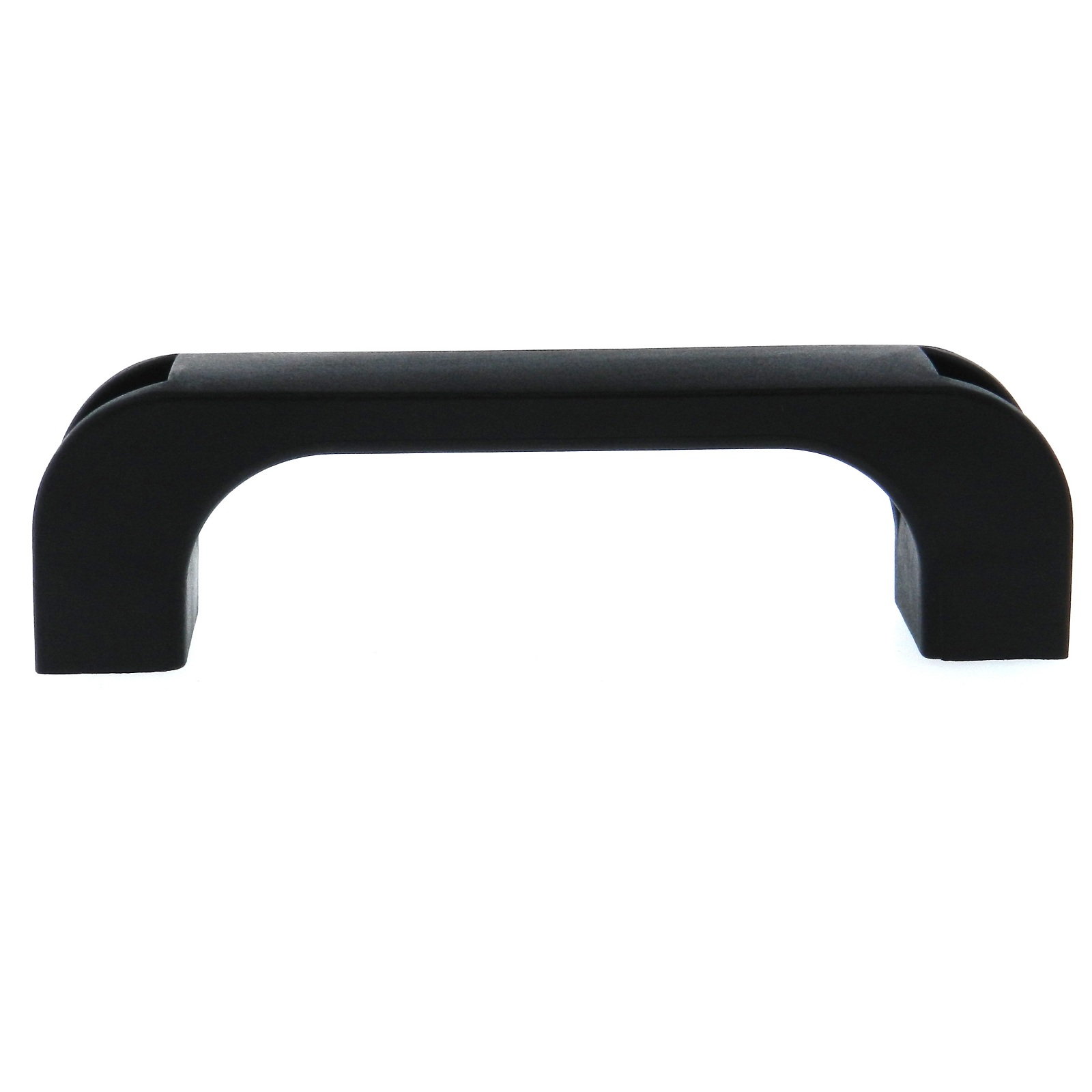

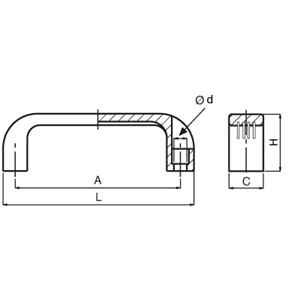

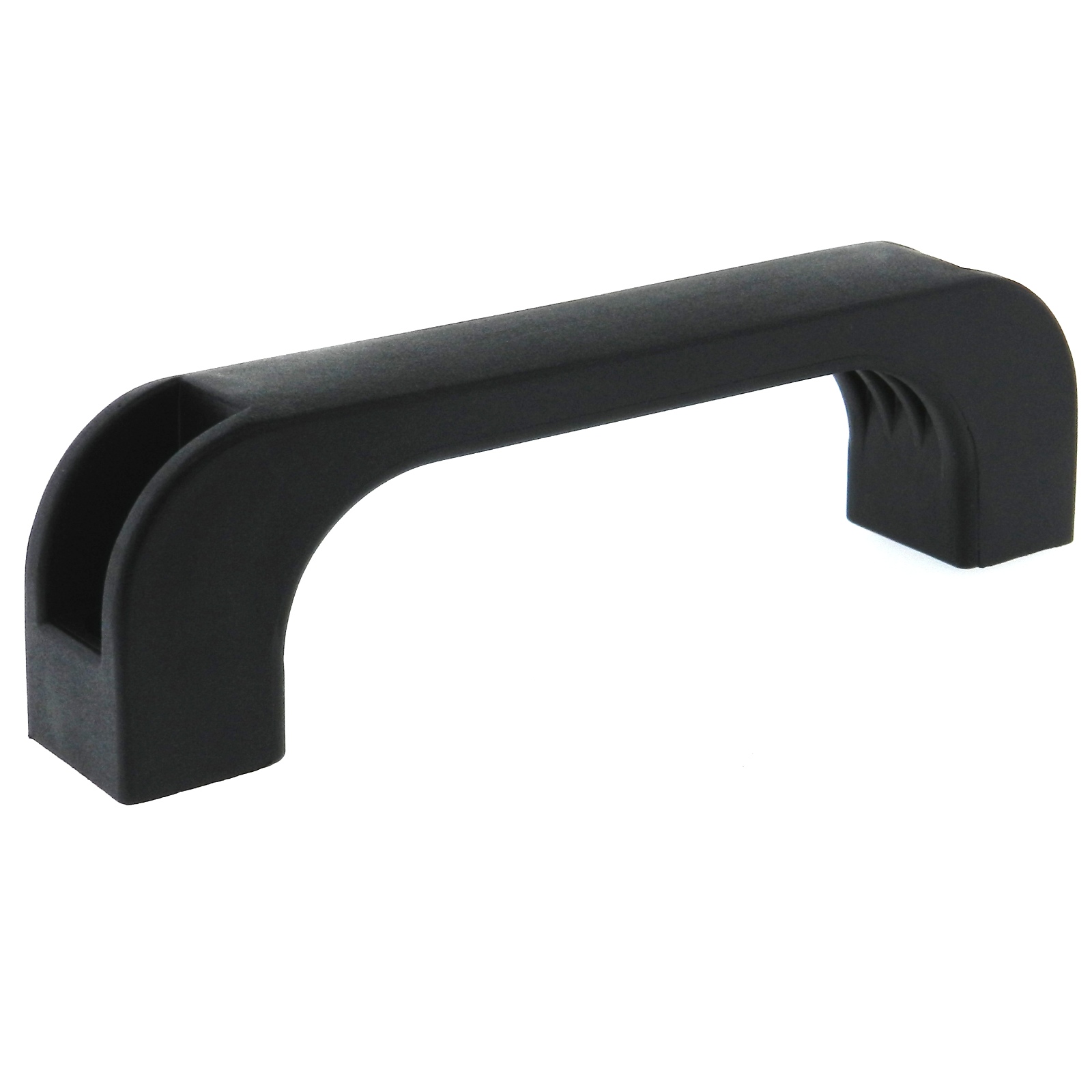

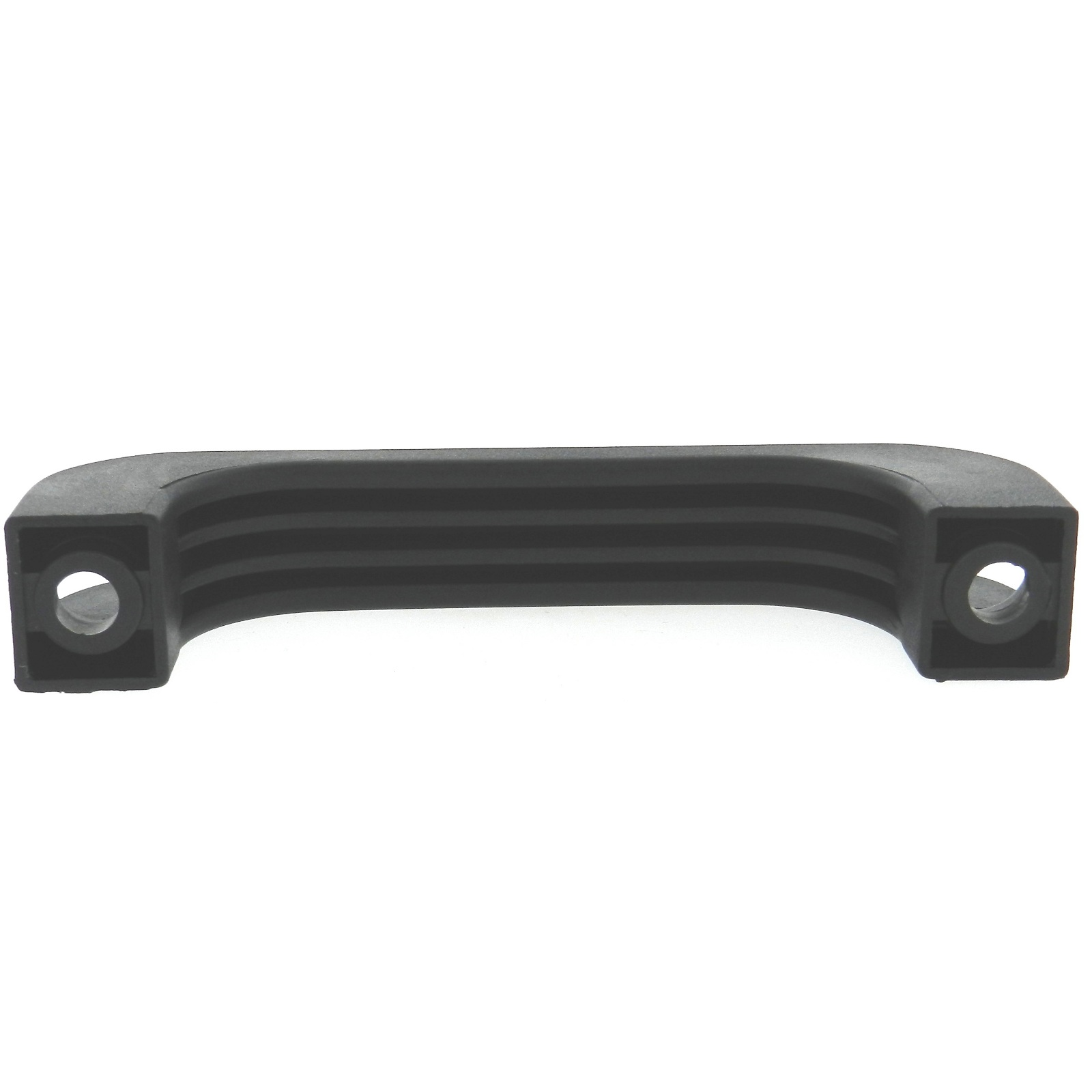

This top mount pull handle from JBF National is manufactured from the highest quality polyamide, and comes in a matte black color. Underside handle ribs ensure positive hand grip each and every time. Please see component diagram below.
| JBF National Part Number | A | C | d | H | L |
|---|---|---|---|---|---|
| 1RBDPH-1085 | 3.7 | 0.83 | 0.26 | 1.45 | 4.33 |
| 1RBDPH-1086 | 4.56 | 0.94 | 0.33 | 1.57 | 5.24 |
| 1RBDPH-1087 | 4.72 | 0.94 | 0.33 | 1.57 | 5.47 |
| 1RBDPH-1088 | 5.2 | 1.02 | 0.33 | 1.69 | 5.95 |
| 1RBDPH-1089 | 7.09 | 1.1 | 0.33 | 1.97 | 7.87 |
| 1RBDPH-1090 | 9.25 | 1.26 | 0.41 | 2.13 | 10.24 |
