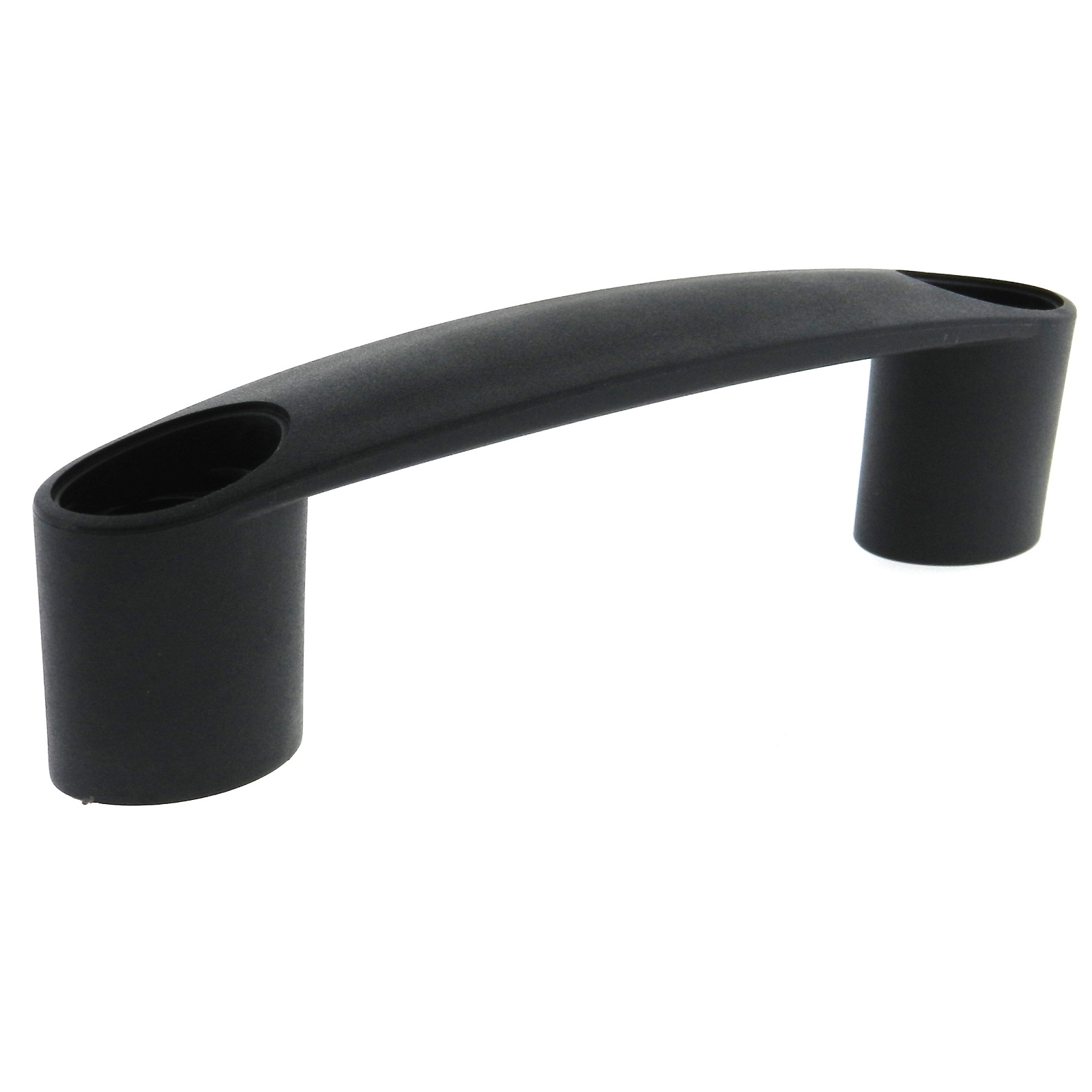

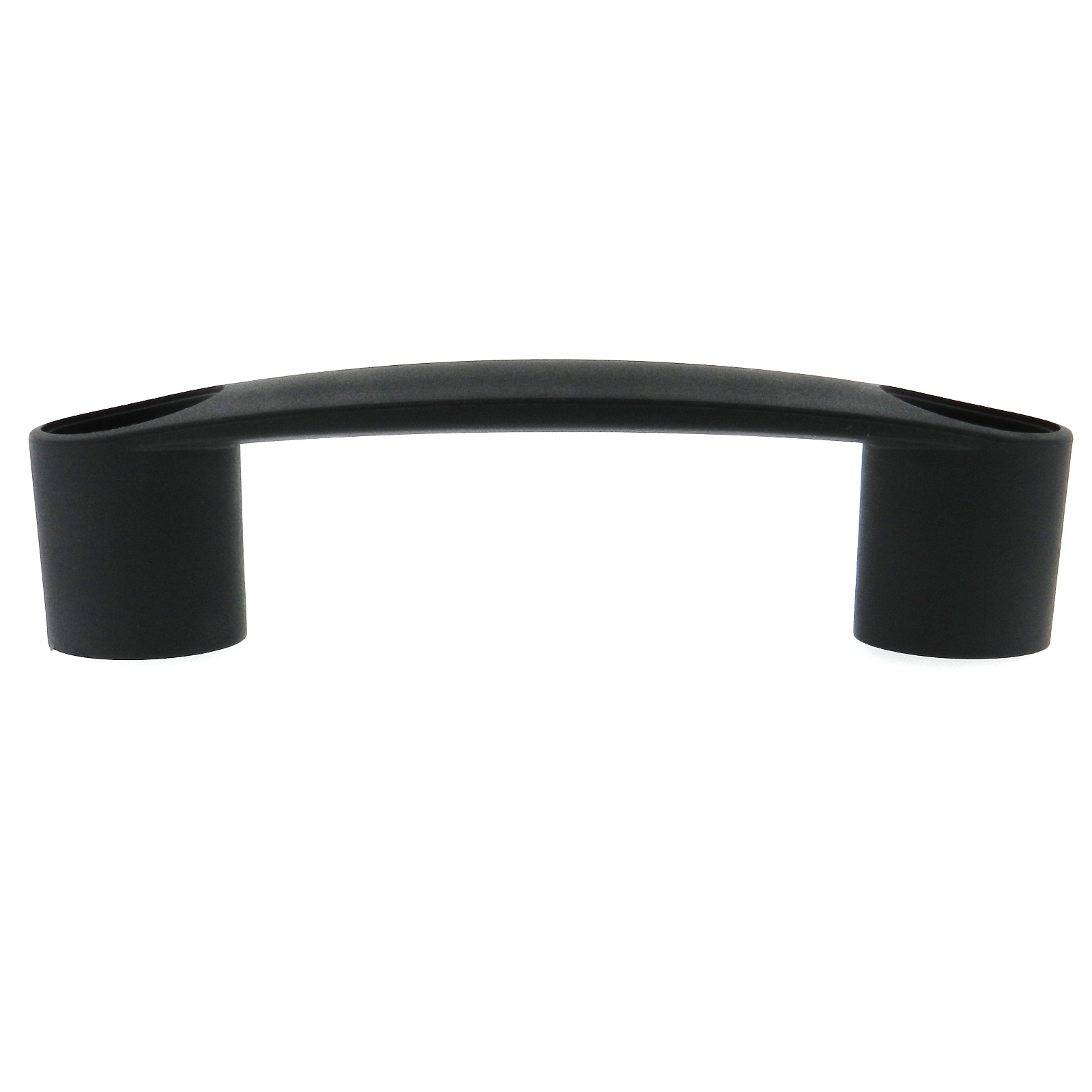

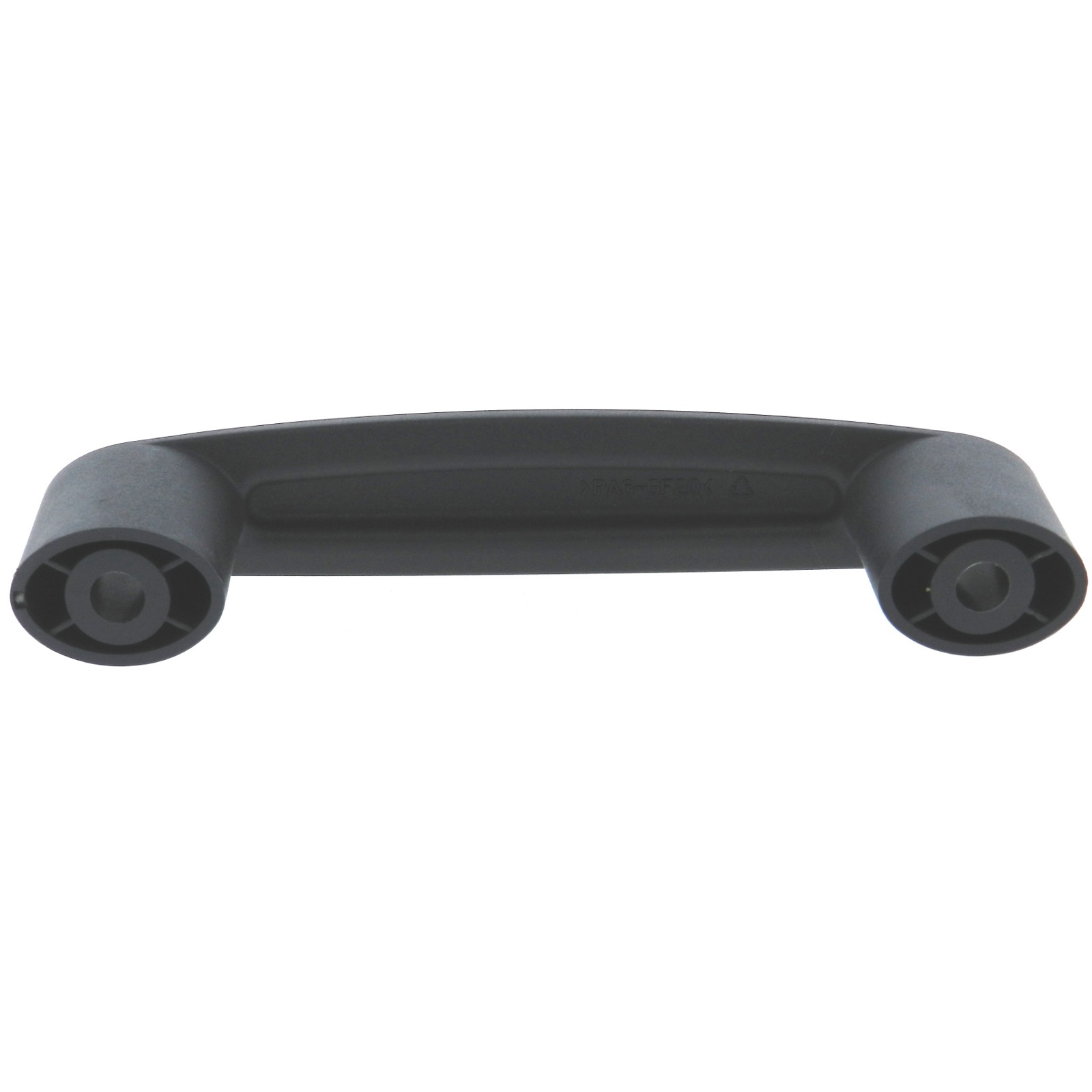

Pull Handle-Plastic EUROpean Style Handle-Top Mount

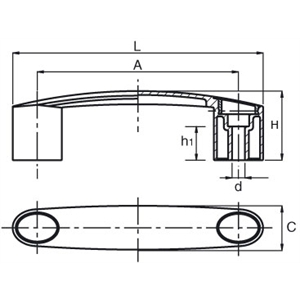

This top mount pull handle from JBF National features a sleek modern European design. The smooth handle grip ensures years of operator comfort. Additional color combinations available upon request. Please see component diagram below.
| JBF National Part Number | A | C | d-mount hole | H | h1 | L | Cap Color |
|---|---|---|---|---|---|---|---|
| 1EUROPH-1075 | 3.66 | 0.79 | 0.26 | 1.38 | 0.79 | 4.57 | black |
| 1EUROPH-1076 | 3.66 | 0.79 | 0.26 | 1.38 | 0.79 | 4.57 | orange |
| 2EUROPH-1077 | 4.29 | 0.98 | 0.33 | 1.65 | 0.79 | 5.75 | black |
| 2EUROPH-1078 | 4.29 | 0.98 | 0.33 | 1.65 | 0.79 | 5.75 | orange |
| 3EUROPH-1079 | 4.61 | 0.98 | 0.33 | 1.65 | 0.79 | 5.75 | black |
| 3EUROPH-1080 | 4.61 | 0.98 | 0.33 | 1.65 | 0.79 | 5.75 | orange |
| 4EUROPH-1081 | 5.2 | 1.14 | 0.33 | 1.77 | 0.87 | 6.42 | black |
| 4EUROPH-1082 | 5.2 | 1.14 | 0.33 | 1.77 | 0.87 | 6.42 | orange |
| 5EUROPH-1083 | 5.91 | 1.22 | 0.33 | 1.89 | 0.98 | 7.13 | black |
| 5EUROPH-1084 | 5.91 | 1.22 | 0.33 | 1.89 | 0.98 | 7.13 | orange |
