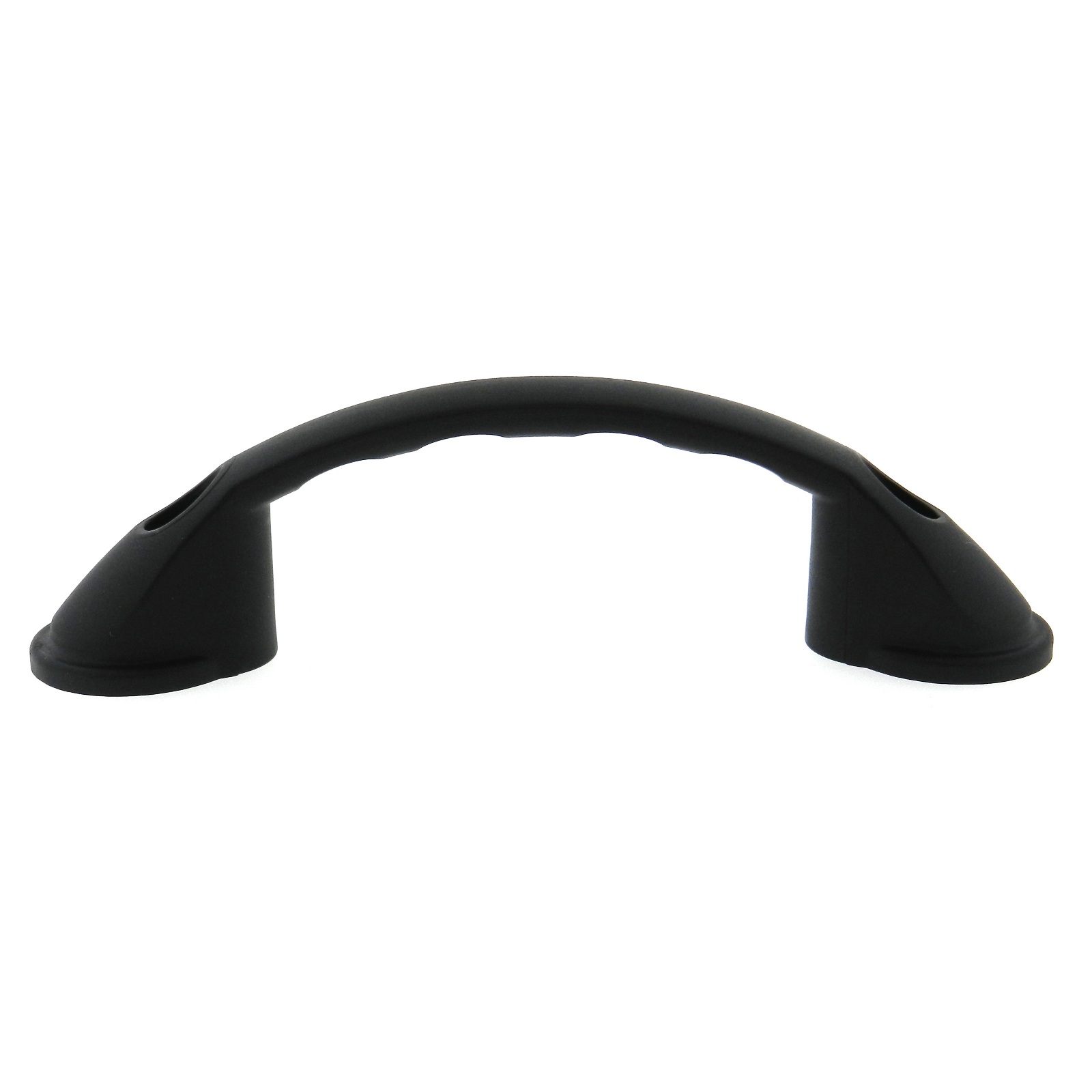

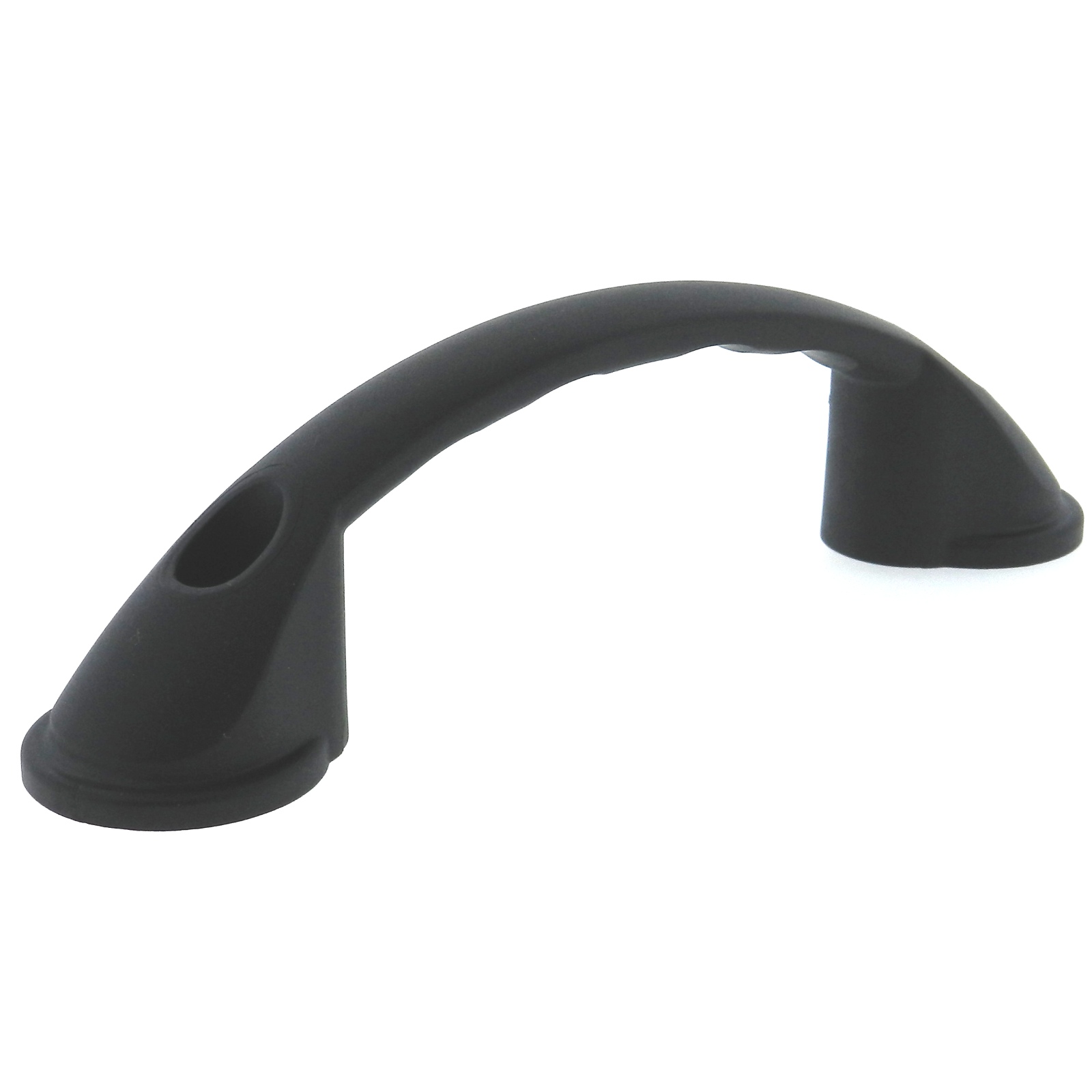

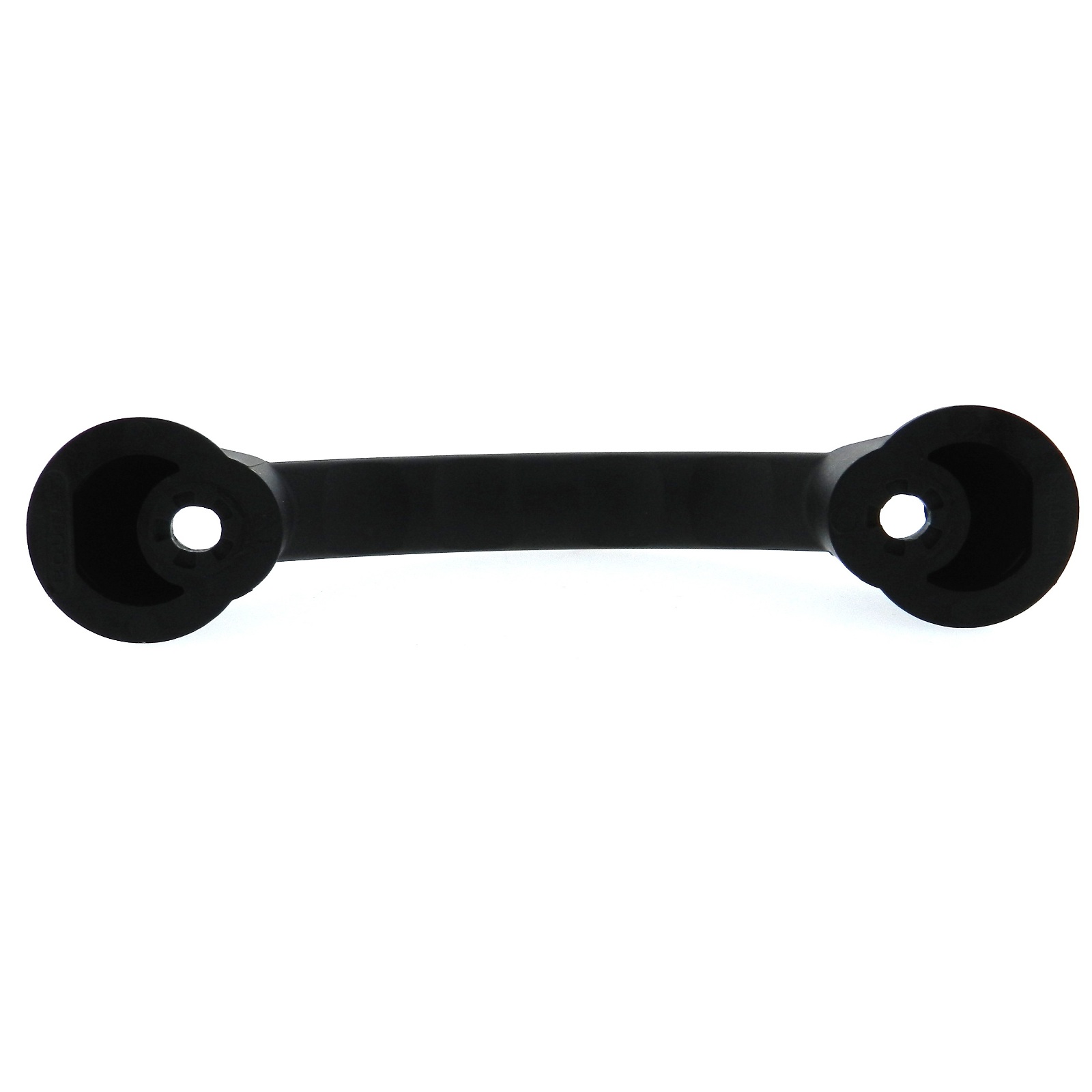

Pull Handle-Plastic Cabinet Handle-Top Mount

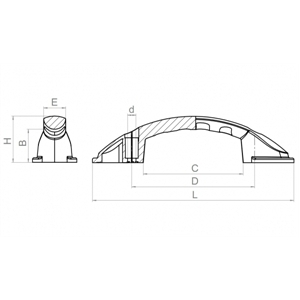

Constructed from the highest quality thermoplastic, this top mount handle from JBF National will make any cabinet look great. With modern styling and under handle finger grips for added comfort, this pull handle will add a distinct accent to any and every cabinet. Special color cover caps available upon request. Please see component diagram below.
| JBF National Part Number | B | C | D | d-mount hole | E | H | L |
|---|---|---|---|---|---|---|---|
| 1ARCPH-1070 | 1.42 | 4.05 | 4.72 | 5/16" | 0.94 | 1.97 | 8.23 |
| 1ARCPH-1071 | 1.5 | 4.49 | 5.51 | 5/16" | 0.98 | 2.09 | 9.05 |
| 1ARCPH-1072 | 1.57 | 4.8 | 6.3 | 5/16" | 1.02 | 2.2 | 9.76 |
| 1ARCPH-1073 | 1.26 | 3.03 | 3.94 | 1/4" | 0.67 | 1.57 | 5.79 |
| 1ARCPH-1074 | 1.3 | 3.78 | 4.72 | 1/4" | 0.75 | 1.65 | 7.24 |
