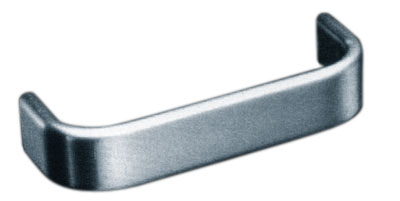

Rectangular-Rounded Sides-Internal Thread-One Mounting Hole
JBF National’s rectangular pull handle is manufactured from the highest quality extruded aluminum and features internal thread mounting. The flat rectangular shape of this pull handle with its rounded sides ensures positive hand grip and comfort every time. Contact a JBF National sales engineer today for more information.
| P/N | Item Name | Overall Height- H | Overall Height- H | Material | C to C (in) | C to C (mm) | Thread Size | Radius | Radius |
|---|---|---|---|---|---|---|---|---|---|
| 1RRSIT-1894 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/8 Inch | 34.93 | Aluminum | 2 1/2 | 63.50 | 8-32 | 1/2 Inch | 12.7 |
| 1RRSIT-1895 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/8 Inch | 34.93 | Aluminum | 3 | 76.20 | 8-32 | 1/2 Inch | 12.7 |
| 1RRSIT-1896 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/8 Inch | 34.93 | Aluminum | 4 | 101.60 | 8-32 | 1/2 Inch | 12.7 |
| 1RRSIT-1897 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/8 Inch | 34.93 | Aluminum | 4 1/2 | 114.30 | 8-32 | 1/2 Inch | 12.7 |
| 1RRSIT-1898 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/8 Inch | 34.93 | Aluminum | 5 | 127.00 | 8-32 | 1/2 Inch | 12.7 |
| 1RRSIT-1899 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/8 Inch | 34.93 | Aluminum | 6 | 152.40 | 8-32 | 1/2 Inch | 12.7 |
| 1RRSIT-1900 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/8 Inch | 34.93 | Aluminum | 7 | 177.80 | 8-32 | 1/2 Inch | 12.7 |
| 1RRSIT-1901 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/8 Inch | 34.93 | Aluminum | 8 | 203.20 | 8-32 | 1/2 Inch | 12.7 |
| 1RRSIT-1902 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/8 Inch | 34.93 | Aluminum | 9 | 228.60 | 8-32 | 1/2 Inch | 12.7 |
| 1RRSIT-1903 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/8 Inch | 34.93 | Aluminum | 10 | 254.00 | 8-32 | 1/2 Inch | 12.7 |
| 1RRSIT-1904 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/8 Inch | 34.93 | Aluminum | 11 | 279.40 | 8-32 | 1/2 Inch | 12.7 |
| 1RRSIT-1905 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/8 Inch | 34.93 | Aluminum | 12 | 304.80 | 8-32 | 1/2 Inch | 12.7 |
| 2RRSIT-1906 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 1/2 Inch | 38.10 | Aluminum | 3 | 76.20 | 8-32 | 1/2 Inch | 12.7 |
| 2RRSIT-1907 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 1/2 Inch | 38.10 | Aluminum | 4 | 101.60 | 8-32 | 1/2 Inch | 12.7 |
| 2RRSIT-1908 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 1/2 Inch | 38.10 | Aluminum | 5 | 127.00 | 8-32 | 1/2 Inch | 12.7 |
| 2RRSIT-1909 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 1/2 Inch | 38.10 | Aluminum | 6 | 152.40 | 8-32 | 1/2 Inch | 12.7 |
| 2RRSIT-1910 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 1/2 Inch | 38.10 | Aluminum | 7 | 177.80 | 8-32 | 1/2 Inch | 12.7 |
| 2RRSIT-1911 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 1/2 Inch | 38.10 | Aluminum | 8 | 203.20 | 8-32 | 1/2 Inch | 12.7 |
| 2RRSIT-1912 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 1/2 Inch | 38.10 | Aluminum | 9 | 228.60 | 8-32 | 1/2 Inch | 12.7 |
| 2RRSIT-1913 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 1/2 Inch | 38.10 | Aluminum | 10 | 254.00 | 8-32 | 1/2 Inch | 12.7 |
| 2RRSIT-1914 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 1/2 Inch | 38.10 | Aluminum | 11 | 279.40 | 8-32 | 1/2 Inch | 12.7 |
| 2RRSIT-1915 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 1/2 Inch | 38.10 | Aluminum | 12 | 304.80 | 8-32 | 1/2 Inch | 12.7 |
| 3RRSIT-1916 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/4 Inch | 44.45 | Aluminum | 3 | 76.20 | 8-32 | 1/2 Inch | 12.7 |
| 3RRSIT-1917 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/4 Inch | 44.45 | Aluminum | 4 | 101.60 | 8-32 | 1/2 Inch | 12.7 |
| 3RRSIT-1918 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/4 Inch | 44.45 | Aluminum | 5 | 127.00 | 8-32 | 1/2 Inch | 12.7 |
| 3RRSIT-1919 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/4 Inch | 44.45 | Aluminum | 6 | 152.40 | 8-32 | 1/2 Inch | 12.7 |
| 3RRSIT-1920 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/4 Inch | 44.45 | Aluminum | 7 | 177.80 | 8-32 | 1/2 Inch | 12.7 |
| 3RRSIT-1921 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/4 Inch | 44.45 | Aluminum | 8 | 203.20 | 8-32 | 1/2 Inch | 12.7 |
| 3RRSIT-1922 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/4 Inch | 44.45 | Aluminum | 9 | 228.60 | 8-32 | 1/2 Inch | 12.7 |
| 3RRSIT-1923 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/4 Inch | 44.45 | Aluminum | 10 | 254.00 | 8-32 | 1/2 Inch | 12.7 |
| 3RRSIT-1924 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/4 Inch | 44.45 | Aluminum | 11 | 279.40 | 8-32 | 1/2 Inch | 12.7 |
| 3RRSIT-1925 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 1 3/4 Inch | 44.45 | Aluminum | 12 | 304.80 | 8-32 | 1/2 Inch | 12.7 |
| 4RRSIT-1926 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 2 Inch | 50.80 | Aluminum | 3 | 76.20 | 8-32 | 1/2 Inch | 12.7 |
| 4RRSIT-1927 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 2 Inch | 50.80 | Aluminum | 4 | 101.60 | 8-32 | 1/2 Inch | 12.7 |
| 4RRSIT-1928 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 2 Inch | 50.80 | Aluminum | 5 | 127.00 | 8-32 | 1/2 Inch | 12.7 |
| 4RRSIT-1929 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 2 Inch | 50.80 | Aluminum | 6 | 152.40 | 8-32 | 1/2 Inch | 12.7 |
| 4RRSIT-1930 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 2 Inch | 50.80 | Aluminum | 7 | 177.80 | 8-32 | 1/2 Inch | 12.7 |
| 4RRSIT-1931 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 2 Inch | 50.80 | Aluminum | 8 | 203.20 | 8-32 | 1/2 Inch | 12.7 |
| 4RRSIT-1932 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 2 Inch | 50.80 | Aluminum | 9 | 228.60 | 8-32 | 1/2 Inch | 12.7 |
| 4RRSIT-1933 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 2 Inch | 50.80 | Aluminum | 10 | 254.00 | 8-32 | 1/2 Inch | 12.7 |
| 4RRSIT-1934 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 2 Inch | 50.80 | Aluminum | 11 | 279.40 | 8-32 | 1/2 Inch | 12.7 |
| 4RRSIT-1935 | Rectangular- Rounded Sides- Internal Thread - 1 Mounting Hole | 2 Inch | 50.80 | Aluminum | 12 | 304.80 | 8-32 | 1/2 Inch | 12.7 |
