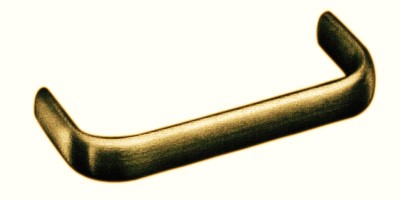

Oval-Internal Thread-Brass Pull Handle
JBF National’s oval-internal thread pull handle is manufactured form the highest quality brass, and with its stylish oval design, this pull handle will accent any project of yours perfectly. Contact a JBF National sales engineer today for more information.
| JBF P/N | Overall Height (in) | Overall Height (mm) | C to C (in) | C to C (mm) | Material | Thread Size | Diameter (in) | Diameter (mm) | Thread Depth (in) | Thread Depth (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1BOVIT-2276 | 1 | 25.4 | 2 | 50.8 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1BOVIT-2277 | 1 | 25.4 | 2.5 | 63.5 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1BOVIT-2278 | 1 | 25.4 | 3 | 76.2 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1BOVIT-2279 | 1 | 25.4 | 4 | 101.6 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1BOVIT-2280 | 1 | 25.4 | 4.25 | 107.95 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1BOVIT-2281 | 1 | 25.4 | 4.5 | 114.3 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1BOVIT-2282 | 1 | 25.4 | 4.5625 | 115.89 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1BOVIT-2283 | 1 | 25.4 | 5 | 127 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1BOVIT-2284 | 1 | 25.4 | 6 | 152.4 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1BOVIT-2285 | 1 | 25.4 | 6.4375 | 163.51 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1BOVIT-2306 | 1 | 25.4 | 2 | 50.8 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2307 | 1 | 25.4 | 2.5 | 63.5 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2308 | 1 | 25.4 | 3 | 76.2 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2309 | 1 | 25.4 | 4 | 101.6 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2310 | 1 | 25.4 | 4.25 | 107.95 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2311 | 1 | 25.4 | 4.5 | 114.3 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2312 | 1 | 25.4 | 4.5625 | 115.89 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2313 | 1 | 25.4 | 5 | 127 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2314 | 1 | 25.4 | 6 | 152.4 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2315 | 1 | 25.4 | 6.4375 | 163.51 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2336 | 1 | 25.4 | 2 | 50.8 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2337 | 1 | 25.4 | 2.5 | 63.5 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2338 | 1 | 25.4 | 3 | 76.2 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2339 | 1 | 25.4 | 4 | 101.6 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2340 | 1 | 25.4 | 4.25 | 107.95 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2341 | 1 | 25.4 | 4.5 | 114.3 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2342 | 1 | 25.4 | 4.5625 | 115.89 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2343 | 1 | 25.4 | 5 | 127 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2344 | 1 | 25.4 | 6 | 152.4 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1BOVIT-2345 | 1 | 25.4 | 6.4375 | 163.51 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2365 | 1.28125 | 32.54 | 2 | 50.8 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2BOVIT-2366 | 1.28125 | 32.54 | 2.5 | 63.5 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2BOVIT-2367 | 1.28125 | 32.54 | 3 | 76.2 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2BOVIT-2368 | 1.28125 | 32.54 | 4 | 101.6 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2BOVIT-2369 | 1.28125 | 32.54 | 4.5 | 114.3 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2BOVIT-2370 | 1.28125 | 32.54 | 4.5625 | 115.89 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2BOVIT-2371 | 1.28125 | 32.54 | 5 | 127 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2BOVIT-2372 | 1.28125 | 32.54 | 6 | 152.4 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2BOVIT-2373 | 1.28125 | 32.54 | 6.4375 | 163.51 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2BOVIT-2392 | 1.28125 | 32.54 | 2 | 50.8 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2393 | 1.28125 | 32.54 | 2.5 | 63.5 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2394 | 1.28125 | 32.54 | 3 | 76.2 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2395 | 1.28125 | 32.54 | 4 | 101.6 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2396 | 1.28125 | 32.54 | 4.5 | 114.3 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2397 | 1.28125 | 32.54 | 4.5625 | 115.89 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2398 | 1.28125 | 32.54 | 5 | 127 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2399 | 1.28125 | 32.54 | 6 | 152.4 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2400 | 1.28125 | 32.54 | 6.4375 | 163.51 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2419 | 1.28125 | 32.54 | 2 | 50.8 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2420 | 1.28125 | 32.54 | 2.5 | 63.5 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2421 | 1.28125 | 32.54 | 3 | 76.2 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2422 | 1.28125 | 32.54 | 4 | 101.6 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2423 | 1.28125 | 32.54 | 4.5 | 114.3 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2424 | 1.28125 | 32.54 | 4.5625 | 115.89 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2425 | 1.28125 | 32.54 | 5 | 127 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2426 | 1.28125 | 32.54 | 6 | 152.4 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2BOVIT-2427 | 1.28125 | 32.54 | 6.4375 | 163.51 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2450 | 1.375 | 34.93 | 2.5 | 63.5 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2451 | 1.375 | 34.93 | 3 | 76.2 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2452 | 1.375 | 34.93 | 3.5 | 88.9 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2453 | 1.375 | 34.93 | 4 | 101.6 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2454 | 1.375 | 34.93 | 4.5 | 114.3 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2455 | 1.375 | 34.93 | 5 | 127 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2456 | 1.375 | 34.93 | 6 | 152.4 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2457 | 1.375 | 34.93 | 7 | 177.8 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2458 | 1.375 | 34.93 | 8 | 203.2 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2459 | 1.375 | 34.93 | 9 | 228.6 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2460 | 1.375 | 34.93 | 10 | 254 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2461 | 1.375 | 34.93 | 11 | 279.4 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2462 | 1.375 | 34.93 | 12 | 304.8 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3BOVIT-2489 | 1.375 | 34.93 | 2.5 | 63.5 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2490 | 1.375 | 34.93 | 3 | 76.2 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2491 | 1.375 | 34.93 | 3.5 | 88.9 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2492 | 1.375 | 34.93 | 4 | 101.6 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2493 | 1.375 | 34.93 | 4.5 | 114.3 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2494 | 1.375 | 34.93 | 5 | 127 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2495 | 1.375 | 34.93 | 6 | 152.4 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2496 | 1.375 | 34.93 | 7 | 177.8 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2497 | 1.375 | 34.93 | 8 | 203.2 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2498 | 1.375 | 34.93 | 9 | 228.6 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2499 | 1.375 | 34.93 | 10 | 254 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2500 | 1.375 | 34.93 | 11 | 279.4 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2501 | 1.375 | 34.93 | 12 | 304.8 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2528 | 1.375 | 34.93 | 2.5 | 63.5 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2529 | 1.375 | 34.93 | 3 | 76.2 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2530 | 1.375 | 34.93 | 3.5 | 88.9 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2531 | 1.375 | 34.93 | 4 | 101.6 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2532 | 1.375 | 34.93 | 4.5 | 114.3 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2533 | 1.375 | 34.93 | 5 | 127 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2534 | 1.375 | 34.93 | 6 | 152.4 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2535 | 1.375 | 34.93 | 7 | 177.8 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2536 | 1.375 | 34.93 | 8 | 203.2 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2537 | 1.375 | 34.93 | 9 | 228.6 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2538 | 1.375 | 34.93 | 10 | 254 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2539 | 1.375 | 34.93 | 11 | 279.4 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2540 | 1.375 | 34.93 | 12 | 304.8 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2569 | 1.5 | 38.1 | 2.5 | 63.5 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2570 | 1.5 | 38.1 | 3 | 76.2 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2571 | 1.5 | 38.1 | 4 | 101.6 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2572 | 1.5 | 38.1 | 4.25 | 107.95 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2573 | 1.5 | 38.1 | 4.5 | 114.3 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2574 | 1.5 | 38.1 | 4.5625 | 115.89 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2575 | 1.5 | 38.1 | 5 | 127 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2576 | 1.5 | 38.1 | 6 | 152.4 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2577 | 1.5 | 38.1 | 6.4375 | 163.51 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2578 | 1.5 | 38.1 | 7 | 177.8 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2579 | 1.5 | 38.1 | 8 | 203.2 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2580 | 1.5 | 38.1 | 9 | 228.6 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2581 | 1.5 | 38.1 | 9.5 | 241.3 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2582 | 1.5 | 38.1 | 10 | 254 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2583 | 1.5 | 38.1 | 12 | 304.8 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2614 | 1.5 | 38.1 | 2.5 | 63.5 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2615 | 1.5 | 38.1 | 3 | 76.2 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2616 | 1.5 | 38.1 | 4 | 101.6 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2617 | 1.5 | 38.1 | 4.25 | 107.95 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2618 | 1.5 | 38.1 | 4.5 | 114.3 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2619 | 1.5 | 38.1 | 4.5625 | 115.89 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2620 | 1.5 | 38.1 | 5 | 127 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2621 | 1.5 | 38.1 | 6 | 152.4 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2622 | 1.5 | 38.1 | 6.4375 | 163.51 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2623 | 1.5 | 38.1 | 7 | 177.8 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2624 | 1.5 | 38.1 | 8 | 203.2 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2625 | 1.5 | 38.1 | 9 | 228.6 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2626 | 1.5 | 38.1 | 9.5 | 241.3 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2627 | 1.5 | 38.1 | 10 | 254 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2628 | 1.5 | 38.1 | 12 | 304.8 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2659 | 1.5 | 38.1 | 2.5 | 63.5 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2660 | 1.5 | 38.1 | 3 | 76.2 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2661 | 1.5 | 38.1 | 4 | 101.6 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2662 | 1.5 | 38.1 | 4.25 | 107.95 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2663 | 1.5 | 38.1 | 4.5 | 114.3 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2664 | 1.5 | 38.1 | 4.5625 | 115.89 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2665 | 1.5 | 38.1 | 5 | 127 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2666 | 1.5 | 38.1 | 6 | 152.4 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2667 | 1.5 | 38.1 | 6.4375 | 163.51 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2668 | 1.5 | 38.1 | 7 | 177.8 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2669 | 1.5 | 38.1 | 8 | 203.2 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2670 | 1.5 | 38.1 | 9 | 228.6 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2671 | 1.5 | 38.1 | 9.5 | 241.3 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2672 | 1.5 | 38.1 | 10 | 254 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3BOVIT-2673 | 1.5 | 38.1 | 12 | 304.8 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2706 | 1.75 | 44.45 | 3 | 76.2 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2707 | 1.75 | 44.45 | 4 | 101.6 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2708 | 1.75 | 44.45 | 4.25 | 107.95 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2709 | 1.75 | 44.45 | 4.5 | 114.3 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2710 | 1.75 | 44.45 | 4.5625 | 115.89 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2711 | 1.75 | 44.45 | 5 | 127 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2712 | 1.75 | 44.45 | 5.5 | 139.7 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2713 | 1.75 | 44.45 | 6 | 152.4 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2714 | 1.75 | 44.45 | 6.4375 | 163.51 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2715 | 1.75 | 44.45 | 7 | 177.8 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2716 | 1.75 | 44.45 | 8 | 203.2 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2717 | 1.75 | 44.45 | 8.25 | 209.55 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2718 | 1.75 | 44.45 | 8.5 | 215.9 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2719 | 1.75 | 44.45 | 9 | 228.6 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2720 | 1.75 | 44.45 | 9.5 | 241.3 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2721 | 1.75 | 44.45 | 10 | 254 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2722 | 1.75 | 44.45 | 12 | 304.8 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4BOVIT-2757 | 1.75 | 44.45 | 3 | 76.2 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2758 | 1.75 | 44.45 | 4 | 101.6 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2759 | 1.75 | 44.45 | 4.25 | 107.95 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2760 | 1.75 | 44.45 | 4.5 | 114.3 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2761 | 1.75 | 44.45 | 4.5625 | 115.89 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2762 | 1.75 | 44.45 | 5 | 127 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2763 | 1.75 | 44.45 | 5.5 | 139.7 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2764 | 1.75 | 44.45 | 6 | 152.4 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2765 | 1.75 | 44.45 | 6.4375 | 163.51 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2766 | 1.75 | 44.45 | 7 | 177.8 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2767 | 1.75 | 44.45 | 8 | 203.2 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2768 | 1.75 | 44.45 | 8.25 | 209.55 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2769 | 1.75 | 44.45 | 8.5 | 215.9 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2770 | 1.75 | 44.45 | 9 | 228.6 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2771 | 1.75 | 44.45 | 9.5 | 241.3 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2772 | 1.75 | 44.45 | 10 | 254 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2773 | 1.75 | 44.45 | 12 | 304.8 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4BOVIT-2808 | 1.75 | 44.45 | 3 | 76.2 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2809 | 1.75 | 44.45 | 4 | 101.6 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2810 | 1.75 | 44.45 | 4.25 | 107.95 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2811 | 1.75 | 44.45 | 4.5 | 114.3 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2812 | 1.75 | 44.45 | 4.5625 | 115.89 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2813 | 1.75 | 44.45 | 5 | 127 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2814 | 1.75 | 44.45 | 5.5 | 139.7 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2815 | 1.75 | 44.45 | 6 | 152.4 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2816 | 1.75 | 44.45 | 6.4375 | 163.51 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2817 | 1.75 | 44.45 | 7 | 177.8 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2818 | 1.75 | 44.45 | 8 | 203.2 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2819 | 1.75 | 44.45 | 8.25 | 209.55 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2820 | 1.75 | 44.45 | 8.5 | 215.9 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2821 | 1.75 | 44.45 | 9 | 228.6 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2822 | 1.75 | 44.45 | 9.5 | 241.3 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2823 | 1.75 | 44.45 | 10 | 254 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4BOVIT-2824 | 1.75 | 44.45 | 12 | 304.8 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2856 | 2 | 50.8 | 4 | 101.6 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2857 | 2 | 50.8 | 4.5 | 114.3 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2858 | 2 | 50.8 | 4.5625 | 115.89 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2859 | 2 | 50.8 | 5 | 127 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2860 | 2 | 50.8 | 5.50 | 139.7 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2861 | 2 | 50.8 | 6 | 152.4 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2862 | 2 | 50.8 | 6.5 | 165.1 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2863 | 2 | 50.8 | 7 | 177.8 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2864 | 2 | 50.8 | 7.5 | 190.5 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2865 | 2 | 50.8 | 8 | 203.2 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2866 | 2 | 50.8 | 8.5 | 215.9 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2867 | 2 | 50.8 | 9 | 228.6 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2868 | 2 | 50.8 | 10 | 254 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2869 | 2 | 50.8 | 12 | 304.8 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5BOVIT-2898 | 2 | 50.8 | 4 | 101.6 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2899 | 2 | 50.8 | 4.5 | 114.3 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2900 | 2 | 50.8 | 4.5625 | 115.89 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2901 | 2 | 50.8 | 5 | 127 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2902 | 2 | 50.8 | 5.50 | 139.7 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2903 | 2 | 50.8 | 6 | 152.4 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2904 | 2 | 50.8 | 6.5 | 165.1 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2905 | 2 | 50.8 | 7 | 177.8 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2906 | 2 | 50.8 | 7.5 | 190.5 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2907 | 2 | 50.8 | 8 | 203.2 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2908 | 2 | 50.8 | 8.5 | 215.9 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2909 | 2 | 50.8 | 9 | 228.6 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2910 | 2 | 50.8 | 10 | 254 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2911 | 2 | 50.8 | 12 | 304.8 | Brass | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2940 | 2 | 50.8 | 4 | 101.6 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2941 | 2 | 50.8 | 4.5 | 114.3 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2942 | 2 | 50.8 | 4.5625 | 115.89 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2943 | 2 | 50.8 | 5 | 127 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2944 | 2 | 50.8 | 5.50 | 139.7 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2945 | 2 | 50.8 | 6 | 152.4 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2946 | 2 | 50.8 | 6.5 | 165.1 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2947 | 2 | 50.8 | 7 | 177.8 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2948 | 2 | 50.8 | 7.5 | 190.5 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2949 | 2 | 50.8 | 8 | 203.2 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2950 | 2 | 50.8 | 8.5 | 215.9 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2951 | 2 | 50.8 | 9 | 228.6 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2952 | 2 | 50.8 | 10 | 254 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5BOVIT-2953 | 2 | 50.8 | 12 | 304.8 | Brass | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 6BOVIT-2976 | 2.25 | 57.15 | 3 | 76.2 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 6BOVIT-2977 | 2.25 | 57.15 | 4 | 101.6 | Brass | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
