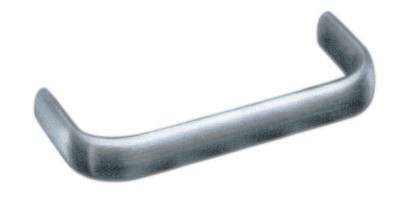

Oval-Internal Thread-Aluminum Pull Handle
JBF National’s oval-internal thread pull handle is manufactured form the highest quality extruded aluminum, and with its stylish oval design, this pull handle will accent any project of yours perfectly. Contact a JBF National sales engineer today for more information.
| JBF P/N | Overall Height (in) | Overall Height (mm) | C to C (in) | C to C (mm) | Material | Thread Size | Diameter (in) | Diameter (mm) | Thread Depth (in) | Thread Depth (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1AOVIT-1978 | 1 | 25.4 | 1.25 | 31.75 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-1979 | 1 | 25.4 | 2 | 50.8 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-1980 | 1 | 25.4 | 2.5 | 63.5 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-1981 | 1 | 25.4 | 3 | 76.2 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-1982 | 1 | 25.4 | 4 | 101.6 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-1983 | 1 | 25.4 | 4.25 | 107.95 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-1984 | 1 | 25.4 | 4.5 | 114.3 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-1985 | 1 | 25.4 | 4.5625 | 115.89 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-1986 | 1 | 25.4 | 5 | 127 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-1987 | 1 | 25.4 | 6 | 152.4 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-1988 | 1 | 25.4 | 6.4375 | 163.51 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-1999 | 1 | 25.4 | 1.25 | 31.75 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 1AOVIT-2000 | 1 | 25.4 | 2 | 50.8 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 1AOVIT-2001 | 1 | 25.4 | 2.5 | 63.5 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 1AOVIT-2002 | 1 | 25.4 | 3 | 76.2 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 1AOVIT-2003 | 1 | 25.4 | 4 | 101.6 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 1AOVIT-2004 | 1 | 25.4 | 4.25 | 107.95 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 1AOVIT-2005 | 1 | 25.4 | 4.5 | 114.3 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 1AOVIT-2006 | 1 | 25.4 | 4.5625 | 115.89 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 1AOVIT-2007 | 1 | 25.4 | 5 | 127 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 1AOVIT-2008 | 1 | 25.4 | 6 | 152.4 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 1AOVIT-2009 | 1 | 25.4 | 6.4375 | 163.51 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 2AOVIT-2020 | 1.28125 | 32.54 | 2 | 50.8 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2021 | 1.28125 | 32.54 | 2.25 | 57.15 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2022 | 1.28125 | 32.54 | 2.5 | 63.5 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2023 | 1.28125 | 32.54 | 3 | 76.2 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2024 | 1.28125 | 32.54 | 3.5 | 88.9 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2025 | 1.28125 | 32.54 | 4 | 101.6 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2026 | 1.28125 | 32.54 | 4.25 | 107.95 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2027 | 1.28125 | 32.54 | 4.5 | 114.3 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2028 | 1.28125 | 32.54 | 4.5625 | 115.89 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2029 | 1.28125 | 32.54 | 6 | 152.4 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2030 | 1.28125 | 32.54 | 6.4375 | 163.51 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2042 | 1.28125 | 32.54 | 2 | 50.8 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 2AOVIT-2043 | 1.28125 | 32.54 | 2.25 | 57.15 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 2AOVIT-2044 | 1.28125 | 32.54 | 2.5 | 63.5 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 2AOVIT-2045 | 1.28125 | 32.54 | 3 | 76.2 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 2AOVIT-2046 | 1.28125 | 32.54 | 3.5 | 88.9 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 2AOVIT-2047 | 1.28125 | 32.54 | 4 | 101.6 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 2AOVIT-2048 | 1.28125 | 32.54 | 4.25 | 107.95 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 2AOVIT-2049 | 1.28125 | 32.54 | 4.5 | 114.3 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 2AOVIT-2050 | 1.28125 | 32.54 | 4.5625 | 115.89 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 2AOVIT-2051 | 1.28125 | 32.54 | 6 | 152.4 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 2AOVIT-2052 | 1.28125 | 32.54 | 6.4375 | 163.51 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 3AOVIT-2064 | 1.5 | 38.1 | 2 | 50.8 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2065 | 1.5 | 38.1 | 2.25 | 57.15 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2066 | 1.5 | 38.1 | 2.5 | 63.5 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2067 | 1.5 | 38.1 | 3 | 76.2 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2068 | 1.5 | 38.1 | 3.5 | 88.9 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2069 | 1.5 | 38.1 | 4 | 101.6 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2070 | 1.5 | 38.1 | 4.25 | 107.95 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2071 | 1.5 | 38.1 | 4.5 | 114.3 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2072 | 1.5 | 38.1 | 4.5625 | 115.89 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2073 | 1.5 | 38.1 | 5 | 127 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2074 | 1.5 | 38.1 | 6 | 152.4 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2075 | 1.5 | 38.1 | 6.4375 | 163.51 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2088 | 1.5 | 38.1 | 2 | 50.8 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 3AOVIT-2089 | 1.5 | 38.1 | 2.25 | 57.15 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 3AOVIT-2090 | 1.5 | 38.1 | 2.5 | 63.5 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 3AOVIT-2091 | 1.5 | 38.1 | 3 | 76.2 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 3AOVIT-2092 | 1.5 | 38.1 | 3.5 | 88.9 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 3AOVIT-2093 | 1.5 | 38.1 | 4 | 101.6 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 3AOVIT-2094 | 1.5 | 38.1 | 4.25 | 107.95 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 3AOVIT-2095 | 1.5 | 38.1 | 4.5 | 114.3 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 3AOVIT-2096 | 1.5 | 38.1 | 4.5625 | 115.89 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 3AOVIT-2097 | 1.5 | 38.1 | 5 | 127 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 3AOVIT-2098 | 1.5 | 38.1 | 6 | 152.4 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 3AOVIT-2099 | 1.5 | 38.1 | 6.4375 | 163.51 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2112 | 1.75 | 44.45 | 4 | 101.6 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2113 | 1.75 | 44.45 | 4.5625 | 115.89 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2114 | 1.75 | 44.45 | 5 | 127 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2115 | 1.75 | 44.45 | 6 | 152.4 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2116 | 1.75 | 44.45 | 6.4375 | 163.51 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2117 | 1.75 | 44.45 | 7 | 177.8 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2118 | 1.75 | 44.45 | 8 | 203.2 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2119 | 1.75 | 44.45 | 9 | 228.6 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2120 | 1.75 | 44.45 | 10 | 254 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2121 | 1.75 | 44.45 | 12 | 304.8 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2132 | 1.75 | 44.45 | 4 | 101.6 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2133 | 1.75 | 44.45 | 4.5625 | 115.89 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2134 | 1.75 | 44.45 | 5 | 127 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2135 | 1.75 | 44.45 | 6 | 152.4 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2136 | 1.75 | 44.45 | 6.4375 | 163.51 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2137 | 1.75 | 44.45 | 7 | 177.8 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2138 | 1.75 | 44.45 | 8 | 203.2 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2139 | 1.75 | 44.45 | 9 | 228.6 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2140 | 1.75 | 44.45 | 10 | 254 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2141 | 1.75 | 44.45 | 12 | 304.8 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2152 | 2 | 50.8 | 4 | 101.6 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2153 | 2 | 50.8 | 4.5625 | 115.89 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2154 | 2 | 50.8 | 5 | 127 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2155 | 2 | 50.8 | 6 | 152.4 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2156 | 2 | 50.8 | 6.4375 | 163.51 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2157 | 2 | 50.8 | 7 | 177.8 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2158 | 2 | 50.8 | 8 | 203.2 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2159 | 2 | 50.8 | 9 | 228.6 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2160 | 2 | 50.8 | 10 | 254 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2161 | 2 | 50.8 | 12 | 304.8 | Aluminum | 8-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2172 | 2 | 50.8 | 4 | 101.6 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2173 | 2 | 50.8 | 4.5625 | 115.89 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2174 | 2 | 50.8 | 5 | 127 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2175 | 2 | 50.8 | 6 | 152.4 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2176 | 2 | 50.8 | 6.4375 | 163.51 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2177 | 2 | 50.8 | 7 | 177.8 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2178 | 2 | 50.8 | 8 | 203.2 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.375 | 9.53 |
| 5AOVIT-2179 | 2 | 50.8 | 9 | 228.6 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.375 | 9.53 |
| 5AOVIT-2180 | 2 | 50.8 | 10 | 254 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.375 | 9.53 |
| 5AOVIT-2181 | 2 | 50.8 | 12 | 304.8 | Aluminum | 10-32 | .43750 x .28125 | 11.11 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2192 | 1 | 25.4 | 2 | 50.8 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 1AOVIT-2193 | 1 | 25.4 | 2.5 | 63.5 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 1AOVIT-2194 | 1 | 25.4 | 3 | 76.2 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 1AOVIT-2195 | 1 | 25.4 | 4 | 101.6 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 1AOVIT-2196 | 1 | 25.4 | 4.25 | 107.95 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 1AOVIT-2197 | 1 | 25.4 | 4.5 | 114.3 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 1AOVIT-2198 | 1 | 25.4 | 4.5625 | 115.89 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 1AOVIT-2199 | 1 | 25.4 | 5 | 127 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 1AOVIT-2200 | 1 | 25.4 | 6 | 152.4 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 1AOVIT-2201 | 1 | 25.4 | 6.4375 | 163.51 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 1AOVIT-2202 | 1 | 25.4 | 2 | 50.8 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 1AOVIT-2203 | 1 | 25.4 | 2.5 | 63.5 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 1AOVIT-2204 | 1 | 25.4 | 3 | 76.2 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 1AOVIT-2205 | 1 | 25.4 | 4 | 101.6 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 1AOVIT-2206 | 1 | 25.4 | 4.25 | 107.95 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 1AOVIT-2207 | 1 | 25.4 | 4.5 | 114.3 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 1AOVIT-2208 | 1 | 25.4 | 4.5625 | 115.89 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 1AOVIT-2209 | 1 | 25.4 | 5 | 127 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 1AOVIT-2210 | 1 | 25.4 | 6 | 152.4 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 1AOVIT-2211 | 1 | 25.4 | 6.4375 | 163.51 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 2AOVIT-2212 | 1.28125 | 32.54 | 2 | 50.8 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 2AOVIT-2213 | 1.28125 | 32.54 | 2.5 | 63.5 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 2AOVIT-2214 | 1.28125 | 32.54 | 3 | 76.2 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 2AOVIT-2215 | 1.28125 | 32.54 | 4 | 101.6 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 2AOVIT-2216 | 1.28125 | 32.54 | 4.25 | 107.95 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 2AOVIT-2217 | 1.28125 | 32.54 | 4.5 | 114.3 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 2AOVIT-2218 | 1.28125 | 32.54 | 4.5625 | 115.89 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 2AOVIT-2219 | 1.28125 | 32.54 | 5 | 127 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 2AOVIT-2220 | 1.28125 | 32.54 | 6 | 152.4 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 2AOVIT-2221 | 1.28125 | 32.54 | 6.4375 | 163.51 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 2AOVIT-2222 | 1.28125 | 32.54 | 2 | 50.8 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 2AOVIT-2223 | 1.28125 | 32.54 | 2.5 | 63.5 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 2AOVIT-2224 | 1.28125 | 32.54 | 3 | 76.2 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 2AOVIT-2225 | 1.28125 | 32.54 | 4 | 101.6 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 2AOVIT-2226 | 1.28125 | 32.54 | 4.25 | 107.95 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 2AOVIT-2227 | 1.28125 | 32.54 | 4.5 | 114.3 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 2AOVIT-2228 | 1.28125 | 32.54 | 4.5625 | 115.89 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 2AOVIT-2229 | 1.28125 | 32.54 | 5 | 127 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 2AOVIT-2230 | 1.28125 | 32.54 | 6 | 152.4 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 2AOVIT-2231 | 1.28125 | 32.54 | 6.4375 | 163.51 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 3AOVIT-2232 | 1.5 | 38.1 | 2 | 50.8 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 3AOVIT-2233 | 1.5 | 38.1 | 2.5 | 63.5 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 3AOVIT-2234 | 1.5 | 38.1 | 3 | 76.2 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 3AOVIT-2235 | 1.5 | 38.1 | 4 | 101.6 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 3AOVIT-2236 | 1.5 | 38.1 | 4.25 | 107.95 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 3AOVIT-2237 | 1.5 | 38.1 | 4.5 | 114.3 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 3AOVIT-2238 | 1.5 | 38.1 | 4.5625 | 115.89 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 3AOVIT-2239 | 1.5 | 38.1 | 5 | 127 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 3AOVIT-2240 | 1.5 | 38.1 | 6 | 152.4 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 3AOVIT-2241 | 1.5 | 38.1 | 6.4375 | 163.51 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 3AOVIT-2242 | 1.5 | 38.1 | 2 | 50.8 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 3AOVIT-2243 | 1.5 | 38.1 | 2.5 | 63.5 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 3AOVIT-2244 | 1.5 | 38.1 | 3 | 76.2 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 3AOVIT-2245 | 1.5 | 38.1 | 4 | 101.6 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 3AOVIT-2246 | 1.5 | 38.1 | 4.25 | 107.95 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 3AOVIT-2247 | 1.5 | 38.1 | 4.5 | 114.3 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 3AOVIT-2248 | 1.5 | 38.1 | 4.5625 | 115.89 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 3AOVIT-2249 | 1.5 | 38.1 | 5 | 127 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 3AOVIT-2250 | 1.5 | 38.1 | 6 | 152.4 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 3AOVIT-2251 | 1.5 | 38.1 | 6.4375 | 163.51 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 4AOVIT-2252 | 1.75 | 44.45 | 4 | 101.6 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 4AOVIT-2253 | 1.75 | 44.45 | 4.25 | 107.95 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 4AOVIT-2254 | 1.75 | 44.45 | 4.5 | 114.3 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 4AOVIT-2255 | 1.75 | 44.45 | 4.5625 | 115.89 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 4AOVIT-2256 | 1.75 | 44.45 | 5 | 127 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 4AOVIT-2257 | 1.75 | 44.45 | 6 | 152.4 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 4AOVIT-2258 | 1.75 | 44.45 | 6.4375 | 163.51 | Aluminum | 6-32 | .50 x .25 | 12.70 x 6.35 | 0.2813 | 7.14 |
| 4AOVIT-2259 | 1.75 | 44.45 | 4 | 101.6 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 4AOVIT-2260 | 1.75 | 44.45 | 4.25 | 107.95 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 4AOVIT-2261 | 1.75 | 44.45 | 4.5 | 114.3 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 4AOVIT-2262 | 1.75 | 44.45 | 4.5625 | 115.89 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 4AOVIT-2263 | 1.75 | 44.45 | 5 | 127 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 4AOVIT-2264 | 1.75 | 44.45 | 6 | 152.4 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 4AOVIT-2265 | 1.75 | 44.45 | 6.4375 | 163.51 | Aluminum | 8-32 | .50 x .25 | 12.70 x 6.35 | 0.3125 | 7.94 |
| 1AOVIT-2266 | 1 | 25.4 | 2 | 50.8 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-2267 | 1 | 25.4 | 2.5 | 63.5 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-2268 | 1 | 25.4 | 3 | 76.2 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-2269 | 1 | 25.4 | 4 | 101.6 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-2270 | 1 | 25.4 | 4.25 | 107.95 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-2271 | 1 | 25.4 | 4.5 | 114.3 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-2272 | 1 | 25.4 | 4.5625 | 115.89 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-2273 | 1 | 25.4 | 5 | 127 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-2274 | 1 | 25.4 | 6 | 152.4 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-2275 | 1 | 25.4 | 6.4375 | 163.51 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 1AOVIT-2296 | 1 | 25.4 | 2 | 50.8 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2297 | 1 | 25.4 | 2.5 | 63.5 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2298 | 1 | 25.4 | 3 | 76.2 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2299 | 1 | 25.4 | 4 | 101.6 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2300 | 1 | 25.4 | 4.25 | 107.95 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2301 | 1 | 25.4 | 4.5 | 114.3 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2302 | 1 | 25.4 | 4.5625 | 115.89 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2303 | 1 | 25.4 | 5 | 127 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2304 | 1 | 25.4 | 6 | 152.4 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2305 | 1 | 25.4 | 6.4375 | 163.51 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2326 | 1 | 25.4 | 2 | 50.8 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2327 | 1 | 25.4 | 2.5 | 63.5 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2328 | 1 | 25.4 | 3 | 76.2 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2329 | 1 | 25.4 | 4 | 101.6 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2330 | 1 | 25.4 | 4.25 | 107.95 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2331 | 1 | 25.4 | 4.5 | 114.3 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2332 | 1 | 25.4 | 4.5625 | 115.89 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2333 | 1 | 25.4 | 5 | 127 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2334 | 1 | 25.4 | 6 | 152.4 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 1AOVIT-2335 | 1 | 25.4 | 6.4375 | 163.51 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2356 | 1.28125 | 32.54 | 2 | 50.8 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2357 | 1.28125 | 32.54 | 2.5 | 63.5 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2358 | 1.28125 | 32.54 | 3 | 76.2 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2359 | 1.28125 | 32.54 | 4 | 101.6 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2360 | 1.28125 | 32.54 | 4.5 | 114.3 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2361 | 1.28125 | 32.54 | 4.5625 | 115.89 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2362 | 1.28125 | 32.54 | 5 | 127 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2363 | 1.28125 | 32.54 | 6 | 152.4 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2364 | 1.28125 | 32.54 | 6.4375 | 163.51 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 2AOVIT-2383 | 1.28125 | 32.54 | 2 | 50.8 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2384 | 1.28125 | 32.54 | 2.5 | 63.5 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2385 | 1.28125 | 32.54 | 3 | 76.2 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2386 | 1.28125 | 32.54 | 4 | 101.6 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2387 | 1.28125 | 32.54 | 4.5 | 114.3 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2388 | 1.28125 | 32.54 | 4.5625 | 115.89 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2389 | 1.28125 | 32.54 | 5 | 127 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2390 | 1.28125 | 32.54 | 6 | 152.4 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2391 | 1.28125 | 32.54 | 6.4375 | 163.51 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2410 | 1.28125 | 32.54 | 2 | 50.8 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2411 | 1.28125 | 32.54 | 2.5 | 63.5 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2412 | 1.28125 | 32.54 | 3 | 76.2 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2413 | 1.28125 | 32.54 | 4 | 101.6 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2414 | 1.28125 | 32.54 | 4.5 | 114.3 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2415 | 1.28125 | 32.54 | 4.5625 | 115.89 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2416 | 1.28125 | 32.54 | 5 | 127 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2417 | 1.28125 | 32.54 | 6 | 152.4 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 2AOVIT-2418 | 1.28125 | 32.54 | 6.4375 | 163.51 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2437 | 1.375 | 34.93 | 2.5 | 63.5 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2438 | 1.375 | 34.93 | 3 | 76.2 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2439 | 1.375 | 34.93 | 3.5 | 88.9 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2440 | 1.375 | 34.93 | 4 | 101.6 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2441 | 1.375 | 34.93 | 4.5 | 114.3 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2442 | 1.375 | 34.93 | 5 | 127 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2443 | 1.375 | 34.93 | 6 | 152.4 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2444 | 1.375 | 34.93 | 7 | 177.8 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2445 | 1.375 | 34.93 | 8 | 203.2 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2446 | 1.375 | 34.93 | 9 | 228.6 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2447 | 1.375 | 34.93 | 10 | 254 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2448 | 1.375 | 34.93 | 11 | 279.4 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2449 | 1.375 | 34.93 | 12 | 304.8 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 3AOVIT-2476 | 1.375 | 34.93 | 2.5 | 63.5 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 42071 | 9.53 |
| 3AOVIT-2477 | 1.375 | 34.93 | 3 | 76.2 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2478 | 1.375 | 34.93 | 3.5 | 88.9 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2479 | 1.375 | 34.93 | 4 | 101.6 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2480 | 1.375 | 34.93 | 4.5 | 114.3 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2481 | 1.375 | 34.93 | 5 | 127 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2482 | 1.375 | 34.93 | 6 | 152.4 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2483 | 1.375 | 34.93 | 7 | 177.8 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2484 | 1.375 | 34.93 | 8 | 203.2 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2485 | 1.375 | 34.93 | 9 | 228.6 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2486 | 1.375 | 34.93 | 10 | 254 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2487 | 1.375 | 34.93 | 11 | 279.4 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2488 | 1.375 | 34.93 | 12 | 304.8 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2515 | 1.375 | 34.93 | 2.5 | 63.5 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2516 | 1.375 | 34.93 | 3 | 76.2 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2517 | 1.375 | 34.93 | 3.5 | 88.9 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2518 | 1.375 | 34.93 | 4 | 101.6 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2519 | 1.375 | 34.93 | 4.5 | 114.3 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2520 | 1.375 | 34.93 | 5 | 127 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2521 | 1.375 | 34.93 | 6 | 152.4 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2522 | 1.375 | 34.93 | 7 | 177.8 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2523 | 1.375 | 34.93 | 8 | 203.2 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2524 | 1.375 | 34.93 | 9 | 228.6 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2525 | 1.375 | 34.93 | 10 | 254 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2526 | 1.375 | 34.93 | 11 | 279.4 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2527 | 1.375 | 34.93 | 12 | 304.8 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2554 | 1.5 | 38.1 | 2.5 | 63.5 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2555 | 1.5 | 38.1 | 3 | 76.2 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2556 | 1.5 | 38.1 | 4 | 101.6 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2557 | 1.5 | 38.1 | 4.25 | 107.95 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2558 | 1.5 | 38.1 | 4.5 | 114.3 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2559 | 1.5 | 38.1 | 4.5625 | 115.89 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2560 | 1.5 | 38.1 | 5 | 127 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2561 | 1.5 | 38.1 | 6 | 152.4 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2562 | 1.5 | 38.1 | 6.4375 | 163.51 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2563 | 1.5 | 38.1 | 7 | 177.8 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2564 | 1.5 | 38.1 | 8 | 203.2 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2565 | 1.5 | 38.1 | 9 | 228.6 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2566 | 1.5 | 38.1 | 9.5 | 241.3 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2567 | 1.5 | 38.1 | 10 | 254 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2568 | 1.5 | 38.1 | 12 | 304.8 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2599 | 1.5 | 38.1 | 2.5 | 63.5 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2600 | 1.5 | 38.1 | 3 | 76.2 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2601 | 1.5 | 38.1 | 4 | 101.6 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2602 | 1.5 | 38.1 | 4.25 | 107.95 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2603 | 1.5 | 38.1 | 4.5 | 114.3 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2604 | 1.5 | 38.1 | 4.5625 | 115.89 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2605 | 1.5 | 38.1 | 5 | 127 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2606 | 1.5 | 38.1 | 6 | 152.4 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2607 | 1.5 | 38.1 | 6.4375 | 163.51 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2608 | 1.5 | 38.1 | 7 | 177.8 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2609 | 1.5 | 38.1 | 8 | 203.2 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2610 | 1.5 | 38.1 | 9 | 228.6 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2611 | 1.5 | 38.1 | 9.5 | 241.3 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2612 | 1.5 | 38.1 | 10 | 254 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2613 | 1.5 | 38.1 | 12 | 304.8 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2644 | 1.5 | 38.1 | 2.5 | 63.5 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2645 | 1.5 | 38.1 | 3 | 76.2 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2646 | 1.5 | 38.1 | 4 | 101.6 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2647 | 1.5 | 38.1 | 4.25 | 107.95 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2648 | 1.5 | 38.1 | 4.5 | 114.3 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2649 | 1.5 | 38.1 | 4.5625 | 115.89 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2650 | 1.5 | 38.1 | 5 | 127 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2651 | 1.5 | 38.1 | 6 | 152.4 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2652 | 1.5 | 38.1 | 6.4375 | 163.51 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2653 | 1.5 | 38.1 | 7 | 177.8 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2654 | 1.5 | 38.1 | 8 | 203.2 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2655 | 1.5 | 38.1 | 9 | 228.6 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2656 | 1.5 | 38.1 | 9.5 | 241.3 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2657 | 1.5 | 38.1 | 10 | 254 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2658 | 1.5 | 38.1 | 12 | 304.8 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 3AOVIT-2689 | 1.75 | 44.45 | 3 | 76.2 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2690 | 1.75 | 44.45 | 4 | 101.6 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2691 | 1.75 | 44.45 | 4.25 | 107.95 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2692 | 1.75 | 44.45 | 4.5 | 114.3 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2693 | 1.75 | 44.45 | 4.5625 | 115.89 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2694 | 1.75 | 44.45 | 5 | 127 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2695 | 1.75 | 44.45 | 5.5 | 139.7 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2696 | 1.75 | 44.45 | 6 | 152.4 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2697 | 1.75 | 44.45 | 6.4375 | 163.51 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2698 | 1.75 | 44.45 | 7 | 177.8 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2699 | 1.75 | 44.45 | 8 | 203.2 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2700 | 1.75 | 44.45 | 8.25 | 209.55 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2701 | 1.75 | 44.45 | 8.5 | 215.9 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2702 | 1.75 | 44.45 | 9 | 228.6 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2703 | 1.75 | 44.45 | 9.5 | 241.3 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2704 | 1.75 | 44.45 | 10 | 254 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2705 | 1.75 | 44.45 | 12 | 304.8 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 4AOVIT-2740 | 1.75 | 44.45 | 3 | 76.2 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2741 | 1.75 | 44.45 | 4 | 101.6 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2742 | 1.75 | 44.45 | 4.25 | 107.95 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2743 | 1.75 | 44.45 | 4.5 | 114.3 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2744 | 1.75 | 44.45 | 4.5625 | 115.89 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2745 | 1.75 | 44.45 | 5 | 127 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2746 | 1.75 | 44.45 | 5.5 | 139.7 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2747 | 1.75 | 44.45 | 6 | 152.4 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2748 | 1.75 | 44.45 | 6.4375 | 163.51 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2749 | 1.75 | 44.45 | 7 | 177.8 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2750 | 1.75 | 44.45 | 8 | 203.2 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2751 | 1.75 | 44.45 | 8.25 | 209.55 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2752 | 1.75 | 44.45 | 8.5 | 215.9 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2753 | 1.75 | 44.45 | 9 | 228.6 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2754 | 1.75 | 44.45 | 9.5 | 241.3 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2755 | 1.75 | 44.45 | 10 | 254 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2756 | 1.75 | 44.45 | 12 | 304.8 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.375 | 9.53 |
| 4AOVIT-2791 | 1.75 | 44.45 | 3 | 76.2 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2792 | 1.75 | 44.45 | 4 | 101.6 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2793 | 1.75 | 44.45 | 4.25 | 107.95 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2794 | 1.75 | 44.45 | 4.5 | 114.3 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2795 | 1.75 | 44.45 | 4.5625 | 115.89 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2796 | 1.75 | 44.45 | 5 | 127 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2797 | 1.75 | 44.45 | 5.5 | 139.7 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2798 | 1.75 | 44.45 | 6 | 152.4 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2799 | 1.75 | 44.45 | 6.4375 | 163.51 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2800 | 1.75 | 44.45 | 7 | 177.8 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2801 | 1.75 | 44.45 | 8 | 203.2 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2802 | 1.75 | 44.45 | 8.25 | 209.55 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2803 | 1.75 | 44.45 | 8.5 | 215.9 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2804 | 1.75 | 44.45 | 9 | 228.6 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2805 | 1.75 | 44.45 | 9.5 | 241.3 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2806 | 1.75 | 44.45 | 10 | 254 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 4AOVIT-2807 | 1.75 | 44.45 | 12 | 304.8 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2842 | 2 | 50.8 | 4 | 101.6 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2843 | 2 | 50.8 | 4.5 | 114.3 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2844 | 2 | 50.8 | 4.5625 | 115.89 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2845 | 2 | 50.8 | 5 | 127 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2846 | 2 | 50.8 | 5.50 | 139.7 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2847 | 2 | 50.8 | 6 | 152.4 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2848 | 2 | 50.8 | 6.5 | 165.1 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2849 | 2 | 50.8 | 7 | 177.8 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2850 | 2 | 50.8 | 7.5 | 190.5 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2851 | 2 | 50.8 | 8 | 203.2 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2852 | 2 | 50.8 | 8.5 | 215.9 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2853 | 2 | 50.8 | 9 | 228.6 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2854 | 2 | 50.8 | 10 | 254 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2855 | 2 | 50.8 | 12 | 304.8 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 5AOVIT-2884 | 2 | 50.8 | 4 | 101.6 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2885 | 2 | 50.8 | 4.5 | 114.3 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2886 | 2 | 50.8 | 4.5625 | 115.89 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2887 | 2 | 50.8 | 5 | 127 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2888 | 2 | 50.8 | 5.50 | 139.7 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2889 | 2 | 50.8 | 6 | 152.4 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2890 | 2 | 50.8 | 6.5 | 165.1 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2891 | 2 | 50.8 | 7 | 177.8 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2892 | 2 | 50.8 | 7.5 | 190.5 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2893 | 2 | 50.8 | 8 | 203.2 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2894 | 2 | 50.8 | 8.5 | 215.9 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2895 | 2 | 50.8 | 9 | 228.6 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2896 | 2 | 50.8 | 10 | 254 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2897 | 2 | 50.8 | 12 | 304.8 | Aluminum | 10-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2926 | 2 | 50.8 | 4 | 101.6 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2927 | 2 | 50.8 | 4.5 | 114.3 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2928 | 2 | 50.8 | 4.5625 | 115.89 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2929 | 2 | 50.8 | 5 | 127 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2930 | 2 | 50.8 | 5.50 | 139.7 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2931 | 2 | 50.8 | 6 | 152.4 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2932 | 2 | 50.8 | 6.5 | 165.1 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2933 | 2 | 50.8 | 7 | 177.8 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2934 | 2 | 50.8 | 7.5 | 190.5 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2935 | 2 | 50.8 | 8 | 203.2 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2936 | 2 | 50.8 | 8.5 | 215.9 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2937 | 2 | 50.8 | 9 | 228.6 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2938 | 2 | 50.8 | 10 | 254 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 5AOVIT-2939 | 2 | 50.8 | 12 | 304.8 | Aluminum | 10-24 | .6250 x .28125 | 15.88 x 7.14 | 0.3750 | 9.53 |
| 6AOVIT-2968 | 2.25 | 57.15 | 3 | 76.2 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 6AOVIT-2969 | 2.25 | 57.15 | 4 | 101.6 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 6AOVIT-2970 | 2.25 | 57.15 | 5 | 127 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 6AOVIT-2971 | 2.25 | 57.15 | 6 | 152.4 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 6AOVIT-2972 | 2.25 | 57.15 | 7 | 177.8 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 6AOVIT-2973 | 2.25 | 57.15 | 8 | 203.2 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 6AOVIT-2974 | 2.25 | 57.15 | 9 | 228.6 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
| 6AOVIT-2975 | 2.25 | 57.15 | 10 | 254 | Aluminum | 8-32 | .6250 x .28125 | 15.88 x 7.14 | 0.3125 | 7.94 |
