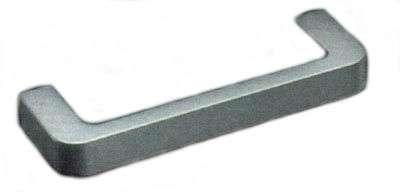

Heavy Duty-Rectangular-Internal Thread Pull Handle
JBF National’s heavy duty pull handle is manufactured from the highest quality extruded aluminum and features internal thread mounting. The flat rectangular shape of this pull handle ensures positive hand grip each and every time. Contact a JBF National sales engineer today for more information.
| P/N | Item Name | Style | C to C (in) | C to C (mm) | Material | Width (A) | Thread Size | Thread Depth |
|---|---|---|---|---|---|---|---|---|
| 1HDRIT-1520 | Heavy Duty- Rectangular- Internal Thread | AD | 2.75 | 69.85 | Aluminum | 0.375 Inch 9.53 | 8-32 | 0.4375 Inch 11.11 |
| 1HDRIT-1521 | Heavy Duty- Rectangular- Internal Thread | AD | 2.75 | 69.85 | Aluminum | 0.625 Inch 15.88 | 8-32 | 0.4375 Inch 11.11 |
| 1HDRIT-1522 | Heavy Duty- Rectangular- Internal Thread | AD | 2.75 | 69.85 | Aluminum | 0.50 Inch 12.7 | 8-32 | 0.4375 Inch 11.11 |
| 2HDRIT-1523 | Heavy Duty- Rectangular- Internal Thread | AD | 3.00 | 76.2 | Aluminum | 0.625 Inch 15.88 | 10-24 | 0.625 Inch 15.88 |
| 2HDRIT-1524 | Heavy Duty- Rectangular- Internal Thread | AD | 3.00 | 76.2 | Aluminum | 0.50 Inch 12.7 | 10-24 | 0.625 Inch 15.88 |
| 3HDRIT-1525 | Heavy Duty- Rectangular- Internal Thread | BD | 4.50 | 114.3 | Aluminum | 0.375 Inch 9.53 | 8-32 | 0.4375 Inch 11.11 |
| 3HDRIT-1526 | Heavy Duty- Rectangular- Internal Thread | BD | 4.50 | 114.3 | Aluminum | 0.625 Inch 15.88 | 8-32 | 0.4375 Inch 11.11 |
| 3HDRIT-1527 | Heavy Duty- Rectangular- Internal Thread | BD | 4.50 | 114.3 | Aluminum | 0.625 Inch 15.88 | 1/4-20 | 0.625 Inch 15.88 |
| 3HDRIT-1528 | Heavy Duty- Rectangular- Internal Thread | BD | 4.50 | 114.3 | Aluminum | 0.50 Inch 12.7 | 8-32 | 0.4375 Inch 11.11 |
| 3HDRIT-1529 | Heavy Duty- Rectangular- Internal Thread | BD | 4.50 | 114.3 | Aluminum | 0.50 Inch 12.7 | 10-24 | 0.625 Inch 15.88 |
