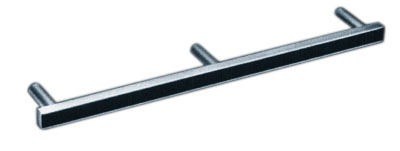

Bar-Internal Thread - Three Post Pull Handle
JBF National’s three post internal thread handle is manufactured from the highest quality extruded aluminum, features a brushed satin finish, and comes with clear anodized posts. For added aesthetics, the handle top features a stylish black insert. These pull handles are utilized across a wide variety of industries and applications. Contact a JBF National sales engineer today for further information.
| P/N | Item Name | Overall Height- H | Overall Height- H | C to C (in) | C to C (mm) | Thread Size | Post Diameter- A | Post Diameter- A | Length- B | Length- B |
|---|---|---|---|---|---|---|---|---|---|---|
| 1BITP-1200 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 2 3/4 | 69.85 | 8-32 | 5/16 Inch | 7.94 | 6 3/8 Inch | 161.93 |
| 1BITP-1201 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 3 | 76.20 | 8-32 | 5/16 Inch | 7.94 | 6 7/8 Inch | 174.63 |
| 1BITP-1202 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 3 1/2 | 88.90 | 8-32 | 5/16 Inch | 7.94 | 7 7/8 Inch | 200.03 |
| 1BITP-1203 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 3 7/8 | 98.43 | 8-32 | 5/16 Inch | 7.94 | 8 5/8 Inch | 219.08 |
| 1BITP-1204 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 4 | 101.60 | 8-32 | 5/16 Inch | 7.94 | 8 7/8 Inch | 225.43 |
| 1BITP-1205 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 4 1/2 | 114.30 | 8-32 | 5/16 Inch | 7.94 | 9 7/8 Inch | 250.83 |
| 1BITP-1206 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 4 3/4 | 120.65 | 8-32 | 5/16 Inch | 7.94 | 10 3/8 Inch | 263.53 |
| 1BITP-1207 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 5 | 127.00 | 8-32 | 5/16 Inch | 7.94 | 10 7/8 Inch | 276.23 |
| 1BITP-1208 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 5 1/2 | 139.70 | 8-32 | 5/16 Inch | 7.94 | 11 7/8 Inch | 301.63 |
| 1BITP-1209 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 5 5/8 | 142.88 | 8-32 | 5/16 Inch | 7.94 | 12 1/8 Inch | 307.98 |
| 1BITP-1210 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 2 3/4 | 69.85 | 10-32 | 5/16 Inch | 7.94 | 6 3/8 Inch | 161.93 |
| 1BITP-1211 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 3 | 76.20 | 10-32 | 5/16 Inch | 7.94 | 6 7/8 Inch | 174.63 |
| 1BITP-1212 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 3 1/2 | 88.90 | 10-32 | 5/16 Inch | 7.94 | 7 7/8 Inch | 200.03 |
| 1BITP-1213 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 3 7/8 | 98.43 | 10-32 | 5/16 Inch | 7.94 | 8 5/8 Inch | 219.08 |
| 1BITP-1214 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 4 | 101.60 | 10-32 | 5/16 Inch | 7.94 | 8 7/8 Inch | 225.43 |
| 1BITP-1215 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 4 1/2 | 114.30 | 10-32 | 5/16 Inch | 7.94 | 9 7/8 Inch | 250.83 |
| 1BITP-1216 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 4 3/4 | 120.65 | 10-32 | 5/16 Inch | 7.94 | 10 3/8 Inch | 263.53 |
| 1BITP-1217 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 5 | 127.00 | 10-32 | 5/16 Inch | 7.94 | 10 7/8 Inch | 276.23 |
| 1BITP-1218 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 5 1/2 | 139.70 | 10-32 | 5/16 Inch | 7.94 | 11 7/8 Inch | 301.63 |
| 1BITP-1219 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 5 5/8 | 142.88 | 10-32 | 5/16 Inch | 7.94 | 12 1/8 Inch | 307.98 |
| 1BITP-1220 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 2 3/4 | 69.85 | 8-32 | 3/8 Inch | 9.53 | 6 3/8 Inch | 161.93 |
| 1BITP-1221 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 3 | 76.20 | 8-32 | 3/8 Inch | 9.53 | 6 7/8 Inch | 174.63 |
| 1BITP-1222 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 3 1/2 | 88.90 | 8-32 | 3/8 Inch | 9.53 | 7 7/8 Inch | 200.03 |
| 1BITP-1223 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 3 7/8 | 98.43 | 8-32 | 3/8 Inch | 9.53 | 8 5/8 Inch | 219.08 |
| 1BITP-1224 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 4 | 101.60 | 8-32 | 3/8 Inch | 9.53 | 8 7/8 Inch | 225.43 |
| 1BITP-1225 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 4 1/2 | 114.30 | 8-32 | 3/8 Inch | 9.53 | 9 7/8 Inch | 250.83 |
| 1BITP-1226 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 4 3/4 | 120.65 | 8-32 | 3/8 Inch | 9.53 | 10 3/8 Inch | 263.53 |
| 1BITP-1227 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 5 | 127.00 | 8-32 | 3/8 Inch | 9.53 | 10 7/8 Inch | 276.23 |
| 1BITP-1228 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 5 1/2 | 139.70 | 8-32 | 3/8 Inch | 9.53 | 11 7/8 Inch | 301.63 |
| 1BITP-1229 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 5 5/8 | 142.88 | 8-32 | 3/8 Inch | 9.53 | 12 1/8 Inch | 307.98 |
| 1BITP-1230 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 2 3/4 | 69.85 | 10-32 | 3/8 Inch | 9.53 | 6 3/8 Inch | 161.93 |
| 1BITP-1231 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 3 | 76.20 | 10-32 | 3/8 Inch | 9.53 | 6 7/8 Inch | 174.63 |
| 1BITP-1232 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 3 1/2 | 88.90 | 10-32 | 3/8 Inch | 9.53 | 7 7/8 Inch | 200.03 |
| 1BITP-1233 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 3 7/8 | 98.43 | 10-32 | 3/8 Inch | 9.53 | 8 5/8 Inch | 219.08 |
| 1BITP-1234 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 4 | 101.60 | 10-32 | 3/8 Inch | 9.53 | 8 7/8 Inch | 225.43 |
| 1BITP-1235 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 4 1/2 | 114.30 | 10-32 | 3/8 Inch | 9.53 | 9 7/8 Inch | 250.83 |
| 1BITP-1236 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 4 3/4 | 120.65 | 10-32 | 3/8 Inch | 9.53 | 10 3/8 Inch | 263.53 |
| 1BITP-1237 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 5 | 127.00 | 10-32 | 3/8 Inch | 9.53 | 10 7/8 Inch | 276.23 |
| 1BITP-1238 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 5 1/2 | 139.70 | 10-32 | 3/8 Inch | 9.53 | 11 7/8 Inch | 301.63 |
| 1BITP-1239 | Bar - Internal Thread - 3 Posts | 1 1/16 Inch | 26.99 | 5 5/8 | 142.88 | 10-32 | 3/8 Inch | 9.53 | 12 1/8 Inch | 307.98 |
| 2BITP-1240 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 2 3/4 | 69.85 | 8-32 | 5/16 Inch | 7.94 | 6 3/8 Inch | 161.93 |
| 2BITP-1241 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 3 | 76.20 | 8-32 | 5/16 Inch | 7.94 | 6 7/8 Inch | 174.63 |
| 2BITP-1242 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 3 1/2 | 88.90 | 8-32 | 5/16 Inch | 7.94 | 7 7/8 Inch | 200.03 |
| 2BITP-1243 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 3 7/8 | 98.43 | 8-32 | 5/16 Inch | 7.94 | 8 5/8 Inch | 219.08 |
| 2BITP-1244 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 4 | 101.60 | 8-32 | 5/16 Inch | 7.94 | 8 7/8 Inch | 225.43 |
| 2BITP-1245 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 4 1/2 | 114.30 | 8-32 | 5/16 Inch | 7.94 | 9 7/8 Inch | 250.83 |
| 2BITP-1246 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 4 3/4 | 120.65 | 8-32 | 5/16 Inch | 7.94 | 10 3/8 Inch | 263.53 |
| 2BITP-1247 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 5 | 127.00 | 8-32 | 5/16 Inch | 7.94 | 10 7/8 Inch | 276.23 |
| 2BITP-1248 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 5 1/2 | 139.70 | 8-32 | 5/16 Inch | 7.94 | 11 7/8 Inch | 301.63 |
| 2BITP-1249 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 5 5/8 | 142.88 | 8-32 | 5/16 Inch | 7.94 | 12 1/8 Inch | 307.98 |
| 2BITP-1250 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 2 3/4 | 69.85 | 10-32 | 5/16 Inch | 7.94 | 6 3/8 Inch | 161.93 |
| 2BITP-1251 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 3 | 76.20 | 10-32 | 5/16 Inch | 7.94 | 6 7/8 Inch | 174.63 |
| 2BITP-1252 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 3 1/2 | 88.90 | 10-32 | 5/16 Inch | 7.94 | 7 7/8 Inch | 200.03 |
| 2BITP-1253 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 3 7/8 | 98.43 | 10-32 | 5/16 Inch | 7.94 | 8 5/8 Inch | 219.08 |
| 2BITP-1254 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 4 | 101.60 | 10-32 | 5/16 Inch | 7.94 | 8 7/8 Inch | 225.43 |
| 2BITP-1255 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 4 1/2 | 114.30 | 10-32 | 5/16 Inch | 7.94 | 9 7/8 Inch | 250.83 |
| 2BITP-1256 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 4 3/4 | 120.65 | 10-32 | 5/16 Inch | 7.94 | 10 3/8 Inch | 263.53 |
| 2BITP-1257 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 5 | 127.00 | 10-32 | 5/16 Inch | 7.94 | 10 7/8 Inch | 276.23 |
| 2BITP-1258 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 5 1/2 | 139.70 | 10-32 | 5/16 Inch | 7.94 | 11 7/8 Inch | 301.63 |
| 2BITP-1259 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 5 5/8 | 142.88 | 10-32 | 5/16 Inch | 7.94 | 12 1/8 Inch | 307.98 |
| 2BITP-1260 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 2 3/4 | 69.85 | 8-32 | 3/8 Inch | 9.53 | 6 3/8 Inch | 161.93 |
| 2BITP-1261 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 3 | 76.20 | 8-32 | 3/8 Inch | 9.53 | 6 7/8 Inch | 174.63 |
| 2BITP-1262 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 3 1/2 | 88.90 | 8-32 | 3/8 Inch | 9.53 | 7 7/8 Inch | 200.03 |
| 2BITP-1263 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 3 7/8 | 98.43 | 8-32 | 3/8 Inch | 9.53 | 8 5/8 Inch | 219.08 |
| 2BITP-1264 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 4 | 101.60 | 8-32 | 3/8 Inch | 9.53 | 8 7/8 Inch | 225.43 |
| 2BITP-1265 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 4 1/2 | 114.30 | 8-32 | 3/8 Inch | 9.53 | 9 7/8 Inch | 250.83 |
| 2BITP-1266 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 4 3/4 | 120.65 | 8-32 | 3/8 Inch | 9.53 | 10 3/8 Inch | 263.53 |
| 2BITP-1267 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 5 | 127.00 | 8-32 | 3/8 Inch | 9.53 | 10 7/8 Inch | 276.23 |
| 2BITP-1268 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 5 1/2 | 139.70 | 8-32 | 3/8 Inch | 9.53 | 11 7/8 Inch | 301.63 |
| 2BITP-1269 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 5 5/8 | 142.88 | 8-32 | 3/8 Inch | 9.53 | 12 1/8 Inch | 307.98 |
| 2BITP-1270 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 2 3/4 | 69.85 | 10-32 | 3/8 Inch | 9.53 | 6 3/8 Inch | 161.93 |
| 2BITP-1271 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 3 | 76.20 | 10-32 | 3/8 Inch | 9.53 | 6 7/8 Inch | 174.63 |
| 2BITP-1272 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 3 1/2 | 88.90 | 10-32 | 3/8 Inch | 9.53 | 7 7/8 Inch | 200.03 |
| 2BITP-1273 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 3 7/8 | 98.43 | 10-32 | 3/8 Inch | 9.53 | 8 5/8 Inch | 219.08 |
| 2BITP-1274 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 4 | 101.60 | 10-32 | 3/8 Inch | 9.53 | 8 7/8 Inch | 225.43 |
| 2BITP-1275 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 4 1/2 | 114.30 | 10-32 | 3/8 Inch | 9.53 | 9 7/8 Inch | 250.83 |
| 2BITP-1276 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 4 3/4 | 120.65 | 10-32 | 3/8 Inch | 9.53 | 10 3/8 Inch | 263.53 |
| 2BITP-1277 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 5 | 127.00 | 10-32 | 3/8 Inch | 9.53 | 10 7/8 Inch | 276.23 |
| 2BITP-1278 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 5 1/2 | 139.70 | 10-32 | 3/8 Inch | 9.53 | 11 7/8 Inch | 301.63 |
| 2BITP-1279 | Bar - Internal Thread - 3 Posts | 1 3/16 Inch | 30.16 | 5 5/8 | 142.88 | 10-32 | 3/8 Inch | 9.53 | 12 1/8 Inch | 307.98 |
| 3BITP-1280 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 2 3/4 | 69.85 | 8-32 | 5/16 Inch | 7.94 | 6 3/8 Inch | 161.93 |
| 3BITP-1281 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 3 | 76.20 | 8-32 | 5/16 Inch | 7.94 | 6 7/8 Inch | 174.63 |
| 3BITP-1282 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 3 1/2 | 88.90 | 8-32 | 5/16 Inch | 7.94 | 7 7/8 Inch | 200.03 |
| 3BITP-1283 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 3 7/8 | 98.43 | 8-32 | 5/16 Inch | 7.94 | 8 5/8 Inch | 219.08 |
| 3BITP-1284 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 4 | 101.60 | 8-32 | 5/16 Inch | 7.94 | 8 7/8 Inch | 225.43 |
| 3BITP-1285 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 4 1/2 | 114.30 | 8-32 | 5/16 Inch | 7.94 | 9 7/8 Inch | 250.83 |
| 3BITP-1286 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 4 3/4 | 120.65 | 8-32 | 5/16 Inch | 7.94 | 10 3/8 Inch | 263.53 |
| 3BITP-1287 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 5 | 127.00 | 8-32 | 5/16 Inch | 7.94 | 10 7/8 Inch | 276.23 |
| 3BITP-1288 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 5 1/2 | 139.70 | 8-32 | 5/16 Inch | 7.94 | 11 7/8 Inch | 301.63 |
| 3BITP-1289 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 5 5/8 | 142.88 | 8-32 | 5/16 Inch | 7.94 | 12 1/8 Inch | 307.98 |
| 3BITP-1290 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 2 3/4 | 69.85 | 10-32 | 5/16 Inch | 7.94 | 6 3/8 Inch | 161.93 |
| 3BITP-1291 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 3 | 76.20 | 10-32 | 5/16 Inch | 7.94 | 6 7/8 Inch | 174.63 |
| 3BITP-1292 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 3 1/2 | 88.90 | 10-32 | 5/16 Inch | 7.94 | 7 7/8 Inch | 200.03 |
| 3BITP-1293 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 3 7/8 | 98.43 | 10-32 | 5/16 Inch | 7.94 | 8 5/8 Inch | 219.08 |
| 3BITP-1294 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 4 | 101.60 | 10-32 | 5/16 Inch | 7.94 | 8 7/8 Inch | 225.43 |
| 3BITP-1295 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 4 1/2 | 114.30 | 10-32 | 5/16 Inch | 7.94 | 9 7/8 Inch | 250.83 |
| 3BITP-1296 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 4 3/4 | 120.65 | 10-32 | 5/16 Inch | 7.94 | 10 3/8 Inch | 263.53 |
| 3BITP-1297 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 5 | 127.00 | 10-32 | 5/16 Inch | 7.94 | 10 7/8 Inch | 276.23 |
| 3BITP-1298 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 5 1/2 | 139.70 | 10-32 | 5/16 Inch | 7.94 | 11 7/8 Inch | 301.63 |
| 3BITP-1299 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 5 5/8 | 142.88 | 10-32 | 5/16 Inch | 7.94 | 12 1/8 Inch | 307.98 |
| 3BITP-1300 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 2 3/4 | 69.85 | 8-32 | 3/8 Inch | 9.53 | 6 3/8 Inch | 161.93 |
| 3BITP-1301 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 3 | 76.20 | 8-32 | 3/8 Inch | 9.53 | 6 7/8 Inch | 174.63 |
| 3BITP-1302 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 3 1/2 | 88.90 | 8-32 | 3/8 Inch | 9.53 | 7 7/8 Inch | 200.03 |
| 3BITP-1303 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 3 7/8 | 98.43 | 8-32 | 3/8 Inch | 9.53 | 8 5/8 Inch | 219.08 |
| 3BITP-1304 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 4 | 101.60 | 8-32 | 3/8 Inch | 9.53 | 8 7/8 Inch | 225.43 |
| 3BITP-1305 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 4 1/2 | 114.30 | 8-32 | 3/8 Inch | 9.53 | 9 7/8 Inch | 250.83 |
| 3BITP-1306 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 4 3/4 | 120.65 | 8-32 | 3/8 Inch | 9.53 | 10 3/8 Inch | 263.53 |
| 3BITP-1307 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 5 | 127.00 | 8-32 | 3/8 Inch | 9.53 | 10 7/8 Inch | 276.23 |
| 3BITP-1308 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 5 1/2 | 139.70 | 8-32 | 3/8 Inch | 9.53 | 11 7/8 Inch | 301.63 |
| 3BITP-1309 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 5 5/8 | 142.88 | 8-32 | 3/8 Inch | 9.53 | 12 1/8 Inch | 307.98 |
| 3BITP-1310 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 2 3/4 | 69.85 | 10-32 | 3/8 Inch | 9.53 | 6 3/8 Inch | 161.93 |
| 3BITP-1311 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 3 | 76.20 | 10-32 | 3/8 Inch | 9.53 | 6 7/8 Inch | 174.63 |
| 3BITP-1312 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 3 1/2 | 88.90 | 10-32 | 3/8 Inch | 9.53 | 7 7/8 Inch | 200.03 |
| 3BITP-1313 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 3 7/8 | 98.43 | 10-32 | 3/8 Inch | 9.53 | 8 5/8 Inch | 219.08 |
| 3BITP-1314 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 4 | 101.60 | 10-32 | 3/8 Inch | 9.53 | 8 7/8 Inch | 225.43 |
| 3BITP-1315 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 4 1/2 | 114.30 | 10-32 | 3/8 Inch | 9.53 | 9 7/8 Inch | 250.83 |
| 3BITP-1316 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 4 3/4 | 120.65 | 10-32 | 3/8 Inch | 9.53 | 10 3/8 Inch | 263.53 |
| 3BITP-1317 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 5 | 127.00 | 10-32 | 3/8 Inch | 9.53 | 10 7/8 Inch | 276.23 |
| 3BITP-1318 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 5 1/2 | 139.70 | 10-32 | 3/8 Inch | 9.53 | 11 7/8 Inch | 301.63 |
| 3BITP-1319 | Bar - Internal Thread - 3 Posts | 1 5/16 Inch | 33.34 | 5 5/8 | 142.88 | 10-32 | 3/8 Inch | 9.53 | 12 1/8 Inch | 307.98 |
| 4BITP-1320 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 2 3/4 | 69.85 | 8-32 | 5/16 Inch | 7.94 | 6 3/8 Inch | 161.93 |
| 4BITP-1321 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 3 | 76.20 | 8-32 | 5/16 Inch | 7.94 | 6 7/8 Inch | 174.63 |
| 4BITP-1322 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 3 1/2 | 88.90 | 8-32 | 5/16 Inch | 7.94 | 7 7/8 Inch | 200.03 |
| 4BITP-1323 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 3 7/8 | 98.43 | 8-32 | 5/16 Inch | 7.94 | 8 5/8 Inch | 219.08 |
| 4BITP-1324 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 4 | 101.60 | 8-32 | 5/16 Inch | 7.94 | 8 7/8 Inch | 225.43 |
| 4BITP-1325 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 4 1/2 | 114.30 | 8-32 | 5/16 Inch | 7.94 | 9 7/8 Inch | 250.83 |
| 4BITP-1326 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 4 3/4 | 120.65 | 8-32 | 5/16 Inch | 7.94 | 10 3/8 Inch | 263.53 |
| 4BITP-1327 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 5 | 127.00 | 8-32 | 5/16 Inch | 7.94 | 10 7/8 Inch | 276.23 |
| 4BITP-1328 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 5 1/2 | 139.70 | 8-32 | 5/16 Inch | 7.94 | 11 7/8 Inch | 301.63 |
| 4BITP-1329 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 5 5/8 | 142.88 | 8-32 | 5/16 Inch | 7.94 | 12 1/8 Inch | 307.98 |
| 4BITP-1330 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 2 3/4 | 69.85 | 10-32 | 5/16 Inch | 7.94 | 6 3/8 Inch | 161.93 |
| 4BITP-1331 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 3 | 76.20 | 10-32 | 5/16 Inch | 7.94 | 6 7/8 Inch | 174.63 |
| 4BITP-1332 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 3 1/2 | 88.90 | 10-32 | 5/16 Inch | 7.94 | 7 7/8 Inch | 200.03 |
| 4BITP-1333 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 3 7/8 | 98.43 | 10-32 | 5/16 Inch | 7.94 | 8 5/8 Inch | 219.08 |
| 4BITP-1334 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 4 | 101.60 | 10-32 | 5/16 Inch | 7.94 | 8 7/8 Inch | 225.43 |
| 4BITP-1335 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 4 1/2 | 114.30 | 10-32 | 5/16 Inch | 7.94 | 9 7/8 Inch | 250.83 |
| 4BITP-1336 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 4 3/4 | 120.65 | 10-32 | 5/16 Inch | 7.94 | 10 3/8 Inch | 263.53 |
| 4BITP-1337 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 5 | 127.00 | 10-32 | 5/16 Inch | 7.94 | 10 7/8 Inch | 276.23 |
| 4BITP-1338 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 5 1/2 | 139.70 | 10-32 | 5/16 Inch | 7.94 | 11 7/8 Inch | 301.63 |
| 4BITP-1339 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 5 5/8 | 142.88 | 10-32 | 5/16 Inch | 7.94 | 12 1/8 Inch | 307.98 |
| 4BITP-1340 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 2 3/4 | 69.85 | 8-32 | 3/8 Inch | 9.53 | 6 3/8 Inch | 161.93 |
| 4BITP-1341 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 3 | 76.20 | 8-32 | 3/8 Inch | 9.53 | 6 7/8 Inch | 174.63 |
| 4BITP-1342 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 3 1/2 | 88.90 | 8-32 | 3/8 Inch | 9.53 | 7 7/8 Inch | 200.03 |
| 4BITP-1343 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 3 7/8 | 98.43 | 8-32 | 3/8 Inch | 9.53 | 8 5/8 Inch | 219.08 |
| 4BITP-1344 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 4 | 101.60 | 8-32 | 3/8 Inch | 9.53 | 8 7/8 Inch | 225.43 |
| 4BITP-1345 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 4 1/2 | 114.30 | 8-32 | 3/8 Inch | 9.53 | 9 7/8 Inch | 250.83 |
| 4BITP-1346 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 4 3/4 | 120.65 | 8-32 | 3/8 Inch | 9.53 | 10 3/8 Inch | 263.53 |
| 4BITP-1347 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 5 | 127.00 | 8-32 | 3/8 Inch | 9.53 | 10 7/8 Inch | 276.23 |
| 4BITP-1348 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 5 1/2 | 139.70 | 8-32 | 3/8 Inch | 9.53 | 11 7/8 Inch | 301.63 |
| 4BITP-1349 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 5 5/8 | 142.88 | 8-32 | 3/8 Inch | 9.53 | 12 1/8 Inch | 307.98 |
| 4BITP-1350 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 2 3/4 | 69.85 | 10-32 | 3/8 Inch | 9.53 | 6 3/8 Inch | 161.93 |
| 4BITP-1351 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 3 | 76.20 | 10-32 | 3/8 Inch | 9.53 | 6 7/8 Inch | 174.63 |
| 4BITP-1352 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 3 1/2 | 88.90 | 10-32 | 3/8 Inch | 9.53 | 7 7/8 Inch | 200.03 |
| 4BITP-1353 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 3 7/8 | 98.43 | 10-32 | 3/8 Inch | 9.53 | 8 5/8 Inch | 219.08 |
| 4BITP-1354 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 4 | 101.60 | 10-32 | 3/8 Inch | 9.53 | 8 7/8 Inch | 225.43 |
| 4BITP-1355 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 4 1/2 | 114.30 | 10-32 | 3/8 Inch | 9.53 | 9 7/8 Inch | 250.83 |
| 4BITP-1356 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 4 3/4 | 120.65 | 10-32 | 3/8 Inch | 9.53 | 10 3/8 Inch | 263.53 |
| 4BITP-1357 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 5 | 127.00 | 10-32 | 3/8 Inch | 9.53 | 10 7/8 Inch | 276.23 |
| 4BITP-1358 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 5 1/2 | 139.70 | 10-32 | 3/8 Inch | 9.53 | 11 7/8 Inch | 301.63 |
| 4BITP-1359 | Bar - Internal Thread - 3 Posts | 1 7/16 Inch | 36.51 | 5 5/8 | 142.88 | 10-32 | 3/8 Inch | 9.53 | 12 1/8 Inch | 307.98 |
| 5BITP-1360 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 2 3/4 | 69.85 | 8-32 | 5/16 Inch | 7.94 | 6 3/8 Inch | 161.93 |
| 5BITP-1361 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 3 | 76.20 | 8-32 | 5/16 Inch | 7.94 | 6 7/8 Inch | 174.63 |
| 5BITP-1362 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 3 1/2 | 88.90 | 8-32 | 5/16 Inch | 7.94 | 7 7/8 Inch | 200.03 |
| 5BITP-1363 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 3 7/8 | 98.43 | 8-32 | 5/16 Inch | 7.94 | 8 5/8 Inch | 219.08 |
| 5BITP-1364 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 4 | 101.60 | 8-32 | 5/16 Inch | 7.94 | 8 7/8 Inch | 225.43 |
| 5BITP-1365 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 4 1/2 | 114.30 | 8-32 | 5/16 Inch | 7.94 | 9 7/8 Inch | 250.83 |
| 5BITP-1366 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 4 3/4 | 120.65 | 8-32 | 5/16 Inch | 7.94 | 10 3/8 Inch | 263.53 |
| 5BITP-1367 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 5 | 127.00 | 8-32 | 5/16 Inch | 7.94 | 10 7/8 Inch | 276.23 |
| 5BITP-1368 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 5 1/2 | 139.70 | 8-32 | 5/16 Inch | 7.94 | 11 7/8 Inch | 301.63 |
| 5BITP-1369 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 5 5/8 | 142.88 | 8-32 | 5/16 Inch | 7.94 | 12 1/8 Inch | 307.98 |
| 5BITP-1370 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 2 3/4 | 69.85 | 10-32 | 5/16 Inch | 7.94 | 6 3/8 Inch | 161.93 |
| 5BITP-1371 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 3 | 76.20 | 10-32 | 5/16 Inch | 7.94 | 6 7/8 Inch | 174.63 |
| 5BITP-1372 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 3 1/2 | 88.90 | 10-32 | 5/16 Inch | 7.94 | 7 7/8 Inch | 200.03 |
| 5BITP-1373 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 3 7/8 | 98.43 | 10-32 | 5/16 Inch | 7.94 | 8 5/8 Inch | 219.08 |
| 5BITP-1374 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 4 | 101.60 | 10-32 | 5/16 Inch | 7.94 | 8 7/8 Inch | 225.43 |
| 5BITP-1375 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 4 1/2 | 114.30 | 10-32 | 5/16 Inch | 7.94 | 9 7/8 Inch | 250.83 |
| 5BITP-1376 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 4 3/4 | 120.65 | 10-32 | 5/16 Inch | 7.94 | 10 3/8 Inch | 263.53 |
| 5BITP-1377 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 5 | 127.00 | 10-32 | 5/16 Inch | 7.94 | 10 7/8 Inch | 276.23 |
| 5BITP-1378 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 5 1/2 | 139.70 | 10-32 | 5/16 Inch | 7.94 | 11 7/8 Inch | 301.63 |
| 5BITP-1379 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 5 5/8 | 142.88 | 10-32 | 5/16 Inch | 7.94 | 12 1/8 Inch | 307.98 |
| 5BITP-1380 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 2 3/4 | 69.85 | 8-32 | 3/8 Inch | 9.53 | 6 3/8 Inch | 161.93 |
| 5BITP-1381 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 3 | 76.20 | 8-32 | 3/8 Inch | 9.53 | 6 7/8 Inch | 174.63 |
| 5BITP-1382 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 3 1/2 | 88.90 | 8-32 | 3/8 Inch | 9.53 | 7 7/8 Inch | 200.03 |
| 5BITP-1383 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 3 7/8 | 98.43 | 8-32 | 3/8 Inch | 9.53 | 8 5/8 Inch | 219.08 |
| 5BITP-1384 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 4 | 101.60 | 8-32 | 3/8 Inch | 9.53 | 8 7/8 Inch | 225.43 |
| 5BITP-1385 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 4 1/2 | 114.30 | 8-32 | 3/8 Inch | 9.53 | 9 7/8 Inch | 250.83 |
| 5BITP-1386 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 4 3/4 | 120.65 | 8-32 | 3/8 Inch | 9.53 | 10 3/8 Inch | 263.53 |
| 5BITP-1387 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 5 | 127.00 | 8-32 | 3/8 Inch | 9.53 | 10 7/8 Inch | 276.23 |
| 5BITP-1388 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 5 1/2 | 139.70 | 8-32 | 3/8 Inch | 9.53 | 11 7/8 Inch | 301.63 |
| 5BITP-1389 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 5 5/8 | 142.88 | 8-32 | 3/8 Inch | 9.53 | 12 1/8 Inch | 307.98 |
| 5BITP-1390 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 2 3/4 | 69.85 | 10-32 | 3/8 Inch | 9.53 | 6 3/8 Inch | 161.93 |
| 5BITP-1391 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 3 | 76.20 | 10-32 | 3/8 Inch | 9.53 | 6 7/8 Inch | 174.63 |
| 5BITP-1392 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 3 1/2 | 88.90 | 10-32 | 3/8 Inch | 9.53 | 7 7/8 Inch | 200.03 |
| 5BITP-1393 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 3 7/8 | 98.43 | 10-32 | 3/8 Inch | 9.53 | 8 5/8 Inch | 219.08 |
| 5BITP-1394 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 4 | 101.60 | 10-32 | 3/8 Inch | 9.53 | 8 7/8 Inch | 225.43 |
| 5BITP-1395 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 4 1/2 | 114.30 | 10-32 | 3/8 Inch | 9.53 | 9 7/8 Inch | 250.83 |
| 5BITP-1396 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 4 3/4 | 120.65 | 10-32 | 3/8 Inch | 9.53 | 10 3/8 Inch | 263.53 |
| 5BITP-1397 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 5 | 127.00 | 10-32 | 3/8 Inch | 9.53 | 10 7/8 Inch | 276.23 |
| 5BITP-1398 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 5 1/2 | 139.70 | 10-32 | 3/8 Inch | 9.53 | 11 7/8 Inch | 301.63 |
| 5BITP-1399 | Bar - Internal Thread - 3 Posts | 1 1/2 Inch | 38.10 | 5 5/8 | 142.88 | 10-32 | 3/8 Inch | 9.53 | 12 1/8 Inch | 307.98 |
