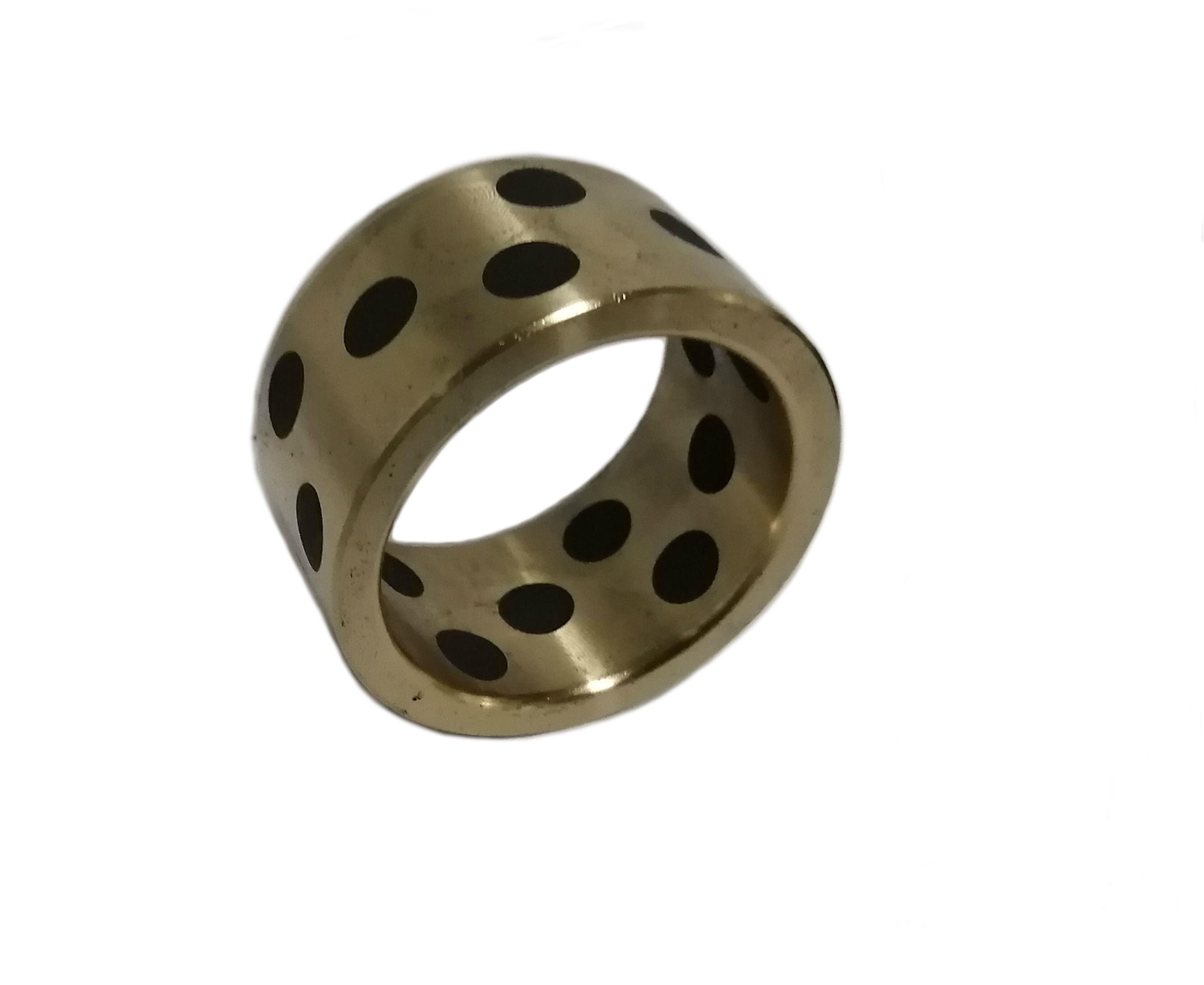

Straight Style Bushings - Graphite Plugged

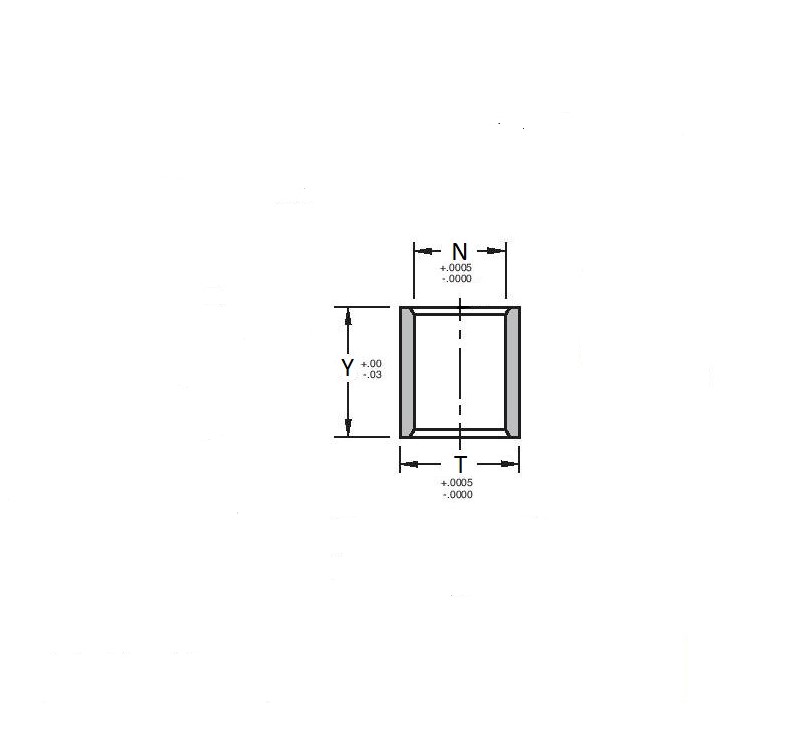

| P/N | Nominal Diameter | N +.0005 -.0000 | T +.0005 -.0000 | Y +.00 -.03 |
|---|---|---|---|---|
| STBGP-5500 | 3/4 | .7505 | 1.1255 | 7/8 |
| STBGP-5501 | 3/4 | .7505 | 1.1255 | 1-3/8 |
| STBGP-5502 | 7/8 | .8755 | 1.2505 | 1-1/2 |
| STBGP-5503 | 1 | 1.0005 | 1.3755 | 1-3/8 |
| STBGP-5504 | 1-1/4 | 1.2505 | 1.6255 | 1-3/8 |
| STBGP-5505 | 1-1/4 | 1.2505 | 1.6255 | 1-7/8 |
| STBGP-5506 | 1-1/2 | 1.5005 | 2.0005 | 1-3/8 |
| STBGP-5507 | 1-1/2 | 1.5005 | 2.0005 | 1-7/8 |
| STBGP-5508 | 2 | 2.0005 | 2.5005 | 3-7/8 |
| STBGP-5509 | 2-1/2 | 2.5005 | 3.2505 | 4-7/8 |
