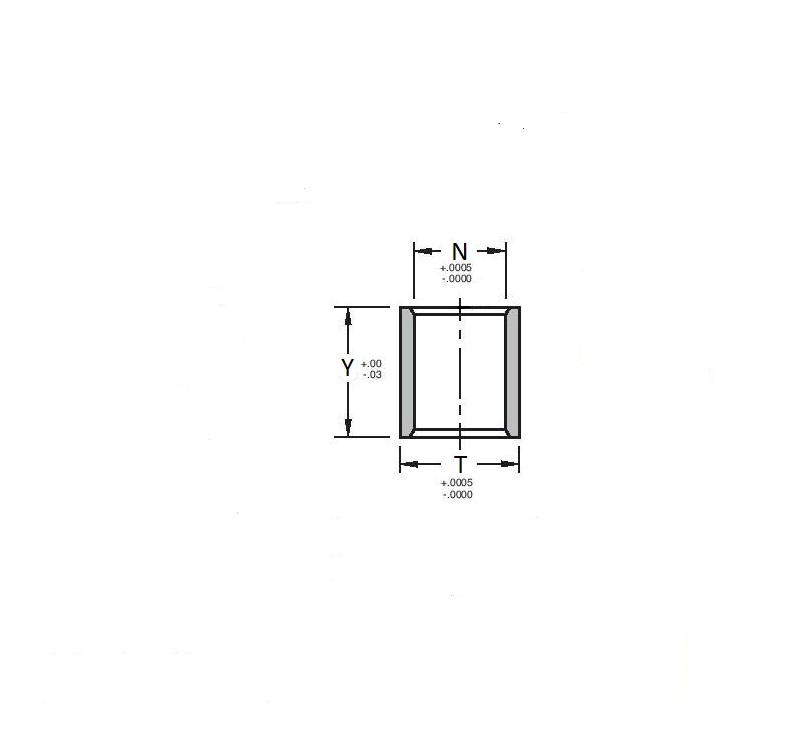

JBF P/N | Nominal Dia. | N +.0005 -.0000 | T +.0005 -.0000 | Y +.00 -.03 |
---|---|---|---|---|
STB-4500 | 1/2 | .5005 | .7505 | 7/8 |
STB-4501 | 1/2 | .5005 | .7505 | 1-3/8 |
STB-4502 | 3/4 | .7505 | 1.1255 | 7/8 |
STB-4503 | 3/4 | .7505 | 1.1255 | 1-3/8 |
STB-4504 | 7/8 | .8755 | 1.2505 | 1-3/8 |
STB-4505 | 1 | 1.0005 | 1.3755 | 1-3/8 |
STB-4506 | 1-1/4 | 1.2505 | 1.6255 | 1-3/8 |
STB-4507 | 1-1/4 | 1.2505 | 1.6255 | 1-7/8 |
STB-4508 | 1-1/2 | 1.5005 | 2.0005 | 1-3/8 |
STB-4509 | 1-1/2 | 1.5005 | 2.0005 | 1-7/8 |
STB-4510 | 2 | 2.0005 | 2.5005 | 3-7/8 |
STB-4511 | 2-1/2 | 2.5005 | 3.2505 | 4-7/8 |
