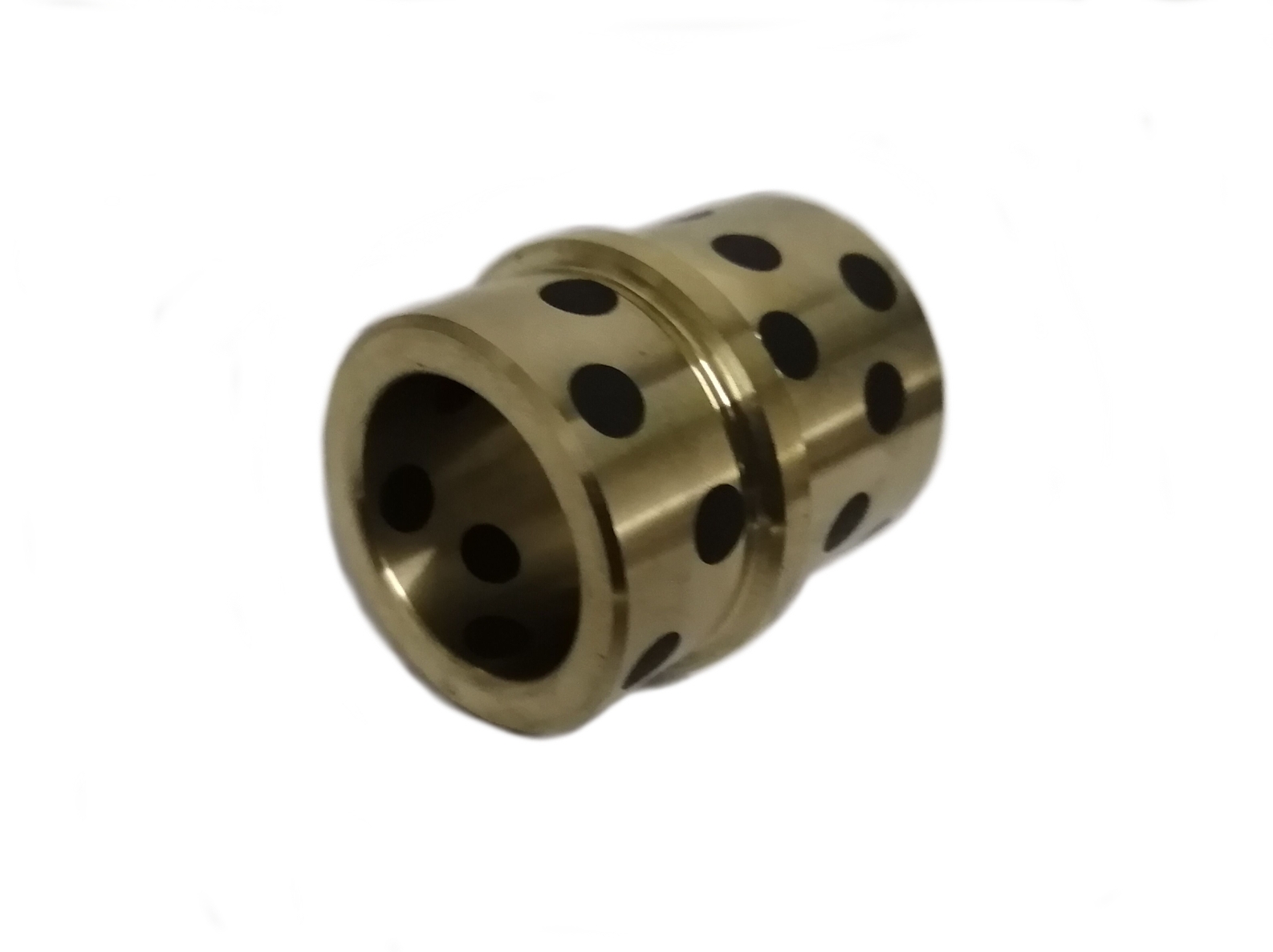

Guided Ejector Bushings - Graphite Plugged

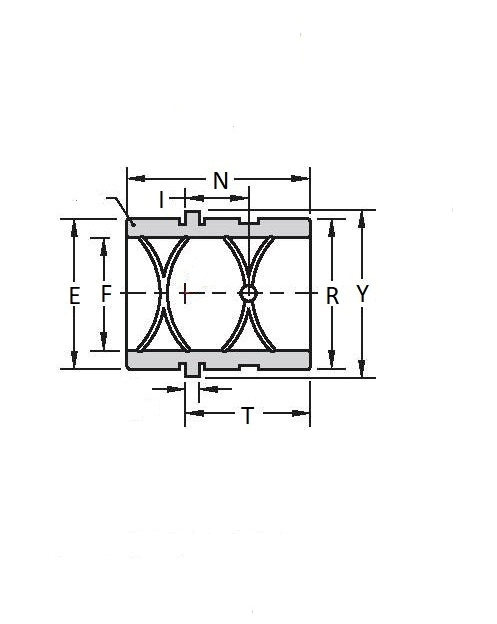

| JBF P/N | Normal Dia. | F + .0005 -.0000 | R +.0005 -.0000 | E +.000 -.001 | Y +.00 -.01 | T | N +.00 -.03 |
|---|---|---|---|---|---|---|---|
| GPGEB-600 | 3/4 | 0.751 | 1.1255 | 1.1240 | 1.302 | 1.00 | 1.50 |
| GPGEB-601 | 7/8 | 0.876 | 1.2505 | 1.2490 | 1.427 | 1.00 | 1.50 |
| GPGEB-602 | 1 | 1.001 | 1.3755 | 1.3740 | 1.552 | 1.12 | 1.75 |
| GPGEB-603 | 1-1/4 | 1.251 | 1.6255 | 1.6240 | 1.802 | 1.12 | 1.75 |
| GPGEB-604 | 1-1/2 | 1.501 | 2.0005 | 1.9990 | 2.117 | 1.12 | 1.75 |
| GPGEB-605 | 2 | 2.001 | 2.5005 | 2.4990 | 2.687 | 1.62 | 2.25 |
