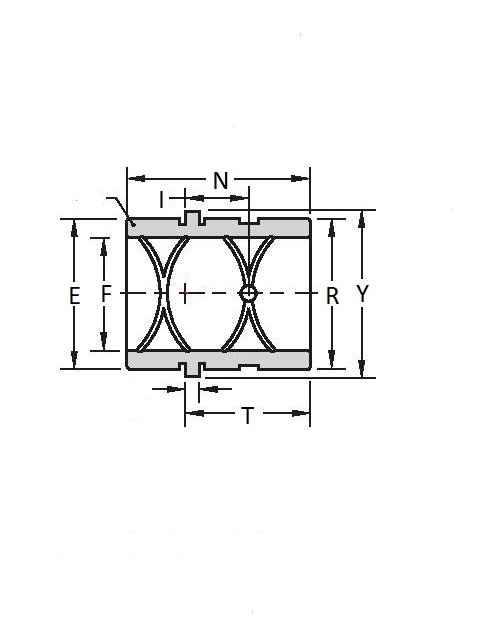

| JBF P/N | Nominal Dia. | F +.0005 -.0000 | R +.0005 -.0000 | E + .000 -.001 | Y +.00 -.01 | T | I | N +.00 -.03 |
|---|
| BEB-500 | 1/2 | 0.5005 | 0.7505 | 0.7490 | 0.853 | 1.00 | 0.56 | 1.50 |
| BEB-501 | 3/4 | 0.7505 | 1.1255 | 1.1240 | 1.302 | 1.00 | 0.56 | 1.50 |
| BEB-502 | 7/8 | 0.8755 | 1.2505 | 1.2490 | 1.427 | 1.00 | 0.56 | 1.50 |
| BEB-503 | 1 | 1.0005 | 1.3755 | 1.3740 | 1.552 | 1.12 | 0.62 | 1.75 |
| BEB-504 | 1-1/4 | 1.2505 | 1.6255 | 1.6240 | 1.802 | 1.12 | 0.62 | 1.75 |
| BEB-505 | 1-1/2 | 1.5005 | 2.0005 | 1.9990 | 2.177 | 1.12 | 0.62 | 1.75 |
| BEB-506 | 2 | 2.0005 | 2.5005 | 2.4990 | 2.687 | 1.62 | 0.80 | 2.25 |
| JBF METRIC P/N | F +.013 +.026 | R +.01 -.00 | E -.01 -.03 | Y +.00 -.13 | T | I | N +.0 -.8 |
|---|
| GEB-507 | 20 | 26 | 26 | 28 | 25 | 15 | 37 |
| GEB-508 | 25 | 32 | 32 | 35 | 29 | 16 | 45 |
| GEB-509 | 30 | 38 | 38 | 41 | 29 | 16 | 45 |
