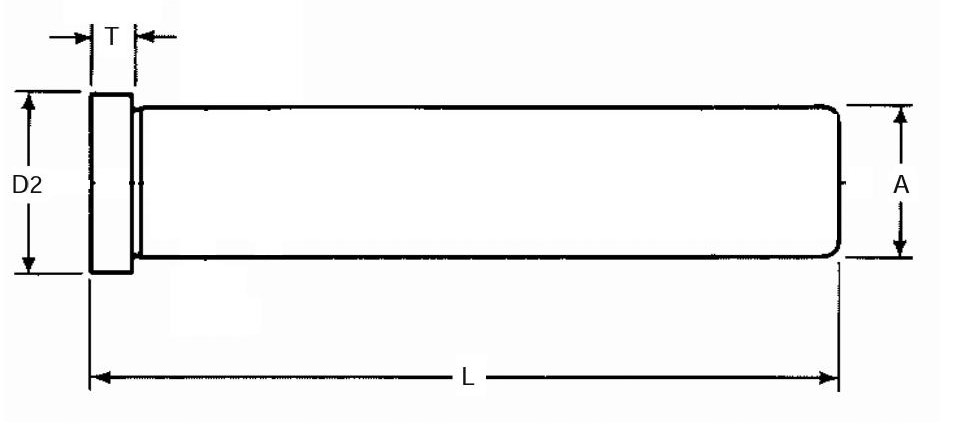

JBF National mold leader pins are manufactured from the highest quality steel and feature a nickel-chromium finish. These mold leader pins also feature a groove-less design to allow for optimum alignment between mold halves. Please see component diagram below.
Length | D2= 5/8 T=3/16 A=1/2 | D2= 3/4 T= 3/16 A= 5/8 | D2=1 T=3/16 A=3/4 | D2=1 1/8 T=1/4 A=7/8 | D2=1 1/4 T=1/4 A=1 | D2=1 1/2 T=5/16 A=1 1/4 | D2=1 3/4 T=5/16 A=1 1/2 |
---|---|---|---|---|---|---|---|
1 3/4 | MLP900 | MLP906 | MLP912 | MLP926 | MLP943 | ||
2 1/4 | MLP901 | MLP907 | MLP913 | MLP927 | MLP944 | ||
2 3/4 | MLP902 | MLP908 | MLP914 | MLP928 | MLP945 | MLP965 | |
3 1/4 | MLP903 | MLP909 | MLP915 | MLP929 | MLP946 | MLP966 | |
3 3/4 | MLP904 | MLP910 | MLP916 | MLP930 | MLP947 | MLP967 | MLP989 |
4 1/4 | MLP905 | MLP911 | MLP917 | MLP931 | MLP948 | MLP968 | MLP990 |
4 3/4 | MLP918 | MLP932 | MLP949 | MLP969 | MLP991 | ||
5 1/4 | MLP919 | MLP933 | MLP950 | MLP970 | MLP992 | ||
5 3/4 | MLP920 | MLP934 | MLP951 | MLP971 | MLP993 | ||
6 1/4 | MLP921 | MLP935 | MLP952 | MLP972 | MLP994 | ||
6 3/4 | MLP922 | MLP936 | MLP953 | MLP973 | MLP995 | ||
7 1/4 | MLP923 | MLP937 | MLP954 | MLP974 | |||
7 3/4 | MLP924 | MLP938 | MLP955 | MLP975 | MLP996 | ||
8 1/4 | MLP939 | MLP956 | MLP976 | ||||
8 3/4 | MLP940 | MLP957 | MLP977 | MLP997 | |||
9 1/4 | MLP925 | MLP958 | MLP978 | ||||
9 3/4 | MLP959 | MLP979 | MLP998 | ||||
10 1/4 | MLP960 | MLP980 | |||||
10 3/4 | MLP941 | MLP961 | MLP981 | MLP999 | |||
11 1/4 | MLP962 | MLP982 | |||||
11 3/4 | MLP963 | MLP983 | MLP1000 | ||||
12 1/4 | MLP942 | MLP964 | MLP984 | ||||
12 3/4 | MLP985 | MLP1001 | |||||
13 3/4 | MLP986 | MLP1002 | |||||
14 3/4 | MLP987 | MLP1003 | |||||
15 3/4 | MLP988 | MLP1004 |
