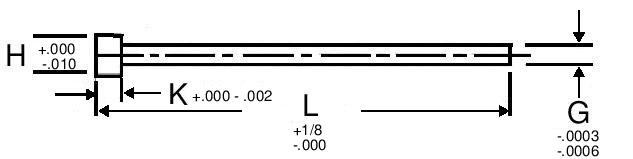

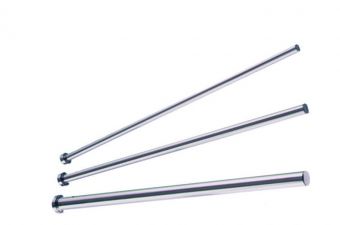

JBF National nitride straight style ejector pins are manufactured using certified H-13 die steel and come completely nitride processed. These ejector pins feature a head that is both hot forged and annealed, in addition to being ground finished under the head for maximum seating. Our pins have a 45 R/C core hardness, 68/74 R/C surface hardness and are laser inspected throughout the entire manufacturing process. Please see component diagram below.
G | H | K | 4" | 6" | 8" | 10" | .005" O/S, 10" OAL | 12" | 14" | 16" | 18" | 20" | 25" | 36" |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3/64 | 1/4 | 1/8 | Upon Request | HEP3555 | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request |
1/16 | 1/4 | 1/8 | Upon Request | HEP3556 | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request |
5/64 | 1/4 | 1/8 | Upon Request | HEP3557 | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request |
3/32 | 1/4 | 1/8 | Upon Request | HEP3558 | LEP2105 | HEP3717 | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request |
7/64 | 1/4 | 1/8 | Upon Request | HEP3559 | LEP2106 | LEP2107 | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request |
1/8 | 1/4 | 1/8 | Upon Request | HEP3560 | LEP2108 | HEP3561 | HEP3562 | LEP2109 | HEP3563 | Upon Request | LEP2110 | Upon Request | Upon Request | Upon Request |
9/64 | 1/4 | 1/8 | Upon Request | LEP2111 | LEP2112 | HEP3564 | Upon Request | Upon Request | HEP3700 | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request |
5/32 | 9/32 | 5/32 | Upon Request | HEP3565 | LEP2113 | HEP3566 | HEP3567 | Upon Request | HEP3568 | Upon Request | HEP3569 | Upon Request | HEP3701 | Upon Request |
11/64 | 11/32 | 3/16 | Upon Request | LEP2114 | LEP2115 | HEP3570 | Upon Request | Upon Request | LEP2116 | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request |
3/16 | 3/8 | 3/16 | Upon Request | HEP3571 | LEP2117 | HEP3572 | HEP3573 | LEP2118 | HEP3574 | Upon Request | HEP3575 | Upon Request | HEP3576 | Upon Request |
13/64 | 3/8 | 3/16 | Upon Request | LEP2119 | LEP2120 | HEP3577 | Upon Request | Upon Request | LEP2121 | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request |
7/32 | 13/32 | 3/16 | Upon Request | HEP3578 | LEP2122 | HEP3579 | Upon Request | Upon Request | HEP3581 | Upon Request | HEP3582 | Upon Request | HEP3583 | Upon Request |
15/64 | 13/32 | 3/16 | Upon Request | LEP2123 | LEP2124 | HEP3584 | Upon Request | Upon Request | LEP2125 | Upon Request | HEP3703 | Upon Request | Upon Request | Upon Request |
1/4 | 7/16 | 3/16 | Upon Request | HEP3585 | LEP2126 | HEP3586 | HEP3587 | LEP2127 | HEP3588 | Upon Request | HEP3589 | Upon Request | HEP3590 | Upon Request |
17/64 | 7/16 | 1/4 | Upon Request | LEP2128 | LEP2129 | HEP3591 | Upon Request | Upon Request | LEP2130 | Upon Request | HEP3704 | Upon Request | HEP3705 | Upon Request |
9/32 | 7/16 | 1/4 | Upon Request | HEP3592 | LEP2131 | HEP3593 | Upon Request | Upon Request | HEP3594 | Upon Request | LEP2132 | Upon Request | HEP3595 | Upon Request |
19/64 | 1/2 | 1/4 | Upon Request | Upon Request | Upon Request | HEP3596 | Upon Request | Upon Request | LEP2133 | Upon Request | HEP3706 | Upon Request | Upon Request | Upon Request |
5/16 | 1/2 | 1/4 | Upon Request | HEP3597 | LEP2134 | HEP3598 | HEP3599 | LEP2135 | HEP3600 | Upon Request | HEP3601 | Upon Request | HEP3602 | Upon Request |
21/64 | 9/16 | 1/4 | Upon Request | Upon Request | Upon Request | HEP3603 | Upon Request | Upon Request | LEP2136 | Upon Request | HEP3707 | Upon Request | HEP3708 | Upon Request |
11/32 | 9/16 | 1/4 | Upon Request | HEP3604 | LEP2137 | HEP3605 | Upon Request | Upon Request | LEP2138 | Upon Request | HEP3709 | Upon Request | HEP3710 | Upon Request |
23/64 | 5/8 | 1/4 | Upon Request | Upon Request | Upon Request | HEP3606 | Upon Request | Upon Request | LEP2139 | Upon Request | HEP3711 | Upon Request | Upon Request | Upon Request |
25/64 | 5/8 | 1/4 | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | HEP3718 | Upon Request | HEP3712 | Upon Request | Upon Request | Upon Request |
3/8 | 5/8 | 1/4 | Upon Request | HEP3607 | LEP2140 | HEP3608 | HEP3609 | LEP2141 | HEP3610 | Upon Request | HEP3611 | Upon Request | HEP3612 | Upon Request |
13/32 | 11/16 | 1/4 | Upon Request | HEP3613 | Upon Request | HEP3614 | Upon Request | Upon Request | LEP2142 | Upon Request | HEP3713 | Upon Request | Upon Request | Upon Request |
29/64 | 45/64 | 1/4 | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | HEP3714 | Upon Request | Upon Request | Upon Request |
7/16 | 11/16 | 1/4 | Upon Request | HEP3615 | LEP2143 | HEP3616 | Upon Request | Upon Request | HEP3617 | Upon Request | HEP3618 | Upon Request | HEP3619 | Upon Request |
15/32 | 3/4 | 1/4 | Upon Request | HEP3620 | Upon Request | HEP3621 | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request |
1/2 | 3/4 | 1/4 | Upon Request | HEP3622 | LEP2144 | HEP3623 | HEP3624 | LEP2145 | HEP3625 | Upon Request | HEP3626 | Upon Request | HEP3627 | HEP3715 |
17/32 | 25/32 | 1/4 | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | Upon Request | HEP3721 | Upon Request | HEP3716 | Upon Request | Upon Request | Upon Request |
9/16 | 13/16 | 1/4 | Upon Request | HEP3628 | Upon Request | HEP3629 | Upon Request | Upon Request | HEP3630 | Upon Request | LEP2146 | Upon Request | HEP3719 | Upon Request |
5/8 | 7/8 | 1/4 | Upon Request | HEP3631 | Upon Request | HEP3632 | Upon Request | LEP2148 | HEP3633 | Upon Request | HEP3634 | Upon Request | HEP3635 | Upon Request |
11/16 | 15/16 | 1/4 | Upon Request | HEP3636 | Upon Request | HEP3637 | Upon Request | Upon Request | LEP2155 | Upon Request | LEP2149 | Upon Request | Upon Request | Upon Request |
3/4 | 1 | 1/4 | Upon Request | HEP3638 | LEP2150 | HEP3639 | Upon Request | LEP2151 | HEP3640 | Upon Request | HEP3641 | Upon Request | HEP3642 | Upon Request |
7/8 | 1 1/8 | 1/4 | Upon Request | Upon Request | Upon Request | LEP2152 | Upon Request | Upon Request | HEP3720 | Upon Request | LEP2153 | Upon Request | Upon Request | Upon Request |
1 | 1 1/4 | 1/4 | Upon Request | LEP2154 | Upon Request | HEP3643 | Upon Request | Upon Request | HEP3644 | Upon Request | HEP3645 | Upon Request | HEP3646 | Upon Request |
