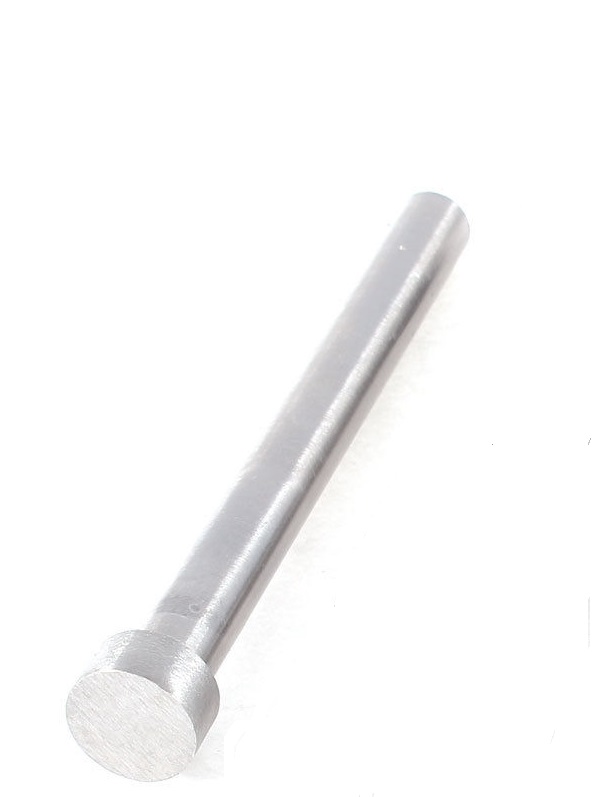

Metric Nitride Ejector Pins - Straight Style , Mold Components

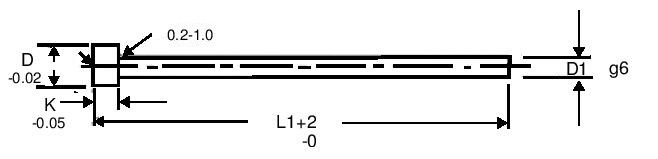

JBF National nitride ejector pins are manufactured using certified H-13 die steel and come completely nitride processed. These ejector pins feature a head that is both hot forged and annealed, in addition to being ground finished under the head for maximum seating. Our ejector pins have a 45 R/C core hardness, 68/74 R/C surface hardness and are laser inspected throughout the entire manufacturing process. Please see component diagram below.


D1	D2	K	100	125	160	200	250	315	400	500	630	800	1000
1.0	4	2	MEP1011	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request
1.5	4	2	MEP1010	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request
2.0	4	2	MT7650	MT7651	MT7652	MT7653	MT7654	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request
2.2	4	2	MEP1012	Upon Request	MEP1013	Upon Request	MEP1014	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request
2.5	5	2	MT7655	MT7656	MT7657	MT7658	MT7659	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request
2.7	5	2	MEP1015	Upon Request	MEP1016	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request
3.0	6	3	MT7660	MT7661	MT7662	MT7663	MT7664	MT7665	MT7666	MT7667	Upon Request	Upon Request	Upon Request
3.2	6	3	MEP1017	Upon Request	MEP1018	Upon Request	MEP1019	MEP1020	MEP1021	Upon Request	Upon Request	Upon Request	Upon Request
3.5	7	3	MT7668	MT7669	MT7670	MT7671	MT7672	MT7673	Upon Request	Upon Request	Upon Request	Upon Request	Upon Request
3.7	7	3	MEP1022	Upon Request	MEP1023	Upon Request	MEP1024	MEP1025	MEP1026	Upon Request	Upon Request	Upon Request	Upon Request
4.0	8	3	MT7674	MT7675	MT7676	MT7677	MT7678	MT7679	MT7680	MT7681	Upon Request	Upon Request	Upon Request
4.2	8	3	MEP1027	Upon Request	MEP1028	Upon Request	MEP1029	MEP1030	MEP1031	Upon Request	Upon Request	Upon Request	Upon Request
4.5	8	3	MT7682	MT7683	MT7684	MT7685	MT7686	MT7687	MT7688	Upon Request	Upon Request	Upon Request	Upon Request
5.0	10	3	MT7689	MT7690	MT7691	MT7692	MT7693	MT7694	MT7695	MT7696	MT7697	Upon Request	Upon Request
5.2	10	3	MEP1032	Upon Request	MEP1033	Upon Request	MEP1034	MEP1035	MEP1036	Upon Request	Upon Request	Upon Request	Upon Request
5.5	10	3	MEP1038	Upon Request	MEP1039	Upon Request	MEP1040	MEP1041	MEP1042	MEP1043	Upon Request	Upon Request	Upon Request
6.0	12	5	MT7698	MT7699	MT7700	MT7701	MT7702	MT7703	MT7704	MT7705	MT7706	Upon Request	Upon Request
6.2	12	5	MEP1044	Upon Request	MEP1045	Upon Request	MEP1046	MEP1047	MEP1048	MEP1049	Upon Request	Upon Request	Upon Request
6.5	12	5	MEP1050	Upon Request	MEP1051	Upon Request	MEP1052	MEP1053	MEP1054	MEP1055	Upon Request	Upon Request	Upon Request
7.0	12	5	MEP1056	Upon Request	MEP1057	Upon Request	MEP1058	MEP1059	MEP1060	Upon Request	Upon Request	Upon Request	Upon Request
8.0	14	5	MT7707	MT7708	MT7709	MT7710	MT7711	MT7712	MT7713	Upon Request	Upon Request	Upon Request	Upon Request
8.2	14	5	MEP1062	Upon Request	MEP1063	Upon Request	MEP1064	MEP1065	MEP1066	MEP1067	MEP1068	Upon Request	Upon Request
8.5	14	5	MEP1069	Upon Request	MEP1070	Upon Request	MEP1071	MEP1072	MEP1073	MEP1074	MEP1075	Upon Request	Upon Request
9.0	14	5	MEP1132	Upon Request	MEP1133	Upon Request	MEP1134	MEP1135	MEP1136	MEP1137	MEP1138	Upon Request	Upon Request
10.0	16	5	MT7714	MT7715	MT7716	MT7717	MT7718	MT7719	MT7720	MT7721	MT7722	Upon Request	Upon Request
10.2	16	5	MEP1076	Upon Request	MEP1077	Upon Request	MEP1078	MEP1079	MEP1080	MEP1081	MEP1082	Upon Request	Upon Request
10.5	16	5	MEP1083	Upon Request	MEP1084	Upon Request	MEP1085	MEP1086	MEP1087	MEP1088	MEP1089	Upon Request	Upon Request
11.0	16	5	MEP1090	Upon Request	MEP1091	Upon Request	MEP1092	MEP1093	MEP1094	MEP1095	MEP1096	Upon Request	Upon Request
12.0	20	7	MT7723	MT7724	MT7725	MT7726	MT7727	MT7728	MT7729	MT7730	MT7731	Upon Request	Upon Request
12.2	20	7	MEP1097	Upon Request	MEP1098	Upon Request	MEP1099	MEP1100	MEP1101	Upon Request	Upon Request	Upon Request	Upon Request
12.5	20	7	MEP1102	Upon Request	MEP1103	Upon Request	MEP1104	MEP1105	MEP1106	MEP1107	MEP1108	MEP1109	Upon Request
14.0	22	7	MEP1110	Upon Request	MT7732	MT7733	MT7734	MT7735	MT7736	MT7737	MT7738	MEP1113	MEP1111
16.0	22	7	MEP1114	Upon Request	MT7739	MT7740	MT7741	MT7742	MT7743	MT7744	MT7745	MEP1115	Upon Request
18.0	24	7	MEP1116	Upon Request	MEP1117	Upon Request	MEP1118	MEP1119	MEP1120	MEP1121	MEP1122	Upon Request	Upon Request
20.0	26	8	MEP1123	Upon Request	MEP1125	Upon Request	MEP1126	MEP1127	MEP1128	MEP1129	MEP1130	MEP1131	MEP1124
25.0	32	10	Upon Request	Upon Request	Upon Request	Upon Request	MEP1140	MEP1141	MEP1142	Upon Request	MEP1144	MEP1145	MEP1139
32.0	40	10	Upon Request	Upon Request	Upon Request	Upon Request	MEP1147	MEP1148	MEP1149	MEP1150	MEP1151	MEP1152	MEP1146
