Ejector Sleeves

Ejector Sleeves
Click to enlarge

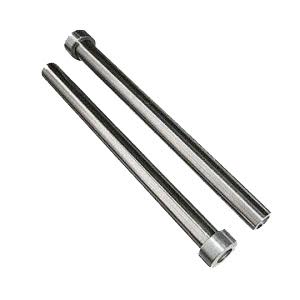

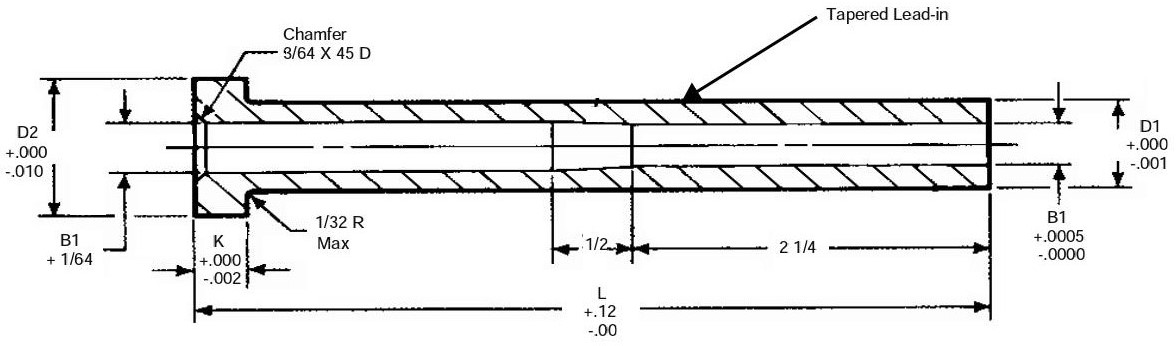

JBF National ejector sleeves are manufactured using certified H-13 die steel and come completely bright nitride processed both inside and out. These ejector sleeves can both be used as housing for the ejector pin or as the actual ejector pin itself. These ejector sleeves feature a ground finish under the sleeve head to ensure the best seating possible. Surface Hardness: HRC65-74 Core Hardness: HRC 40 +/-5  Please see component diagram below.

D1B1D2KL2456789101112
3/163/323/83/162.25EY6420EY6421EY6422EY6423Upon RequestUpon RequestUpon RequestUpon RequestUpon Request
7/321/813/323/162.25EY6424EY6425EY6426EY6427Upon RequestUpon RequestUpon RequestUpon RequestUpon Request
1/45/327/163/162.25EY6428EY6429EY6430EY6431EY6432EY6433EY6434Upon RequestUpon Request
5/163/161/21/42.25EY6435EY6436EY6437EY6438EY6439EY6440EY6441EY6442EY6443
11/327/329/161/42.25EY6444EY6445EY6446EY6447EY6448EY6449EY6450Upon RequestUpon Request
3/81/45/81/42.25EY6451EY6452EY6453EY6454EY6455EY6456EY6457EY6458EY6459
7/165/1611/161/42.25EY6460EY6461EY6462EY6463EY6464EY6465EY6466EY6467EY6468
1/23/83/41/42.25EY6469EY6470EY6471EY6472EY6473EY6474EY6475EY6476EY6477
5/87/167/81/42.25EY6478EY6479EY6480EY6481EY6482EY6483EY6484EY6485EY6486
11/161/215/161/42.25EY6487EY6488EY6489EY6490EY6491EY6492EY6493EY6494EY6495
3/49/1611/42.25EY6496EY6497EY6498EY6499EY6500EY6501EY6502EY6503EY6504
7/85/81 1/81/42.25EY6505EY6506EY6507EY6508EY6509EY6510EY6511EY6512EY6513
13/41 1/41/42.25EY6514EY6515EY6516EY6517EY6518EY6519EY6520EY6521EY6522
