Core Pins-Hard Core Pins

Core Pins-Hard Core Pins
Click to enlarge

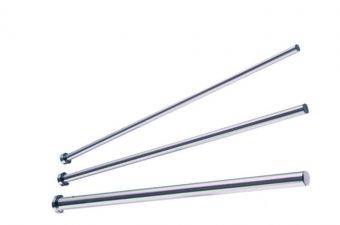

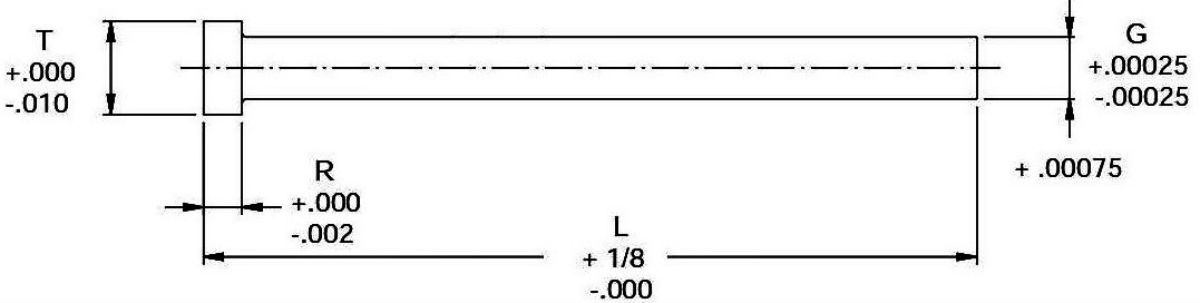

JBF National hard core-core pins come manufactured from hot forged and annealed steel, and feature a ground finish. To ensure the highest quality, JBF National hard core pins are laser inspected throughout the entire manufacturing process. Hard core pin through hardness is 50/55 RC.  Please see component diagram below.

GTRL=3L=6L=10L=14L=18
3/321/41/8HCP5620HCP5621HCP5622HCP5700Upon Request
7/641/41/8HCP5623HCP5624HCP5625HCP5701HCP5737
1/81/41/8HCP5626HCP5627Upon RequestHCP5702Upon Request
9/641/41/8HCP5628HCP5629HCP5630HCP5703Upon Request
5/329/325/32HCP5631HCP5632HCP5633HCP5704Upon Request
11/6411/323/16HCP5634HCP5635HCP5636HCP5705Upon Request
3/163/83/16HCP5637HCP5638HCP5639HCP5706HCP5735
13/643/83/16HCP5640HCP5641HCP5642HCP5707Upon Request
7/3213/323/16HCP5643HCP5644HCP5645HCP5708Upon Request
15/647/163/16Upon RequestUpon RequestUpon RequestHCP5709HCP5736
1/47/163/16HCP5646HCP5647HCP5648HCP5710HCP5711
9/327/161/4HCP5649HCP5650HCP5651HCP5713HCP5738
5/161/21/4HCP5652HCP5653HCP5654HCP5739HCP5740
21/641/21/4Upon RequestUpon RequestUpon RequestHCP5714HCP5741
11/329/161/4HCP5655HCP5656HCP5657HCP5715HCP5742
23/645/81/4Upon RequestUpon RequestUpon RequestHCP5716HCP5743
3/85/81/4HCP5658HCP5659HCP5660Upon RequestHCP5717
13/3211/161/4HCP5661HCP5662HCP5663HCP5718HCP5745
7/1611/161/4HCP5664HCP5665HCP5666HCP5719HCP5720
29/6411/161/4Upon RequestUpon RequestUpon RequestHCP5721HCP5746
15/323/41/4HCP5667HCP5668HCP5669HCP5722HCP5747
1/23/41/4HCP5670HCP5671HCP5672HCP5723HCP5724
17/3213/161/4Upon RequestUpon RequestUpon RequestHCP5725HCP5748
9/1613/161/4Upon RequestHCP5673HCP5674HCP5726HCP5749
5/87/81/4Upon RequestHCP5675HCP5676HCP5727HCP5728
3/411/4Upon RequestHCP5677HCP5678HCP5729HCP5730
15/1611/4Upon RequestUpon RequestUpon RequestHCP5731HCP5732
11 1/4 1/4Upon RequestUpon RequestUpon RequestHCP5733HCP5734
