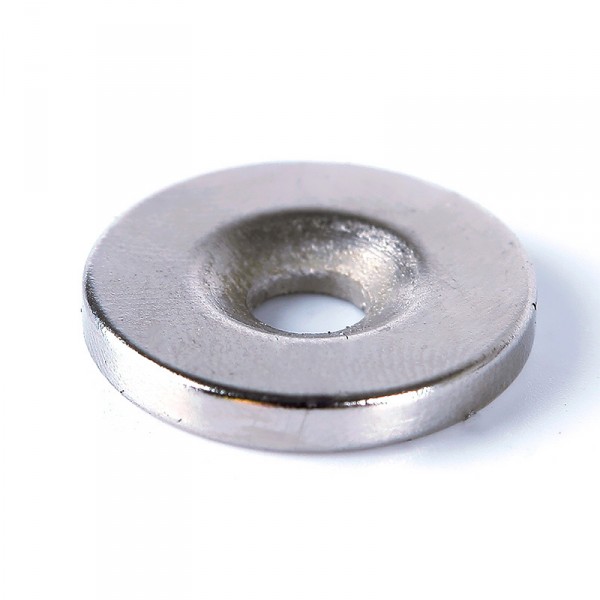

Rare Earth Neodymium Magnets W/ Countersunk Holes N42-N48
JBF National neodymium diametric disc and cylinder magnets are crafted from the highest quality rare earth neodymium. These magnets are utilized across a wide spectrum of industries for a multitude of uses. To ensure longevity and maximum protection from corrosion, these magnets come triple coated with a base and top finish layer of nickel, with a layer of copper in between. Also, the holes these magnets feature make affixing them in place as needed, no issue at all.
| JBF National Part Number | Description | Outer Dia. | H | Countersunk Hole Dimmensions | Grade | Pull Strength Lbs. |
|---|---|---|---|---|---|---|
| 1NMCHH-1386 | Neodymium Magnets 3/8 in x 1/8 in w/Taper Hole Rare Earth N42 | 0.38 | 0.13 | 0.25 inch x 0.125 inch 90 degree taper | N42 | 3.5 |
| 2NMCHH-1387 | Neodymium Magnets 1/2 in x 1/8 in Disc w/Countersunk Hole Rare Earth | 0.50 | 0.13 | 0.25 inch x 0.125 inch 90 degree taper | N42 | 6.5 |
| 2NMCHH-1388 | Neodymium N48 Magnets 1/2 in x 1/8 in Disk w/Countersunk Hole | 0.50 | 0.13 | 0.25 inch x 0.125 inch 90 degree taper | N48 | 7.0 |
| 2NMCHH-1389 | N45 Neodymium Magnets 1/2 in x 1/4 in Disc Dual Countersunk Hole | 0.50 | 0.25 | 0.25 inch x 0.125 inch 90 degree taper dual sided countersunk hole | N45 | 13.0 |
| 4NMCHH-1391 | #4 Screw Neodymium Disc Magnets 3/4 in x 1/8 in w/Countersunk | 0.75 | 0.13 | 0.25 inch x 0.125 inch 90 degree taper | N42 | 8.8 |
| 4NMCHH-1392 | #8 Screw Neodymium Magnets 3/4 in x 1/8 in Disk w/Countersunk | 0.75 | 0.13 | 0.34 inch x 0.17 inch 90 degree taper | N42 | 8.8 |
| 4NMCHH-1393 | N48 Strong Neodymium Magnets 3/4 in x 1/8 in Disk w/#8 Countersunk Hole | 0.75 | 0.13 | 0.355 inch x 0.195 inch 82 degree taper | N48 | 10.0 |
| 5NMCHH-1394 | Neodymium Disc Magnets 1 in x 1/8 in w/Countersunk Hole | 1.00 | 0.13 | 0.328 inch x 0.172 inch tapered hole | N42 | 16.0 |
| 5NMCHH-1395 | Rare Earth Magnets 1 in x 3/16 in w/Countersunk Hole Neodymium Disk | 1.00 | 0.19 | 0.32 inch x 0.18 inch 82 degree tapered hole | N42 | 18.0 |
| 5NMCHH-1396 | Neodymium Magnets 1 in x 1/4 in w/Dual Sided Countersunk Hole Disc | 1.00 | 0.25 | 0.365 inch x 0.195 inch 90 degree taper | N42 | 24 |
| 5NMCHH-1397 | Neodymium Magnets 1 in x 1/2 in Disc Dual Sided Countersunk Hole | 1.00 | 0.50 | 0.365 inch x 0.195 inch 90 degree tapered hole | N42 | 49.0 |
| 6NMCHH-1398 | Neodymium Magnets 1.5 in x 3/8 in w/Dual Sided Countersunk Hole Disc | 1.50 | 0.38 | 0.36 inch x 0.18 inch 90 degree taper | N42 | 69.0 |
| 7NMCHH-1399 | 2 in x 1/2 in Disc w/#8 Dual Sided Countersunk Hole Neodymium Magnets | 2.00 | 0.50 | 0.365 inch x0.195 inch | N45 | 115.0 |
