Neodymium Diametric Disc & Cylinder Rare Earth Magnets With Holes

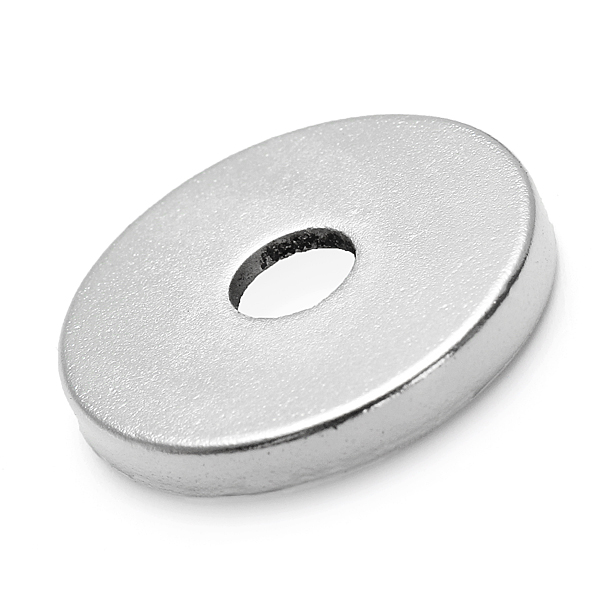

Neodymium Diametric Disc Magnet with Mounting Hole

JBF National neodymium diametric disc and cylinder magnets are crafted from the highest quality rare earth neodymium. These magnets are utilized across a wide spectrum of industries for a multitude of uses. These magnets feature diametric poles that are located on opposing cylinder sides, and to ensure longevity and maximum protection from corrosion, these magnets come triple coated with a base and top finish layer of nickel, with a layer of copper in between. Also, the holes these magnets feature make affixing them in place as needed no issue at all.

JBF National Part NumberDescriptionOuter Dia.HCenter Hole Dia.GradePull Strength Lbs.
2NDCYH-1174Diametrically Magnetized 3/4 in x 3/4 in Cylinder w/Hole Neo Magnets0.750.750.25N4247
3NDCYH-1175Neodymium Magnet 1 in x 1 in with 1/4 in Hole Diametrically Magnetized110.25N4260
1NDCYH-1176NdFeB N48 Diametrically Magnetized Ring 1/2 in OD x 1/4 in ID x 1/4 in0.50.250.25N488
2NDCYH-1177Diametrically Magnetized 3/4 in OD x 1/4 in ID x 3/4 in Ring Magnets0.750.750.25N4247
