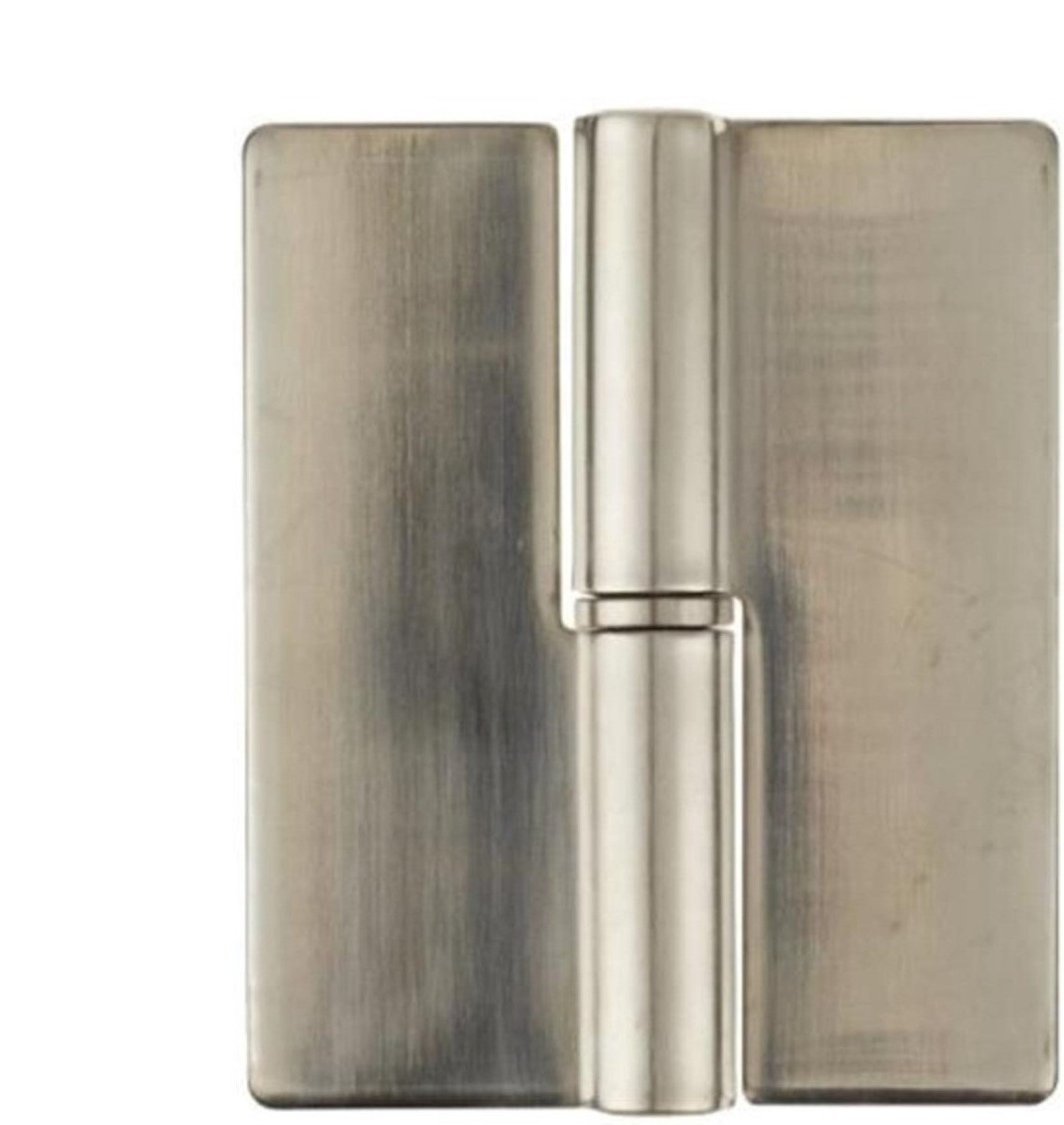

Loose Joint Hinges-Mortise Style-Steel
These mortise style loose joint hinges from JBF National are made from the highest quality steel, and have been designed and tested for maximum durability and reliability. Contact a JBF National sales engineer today for more information.
| JBF National Part Number / Left Hand | JBF National Part Number / Right Hand | Gauge | Width Open | Length | Pin Dia. | |
|---|---|---|---|---|---|---|
| 1LJLM-1047 | 1RJLM-1047 | .048 | 1-1/4 | 2 | .125 | |
| 1LJLM-1048 | 1RJLM-1048 | .048 | 1-1/2 | 2 | .125 | |
| 1LJLM-1049 | 1RJLM-1049 | .048 | 2 | 3 | .125 | |
| 1LJLM-1050 | 1RJLM-1050 | .048 | 1-1/2 | 2-1/2 | .125 | |
| 2LJLM-1051 | 2RJLM-1051 | .060 | 1 | 1-1/2 | .125 | |
| 2LJLM-1052 | 2RJLM-1052 | .060 | 1-1/4 | 2 | .125 | |
| 2LJLM-1053 | 2RJLM-1053 | .060 | 1-1/2 | 2 | .125 | |
| 2LJLM-1054 | 2RJLM-1054 | .060 | 2 | 2 | .125 | |
| 2LJLM-1055 | 2RJLM-1055 | .060 | 2 | 2-1/2 | .125 | |
| 2LJLM-1056 | 2RJLM-1056 | .060 | 2 | 3 | .125 | |
| 3LJLM-1057 | 3RJLM-1057 | .075 | 1-1/2 | 2 | .125 | |
| 3LJLM-1058 | 3RJLM-1058 | .075 | 2 | 2-1/2 | .125 | |
| 3LJLM-1059 | 3RJLM-1059 | .075 | 2 | 3 | .187 | |
| 3LJLM-1060 | 3RJLM-1060 | .075 | 3 | 4 | .187 | |
| 4LJLM-1061 | 4RJLM-1061 | .090 | 2 | 2-1/2 | .187 | |
| 4LJLM-1062 | 4RJLM-1062 | .090 | 3 | 3 | .250 | |
| 4LJLM-1064 | 4RJLM-1064 | .090 | 3 | 4 | .250 | |
| 5LJLM-1065 | 5RJLM-1065 | .120 | 3 | 4 | .250 | |
| 5LJLM-1066 | 5RJLM-1066 | .120 | 4 | 4 | .250 |
