Anti-Vibration Light Duty Tapped Control Mounts

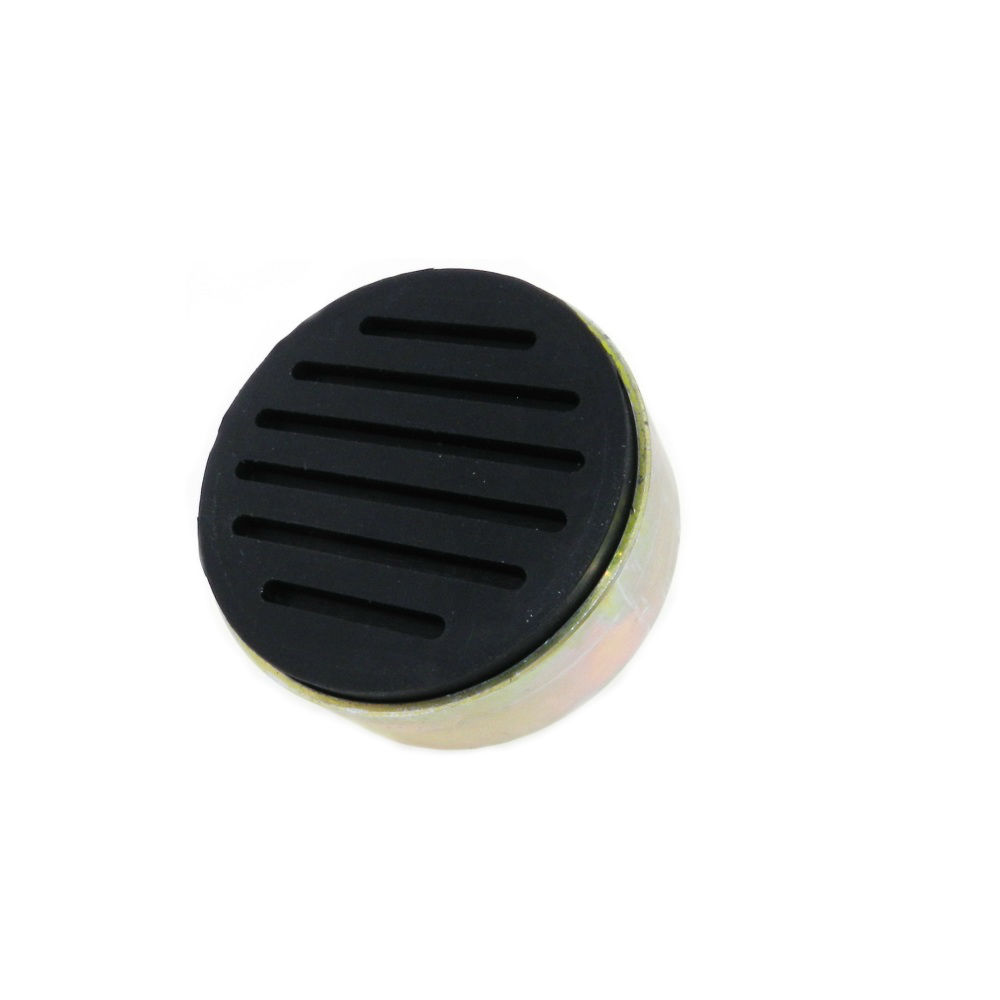

JBF National’s light duty tapped control mount is excellent at reducing felt vibration transmissions up to 98%. To ensure durability, these mounts are made from the highest quality steel. No matter the type of light duty equipment in need of stabilization, these mounts which feature a rubber anti-skid pad attached to the bottom, will make sure your machinery is stable and safe. Inch, metric, steel, and stainless steel versions available. Please see component diagram below.
| JBF National Steel P/N Inch | JBF National Stainless P/N Inch | Thread (A) | Base Dia (B) | Total Height (D) | Max Load (lbs) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|
| 1AMLD-1019 | 1AMLD-1019SS | 3/8-16 | 1 1/4 | 1 1/2 | 200 | 5/8 | 0.28 |
| 1AMLD-1020 | 1AMLD-1020SS | 1/2-13 | 1 7/8 | 1 3/4 | 500 | 3/4 | 0.70 |
| 1AMLD-1021 | 1AMLD-1021SS | 5/8-11 | 2 1/2 | 1 7/8 | 900 | 7/8 | 1.24 |
| 1AMLD-1022 | 1AMLD-1022SS | 3/4-10 | 3 | 2 1/8 | 1250 | 1 1/16 | 2.12 |
| 1AMLD-1023 | 1AMLD-1023SS | 1-8 | 4 | 2 1/2 | 2250 | 1 3/8 | 3.86 |
| 1AMLD-1024 | 1AMLD-1024SS | 1 1/4-7 | 6 | 2 7/8 | 5000 | 1 7/8 | 7.70 |
| JBF National Steel P/N Metric | JBF National Stainless P/N Metric | Thread (A) | Base Dia (B) | Total Height (D) | Max Load (kg) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|
| 1MAVL-1055 | 1MAVL-1055SS | M10 | 32 | 38 | 23 | 5/8 | 0.28 |
| 1MAVL-1056 | 1MAVL-1056SS | M12 | 48 | 44 | 55 | 3/4 | 0.70 |
| 1MAVL-1057 | 1MAVL-1057SS | M16 | 64 | 48 | 100 | 7/8 | 1.24 |
| 1MAVL-1058 | 1MAVL-1058SS | M20 | 76 | 54 | 148 | 1 1/16 | 2.12 |
| 1MAVL-1059 | 1MAVL-1059SS | M24 | 102 | 64 | 268 | 1 3/8 | 3.86 |
| 1MAVL-1060 | 1MAVL-1060SS | M30 | 152 | 73 | 314 | 1 7/8 | 7.70 |
