Anti-Vibration Light Duty Control Mounts

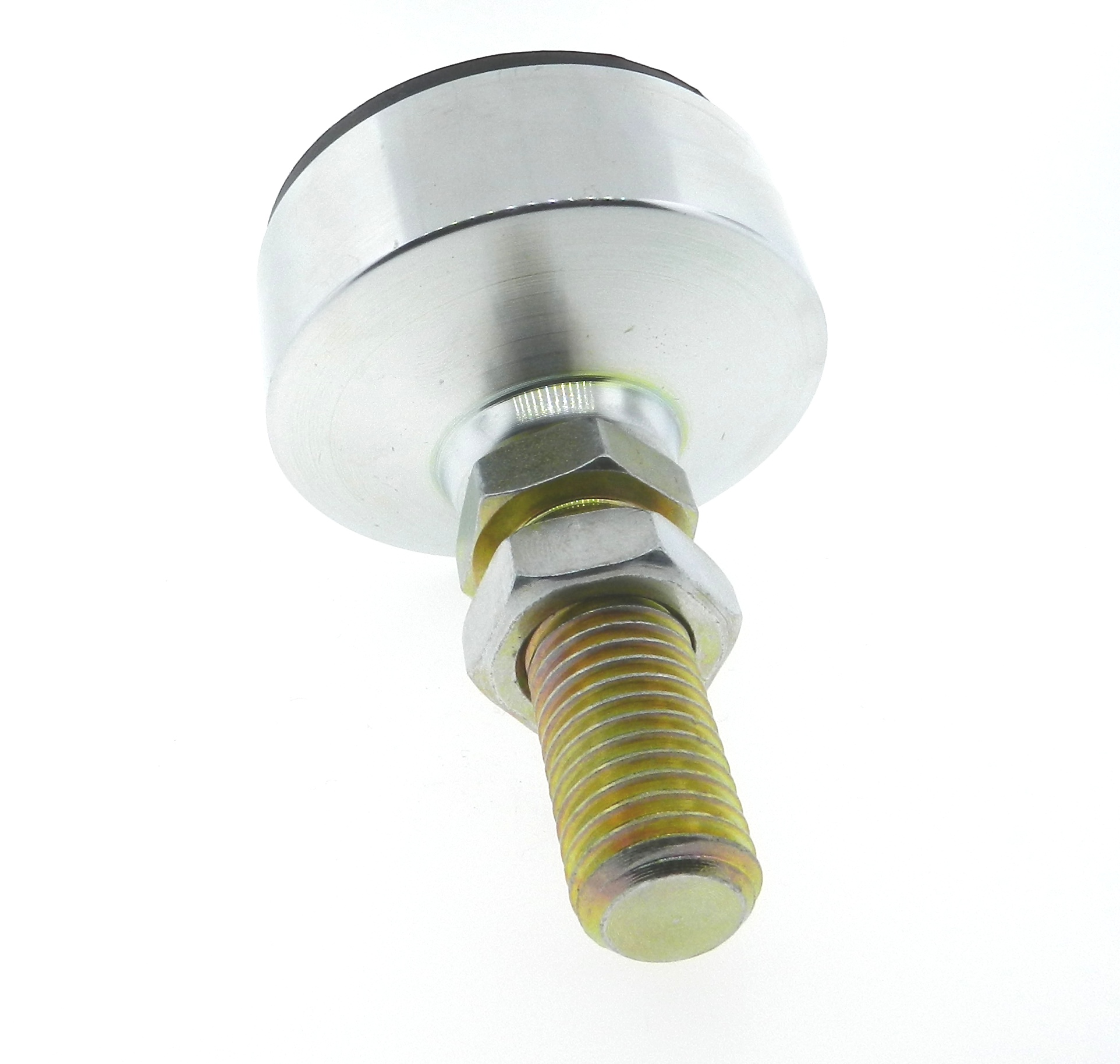

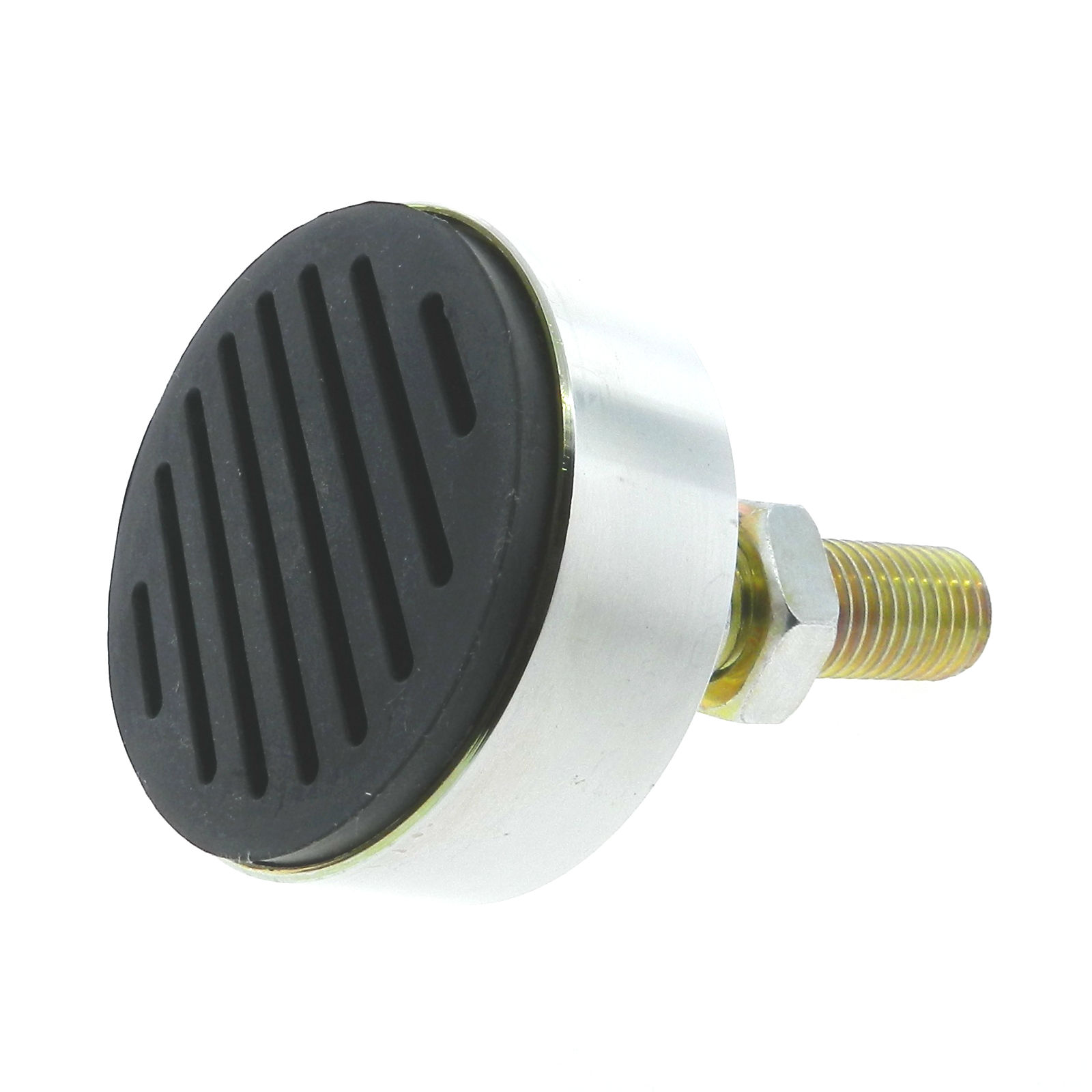

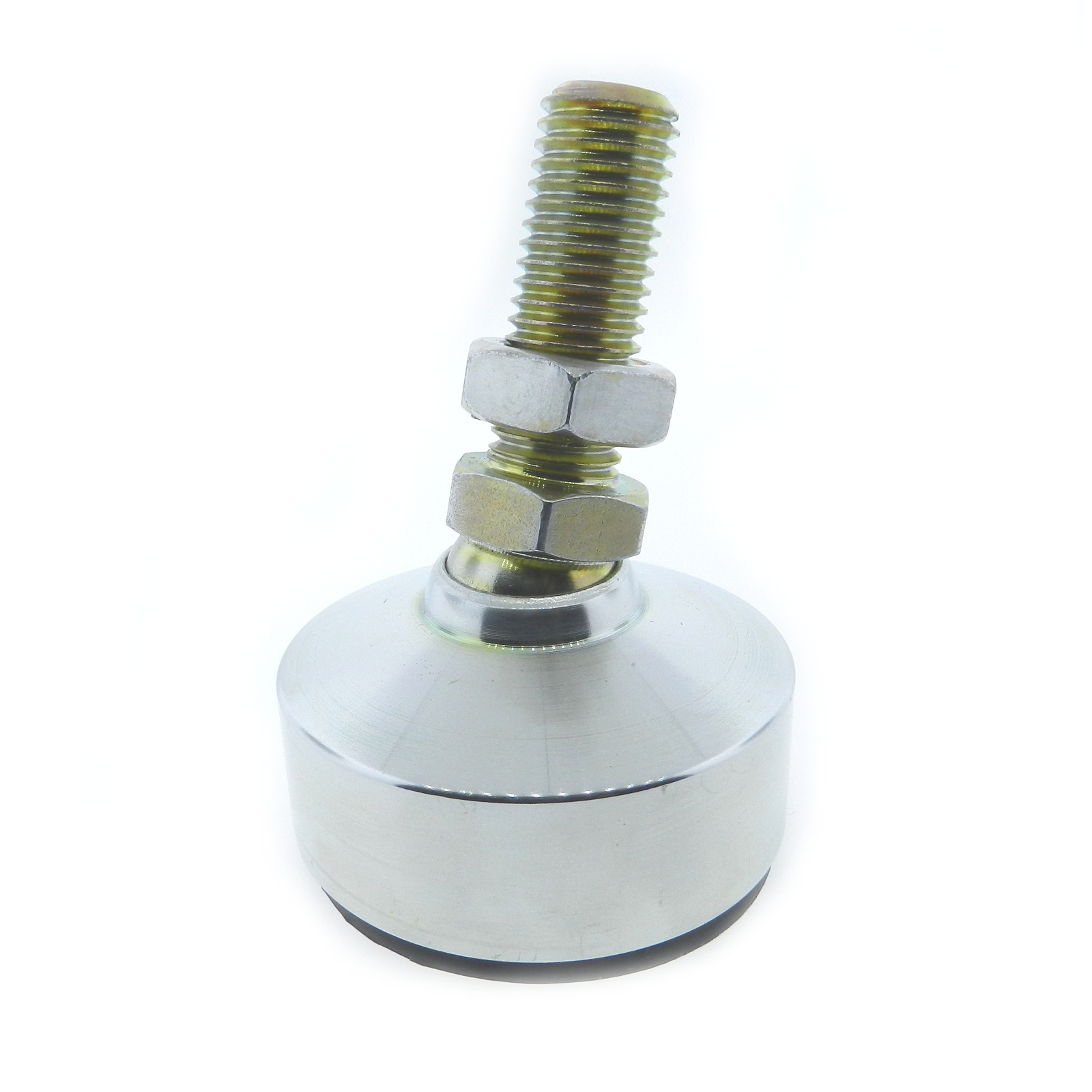

JBF National’s light duty control mount is excellent at reducing felt vibration transmissions up to 98%. To ensure durability, these mounts are made from the highest quality steel. No matter the type of light duty equipment in need of stabilization, these mounts which feature a rubber anti-skid pad attached to the bottom, will make sure your machinery is stable and safe. Inch, metric, steel, and stainless steel versions available. Please see component diagram below.
| JBF Steel P/N Inch | JBF SS P/N Inch | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Max Load (lbs) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|
| 1AMLD-1012 | 1AMLD-1012SS | 3/8-16 | 1 1/4 | 2 | 3 1/2 | 200 | 5/8 | 0.36 |
| 1AMLD-1013 | 1AMLD-1013SS | 1/2-13 | 1 7/8 | 2 | 3 3/4 | 500 | 3/4 | 0.84 |
| 1AMLD-1014 | 1AMLD-1014SS | 5/8-11 | 2 1/2 | 2 | 3 7/8 | 900 | 7/8 | 1.48 |
| 1AMLD-1015 | 1AMLD-1015SS | 3/4-10 | 3 | 2 | 4 1/8 | 1250 | 1 1/16 | 2.46 |
| 2AMLD-1016 | 2AMLD-1017SS | 1-8 | 4 | 3 1/2 | 6 | 2250 | 1 3/8 | 4.56 |
| 3AMLD-1017 | 3AMLD-1018SS | 1 1/4-7 | 6 | 4 | 6 7/8 | 5000 | 1 7/8 | 9.52 |
| JBF Steel P/N Metric | JBF SS P/N Metric | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Max Load (kg) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|
| 1MAVL-1049 | 1MAVL-1049SS | M10 | 32 | 51 | 89 | 23 | 5/8 | 0.36 |
| 1MAVL-1050 | 1MAVL-1050SS | M12 | 48 | 51 | 85 | 55 | 3/4 | 0.84 |
| 1MAVL-1051 | 1MAVL-1051SS | M16 | 64 | 51 | 98 | 100 | 7/8 | 1.48 |
| 1MAVL-1052 | 1MAVL-1052SS | M20 | 76 | 51 | 105 | 148 | 1 1/16 | 2.46 |
| 1MAVL-1053 | 1MAVL-1053SS | M24 | 102 | 89 | 152 | 268 | 1 3/8 | 4.56 |
| 1MAVL-1054 | 1MAVL-1054SS | M30 | 152 | 102 | 175 | 314 | 1 7/8 | 9.52 |
