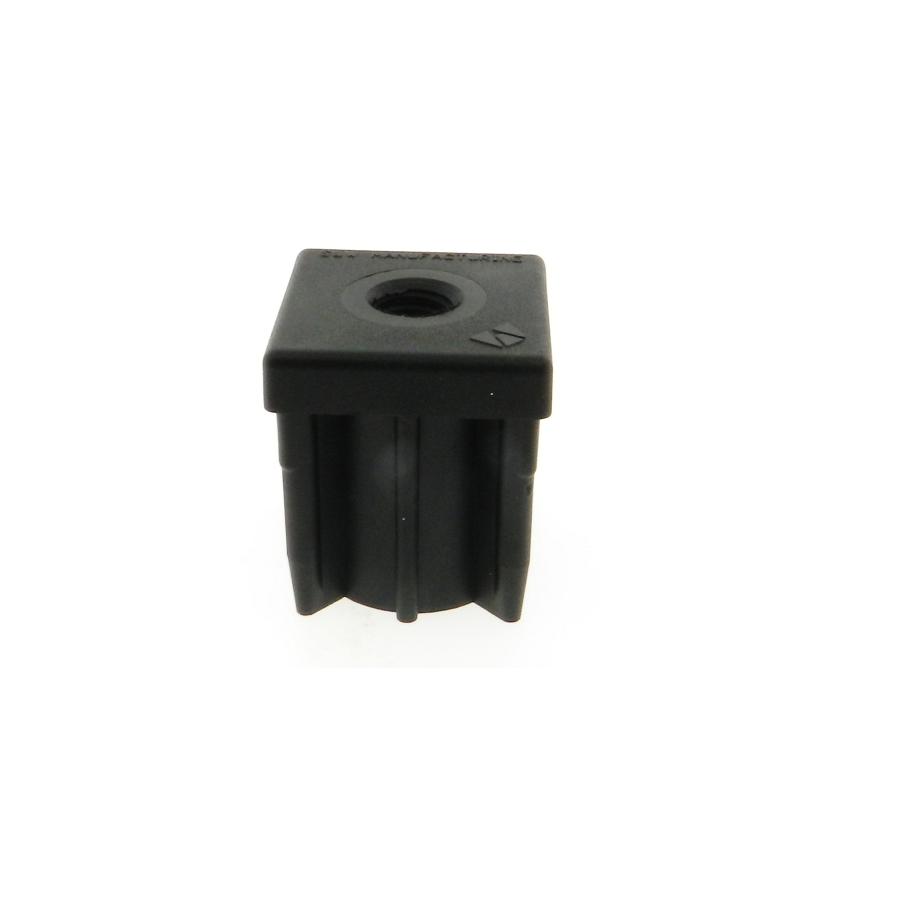

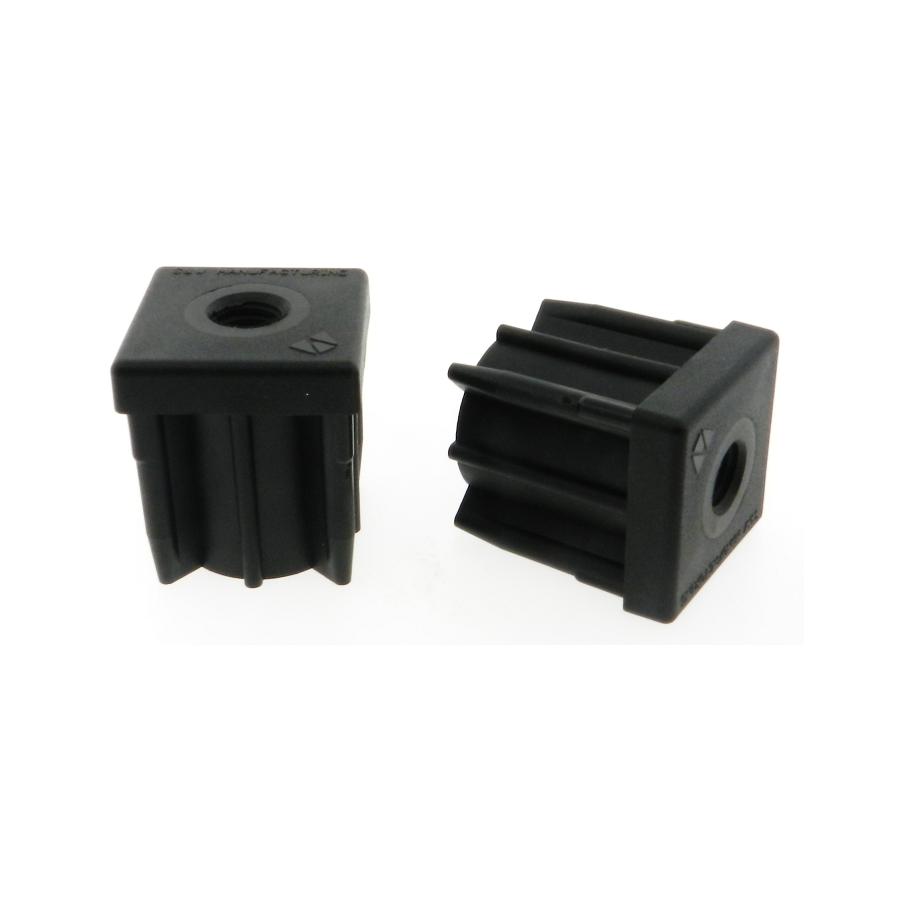

(5) Threaded Tube Ends Square

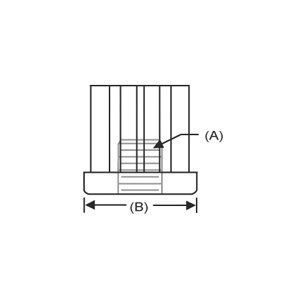

JBF National’s threaded square tube ends, allow for various mount styles to be applied to whatever the situation requires. These tube ends are manufactured from tough polyglass nylon, and feature no metal parts to ensure complete corrosion resistance. Please see component diagram below.
| JBF National Part Number | A | B | Tube Gauge | Tube Outside Dia. | Tube Wall Thickness |
|---|---|---|---|---|---|
| 1TTS-1365 | 3/8-16 | 1.5" sq | 16 | 1.5" | 0.065 |
| 1TTS-1366 | 1/2-13 | 1.5" sq | 16 | 1.5" | 0.065 |
| 1TTS-1367 | 5/8-11 | 1.5" sq | 16 | 1.5" | 0.065 |
| 1TTS-1368 | 3/4-10 | 1.5" sq | 16 | 1.5" | 0.065 |
| 1TTS-1369 | 3/8-16 | 1.5" sq | 11 | 1.5" | 0.12 |
| 1TTS-1370 | 1/2-13 | 1.5" sq | 11 | 1.5" | 0.12 |
| 1TTS-1371 | 5/8-11 | 1.5" sq | 11 | 1.5" | 0.12 |
| 1TTS-1372 | 3/4-10 | 1.5" sq | 11 | 1.5" | 0.12 |
| 2TTS-1373 | 3/8-16 | 2.0" sq | 16 | 2.0" | 0.065 |
| 2TTS-1374 | 1/2-13 | 2.0" sq | 16 | 2.0" | 0.065 |
| 2TTS-1375 | 5/8-11 | 2.0" sq | 16 | 2.0" | 0.065 |
| 2TTS-1376 | 3/4-10 | 2.0" sq | 16 | 2.0" | 0.065 |
| 2TTS-1377 | 3/8-16 | 2.0" sq | 11-12 | 2.0" | .109/.120 |
| 2TTS-1378 | 1/2-13 | 2.0" sq | 11-12 | 2.0" | .109/.120 |
| 2TTS-1379 | 5/8-11 | 2.0" sq | 11-12 | 2.0" | .109/.120 |
| 2TTS-1380 | 3/4-10 | 2.0" sq | 11-12 | 2.0" | .109/.120 |
