(5) Threaded Tube Ends Round

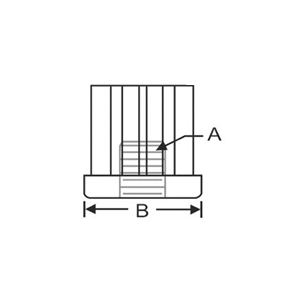

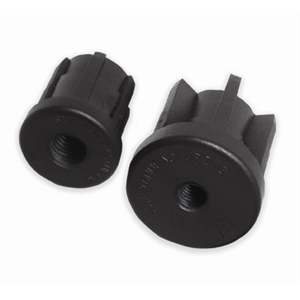

JBF National’s threaded round tube ends, allow for various mount styles to be applied to whatever the situation requires. These tube ends are manufactured from tough polyglass nylon, and feature no metal parts to ensure complete corrosion resistance. Various thread sizes available. Please see component diagram below.

JBF National Part NumberABTube GaugeTube Outside Dia.Tube Wall Thickness
1TTR-13533/8-162.0"2.0 SCH 10 PIPE1.9"0.109
1TTR-13543/8-161.5"161.5"0.065
2TTR-13551/2-132.0"2.0 SCH 10 PIPE1.9"0.109
2TTR-13561/2-131.5"161.5"0.065
3TTR-13575/8-112.0"2.0 SCH 10 PIPE1.9"0.109
3TTR-13585/8-111.5"161.5"0.065
4TTR-13593/4-102.0"2.0 SCH 10 PIPE1.9"0.109
4TTR-13603/4-101.5"161.5"0.065
1TTR-13613/8-162.0"162.0"0.065
2TTR-13621/2-132.0"162.0"0.065
2TTR-13635/8-112.0"162.0"0.065
4TTR-13643/4-102.0"162.0"0.065
